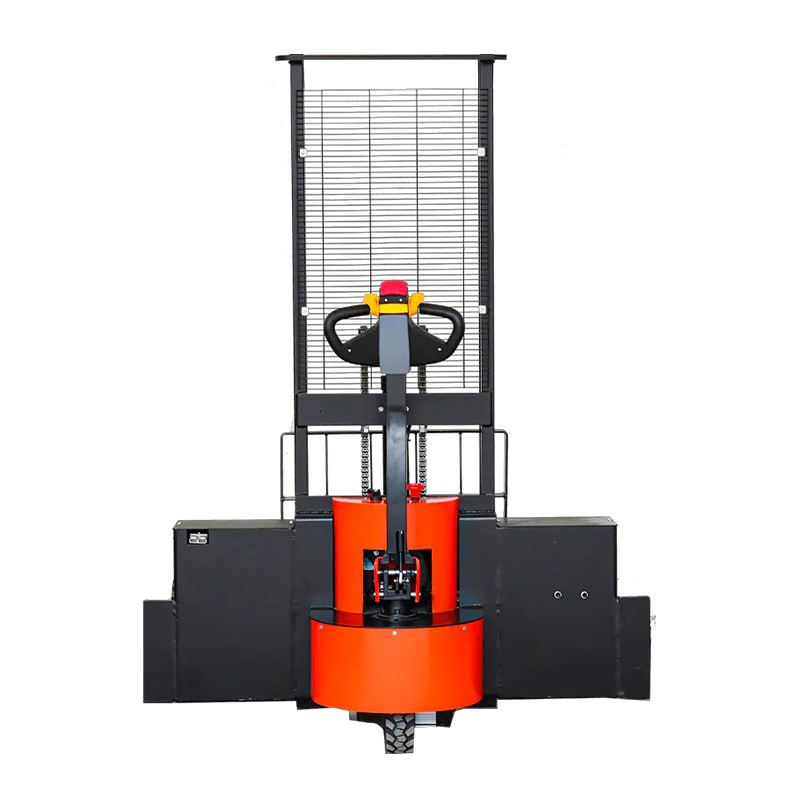

ZGFORKLIFT / MYZG CDDH Warehouse Flow and Purchasing Guide

Product features :

• Pump Brand: BUCHER

• 12V/120Ah GEL Maintenance-free Battery

• AC 1.5kW Horizontal Drive Motor

• Controller Brand: CURTIS

• Wheel: Solid Rubber

Model				CDD-H
Maximum load capacity				1500/2000kg
load center				500mm
Travel speed without load/with load				3.5/3km/h
Lifting speed without load/with load				110/80mm/s
Lowered speed without load/with load				100/100mm/s
Ascend slope ability without load/with load				8/6%
Overall length/width of frame				1730/1570
Wheelbase				1178mm
Fork size（length *width*thickness）				1070*100*35mm
Fork outside width				210-960mm
Min frounf height				50mm
Fork lowered height				130mm
Minimum turning radius				1355mm
Minimum intersecting aisie				2340mm
Front wheel				375*115mm
Drive wheel				300*90mm
Drive motor Rated output/DC motor				1.5kw
Hoist motor Rated output/DC motor				2.2kw
Battery Voltag/Capacity				24/120V/Ah
Battery Weight				35*2kg
Mast	Max.Lifting height	Mast overall height	Mast overall height	Service weight
Single mast	1600 mm	2080 mm	2080 mm	735 kg
2-stage mast	2000 mm	1580 mm	2550 mm	755kg
	2500 mm	1830 mm	3050 mm	790 kg
	3000 mm	2080/1980 mm	3550/3450 mm	820 kg
	3500 mm	2330 mm	4050 mm	850 kg

Full electric stacker refer to various wheeled trucks for loading and unloading, stacking, stacking and short-distance transportation of palletized goods. The International Organization for Standardization ISO/TC110 is called an industrial vehicle. It has simple structure, flexible control, good micro-movement, and high explosion-proof safety performance. It is suitable for operations in narrow passages and limited spaces. It is an ideal equipment for loading and unloading pallets in high-bay warehouses and workshops.

Key Features:

• Powerful Electric Motor: Delivers strong performance and efficient operation, minimizing environmental impact.
• All-Terrain Tires: Equipped with durable, puncture-resistant tires that provide excellent traction on uneven surfaces, such as gravel, mud, and grass.
• Compact and Maneuverable: Its compact design allows for easy maneuverability in tight spaces, while maintaining the ability to lift and transport heavy loads.
• Ergonomic Design: Features comfortable operator controls and a well-designed operator compartment for increased comfort and reduced fatigue during operation.
• Adjustable Mast: Offers adjustable mast heights to accommodate various load heights and storage requirements.
• Heavy-Duty Construction: Built with high-quality components and robust construction to withstand the rigors of outdoor use.
• Maintenance-Friendly: Designed for easy access to key components for routine maintenance and servicing.
• Safety Features: Equipped with essential safety features, such as load backrests, emergency stop buttons, and audible/visual alarms.

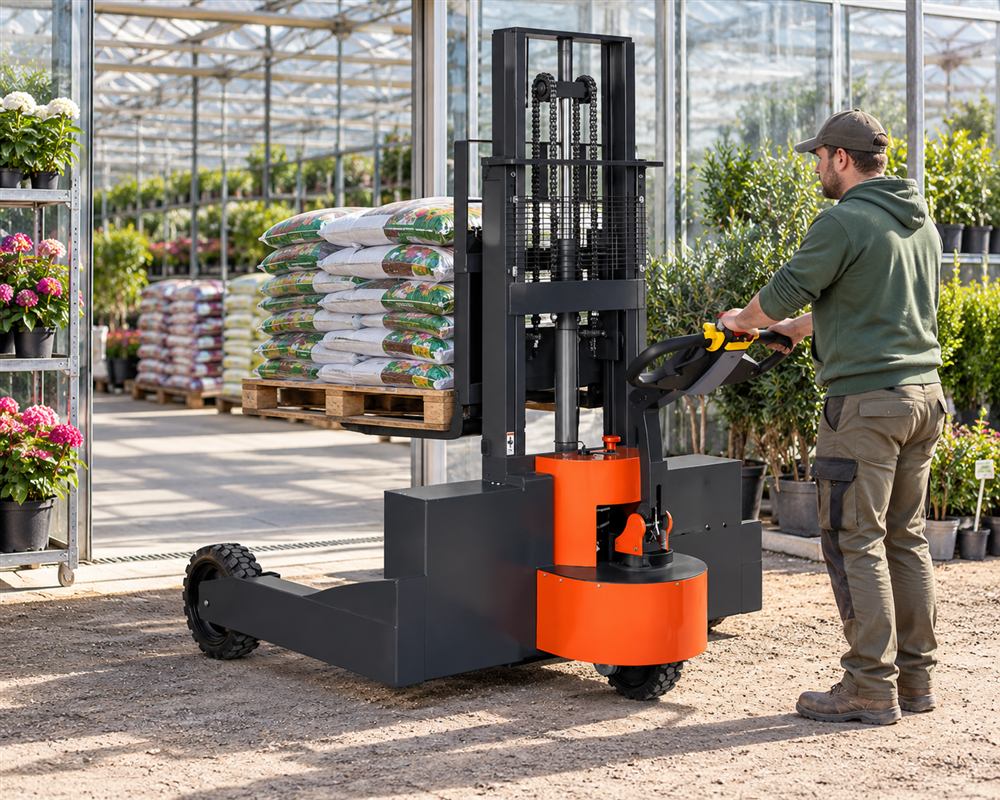

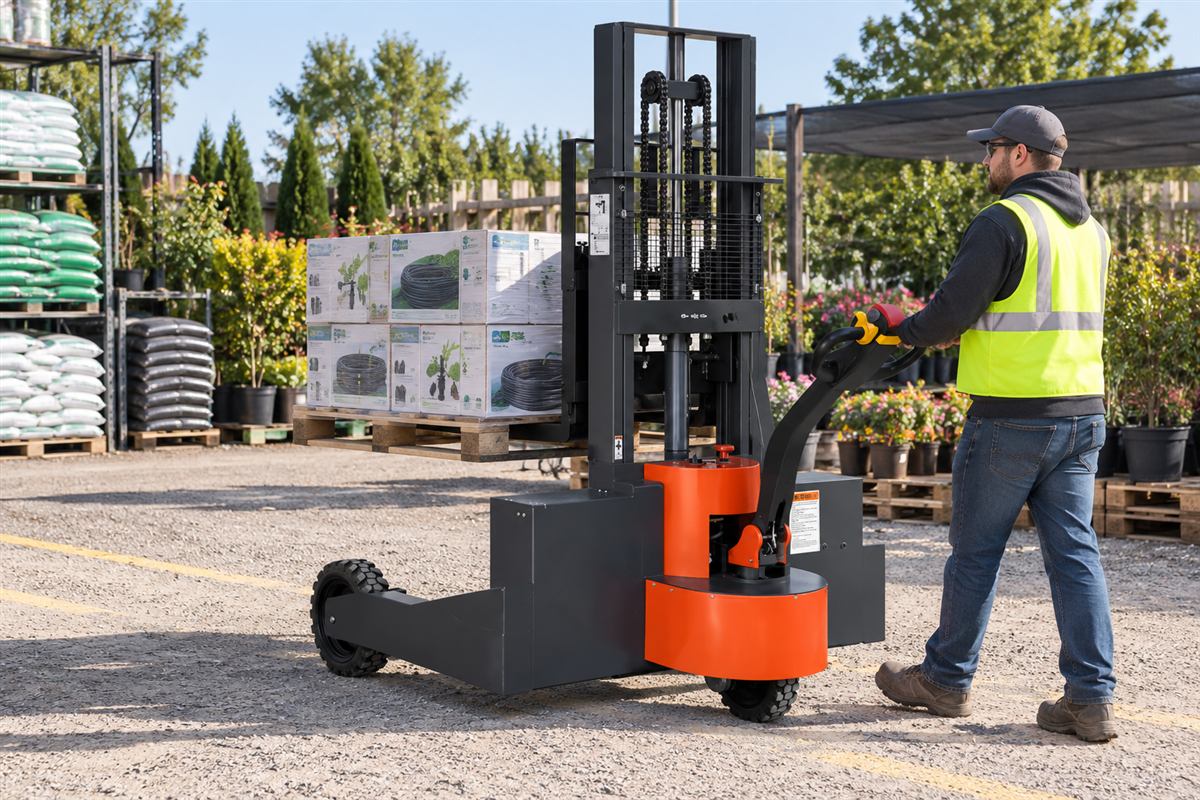

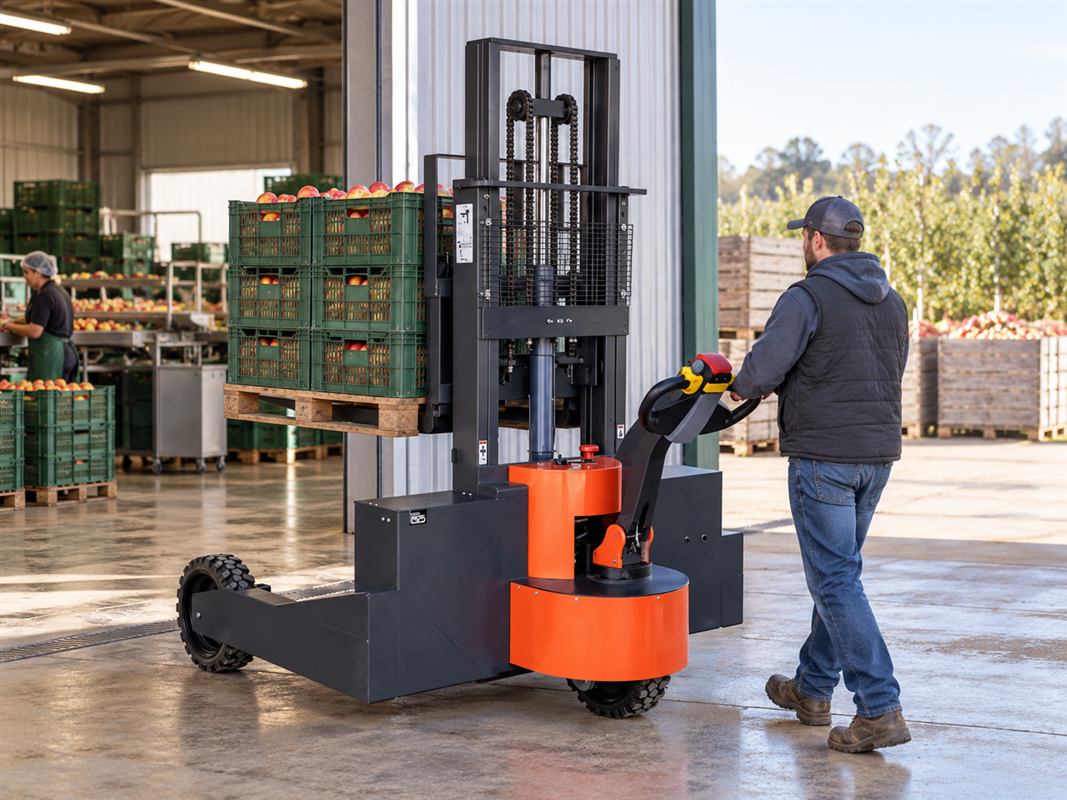

Applications:

• Construction Sites: Transporting building materials, moving equipment, and loading and unloading trucks.
• Landscaping: Moving and placing landscaping materials, such as mulch, soil, and sod.
• Agriculture: Handling farm supplies, moving livestock feed, and transporting equipment.
• Outdoor Warehousing: Handling materials in outdoor storage areas and loading and unloading trucks.
• Industrial Applications: Moving heavy equipment and materials in outdoor industrial settings.

About us

MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production,  in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
