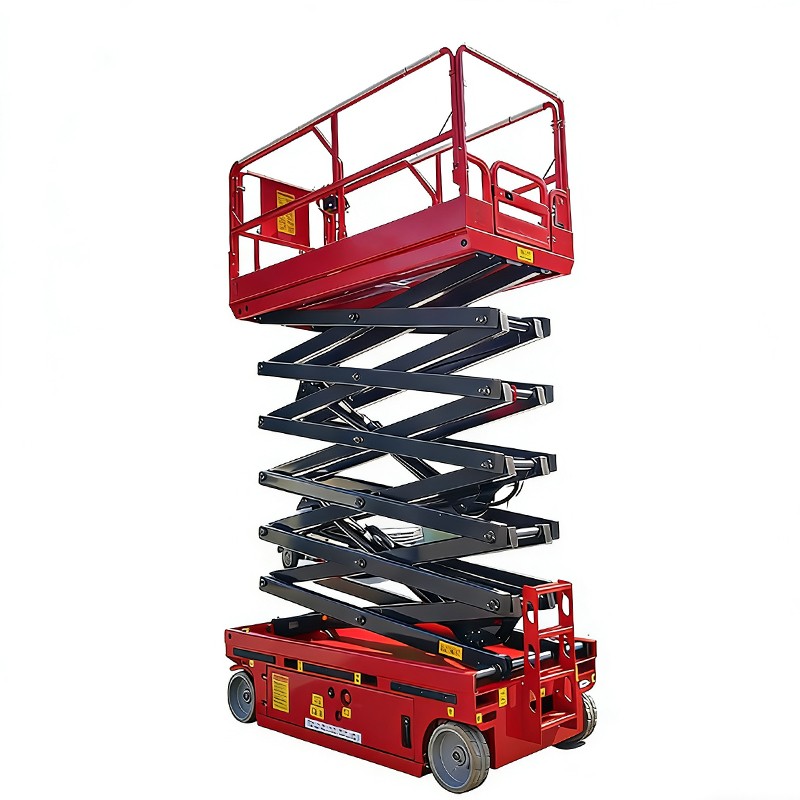

MYZG ZG-ZX14 Electric Scissor Lift Platform

MYZG ZG-ZX14 Electric Scissor Lift: The Ultimate 14-Meter Eco-Friendly Aerial Solution

Whether you are managing a high-density warehouse, performing hospital maintenance, or working on noise-sensitive urban construction sites, the ZG-ZX14 provides a whisper-quiet, stable, and highly efficient work environment.

High-Efficiency Electric Performance

The heart of the ZG-ZX14 lies in its advanced electric drivetrain, designed to maximize uptime and minimize environmental impact.

Zero-Emission Drive: Powered by a robust 48V battery system, this lift produces no exhaust fumes, making it safe for even the most restricted indoor environments.

Powerful Lifting Motor: Equipped with a 48V/4.5kW lifting motor, the platform ascends smoothly to its full 14-meter height in just 80 seconds.

Extended Work Cycles: The high-capacity storage battery (available in 8x12V/200Ah or 8x12V/240Ah configurations) ensures the machine stays operational through full work shifts.

Precision Maneuverability: Driven by a 48V/4kW traveling motor, the ZG-ZX14 offers responsive handling and a maximum walking speed of 1.8 km/h in its collapsed state.

Technical Specifications: ZG-ZX14 Model

Uncompromising Safety & Structural Integrity

At a working height of 14 meters, stability is not an option—it is a requirement. The ZG-ZX14 is built with industry-leading safety redundancies.

1. Superior Stability Design
With a total overall weight of 3980 kg, the ZG-ZX14 provides a low center of gravity that significantly reduces platform sway at maximum extension. The heavy-duty chassis ensures a stable footprint even during high-altitude operations.

2. Intelligent Safety Systems

Pothole Protection: Automatically engages during transit to prevent tipping on uneven indoor surfaces.

Overload Sensors: Prevents the lift from operating if the rated load capacity is exceeded, protecting both the operator and the machine.

Emergency Descent: A manual release valve is included to allow for a controlled and safe descent in the event of a power failure.

Tilt Alarms: Audible and visual sensors alert the operator if the machine is positioned on an unsafe working angle, which is limited to 1.5-3 degrees.

Built for Productivity

Massive Work Platform: The spacious 2630 x 1130 mm platform allows multiple workers and their tools to reach the job site simultaneously.

900mm Extension Deck: Provides the "up and over" reach needed to access difficult work areas over obstacles or machinery.

25% Gradeability: Despite being an electric model, the ZG-ZX14 can confidently climb ramps and inclines up to 25%, ensuring it can move across various site levels.

Durable Guardrails: Features foldable guardrail options for easier storage and transport through standard industrial doorways.

Ideal Industry Applications

The ZG-ZX14 Electric is the preferred choice for sectors prioritizing clean, quiet, and high-reach capabilities:

Logistics Centers: High-tier racking maintenance and inventory management.

Public Infrastructure: Airport terminal lighting, stadium maintenance, and shopping mall repairs.

Industrial Plants: Overhead crane inspections and HVAC system installations.

Cleanroom Environments: Pharmaceutical and food processing facilities that prohibit diesel emissions.
