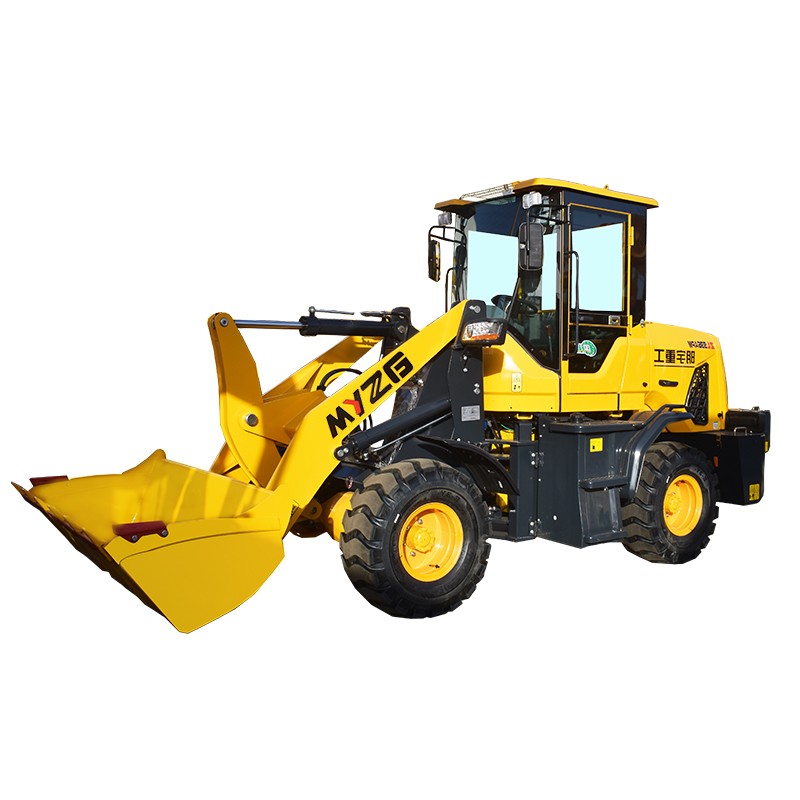

ZL-936AP wheel loader

ZL-936AP wheel loader
  • ZL-936AP wheel loader

Short Description:

ZL-936AP wheel loader...


  • load capacity: 1.6 ton
  • rated bucket capacity: 0.6 m3
  • operating weight: 3410kg

Product Details

Product Tags

Product Feature


ZL936AP is a product independently researched and developed by MYZG. It is equipped with national engine, high-quality split type double change, four-wheel drive, full hydraulic steering, strong power, higher efficiency and stronger environmental adaptability.


·The hydraulic system has a dual-pump confluence with steering always in priority, reducing energy loss.

·309° panoramic visibility gives the operator a very comfortable work environment in the cab.

· Fully-sealing and micro-pressuring system ensures the cab is clean and quiet.

· Single layer radiator and big range fin spacing for high efficiency and easy maintenance.



Parameter

Rated load capacity 1600kg
Rated bucket capacity 0.6m3
Operating weight 3410kg
Engine model

QUANCHAI 4B2-52M22

Rated power 38kw
Rated speed 2400 r/min
Dimensions 5420*1860*2680mm
Dump height 3000mm
Dump distance 750mm
Min.turning radius 4400mm
Tyre size 10.5-16


RELIABILITY

· quanchai electronic-controlled China Tier ll engine. The specific power-matching technology with P, S, E (heavy-load, medium-load, light-load) power control mode, which can be reasonably selected according to the operating conditions. Not only ensure the machine dynamic performance, but also reduce the energy
consumption and improve the productivity


HIGH EFFICIENCY

·Equipped with ZF fully automatic gear shifting gearbox, gear shifting is accurate and stable, without shock at start, through clutch calibration and electronic micro-motion, to ensure efficient operation of the gearbox


COMFORT

·New appearance cab has large-size loader style. The dimension is increased and the operation space is large. Dual curved front glass gives you wide vision. No threshold design, equipped with luxurious mechanical suspension seat and comfortable ride

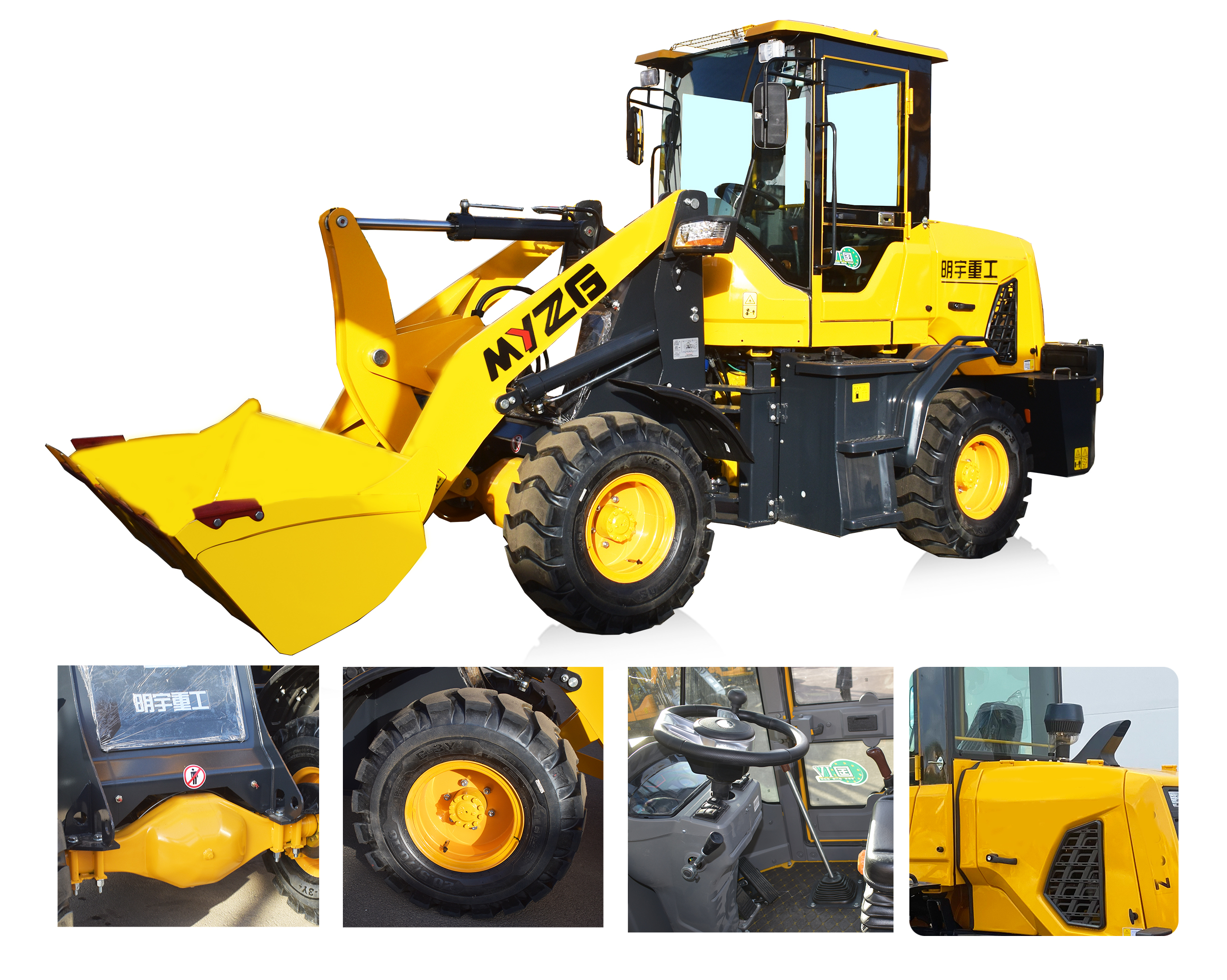

Detail



DIFFERENTIATED PRODUCTS

According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.




About us

MYZG machines are exported all over the world,about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get,and the engine can be changed to many brand such as Quanchai,Yunnei, Huadong, Deutz,Huafeng,Huangdong,Cummins, Changchai, Xinchai,Yanmar, etc.

MYZG have perfect after-sales service,and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.


MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production,  in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
