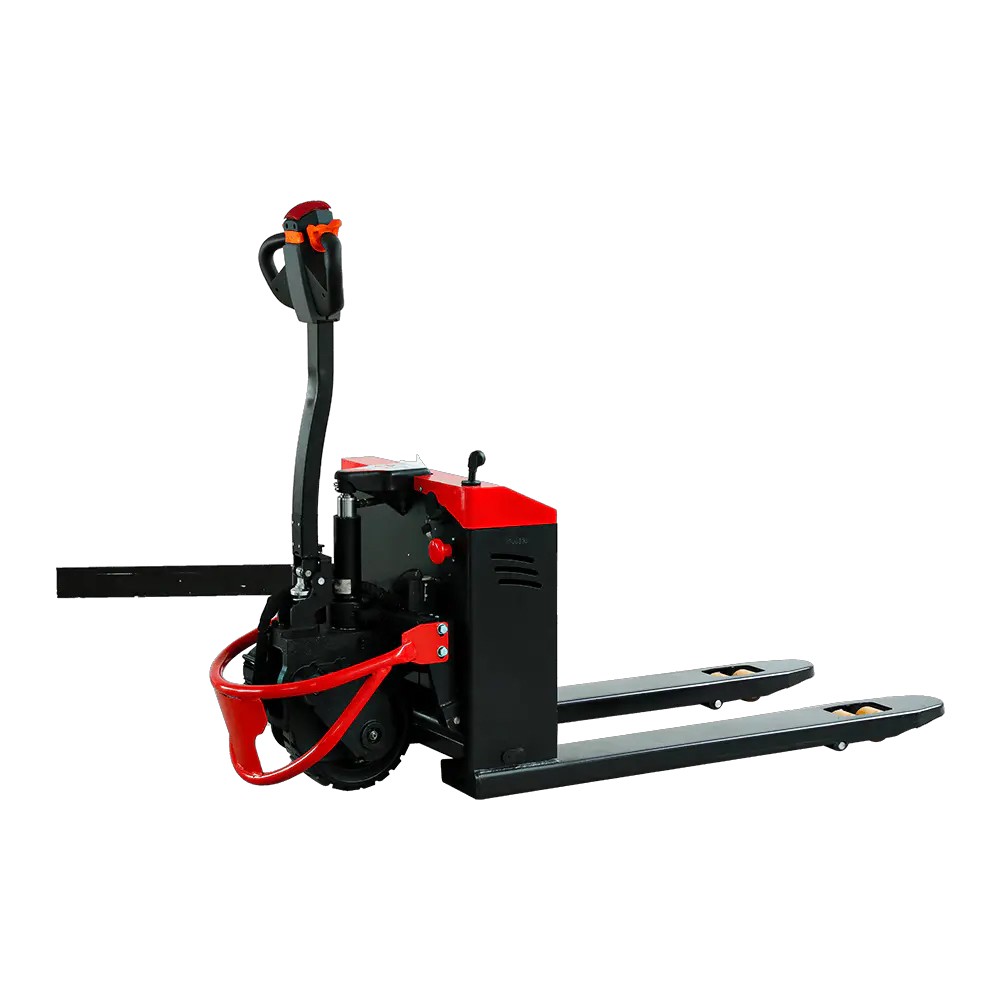

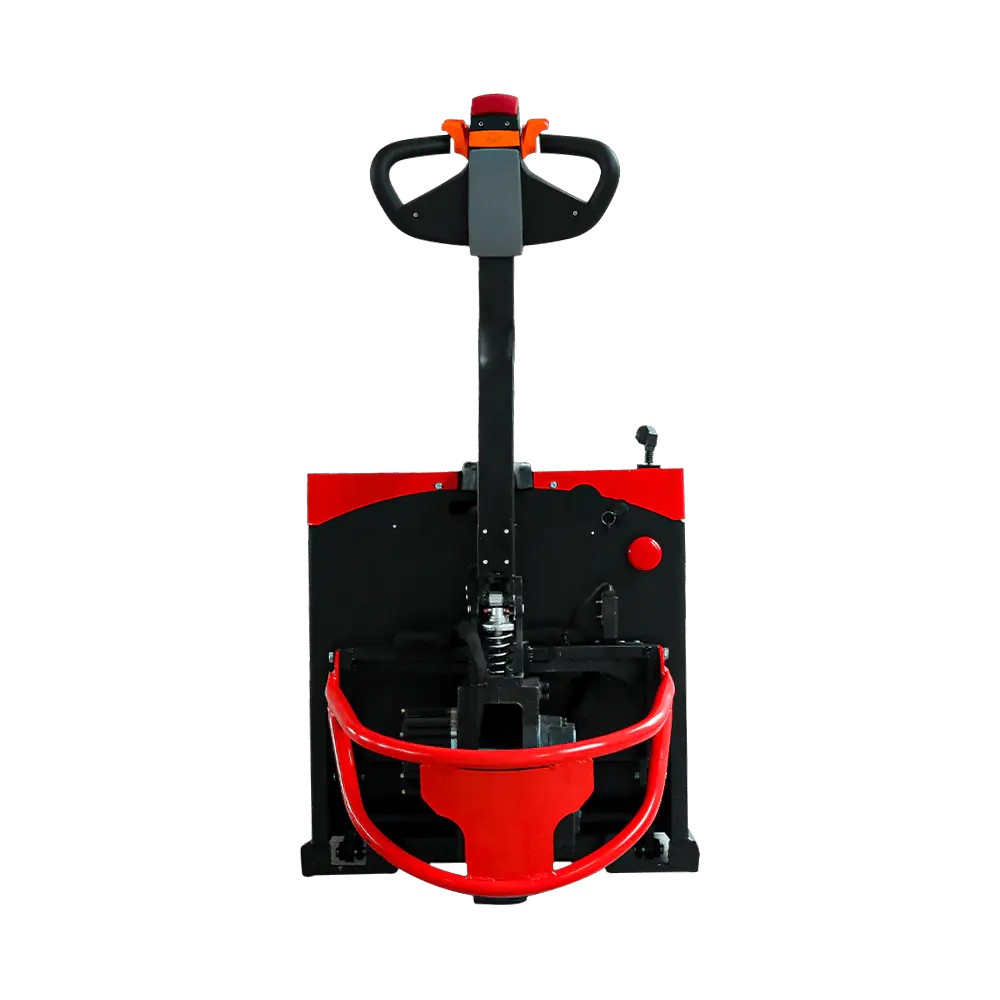

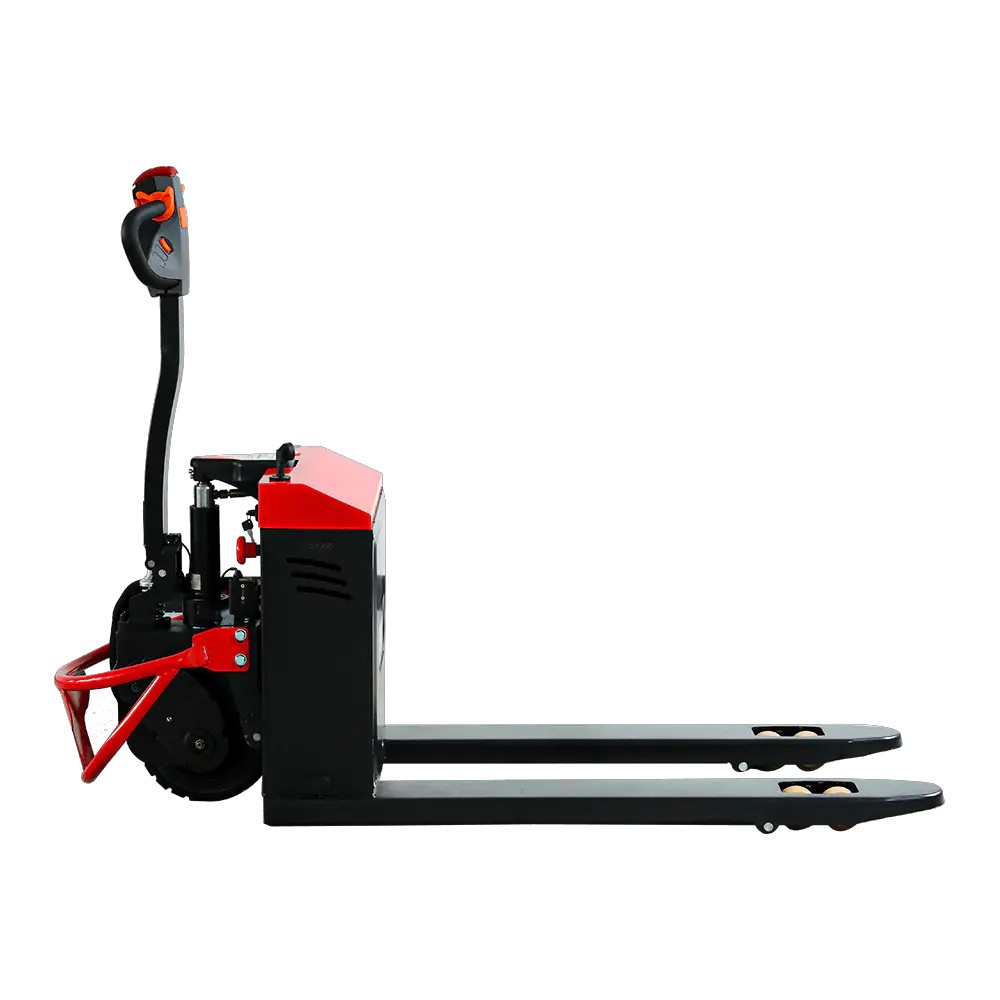

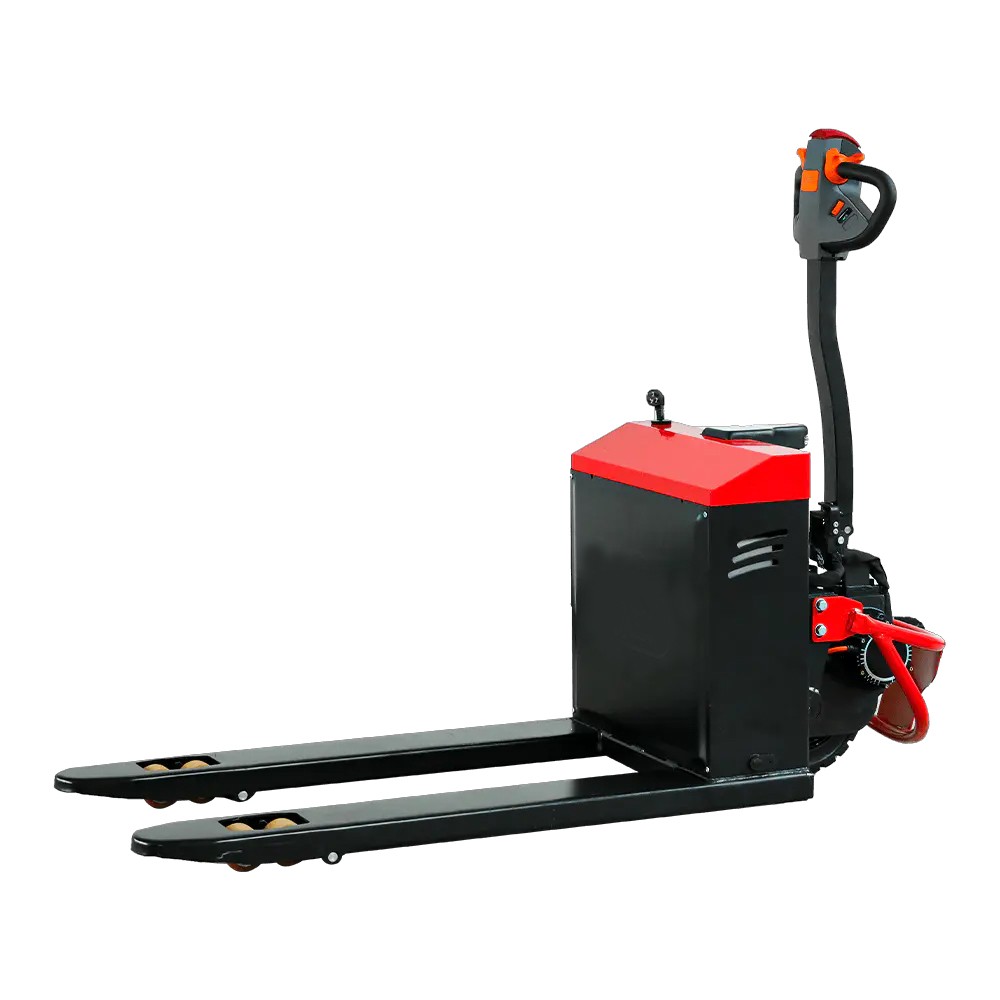

MYCBD-Y All-Terrain outdoor Electric Pallet truck

MYCBD-Y All-Terrain outdoor Electric Pallet truck
  • MYCBD-Y All-Terrain outdoor Electric Pallet truck
  • MYCBD-Y All-Terrain outdoor Electric Pallet truck
  • MYCBD-Y All-Terrain outdoor Electric Pallet truck
  • MYCBD-Y All-Terrain outdoor Electric Pallet truck

Short Description:

This is an all-terrain outdoor electric pallet truck, with a sturdy and stable structural design. It is suitable for rough outdoor surfaces such as construction sites and muddy areas....


  • Maximum load capacity: 3000kg
  • Overall length/width of frame: 1792/720mm
  • Weight (without battery): 330kg
  • Fork size(length *width*thickness): 1200*170*60mm

Product Details

Product Tags

CBD-Y ALL-TERRAIN OUTDOOR ELECTRIC PALLET RUCK



This is an all-terrain outdoor electric pallet truck, with a sturdy and stable structural design. It is suitable for rough outdoor surfaces such as construction sites and muddy areas.


THE MAIN PARAMETER

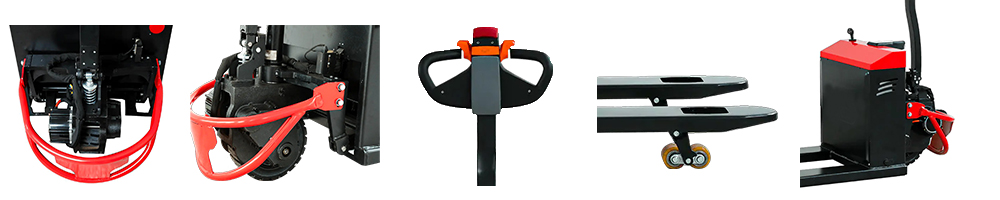

Product features :

• 48V/32Ah GEL Maintenance-free Battery
• Built-in Charger
• 800W Horizontal Drive Motor
• Fork Length Customized


Company Introduction

Model CBD20Y
Maximum load capacity 2000kg
load center 600mm
Maximum lifting height 195mm
Travel speed without load/with load 4/3.5km/h
Lifting speed without load /with load 30/35mm/s
Lowered speed without load /with load 35/40mm/s
Ascend slope ability without load /with load 8/16%
Weight (without battery) 330kg
Overall length/width of frame 1814/685mm
Wheelbase 1271mm
Fork size(length *widthw thiclness) 1150*165*55mm
Fcrk outside width 685mm
Min franf height 30mm
Fork lowered height 85mm
Minimum turning radius 1566mm
Minimum intersecting aisie 2270mm
Front wheel 80*60mm
Drive wheel Ф300x100mm
Drive motor Rated output/AC motor 0.8
Hoist motor Rated output/DC motor 0.8kw
Volt ag/Capacity 48/32V/Ah
Battery Weight 37kg


1. Safety: Auto Curve Speed-reduced function;

2. Anti-roll back prevents uncontrolled traveled speed or roll-back on ramps when loading and unloading;

3. The small ground clearance, to protect the operator;

4. High-strength frame design, suitable for tough workplaces, ensures longer service life;

5. Vertical motor ensures convenience inspection and maintenance of motor and brake, provide much better maintainability than
horizontal motor.

6.  Can be used on rough surfaces.




About us

MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production,  in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.


MYZG machines are exported all over the world,about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get
MYZG have perfect after-sales service,and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
