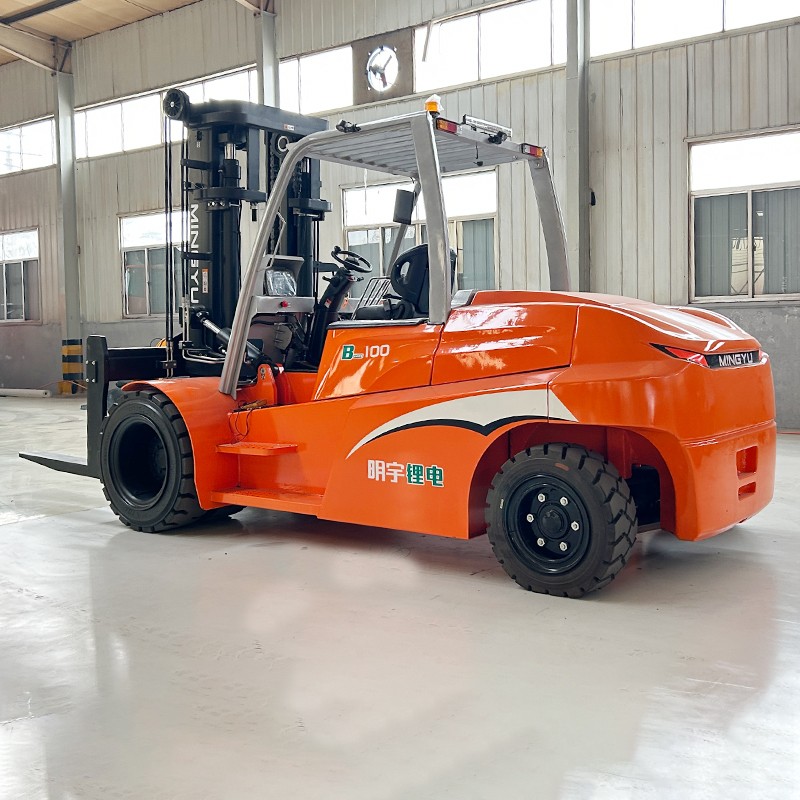

ZGFORKLIFT / MYZG B100 10 Ton Lithium Electric Forklift

The ZGFORKLIFT / MYZG B100 is a 10000 kg lithium electric counterbalance forklift for heavy pallets, steel coils, machinery crates, paper rolls and other concentrated industrial loads. Shandong Zhuogong Machinery equipment Co.,Ltd uses the verified B100 source platform and its documented 614.4 V / 175 Ah accumulator, 600 mm load center and 3000 mm standard lift. electric forklift range.

Customer need and practical solution

The ZGFORKLIFT / MYZG B100 is a 10000 kg lithium electric counterbalance forklift for heavy pallets, steel coils, machinery crates, paper rolls and other concentrated industrial loads. Shandong Zhuogong Machinery equipment Co.,Ltd uses the verified B100 source platform and its documented 614.4 V / 175 Ah accumulator, 600 mm load center and 3000 mm standard lift.

Verified B100 reference data

all products.

A ten-ton rating alone does not select a safe truck. Buyers must define the heaviest normal load, dimensions, true center of gravity, pickup and placement height, attachment, route, slope, floor capacity, doors, turning space, duty cycle, charging window and destination rules. The B100 solution combines high-capacity electric drive with a configuration review before quotation.

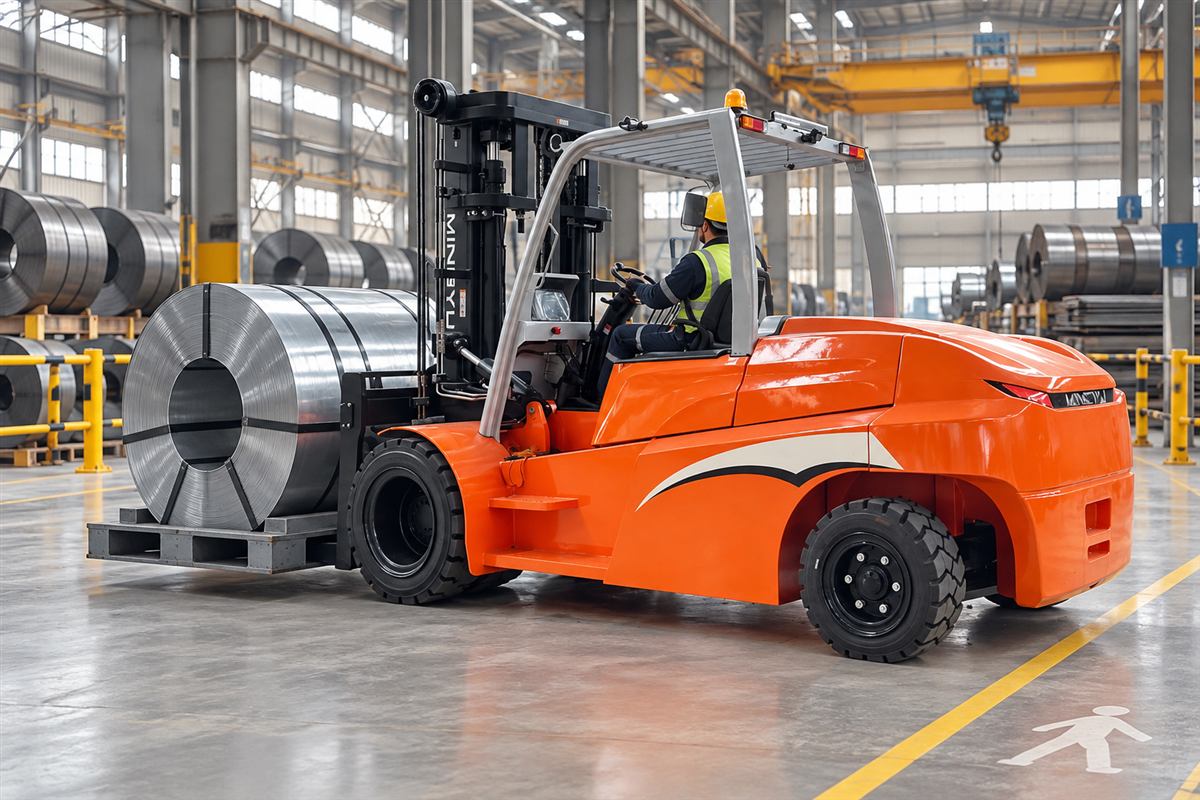

Steel and heavy manufacturing

In steel service centers, the truck can move correctly cradled coils, plate packs and fabricated components on prepared floors. Coil rams, clamps or special forks change the load center and residual capacity, so the attachment supplier and forklift load chart must be reviewed together. Traffic barriers, stable dunnage and exclusion zones remain essential.

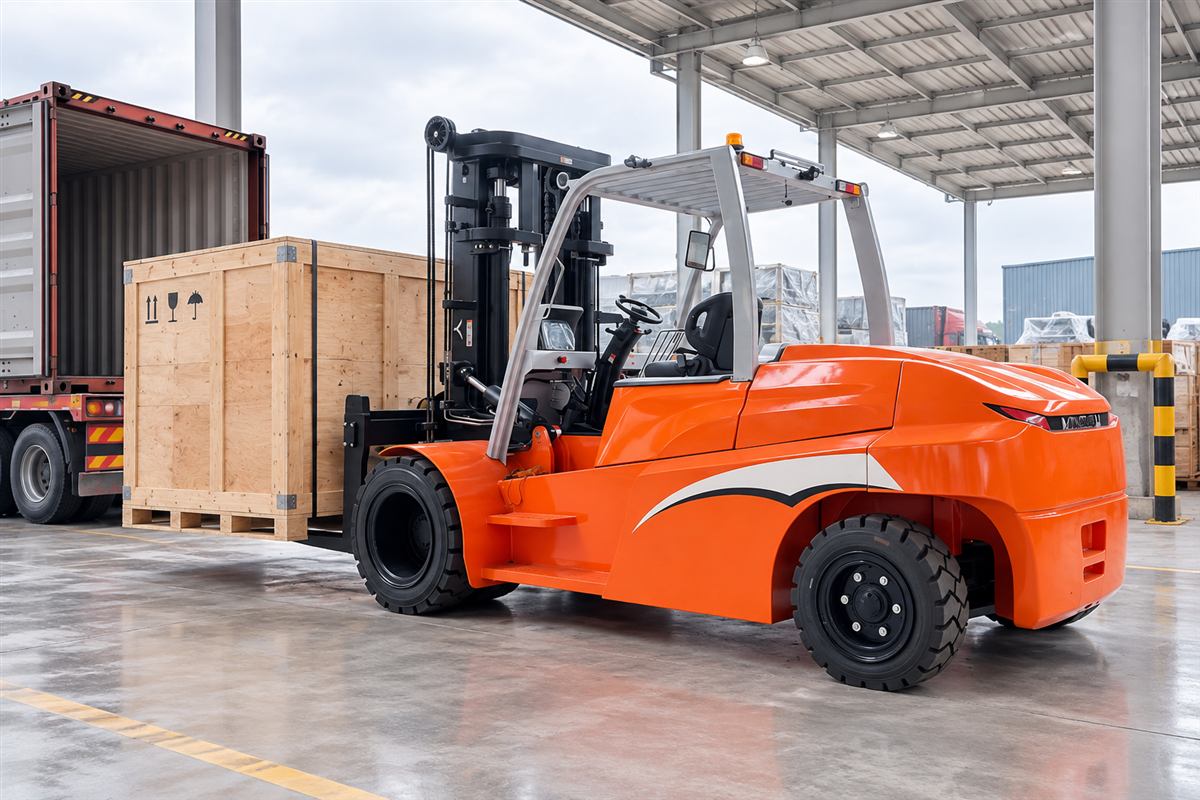

Ports and export terminals

At covered ports and export terminals, B100 can transfer heavy crates between staging areas and restrained trailers. Confirm dock plate rating, trailer support, container opening, overhead clearance, floor loading and weather exposure. Electric drive removes engine exhaust at the point of use, but route control and trained operators remain mandatory.

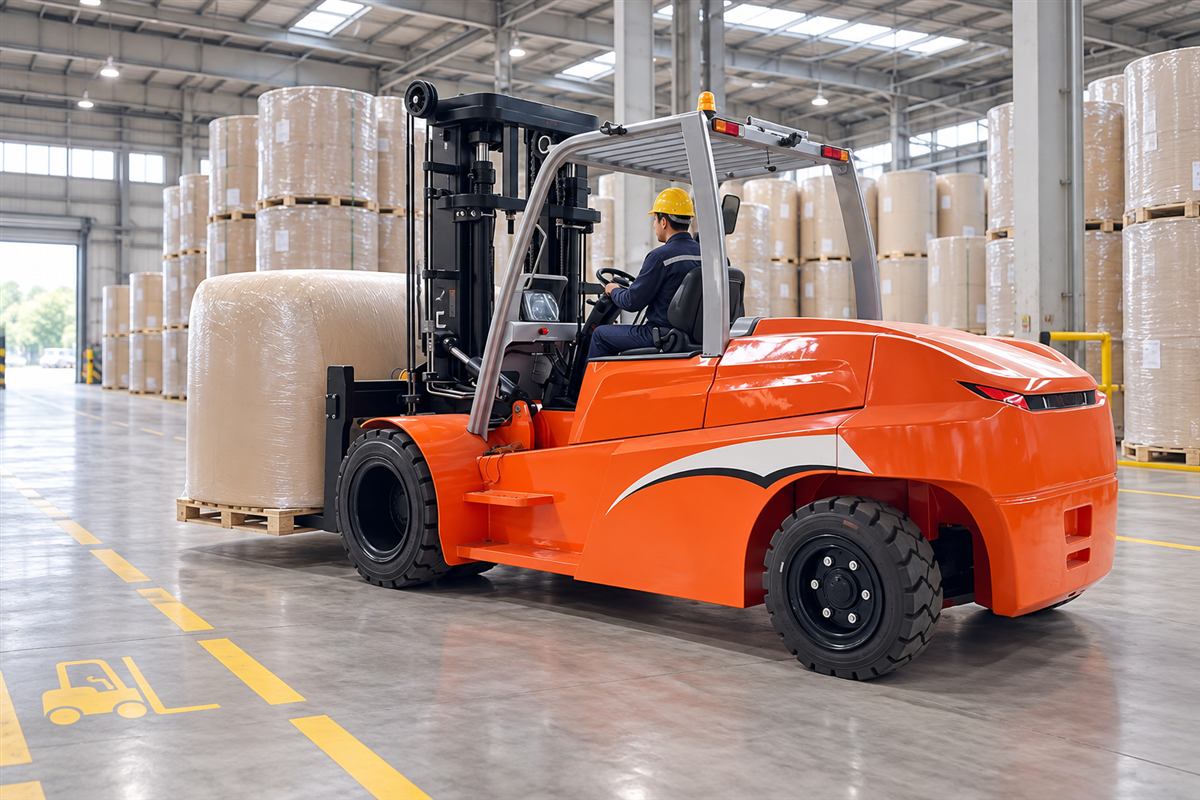

Paper, timber and building materials

Paper mills, timber processors and building-material plants value quiet power and reduced routine engine service. Loads may be long, flexible or moisture-sensitive; use suitable forks, clamps or supports and calculate capacity at the real load center. Outdoor travel is limited to prepared routes compatible with tyres, braking and electrical protection.

Model selection and residual capacity

Rated capacity is 10000 kg at a 600 mm load center under the verified reference configuration. Lift height, long loads, attachments and offset centers reduce usable capacity. Send the exact load drawing and required height, then obtain the approved capacity chart and nameplate for the delivered mast, forks and attachment.

Battery and charging plan

The documented battery is 614.4 V / 175 Ah. Runtime depends on load mass, travel distance, lift frequency, slopes, temperature, tyres and operator behavior. Match the charger to local voltage, frequency, connector and battery protocol; plan protected charging space, cable management, isolation and emergency procedures.

Buying guide and quotation checklist

Compare quotations by capacity at height, mast, fork section and length, attachment allowance, aisle envelope, tyres, brakes, battery, charger input, cooling, manuals, warranty, spare parts, packing and shipping dimensions. A lower purchase price can be offset by unsuitable charging infrastructure, tyre wear, downtime or difficult parts identification. buying and application guides.

Safety and operator preparation

Only trained and authorized operators may use a ten-ton forklift. Daily checks cover forks, carriage, chains, mast channels, hoses, tyres, wheel fasteners, brakes, steering, lights, alarms, overhead guard, seat restraint, battery connector and charger. Carry loads low, avoid turns on slopes and keep people outside the load zone.

Maintenance and total ownership cost

Electric drive removes engine oil, fuel filters and exhaust service, yet preventive work remains critical. Schedule mast lubrication, chain measurement, hydraulic inspection, fork wear checks, tyre and brake service, steering checks, connector inspection, insulation monitoring and controller cooling cleaning. Calculate ownership cost from energy, tyres, parts, labor, training, infrastructure and downtime.

Parts and after-sales support

Provide the serial plate, configuration, photographs and fault description when requesting parts. MYZG can coordinate manuals, parts identification, export packing and after-sales communication. Recommended stock for distributors should match the delivered configuration and may include filters for hydraulics, seals, contactors, connectors, mast rollers, brake items and wear components.

Dealer and fleet opportunity

For dealers and fleet operators, B100 serves steel, machinery, paper, logistics and construction-material customers that want high capacity without local exhaust. A strong local offer includes site survey, load trial, charging review, operator handover, planned service and critical-parts stocking instead of selling by capacity label alone.

Compliance, export experience and trust

CE evidence, battery transport documents, charger conformity and destination requirements depend on the final configuration and must be confirmed in writing. EPA engine-emission certification is generally not the governing evidence for a battery-electric forklift. MYZG supports export review without inventing certificate numbers, customer names or performance records.

Frequently asked questions

Does B100 lift 10000 kg at every height? No; use the approved residual-capacity chart. Can it work outdoors? Only on controlled prepared routes with suitable tyres, slopes, weather protection and electrical safeguards. Is opportunity charging possible? It depends on the approved battery and charger plan.

Request a job-matched quotation

Send load mass and dimensions, center of gravity, lift height, aisle, doors, floor, slope, cycles, ambient temperature, attachment, charger supply, destination port and required documents. The export team will prepare a configuration-based quotation and service plan. request a quotation.
