CPD10 Lithium Electric Forklift

Short Description:

Explore the MYZG CPD10 1 Ton Lithium Electric Forklift. Featuring a 1000kg load capacity, 60V/105Ah battery, 930mm narrow body, and 1760mm turning radius. Perfect for compact warehouses, logistics hubs, and indoor operations. Request a factory-direct quote today!...

Rated Load Lifting Capacity: 1000 kg
Battery Voltage & Capacity: 60V / 105Ah
Unladen Machine Weight: 1800 kg

Ask for a quote

Product Details

Product Tags

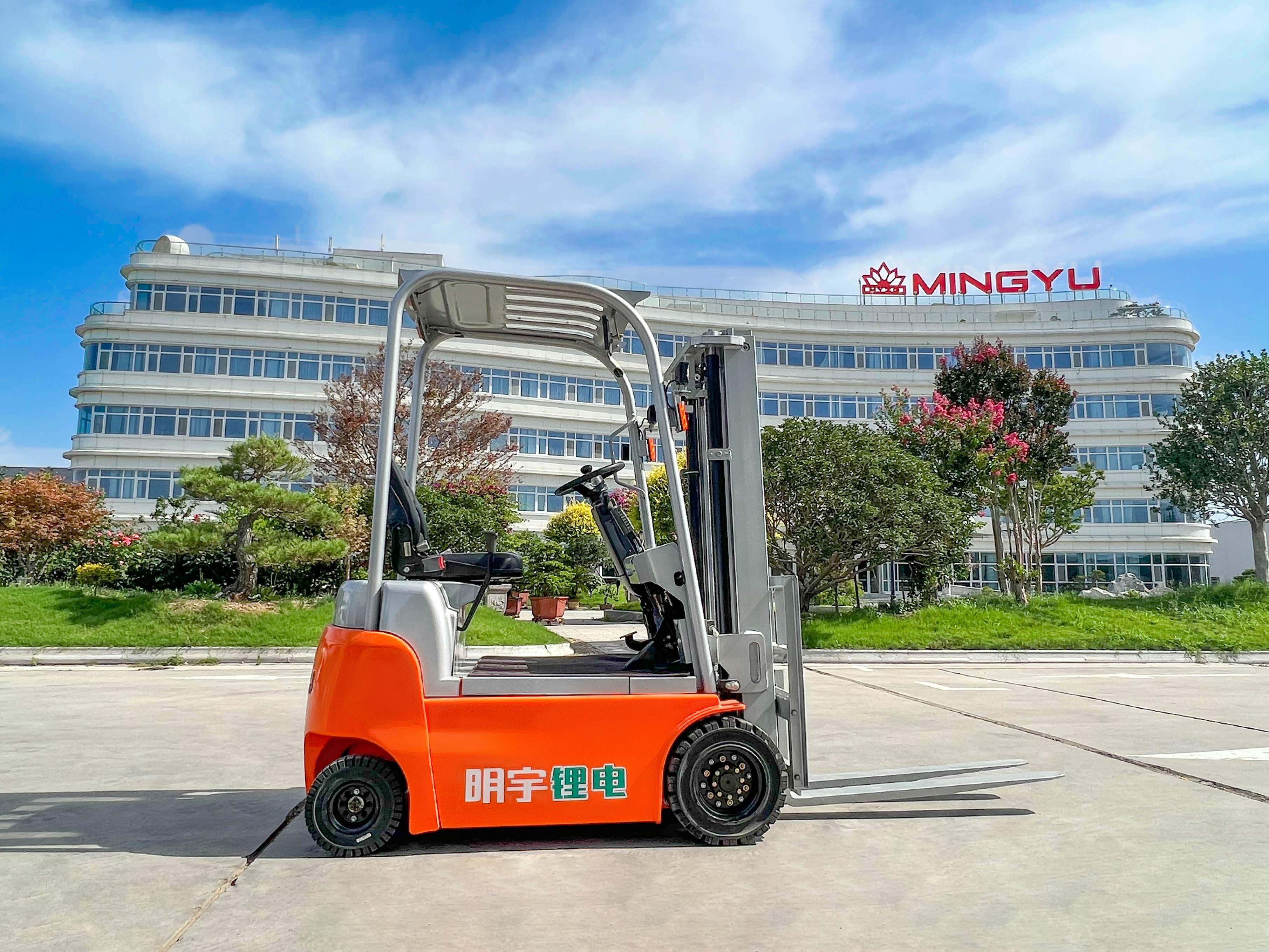

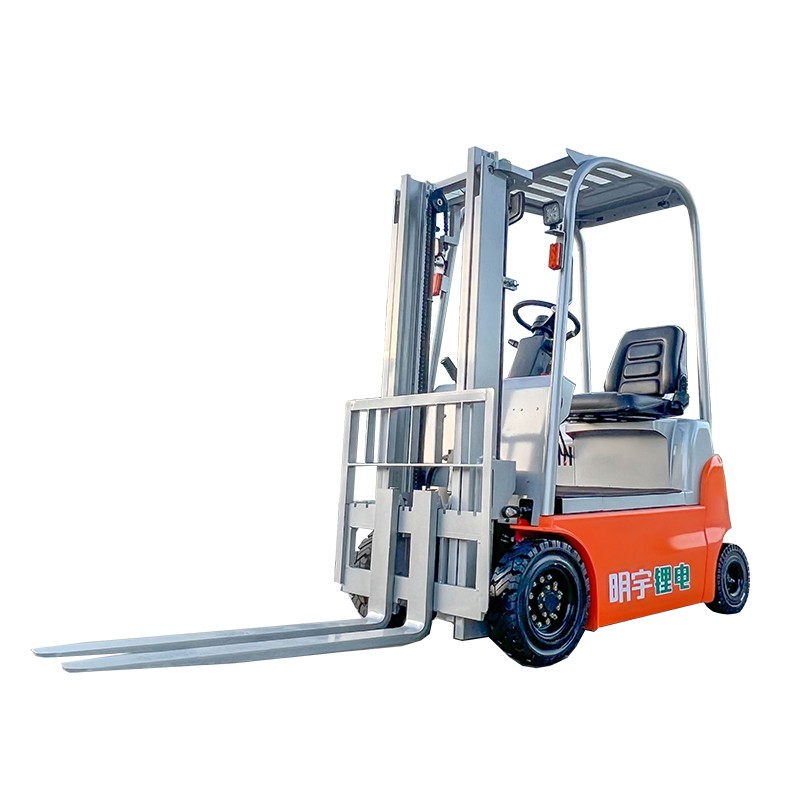

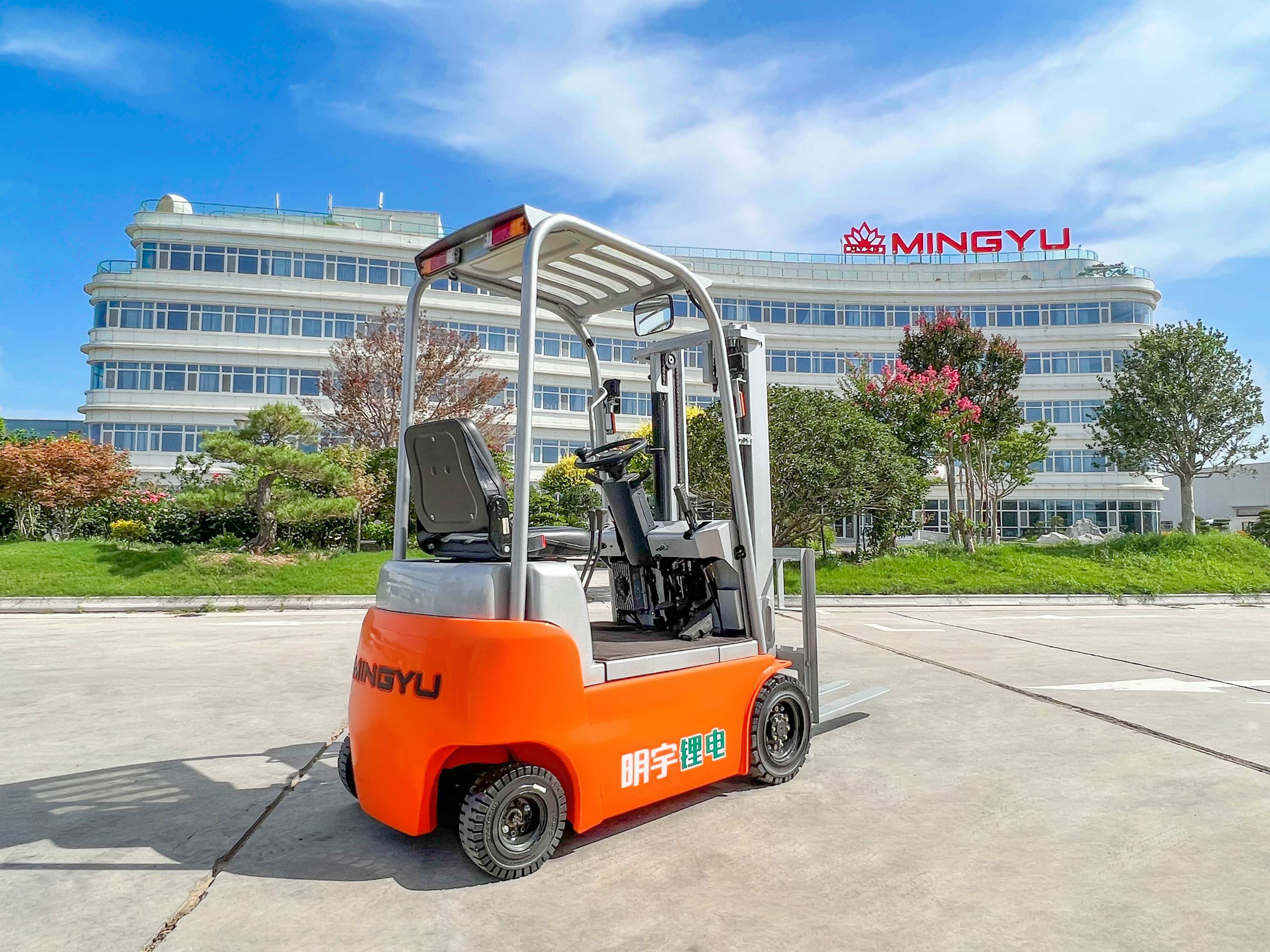

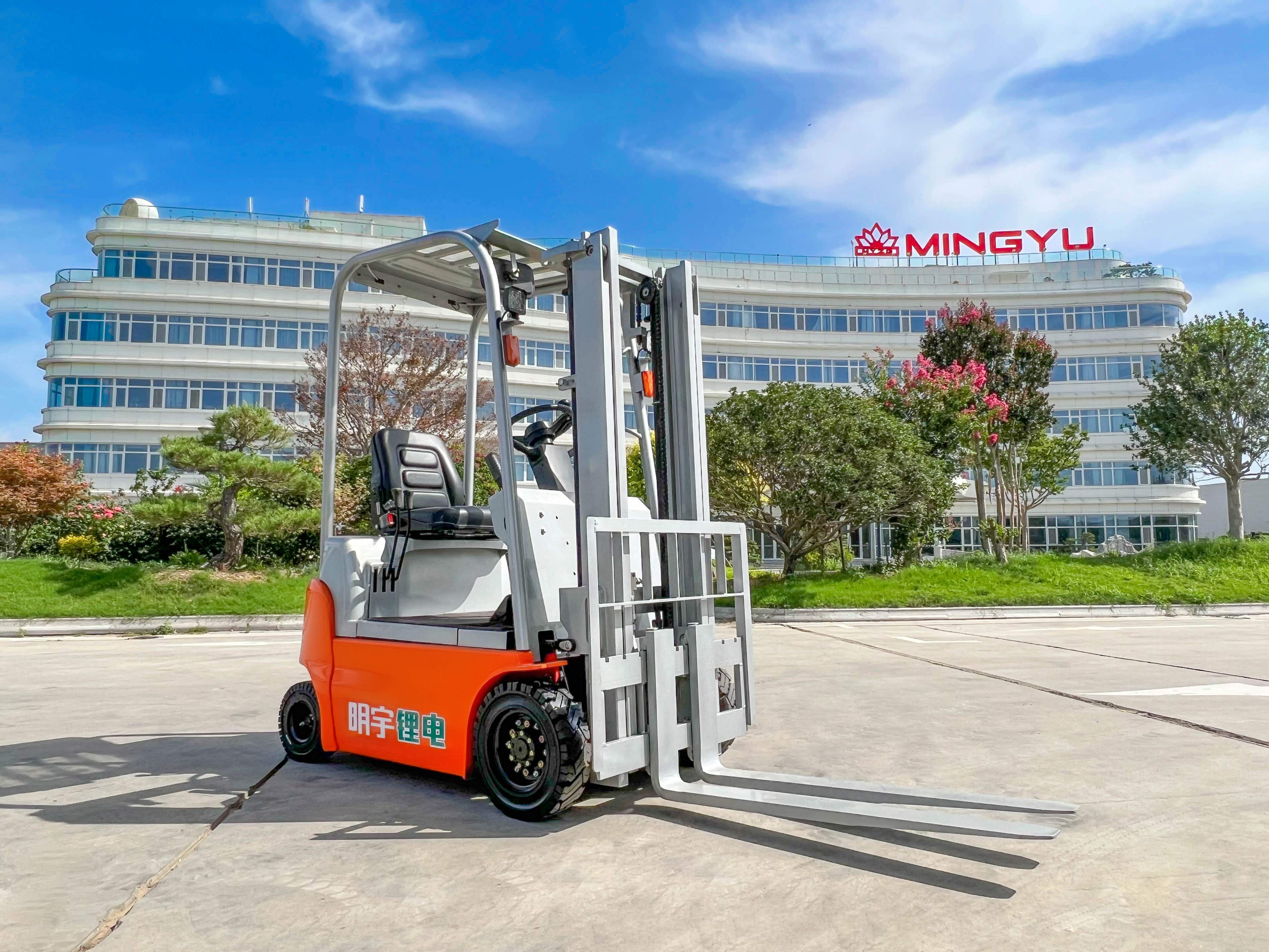

MYZG 1-Ton Lithium Battery Electric Forklift (Model: CPD10)

High-Performance 1000kg Rated Capacity Compact Electric Forklift Engineered for Narrow Aisles, High Maneuverability, and Zero-Emission Indoor Material Handling.

Executive Overview: Efficient, Compact & Clean Industrial Power

The MYZG CPD10 1-Ton Lithium Battery Electric Forklift is a state-of-the-art material handling solution built to deliver exceptional performance in space-restricted environments. Manufactured by Mingyu Heavy Industry (MYZG), this sit-down electric forklift is ideal for small to medium-sized warehouses, manufacturing workshops, logistics distribution centers, and retail stockrooms where clean operation and tight maneuvering are essential.

Powered by an efficient 60V / 105Ah lithium accumulator battery system, the CPD10 provides a reliable 1000 kg (2,200 lbs) rated lifting capacity at a 400 mm load center. Featuring an ultra-slim body width of just 930 mm and an agile 1760 mm minimum turning radius, this model allows operators to easily navigate tight aisles and load/unload freight without sacrificing lifting speed, stability, or operator comfort.

MYZG CPD10 Factory Technical Specifications

Review the comprehensive specification dataset for the MYZG 1T-A Lithium Electric Forklift (CPD10):

Performance & Mechanical Parameter	Factory Specification Detail
Model Identification	CPD10 (1T-A Series)
Power Type	Accumulator / Lithium Battery
Rated Load Lifting Capacity	1000 kg
Load Centre Distance	400 mm
Driving Style / Operator Position	Sit Down
Overall Length (With Fork / Without Fork)	3020 mm / 1920 mm
Overall Width	930 mm
Mast Height (Lowered / Overhead Guard)	2013 mm / 1995 mm
Max. Height at Working (Full Extension)	3403 mm
Distance from Seat Surface to Top Guard Frame	955 mm
Standard Lifting Height / Free Lift Height	2800 mm / 0 mm
Fork Adjustment Range	160 mm – 782 mm
Minimum Turning Radius	1760 mm
Min. Right-Angle Channel Width (1100x1100 Pallets)	2935 mm
Gantry Angle (Front / Rear Tilt)	5° / 10°
Max. Lifting Speed (Without Load / Full Load)	320 mm/s / 250 mm/s
Max. Operating Travel Speed (Unladen / Full Load)	12 Km/h / 11 Km/h
Max. Gradeability (Full Loading)	10%
Unladen Machine Weight	1800 kg
Number of Wheels (Driving / Steering Wheels)	2 / 2
Tyre Type (Front / Rear)	Pneumatic Tyre / Pneumatic Tyre
Tyre Size (Front / Rear)	5.00-8 / 15x4*1/2-8
Brake / Driving Brake & Parking Brake	Electromagnetic Brake (EMBR) / EMBR
Battery Voltage & Capacity	60V / 105Ah
Drive Motor Power Output	3 kW
Oil Pump Hydraulic Motor Power Output	3 kW
Wheelbase / Minimum Ground Clearance	1355 mm / 103 mm
Front Overhang / Rear Overhang	315 mm / 280 mm
Front Wheel Track / Rear Wheel Track	806 mm / 780 mm

Engineering Breakdown & Key Product Advantages

1. Powerful Dual-Motor System & 60V/105Ah Lithium Technology

The MYZG CPD10 features a balanced 3kW drive motor and a high-torque 3kW hydraulic pump motor powered by a reliable 60V / 105Ah battery system. Lithium-ion technology delivers consistent power output, long cycle life, and fast opportunity charging. The dual 3kW motor setup delivers travel speeds up to 12 km/h and a rapid lifting speed of 320 mm/s (unladen), keeping indoor productivity high.

2. Ultra-Compact Design & Superior Turning Flexibility

With a narrow chassis width of just 930 mm, a 1355 mm wheelbase, and an overall length without forks of 1920 mm, the CPD10 easily handles stacking in tight aisles. Its 1760 mm turning radius and a right-angle channel width of 2935 mm (for 1100x1100mm pallets) allow operators to turn smoothly inside compact storage layouts without risk of frame contact.

3. Ergonomic Sit-Down Cabin & Enhanced Safety Features

Designed with operator comfort in mind, the sit-down cabin provides 955 mm of overhead clearance from the seat surface to the top guard frame. The overhead guard height of 1995 mm provides robust protection while easily passing through standard door openings. Additionally, the gantry tilt capability (5° front / 10° rear) ensures safe load stabilization during placement at the 2800 mm standard lift height.

4. Electromagnetic Braking System & Smooth Pneumatic Tyres

Equipped with advanced Electromagnetic Brakes (EMBR) for both driving and parking functions, the CPD10 provides automatic anti-roll-back security on ramps up to a 10% grade. Featuring durable pneumatic tyres (5.00-8 front, 15x4*1/2-8 rear) and a 103 mm ground clearance, the forklift absorbs floor bumps easily, delivering a comfortable ride and steady load transport.

Target Application Environments

The unladen weight of 1800 kg and versatile 1000 kg capacity make the CPD10 suitable for a broad spectrum of indoor and light outdoor operations:

Warehouses & Logistics

Stacking standard pallets, loading delivery vans, and moving goods through narrow storage aisles.

Light Manufacturing

Transporting raw materials and finished parts between production lines without exhaust fumes.

Food, Beverage & Retail

Quiet, zero-emission operation ensures compliance with strict hygiene standards in storage facilities.

Frequently Asked Questions (FAQ)

Q: What is the fork width adjustment range on the CPD10?

A: The forks can be manually adjusted from 160 mm to 782 mm, giving you the flexibility to handle various pallet sizes and specialized industrial containers.

Q: How does the electromagnetic brake system (EMBR) work?

A: The EMBR system automatically engages when the accelerator pedal is released or when the forklift comes to a stop on a ramp, preventing roll-back and enhancing safety in tight spaces.
