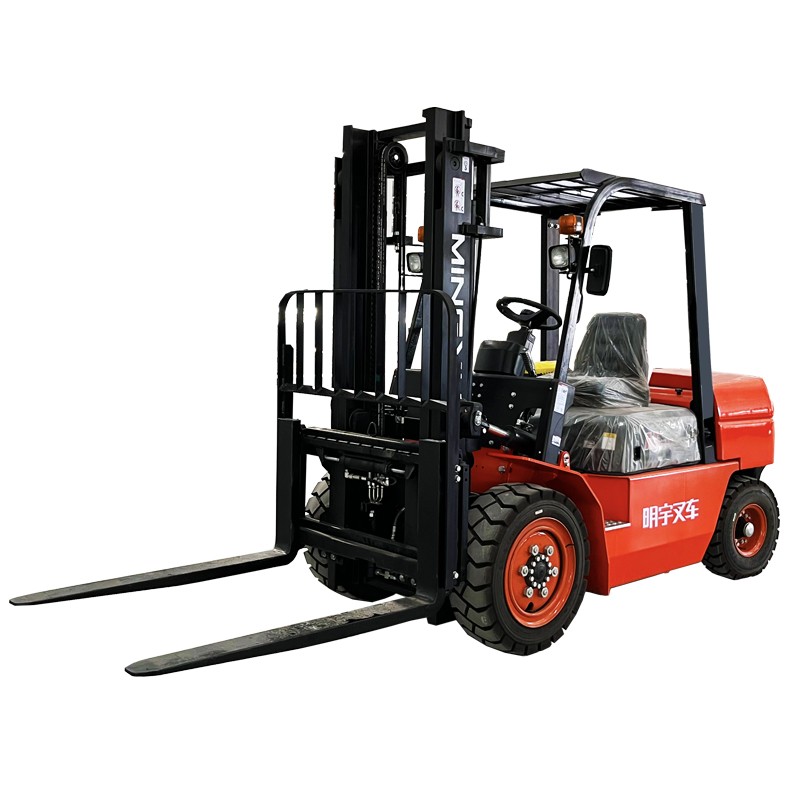

ZGFORKLIFT / MYZG CPC40 4 Ton Diesel Forklift
ZGFORKLIFT / MYZG CPC40 4 Ton Diesel Forklift
The ZGFORKLIFT / MYZG CPC40 is a 4000 kg diesel counterbalance forklift supplied by Shandong Zhuogong Machinery equipment Co.,Ltd. It is intended for outdoor yards, covered loading docks and ventilated mixed-use facilities where fast refueling, pneumatic-tyre traction and dependable shift availability matter. This page connects verified machine facts with actual workflow decisions so buyers can match the truck to pallets, routes, operators and service conditions.
A diesel forklift selected around the job, not a brochure label
Rated capacity is 4000 kg at the documented 500 mm load center, with a standard 3000 mm lift. Rated capacity is not permission to lift every 4000 kg object at every height: long loads, attachments, raised centers and alternative masts reduce residual capacity. Ask for the final load chart and nameplate for the exact configuration. diesel forklift product category.
The CPC40 answers common customer pain points: slow refueling, changing outdoor surfaces, repeated truck loading and limited service windows. Diesel power supports long shifts, while the verified turning envelope and pneumatic tyres help on prepared industrial routes. The solution still requires traffic separation, ventilation assessment, trained operators, stable pallets and a floor or yard able to carry truck plus load.
Verified CPC technical data
all MYZG products. Rated capacity is 4000 kg at the documented 500 mm load center, with a standard 3000 mm lift. Rated capacity is not permission to lift every 4000 kg object at every height: long loads, attachments, raised centers and alternative masts reduce residual capacity. Ask for the final load chart and nameplate for the exact configuration.
| Model | CPC40 (4.0T-D series) |
| Power type | Internal-combustion diesel engine |
| Engine options | Quanchai / Xinchai engine |
| Rated capacity | 4000 kg |
| Load center | 500 mm |
| Operator position | Seated operator |
| Overall length with/without forks | 4128 / 3008 mm |
| Overall width | 1228 mm |
| Lowered mast/overhead guard height | 2204 / 2100 mm |
| Maximum working height | 4262 mm |
| Standard lift | 3000 mm |
| Minimum turning radius | 2550 mm |
| Mast tilt forward/backward | 6° / 12° |
| Lifting speed unloaded/loaded | 400 / 360 mm/s |
| Travel speed unloaded/loaded | 20 / 20 km/h |
| Maximum gradeability | 20% |
| Unladen weight | 4900 kg |
| Drive/steering wheels | 2 / 2 |
| Front/rear tyre type | Pneumatic / pneumatic |
| Front/rear tyre size | 28x9-15 / 6.50-10 |
| Wheelbase/ground clearance | 1710 / 165 mm |
| Front/rear overhang | 457 / 550 mm |
| Front/rear wheel track | 1000 / 980 mm |
| Fuel tank or verified option | Not specified |
Customer needs and practical solutions
The CPC40 answers common customer pain points: slow refueling, changing outdoor surfaces, repeated truck loading and limited service windows. Diesel power supports long shifts, while the verified turning envelope and pneumatic tyres help on prepared industrial routes. The solution still requires traffic separation, ventilation assessment, trained operators, stable pallets and a floor or yard able to carry truck plus load.
Before ordering, send the heaviest load, dimensions, true load center, lift height, residual capacity needed at height, aisle width, door height, trailer type, floor condition, ramp gradient, daily cycles, climate, attachment, engine-emission requirement and destination. Compare usable capacity and site access rather than choosing only by nominal tonnage.
Industry application scenarios

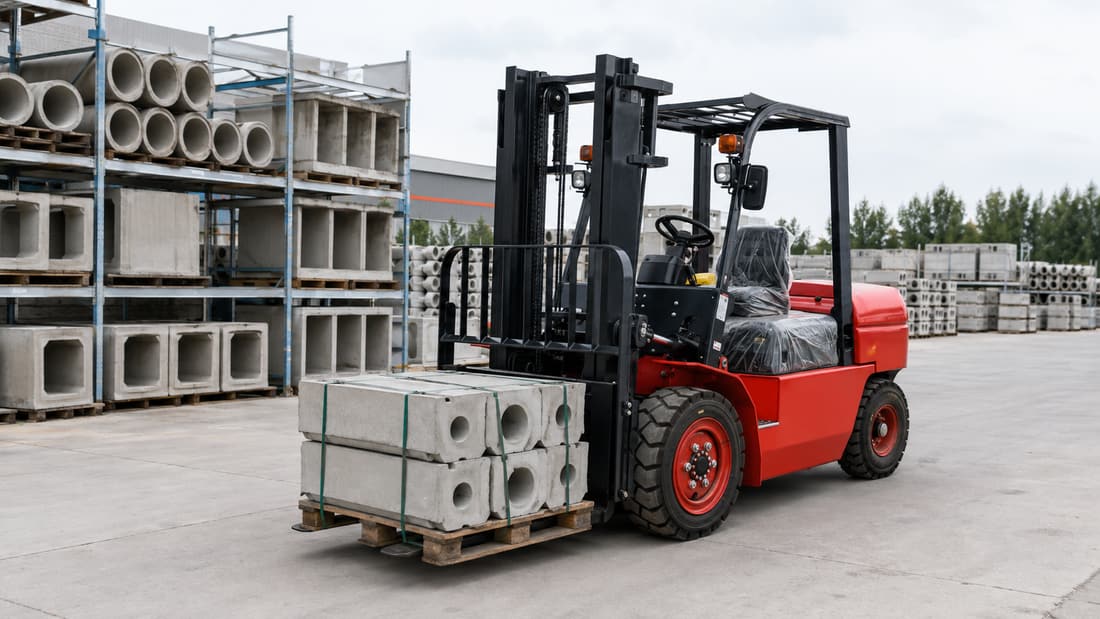

1. Precast drainage supply
Move strapped drainage components on load-rated prepared routes with stable pallet support.

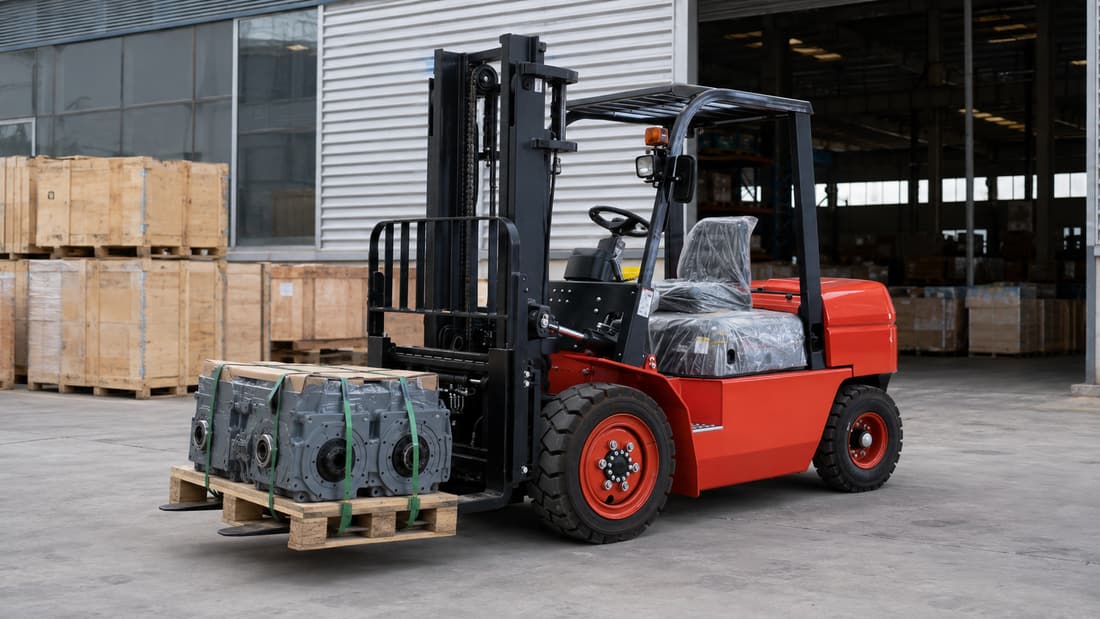

2. Industrial gearbox distribution
Transfer secured gearboxes between inspection, storage and dispatch with the load low.

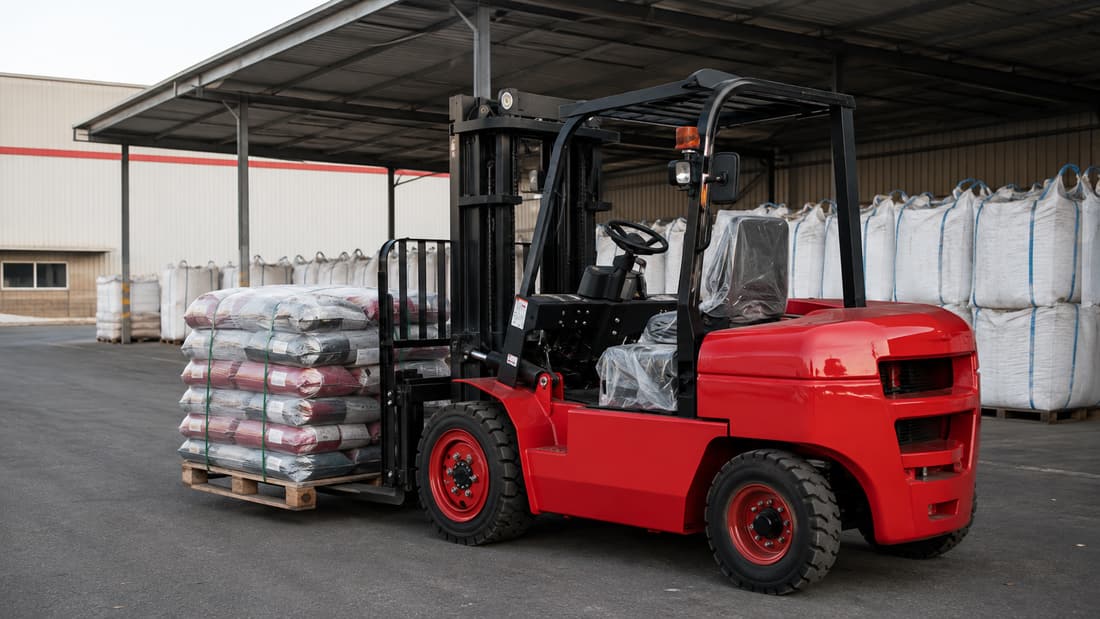

3. Bulk materials warehouse
Stage wrapped bagged products under a covered dock with controlled traffic.
forklift buying and application articles. Rated capacity is 4000 kg at the documented 500 mm load center, with a standard 3000 mm lift. Rated capacity is not permission to lift every 4000 kg object at every height: long loads, attachments, raised centers and alternative masts reduce residual capacity. Ask for the final load chart and nameplate for the exact configuration.
Buying and configuration guide
Before ordering, send the heaviest load, dimensions, true load center, lift height, residual capacity needed at height, aisle width, door height, trailer type, floor condition, ramp gradient, daily cycles, climate, attachment, engine-emission requirement and destination. Compare usable capacity and site access rather than choosing only by nominal tonnage.
The CPC40 answers common customer pain points: slow refueling, changing outdoor surfaces, repeated truck loading and limited service windows. Diesel power supports long shifts, while the verified turning envelope and pneumatic tyres help on prepared industrial routes. The solution still requires traffic separation, ventilation assessment, trained operators, stable pallets and a floor or yard able to carry truck plus load.
Maintenance and total cost of ownership
Daily checks cover forks, heel wear, carriage, mast channels, chains, hoses, tyres, wheel fasteners, brakes, steering, warning devices, seat belt, coolant, engine oil, fuel system and leaks. Planned service should include filters, cooling, transmission and hydraulic intervals. Total ownership cost includes fuel, tyres, parts stocking, operator training, scheduled downtime, mobile service access and resale condition.
Daily checks cover forks, heel wear, carriage, mast channels, chains, hoses, tyres, wheel fasteners, brakes, steering, warning devices, seat belt, coolant, engine oil, fuel system and leaks. Planned service should include filters, cooling, transmission and hydraulic intervals. Total ownership cost includes fuel, tyres, parts stocking, operator training, scheduled downtime, mobile service access and resale condition.
Dealer, rental and parts support
Dealers and rental fleets can position CPC40 around verified applications instead of a price-only listing. A responsible offer includes a site questionnaire, load demonstration where possible, operator handover, preventive-maintenance schedule, recommended filters and wear parts, warranty route and a clear channel for serial-number-based parts identification. contact MYZG export and service.
CE, EPA, export documentation and trust
CE evidence, EPA applicability, engine-emission documents and destination-market requirements depend on the final engine and configuration and must be confirmed in writing before shipment; this page does not invent certificate numbers. MYZG export support can coordinate configuration review, pre-delivery inspection, packing, manuals, shipping documents, parts identification and after-sales communication without inventing named customers or performance claims.
Buyer questions
1
Is CPC40 suitable indoors? Use indoors only where the site risk assessment permits diesel equipment and ventilation and emissions requirements are satisfied. Electric or LPG alternatives may suit enclosed areas better.
2
Can a side shifter or triplex mast be fitted? Options can be evaluated, but they change weight, dimensions and residual capacity. The final nameplate and load chart must match the delivered assembly.
3
What should be included in a quotation? Include load data, mast, forks, tyres, attachment, cab, engine, emissions, spare-parts package, destination port, packing and after-sales expectations.
Request a CPC configuration and quotation
Before ordering, send the heaviest load, dimensions, true load center, lift height, residual capacity needed at height, aisle width, door height, trailer type, floor condition, ramp gradient, daily cycles, climate, attachment, engine-emission requirement and destination. Compare usable capacity and site access rather than choosing only by nominal tonnage.
