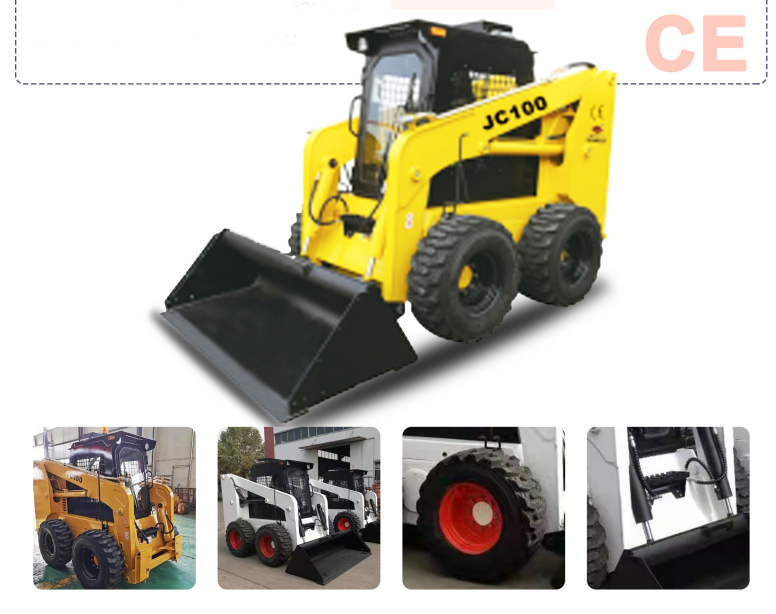

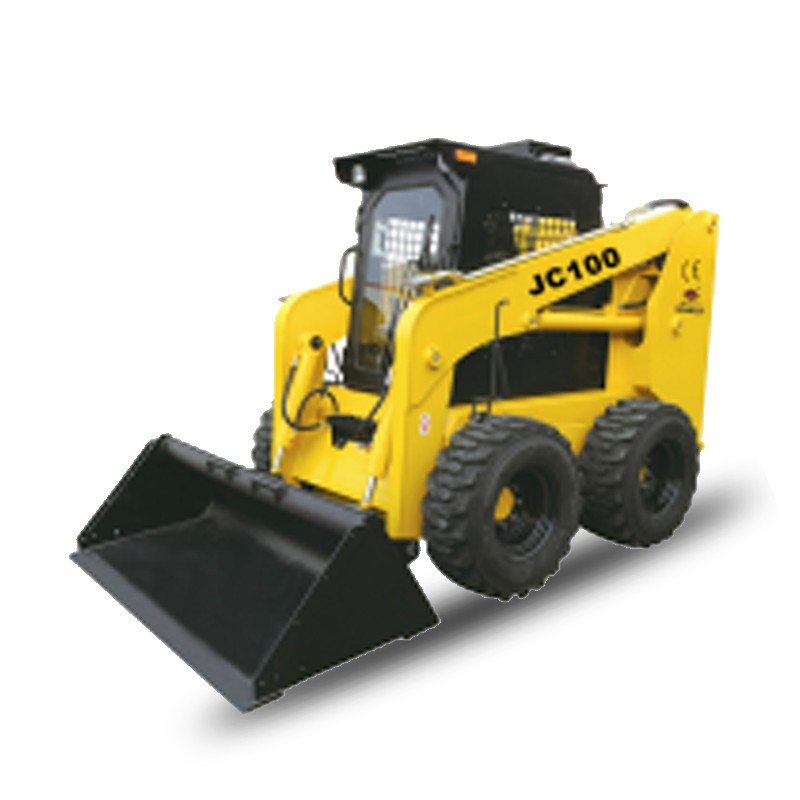

Description
| Dimensions | |
| Rated operating capacity(kg) | 1200 |
| Bucket capacity(m3) | 0.7 |
| Operationg weight(kg) | 3560 |
| Max. travel speed(km/h) | 12 |
| Hydraulic pump flow(L/min) | 120-144 |
| Fuel tank capacity(L) | 90 |
| Tires | 12/16.5NHS |
| Overall dimensions(mm) | 3560×1900×2150 |
| Height at maximum extension(mm) | 4070 |
| Height to bucket hinge pin(mm) | 3150 |
| Width with bucket(mm) | 1900 |
| Track width(mm) | 1500 |
| Wheelbase(mm) | 1185 |
| Ground clearance(mm) | 260 |
| Dump angle | 40° |
| Dumping height(mm) | 2450 |
| Maximum reach(mm) | 710 |
| Rollback at ground | 26° |
| Angle of departure | 20° |
| Engine | |
| Maker/Model | WEICHAI |
| Net power | 74Kw/2500rpm |
| Type | 4Cylinder in-line, Water cooled, 4 stroke, Diesel engine |
| Displacement(L) | 3.9-4.2 |
