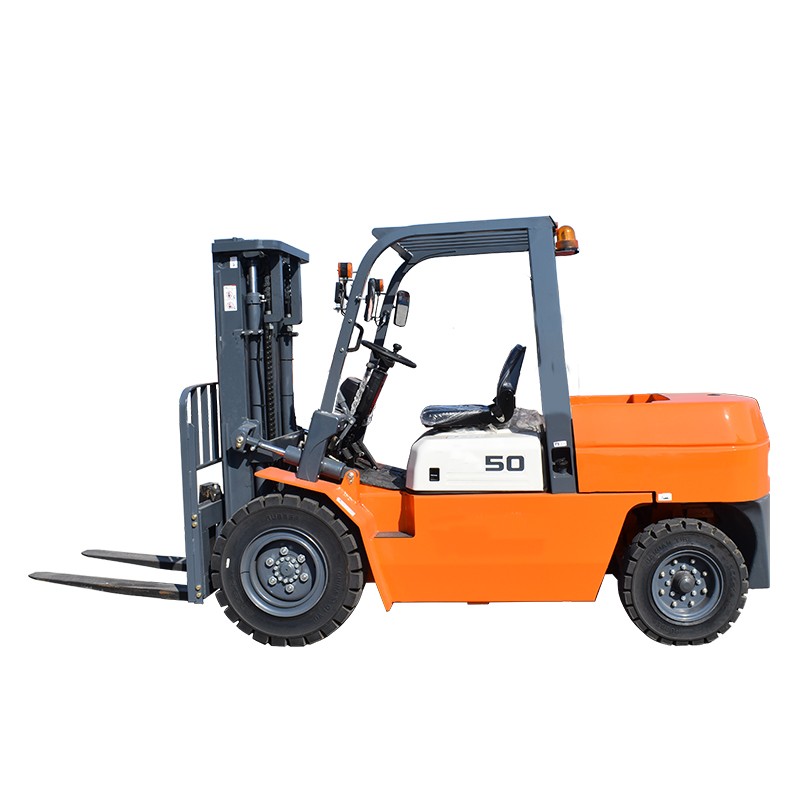

CPC50 diesel forklift

CPC50 diesel forklift
  • CPC50 diesel forklift

Short Description:

forklift with good reputation from customer,forklift attachment,off-road forklift,multifunction forklift,china diesel forklift...


  • Rated load capacity:5000kg:
  • weight:5300kg:
  • Standard lifting height:3000mm:

Product Details

Product Tags

Product Feature


cpc50 equipped with Xinchai engine, performance strong, energy saving and environmental protection, high-quality transmission shift smooth, comfortable operation, can optional Xinchai engine, Quanchai engine, Jiangling engine, imported Isuzu engine, imported Mitsubishi engine


·Sound off heat engine hood
·High quality frame steel, can be used in a long time and not easy to deformation
·Zhengxin tires have good wear resistance and shock absorption effect.


Parameter

character model CPC50
Power type diesel
load capacity 5000kg
Load centre distance 500mm
lifting height 3000mm
Mast tilt angle front/rear 6/12Deg
min turning radius 2680mm
min ground clearance 135mm
Overhead guard height 2120mm
front overhang distance 495mm
performance Max driving speed load 22km/h
Max lifting speed load 330mm/s
max drawbar pull load 18.5KN
Max climbing capacity 20%
size length without fork 2975mm
width 1380mm
Max lifting height of fork (with stopper shelf 4250mm
Landing height of the gantry 2175mm
chassis tyre front 300-15-18PR
rear 700-12-10PR
wheel base 1960mm
wheel track front/rear 1000/970mm
weight without load 5300kg
drive accumulator voktage/capacity 12/80V/Ah
engine model

Xinchai 498

Mitsbishi / Isuzu/Cummins

rated power 45kw
rated torque 186/1700-1900Nm/r.p.m
Bore X Stroke 98×105mm
number of cylinders 4
displacement 3.168L
fuel tank capacity 70L
Driving Method mechanical drive
gear front/rear 2/2




Appearance

With the latest exterior design method used, the vehicle has a smooth vivid profile following the latest exterior design trend.


Safety

The center of gravity of the vehicle moves backward to enable the higher longitudinal stability and high-position operation stability of the vehicle.


Comfortability

Advanced ergonomic technology, an integral engine hood, a steering wheel of a smaller size and an enlarged space for the pedaling foot are used to significantly improve the operation comfort and reduce the operator’s fatigue.


Reliability

The large-capacity aluminum plate-fin heat dissipater has optimized heat dissipation channels.  The integrated transmission oil and engine coolant heat dissipater and intercooler provide a good heat dissipation capacity.

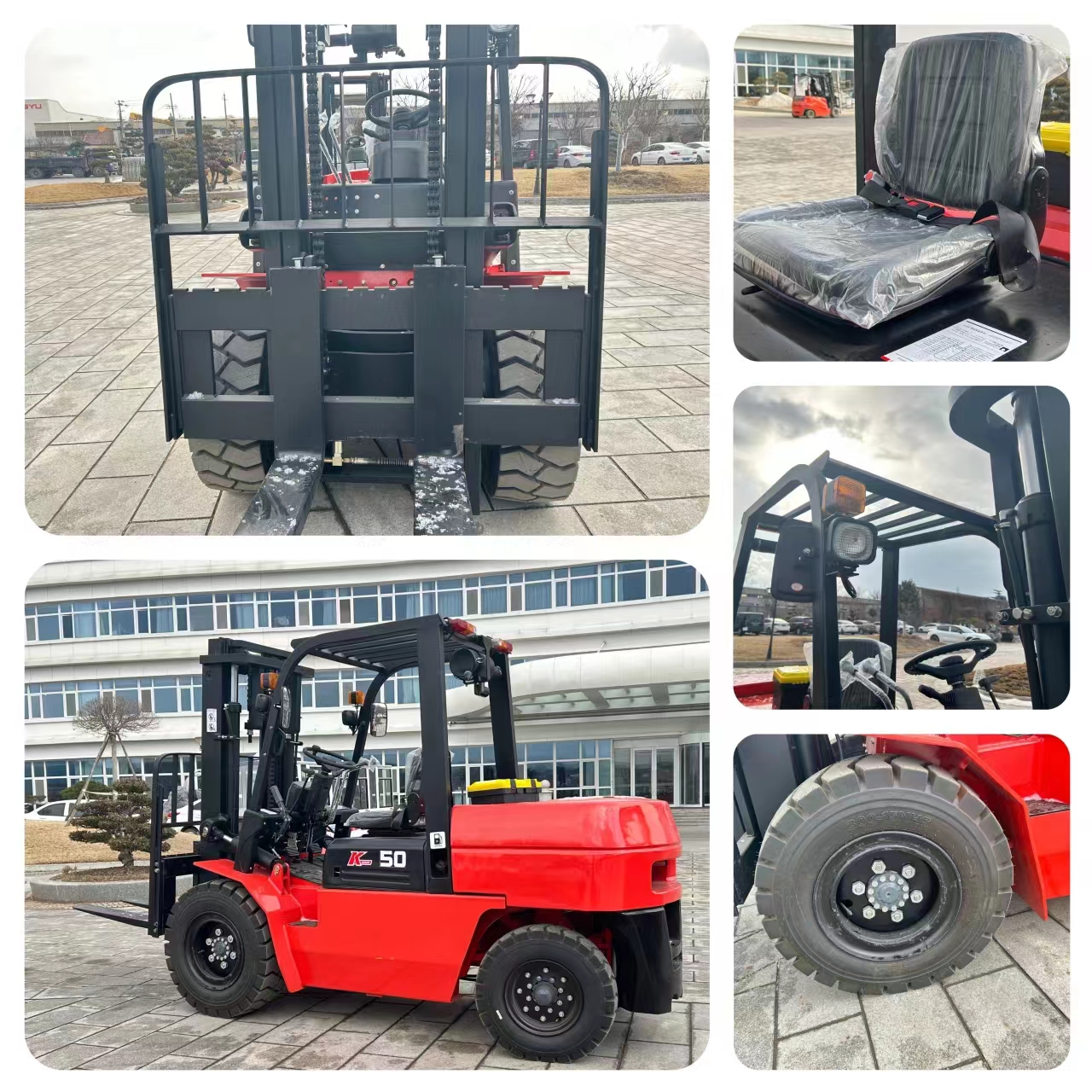

Detail



According to demands, can be matched with different accessories




About us

MYZG machines are exported all over the world,about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get
MYZG have perfect after-sales service,and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.

MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production,  in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
