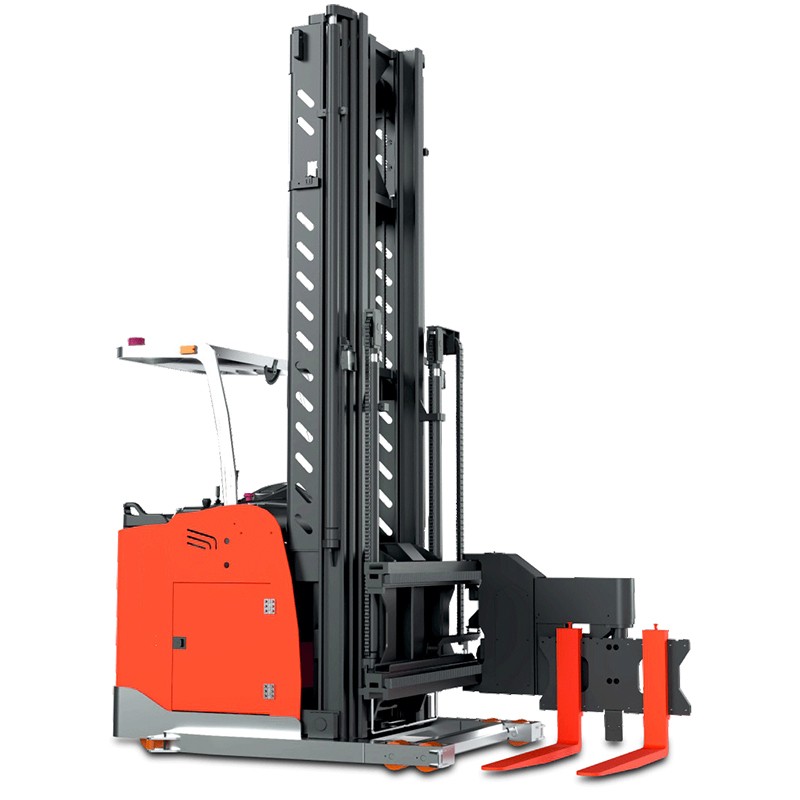

MYZG ZGCDDM16-80S 3-Way Electric Stacker Forklift
MYZG ZGCDDM16-80S 3-Way Electric Stacker: Maximize Your Warehouse Density
Engineered by Shandong Mingyu Heavy Industry (SDZG), the ZGCDDM16-80S enables you to shrink your aisle widths to as little as 1600mm, potentially in3creasing your storage capacity by up to 50% compared to traditional reach trucks.
⚡ Precision Electric Power & AC Drive Technology
High-Torque AC Motors: Equipped with a 6.5kW AC drive motor and a powerful 15kW AC lift motor, providing instantaneous response and low maintenance compared to traditional DC systems.
Long-Lasting Energy: Powered by a massive 48V/400Ah lead-acid battery, designed to sustain high-intensity work cycles through full shifts.
Efficient Charging: Comes with a matched 48V/50Ah charger, ensuring your fleet is ready for the next day's operations.
Advanced AC Control: Features precision drive control for micro-movements, essential when navigating tightly packed racks.
Technical Specifications: ZGCDDM16-80S Series
| Model | ZGCDDM16-80S | ||||
| Power Type | Electric | ||||
| Operation Type | Standing Type | ||||
| Load Capacity | Q(kg) | 1600 | |||
| Load Center | C(mm) | 600 | |||
| Total Weight（With Battery) | kg | 6500 | |||
| Wheel Type | PU | ||||
| Driving wheel specifications | ∅×w(mm) | Ф382*142 | |||
| Front wheel specifications | ∅×w(mm) | Ф145*100 | |||
| Balance wheel specifications | ∅×w(mm) | Ф180*76 | |||
| Wheel base (front wheel) | b10(mm) | 1305 | |||
| Wheelbase | y(mm) | 1700 | |||
| Door frame closed height | h1(mm) | 3960 | |||
| Free height gain | h2(mm) | 2985 | |||
| Lift height | h3(mm) | 8000 | |||
| Maximum height of mast during operation | h4(mm) | 9200 | |||
| Overhead guard height | h14(mm) | 2265/2310 | |||
| Length (the fork rotates on the left and right sides) | l2(mm) | 3065 | |||
| Body width | b1(mm) | 1550 | |||
| Anti-collision guard rail width | (mm) | 1600 | |||
| Fork size | s/e/l(mm) | 50/125/1200 | |||
| Fork adjustment size | b5(mm) | 260-650（Customizable） | |||
| Minimum ground clearance (center of wheelbase) | m2(mm) | 50 | |||
| Stacking aisle width | Ast(mm) | 1600（1200*1200tray） | |||
| Channel rail height | （mm） | 120 | |||
| Minimum turning radius | Wa(mm) | 1980 | |||
| Main channel width | mm | 3470+400（1200*1200tray） | |||
| Maximum travel speed, empty/full | km/h | 8/7 | |||
| Ascent speed, no load/full load | m/s | 0.30/0.26 | |||
| Descending speed, no load/full load | m/s | 0.36/0.39 | |||
| Service Brake | Electromagnetic | ||||
| Drive motor power | kw | 6.5AC | |||
| Increase motor power | kw | 15AC | |||
| Battery Type | Lead-acid | ||||
| Battery voltage/nominal capacity | V/Ah | 48/400 | |||
| Charger | V/Ah | 48V/50Ah | |||
| Type of drive control | AC | ||||
VNA Safety & Structural Integrity
Operating at an 8-meter lift height in a 1.6-meter aisle requires world-class stability. The ZGCDDM16-80S is engineered for absolute confidence.
1. 3-Way Rotating Fork System
The core innovation is the fork carriage that rotates 180 degrees. This eliminates the need for the operator to make right-angle turns in the aisle, significantly reducing the risk of rack collisions and speeding up pallet placement cycles.
2. High-Stability Chassis
With a total weight of 6500kg, the machine provides a solid counterweight foundation for high-altitude lifting. The PU (Polyurethane) wheels ensure non-marking, high-grip transit on smooth warehouse floors.
3. Operator Protection & Visibility
Standing Type Operation: Provides the operator with quick ingress/egress and superior visibility for high-speed picking.
Electromagnetic Braking: Ensures instantaneous stopping power, even when the mast is fully extended.
Overhead Guard: A reinforced 2265mm height guard protects the operator from falling debris in high-tier storage environments.
Productivity Features for Modern Hubs
8000mm Reach: Access the highest tiers of your racking system with ease, maximizing the vertical cube of your building.
Customizable Forks: Standard 1200mm forks can be adjusted between 260-650mm to accommodate various pallet sizes and specialized loads.
Minimal Ground Clearance: A low 50mm clearance keeps the center of gravity low for maximum stability during high-lift maneuvers.
Ideal Industry Applications
The MYZG 3-Way Stacker is the preferred choice for:
E-commerce Fulfillment Centers: Maximizing SKU density in urban warehouses.
Cold Storage: Reducing the footprint of refrigerated areas to lower energy costs.
Pharmaceuticals: High-precision handling in sterile, zero-emission environments.
Manufacturing Parts Storage: Efficient management of heavy components in narrow lineside storage.
