CQD15M-80S Electric Reach Truck

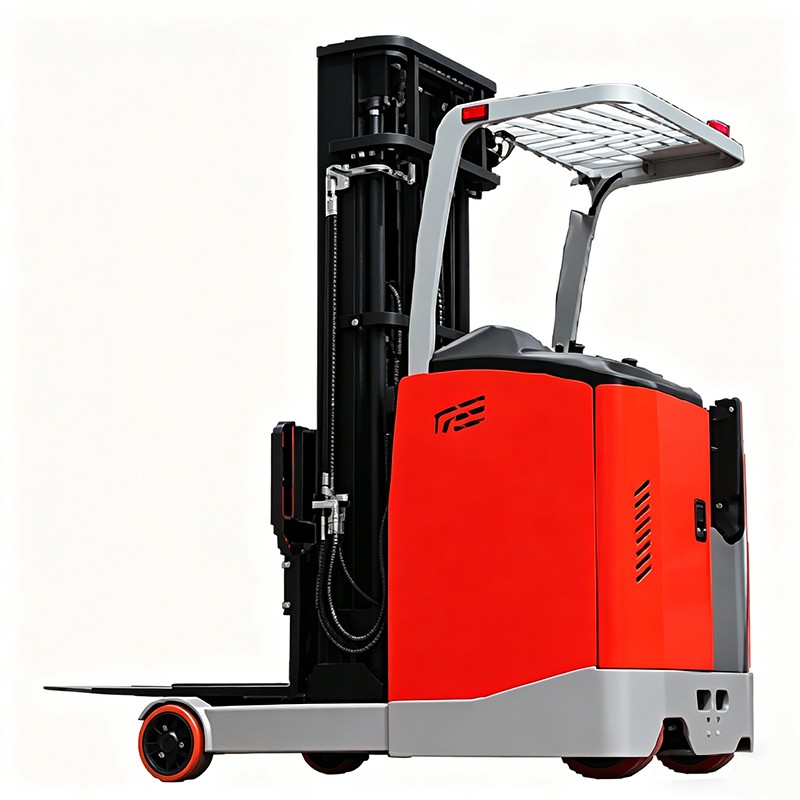

MYZG CQD15M-80S Electric Reach Truck: Elevate Your Warehouse Productivity
Manufactured by Shandong Mingyu Heavy Industry (SDZG), the CQD15M-80S is the ultimate solution for operators who require precision, safety, and zero-emission power in narrow-aisle environments.
⚡ High-Performance AC Drive & Energy Efficiency
The CQD15M-80S is built on a cutting-edge AC electric platform, delivering instantaneous torque and smooth control.
Powerful AC Motors: Equipped with a 6.5kW AC drive motor and a robust 15kW AC lift motor, providing the lifting speed and travel power needed for high-intensity work cycles.
Massive Battery Capacity: Powered by a high-endurance 48V/400Ah lead-acid battery, designed to sustain long shifts without frequent recharging.
Intelligent AC Control: The advanced AC controller ensures precise micro-movements, allowing for surgical placement of pallets at maximum height.
Standard Industrial Charging: Includes a matched 48V/50Ah charger, ensuring your fleet is ready for action after a standard charge cycle.
Technical Specifications: CQD15M-80S Model
Characteristic
Model
CQD15M-80S
Power
Electric
Operation Mode
Standing type
Load Capacity
Q(kg)
1500
Load Center
C(mm)
500
Wheelbase
Y(mm)
1693
Reach Distance
L(mm)
565
Weight
Service Weight（With Battery）
kg
3355
Wheels,
Chassis
Wheel Type
Polyurethane
Front Wheel
∅×w(mm)
267*114
Drive Wheel
∅×w(mm)
382*142
Specification of balance wheel
∅×w(mm)
180*76
Wheel Tread, Front wheel
b10(mm)
1155
Dimensions
Mast Height Lowered
h1(mm)
3210
Free Lift
h2(mm)
2320
Lifting Height
h3(mm)
8000
Height,mast entended
h4(mm)
8965
Height of overhead guards
h14(mm)
2305/2260
Fork face min.ground clearance
h13(mm)
40
Fork tilting angle Front/Rear
α/β（°）
3/5
Overall length (Without/With fork)
l2(mm)
2060/2550
Overall Width
b1(mm)
1270
Fork Size
s/e/l(mm)
40/122/1070
Fork Spread
b5(mm)
244-700
Min.ground clearance
m2(mm)
80
Aisle Width for Pallet 1000*1200 crossways
Ast(mm)
3042
Min.turning radius
Wa(mm)
1996
Performance
Max.travel speed (Unladen/Laden)
km/h
8/7
Lifting speed (Unladen/Laden)
m/s
0.280/0.200
Lowering speed (Unladen/Laden)
m/s
0.330/0.400
Max.gradeability (Unladen/Laden)
％
≤10
Service Brake
Electromagnetic
Motor,
Charger
Drive Motor
kw
6.5AC
Lift Motor
kw
15AC
Battery Type
Lead-acid
Battery voltage/nominal capacity
V/Ah
48V400Ah
Charger
V/Ah
48V/50A
Other
Type of Drive Control
AC
Sound level at the driver's ear acc. to EN12053
dB(A)
75
Superior Safety & Structural Engineering
At an 8-meter reach, stability is not optional. The CQD15M-80S is engineered with multiple layers of operator and load protection.

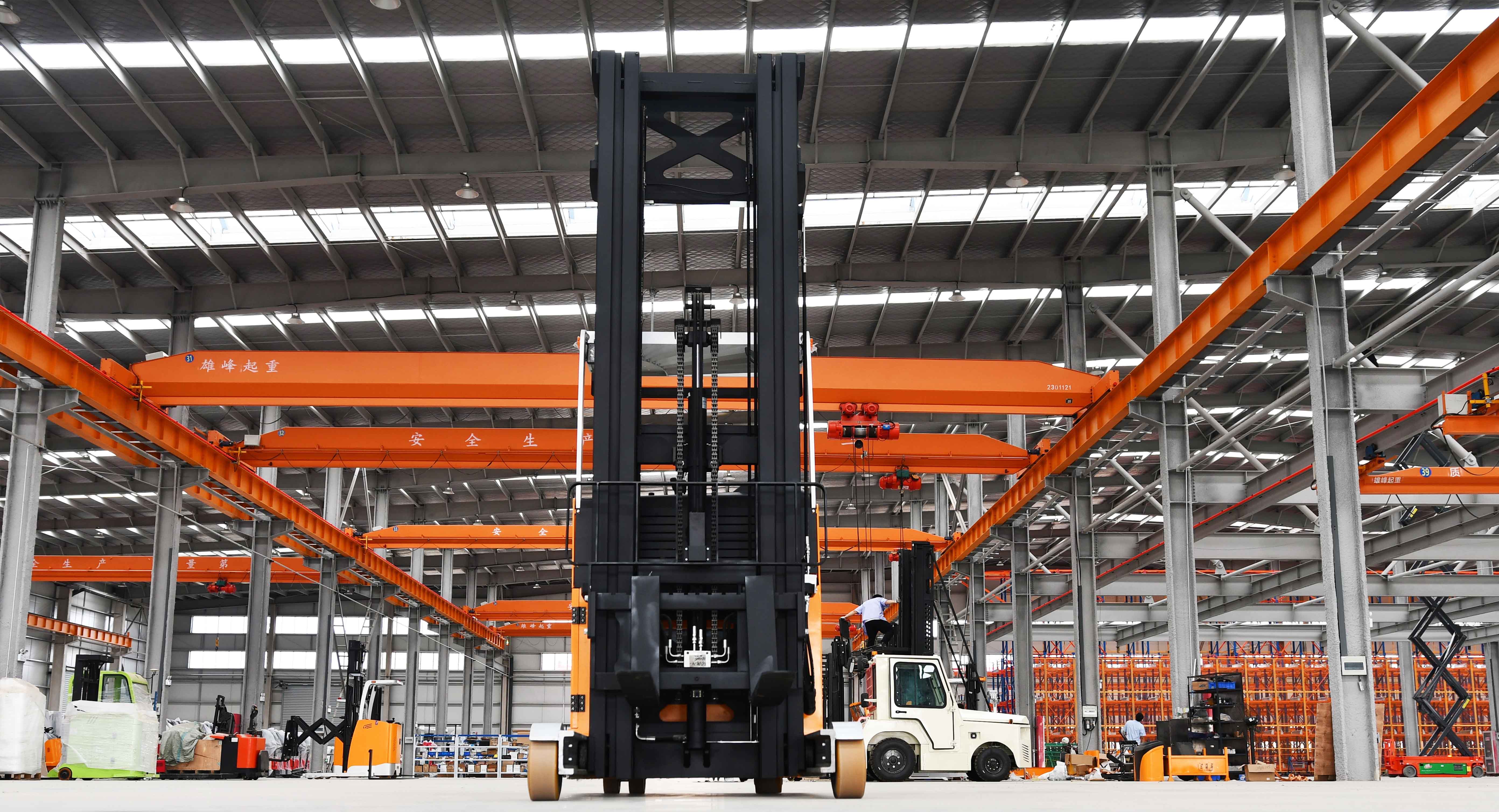

1. Robust Mast Construction
The multi-stage mast is designed with high-strength manganese steel to minimize swaying at full extension. With a free lift height of 2320mm, it can operate efficiently in areas with low overhead clearance before full extension is required.
2. Intelligent Braking System
Equipped with an electromagnetic service brake, the CQD15M-80S provides reliable, instantaneous stopping power, crucial for safety when moving heavy 1500kg loads in tight corridors.
3. Operator Protection
The Standing Type operation mode is designed for ergonomics and visibility. The overhead guard (2305mm height) ensures the operator remains protected from falling debris while maintaining a clear line of sight to the racking tiers.
Performance Features for Narrow-Aisle Excellence
Polyurethane (PU) Wheels: High-durability, non-marking wheels provide excellent traction and floor protection, making this reach truck ideal for high-end warehouse floors.
Mast Tilting Capability: Features a 3/5 degree front/rear tilt, allowing for easier pallet engagement and increased load stability during transit.
Compact Maneuverability: With a width of only 1270mm and a turning radius of 1996mm, this machine thrives in aisles where standard forklifts cannot navigate.
Zero Emissions: Being 100% electric, it is the premier choice for food, pharmaceutical, and indoor logistics hubs, where air quality is a priority.
Ideal Industry Applications
The MYZG CQD15M-80S is the preferred choice for:
Third-Party Logistics (3PL): High-speed picking and stacking in high-density facilities.
Cold Storage: Compact design reduces the space required for aisles, lowering cooling costs.
Manufacturing Parts Storage: Efficient handling of components in narrow lineside storage areas.
E-commerce Fulfillment: Rapidly reaching high-tier racking for inventory management.
