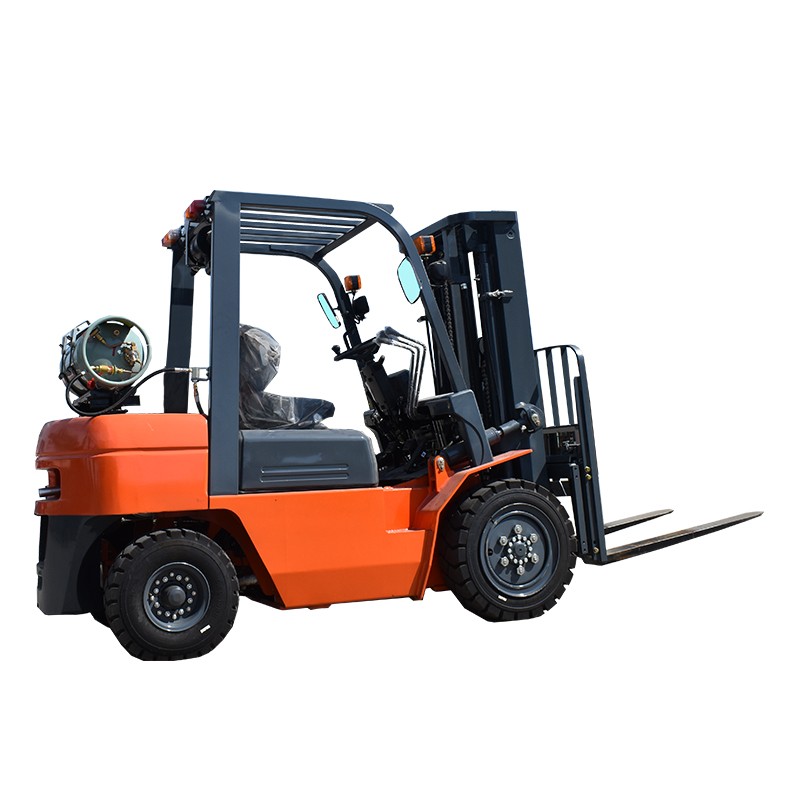

ZGFORKLIFT / MYZG CPC30 3 Ton LPG Forklift
ZGFORKLIFT / MYZG CPC30 3 Ton LPG/Gasoline Forklift for Industrial Material Handling
A robust 3000 kg counterbalance forklift with multiple LPG/gasoline engine options, 20 km/h full-load travel speed, 20% gradeability and a stable 4350 kg chassis for demanding outdoor shifts.
Overview: dependable LPG/gasoline torque for productive material handling
The ZGFORKLIFT / MYZG CPC30 is a 3 ton industrial LPG/gasoline forklift manufactured by Shandong Zhuogong Machinery Equipment Co., Ltd. for logistics yards, building-material plants, timber depots, factories, farms and distribution centers. Its straightforward LPG/gasoline powertrain is designed for continuous work where fast refueling, strong low-speed torque and outdoor durability are operational priorities.
The CPC30 LPG specification corresponds to the CPCY30/CPY30 dual-fuel platform. It lifts a rated 3000 kg at a 500 mm load center and uses a 4350 kg chassis with a 1700 mm wheelbase. Operators can select LPG or gasoline according to site rules, fuel availability and ventilation requirements.
MYZG CPC30 factory technical specifications
The table presents the mechanical, dimensional and performance data for this 3000 kg LPG/gasoline counterbalance forklift. Final mast, fork, tyre, cab, engine-emission and attachment selections should be confirmed for the destination market and actual load.
| Model | CPC30 LPG (CPCY30/CPY30 series) |
| Fuel type | LPG/gasoline dual fuel |
| Engine options | Guangqing / Nissan |
| Rated capacity | 3000 kg |
| Load center | 500 mm |
| Operator position | Seated operator |
| Standard lift | 3000 mm |
| Minimum turning radius | 2400 mm |
| Wheelbase | 1700 mm |
| Unladen weight | 4350 kg |
| Front tyre | 28x9-15-12PR |
| Rear tyre | 6.50-10-10PR |
| Loaded travel speed | 20 km/h |
| Loaded lifting speed | 480 mm/s |
| Steering system | Load-sensing hydraulic steering |
| Direction control | Electro-hydraulic direction control |
| Fuel changeover | Selectable LPG/gasoline |
| Cab mounting | Suspended cab |
| Mast lowering system | Lowering damping device |
| Cooling system | Aluminium plate-fin radiator |
| Instrument panel | Fully enclosed panel |
| Optional attachment | Side shifter available |
| Optional mast | Alternative lift heights available |
| Recommended environment | Ventilated indoor / outdoor |
Engineering design and principal advantages
1. LPG and gasoline dual-fuel flexibility
The CPC30 can operate on LPG or gasoline through a selectable fuel system. Guangqing and Nissan engine options are documented for this series. LPG operation can support cleaner combustion than gasoline, but every indoor site still requires ventilation, emission assessment and compliance with local safety rules.
2. Compact 2400 mm turning radius
A 2400 mm minimum turning radius and 1700 mm wheelbase help the truck maneuver around production cells, loading bays and compact storage zones. The 4350 kg counterbalanced chassis supports controlled handling when operators follow the approved load chart and travel with the load lowered.
3. Pneumatic tyres for mixed surfaces
The 28x9-15-12PR front tyres and 6.50-10-10PR rear tyres provide cushioning and traction for this compact LPG forklift. Operators should reduce speed on joints, ramps or uneven pavement and confirm that floor strength, tyre pressure and surface condition suit the combined truck-and-load weight.
4. 3000 mm lift and productive hydraulics
The standard lift height is 3000 mm. Loaded lifting speed reaches 480 mm/s and loaded travel speed reaches 20 km/h. A mast lowering damping device, enclosed instrument panel, suspended cab and load-sensing hydraulic steering support comfort and precise load placement.
Recommended application environments
The CPC30 LPG forklift suits warehouses, distribution centers, manufacturing lines, retail logistics, food and beverage storage, truck loading and ventilated mixed indoor/outdoor operations handling loads up to 3000 kg.
Warehouses and distribution centers
Move standard pallets, cartons, packaged goods and retail inventory between receiving, storage, picking and dispatch areas with approved ventilation and traffic separation.
Manufacturing and production supply
Deliver components, packaging and work-in-process materials to production cells while using approved forks or attachments and respecting residual capacity.
Truck loading and mixed operations
Load delivery vehicles and transfer goods between indoor staging zones and outdoor yards while following the facility fuel, ventilation and cylinder-handling procedures.
Frequently asked questions
Which engines are available for the CPC30 LPG forklift?
The source configuration lists Guangqing and Nissan engine choices. Final fuel-system certification, engine model and emission package should be confirmed for the destination market.
What is the turning radius of this 3 ton LPG/gasoline forklift?
The documented minimum turning radius is 2400 mm. Buyers should add clearance for the actual pallet, attachment, fork length, rack protection and operator skill.
Can the CPC30 be supplied with hydraulic attachments?
Yes. MYZG can discuss side shifters, fork positioners, clamps, rotators, duplex or triplex masts and cab options. Residual capacity must be recalculated for the selected mast, load center and attachment.
Configure a ZGFORKLIFT / MYZG CPC30 for your site
Send the load weight and dimensions, lift height, aisle width, operating surface, ramp gradient, working hours, engine-emission requirement, destination port and attachment needs. The factory team can prepare a configuration, quotation, packing plan and shipping proposal.
