Description
Product Feature

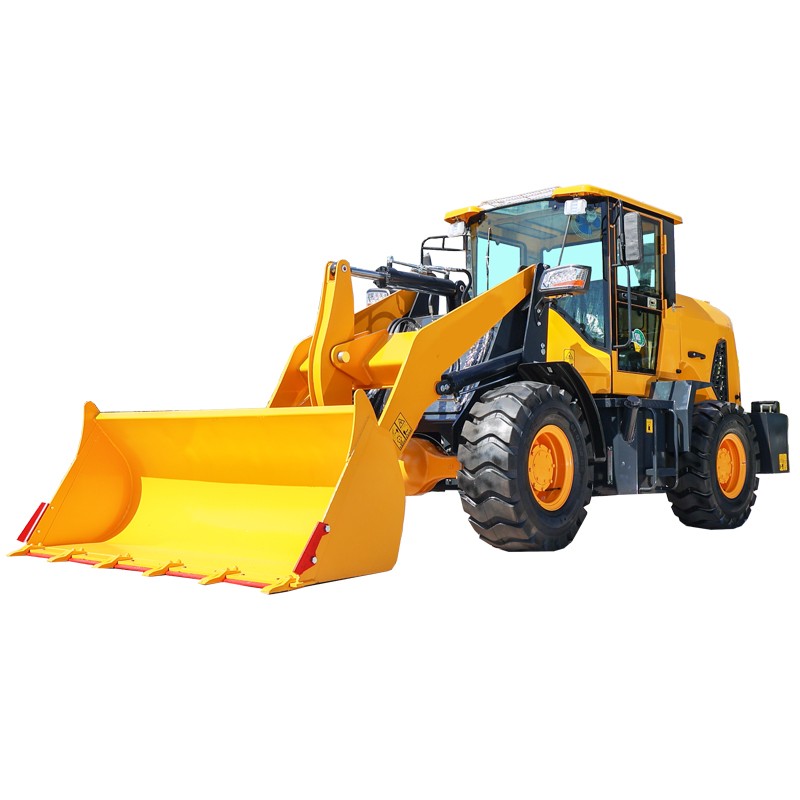

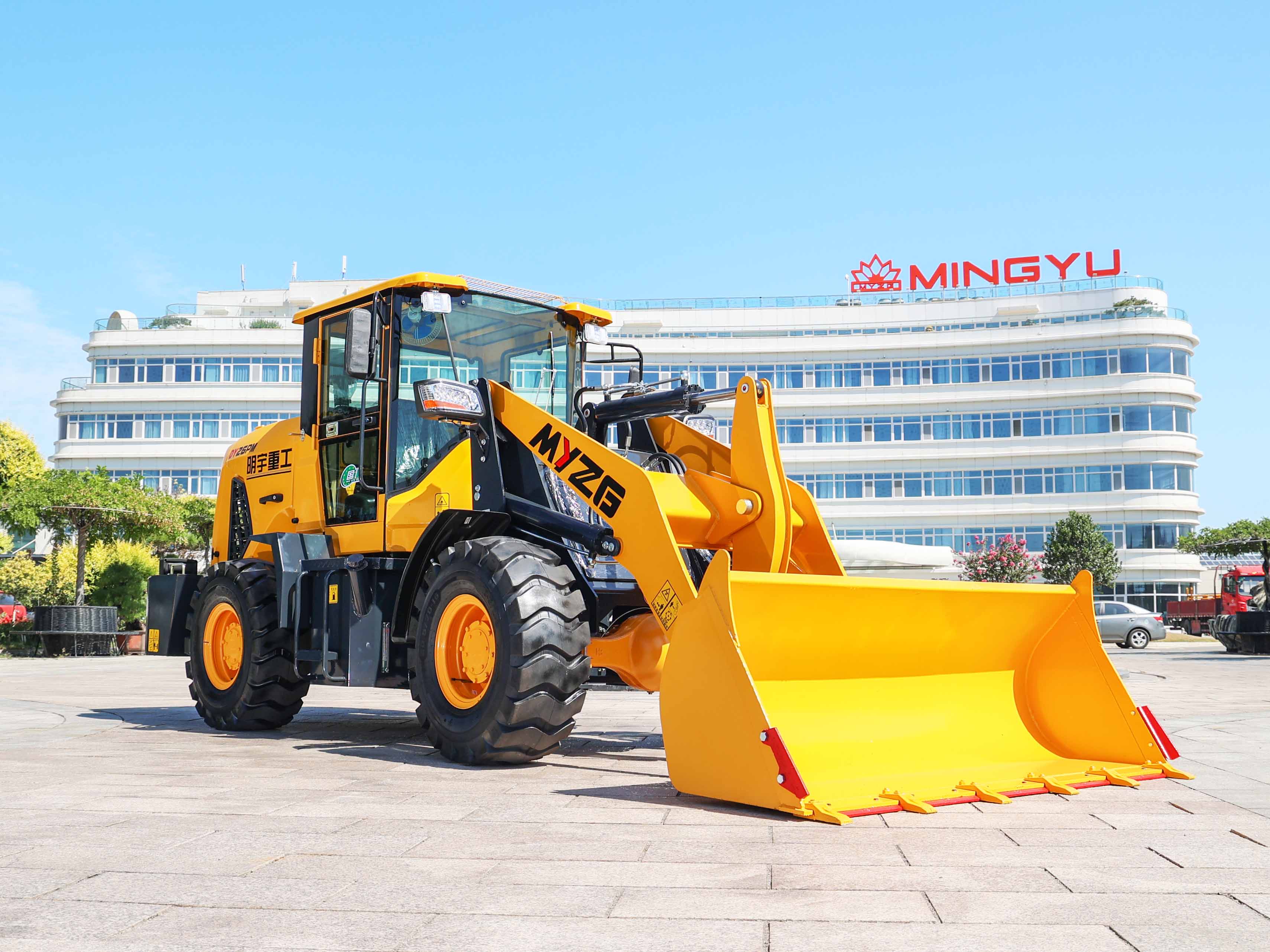

Dy26 is a new underground loader designed by Minyu, low design, suitable for all environments, turning more calmly, weight axle, safe and reliable, strong and efficient continuous operation, full load climbing, relaxed, fast response speed.
·Traction force ≥ 24KN, rising force 25KN, outstanding capability.
·Turning radius 3635mm, strong adaptability
· Extra long wheelbase, more heavy duty
Parameter
rated load capacity
1380kg
rated bucket capacity
0.6m³
operating weight
3200kg
engine model
QUANCHAI 4B2-75M22
rated power
55kw
rated speed
2400 r/min
dimensions
5530*1940*2220mm
dump height
3000mm
dump distance
400mm
min.turning radius
3635mm
wheel base
2430mm
wheeltrack
1490mm
tyre size
20.5/70-16
DY26 is a product independently researched and developed by MYZG. It is equipped with national engine, high-quality split type double change, four-wheel drive, full hydraulic steering, strong power, higher efficiency and stronger environmental adaptability.
•Engine has the characteristics of low noise, low fuel consumption, reliable operation and long service life.
• The adoption of single-stage single-phase three-element hydraulic torque converter equipped with axis-fixed gearbox makes full use of engine power and increases the torque, ensuring the greater traction of complete vehicle.
• The single-plate rear frame and four-plate front frame adopt joint bearings, ensuring flexible operation and small turning radius.
• The optimized working device provides the huge breakout force of boom, the great full coefficient of bucket and high productivity.
• Load sensing hydraulic steering system is adopted. On the condition that the steering system is preferentially satisfied, the work device hydraulic system sharing one pump with the steering hydraulic system is supplied to reduce power consumption of hydraulic system and system power loss, and improve working efficiency.

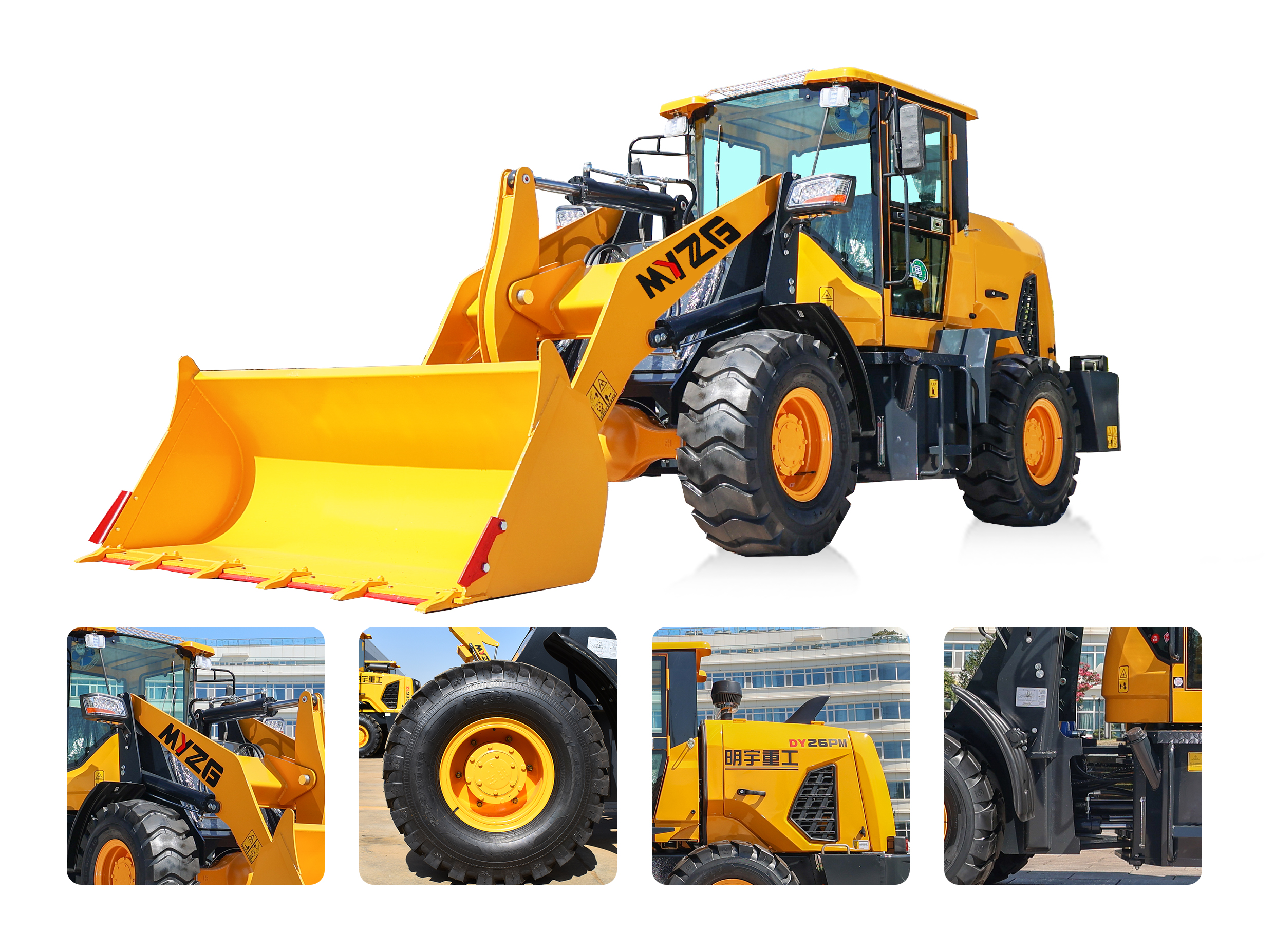

Detail
DIFFERENTIATED PRODUCTS
According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.
About us
MYZG machines are exported all over the world，about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get,and the engine can be changed to many brand such as Yunnei, Huadong, Huafeng, Cummins, Changchai, Xinchai, etc.
MYZG have perfect after-sales service，and provide one year warranty .Our price is more competitive and the good service well received by customers.

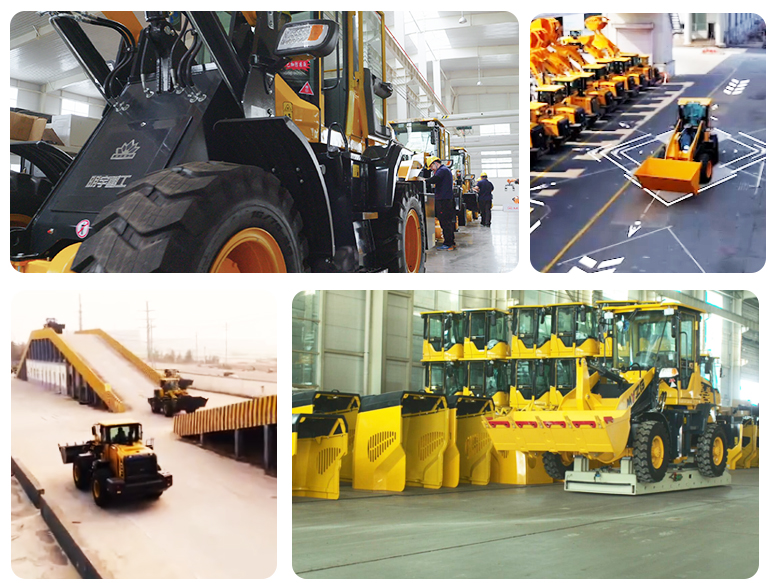

Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.

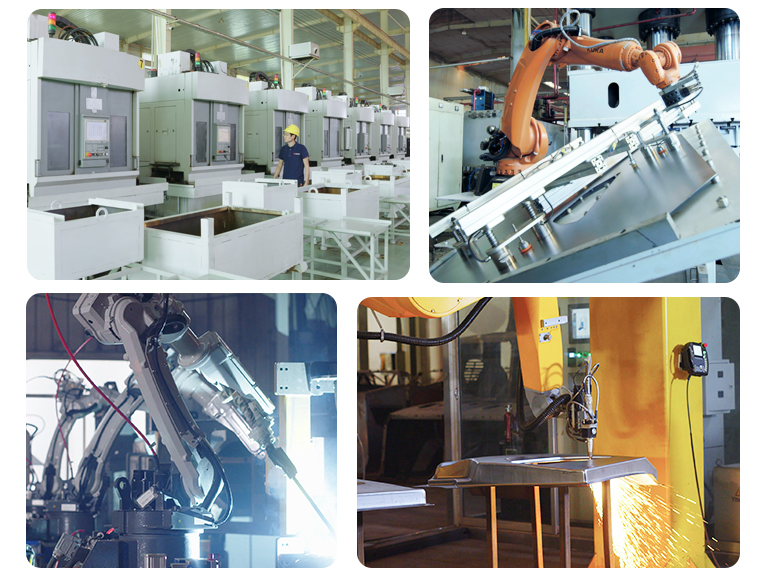

MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production, in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
