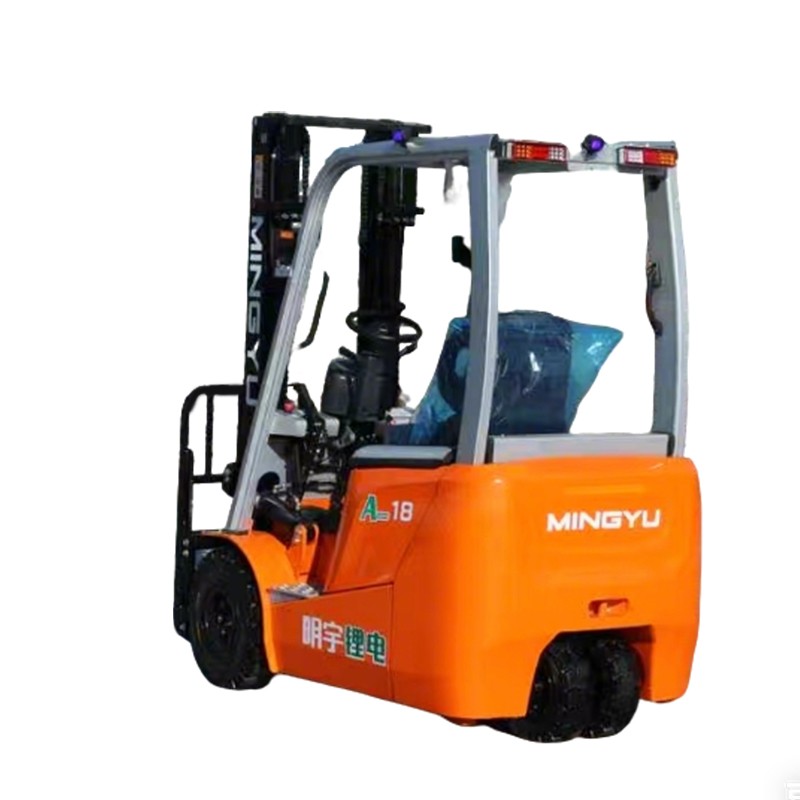

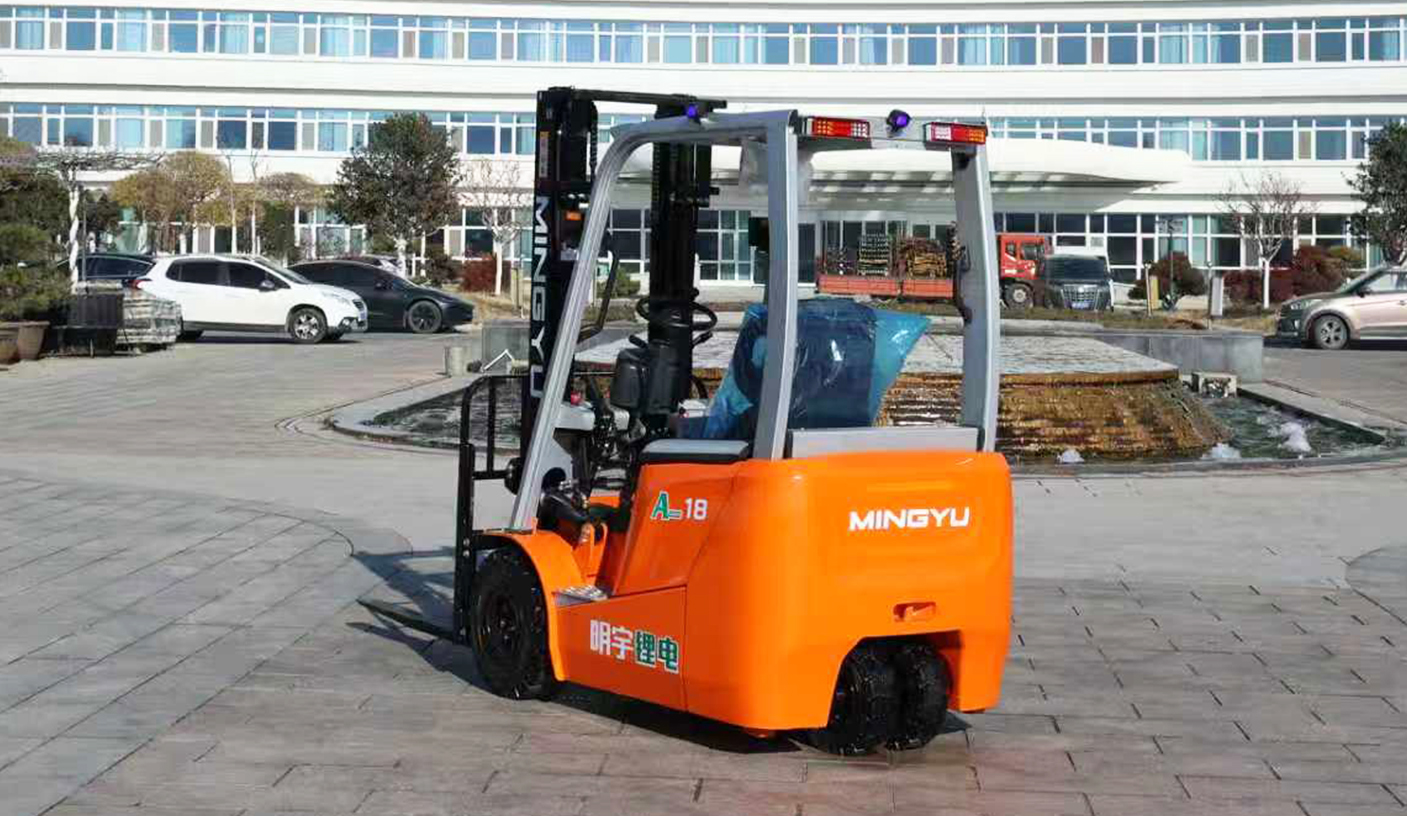

Mingyu CPD18-A electric Forklift
Mingyu A18 Lithium Battery Forklift: Compact and Efficient for Tight Spaces
PRODUCT FEATURE
In the rapidly evolving landscape of material handling, the demand for agility, sustainability, and uncompromising power has never been higher. The MYZG A18S, a cutting-edge 3-wheel (three-point) lithium-ion electric forklift designed to redefine narrow-aisle efficiency. By combining a high-performance 80V Li-ion battery with a compact three-wheel configuration, the A18S delivers the maneuverability of a small machine with the lifting strength required for heavy-duty industrial tasks.
Improved performance, superior quality
● Vibration 20% reduced
●Noise 3dB reduced
● Workspace 45% increased
● Operator’s view 20% improved
● Working efficiency 20% improved
● Loading capacity increased over 5%
● Stability 5% improved
● Reliability 40% improved
● Engine hood open angle increased to 80°
Using the same technology as hyster
THE MAIN PARAMETER
Power Type
Li-ion
Rated Load Capacity
1800 KG
Load Center Distance
500 mm
Operation Mode
Seated
Overall Length (With Fork)
2500 mm
Overall Length (Without Fork)
1870 mm
Overall Width
1130 mm
Overall Height (Non-lifting Mast)
2160 mm
Overall Height (Roof Guard)
2020 mm
Max. Height During Operation
4050 mm
Wheelbase
1335 mm
Front Overhang
370 mm
Rear Overhang
100 mm
Front Track Width
960 mm
Rear Track Width
210 mm
Min. Ground Clearance
120 mm
Standard Lifting Height
3000 mm
Free Lifting Height
80 mm
Fork Adjustment Range
260-1100 mm
Min. Turning Radius
1760 mm
Minimum Right-angle Aisle Width
3415 mm
Mast Tilt Angle (Front/Rear)
6/10 (°)
Max. Lifting Speed (without load)
430 mm/s
Max. Lifting Speed (Full Load)
360 mm/s
Max. Travel Speed (without load)
15 Km/h
Max. Travel Speed (Full Load)
12 Km/h
Max. Climbing Slope (Full Load)
15%
Overall Weight (without load, Standard)
3195 Kg
Number of Wheels (Drive/Steer)
2/2
Tyre Type (Front/Rear)
Pneumatic Tyre/Solid Tyre
Front Tyre Size
21x8-9
Rear Tyre Size
15x41/2-8
Service Brake
Foot Brake
Parking Brake
Hand Brake
Battery Voltage/Capacity
80V/280AH
Charger
220V/35A (Built-in)
Drive Motor Power
13 Kw
Oil Pump Motor Power
13 Kw
Key Features:
Advanced Performance and Agility
The MYZG A18S is specifically engineered for facilities where space is at a premium. Its three-wheel design enables an incredibly tight minimum turning radius of just 1760 mm, allowing it to navigate narrow warehouse aisles and crowded loading docks with ease. This agility does not come at the cost of power; the forklift features a rated lifting capacity of 1800 kg (1.8 tons) at a 500 mm load center distance, making it a versatile tool for various palletized goods.
Dual-Motor Efficiency
Performance is driven by a dual-motor system that ensures both rapid travel and precise lifting. The A18S is equipped with a high-torque 13 Kw drive motor and a powerful 13 Kw oil pump motor. This configuration allows the forklift to reach a maximum operating speed of 15 km/h (without load) and maintain a respectable 12 km/h when fully loaded. For vertical tasks, it offers a swift maximum lifting speed of 430 mm/s (without load).
Revolutionary Lithium-Ion Technology
The transition from traditional lead-acid to Lithium-ion (Li-ion) power is the cornerstone of the A18S’s operational advantage. Powered by an 80V/280AH battery, this forklift provides consistent power output throughout the entire discharge cycle.
Fast Charging: The system includes a built-in 220V/35A charger, facilitating easy opportunity charging during breaks to maximize uptime.
Zero Emissions: Perfect for indoor food, beverage, and pharmaceutical industries where air quality is critical.
Zero Maintenance: Unlike lead-acid batteries, the Li-ion unit requires no watering, cleaning, or equalization, significantly reducing total cost of ownership.
Ergonomics and Operator Comfort
Safety and productivity go hand-in-hand. The MYZG A18S features a sit-down driving style designed with ergonomic controls to reduce operator fatigue over long shifts.
Superior Visibility: The mast design provides a clear line of sight, while the 2020 mm overhead guard height ensures operator protection without sacrificing vertical visibility.
Intuitive Braking: Safety is enhanced by a responsive foot brake for operation and a reliable hand brake for parking.
Adjustable Forks: The fork adjustment range is 260 mm to 1100 mm, allowing the machine to handle diverse pallet sizes efficiently.
Versatile Application Scenarios
The combination of a compact frame (2800 mm length with fork) and robust power makes the MYZG A18S ideal for:
E-commerce Fulfillment Centers: Rapidly moving goods in high-density storage.
Cold Storage Logistics: Reliable Li-ion performance in temperature-controlled environments.
Manufacturing Lines: Feeding materials into production lines where space is restricted.
Retail Logistics: Unloading trucks and moving stock in back-room areas.
According to demands, can be matched with different accessories
