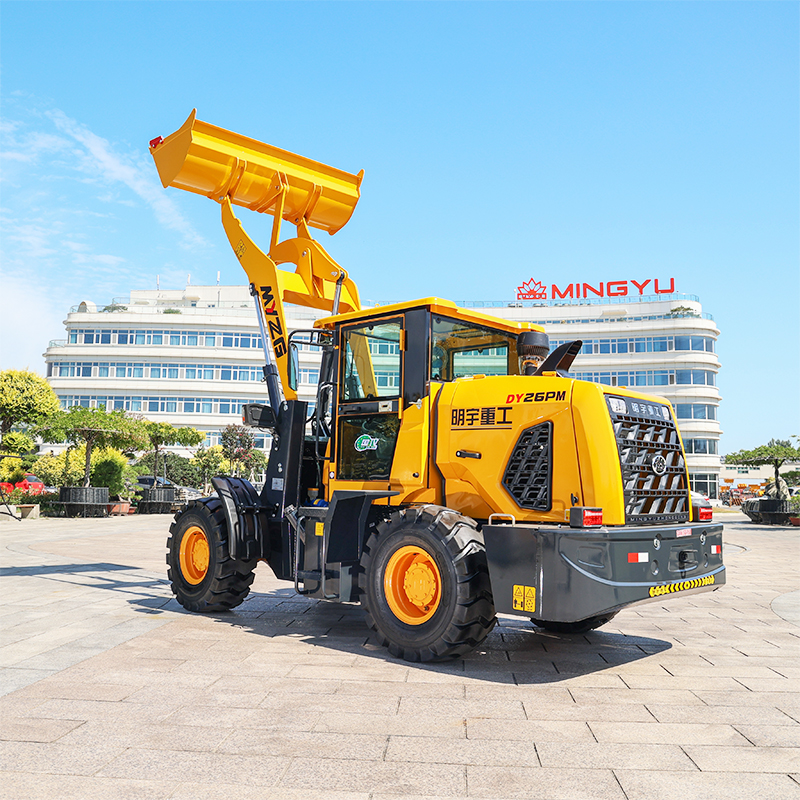

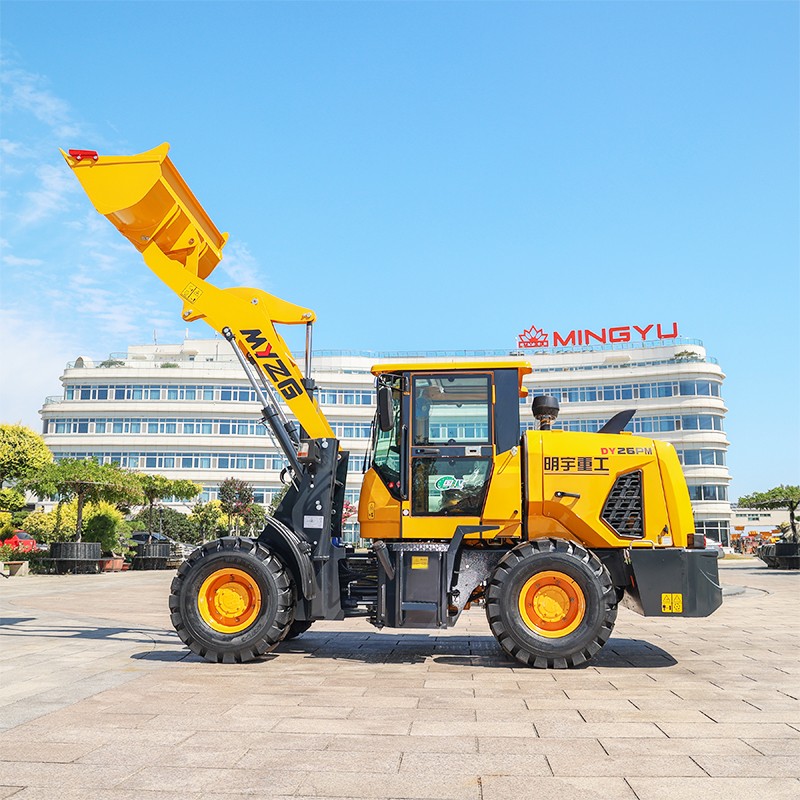

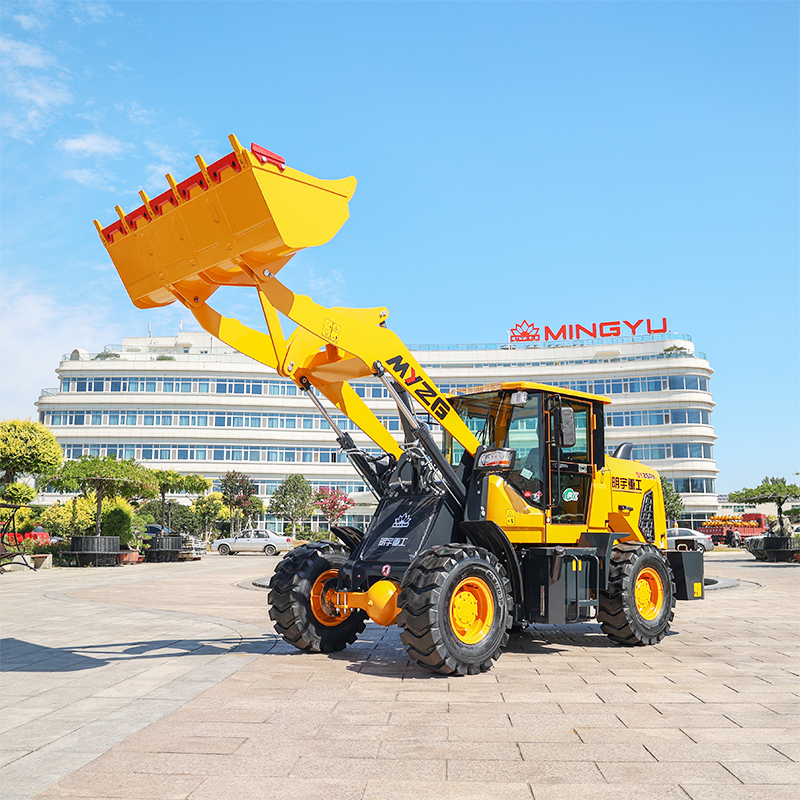

DY26 Compact Front End Loader

The DY26 Compact Front End Loader stands as a versatile and high-performance solution designed to meet the demands of modern construction, agriculture, and material handling operations. Engineered with a focus on efficiency, durability, and maneuverability, this equipment combines robust specifications with user-centric design to deliver reliable performance across diverse work environments. At its core, the DY26 boasts a 1380KG rated load capacity and 0.8m³ rated bucket capacity, making it suitable for tasks ranging from loading aggregates on construction sites to handling bulk materials in agricultural settings. Its operating weight of 3200KG strikes a balance between stability and mobility, ensuring it can navigate both rough terrain and confined spaces with ease.Powering the DY26 is the QuanChai 4B2-75M22 engine, a 55KW diesel powertrain optimized for consistent output and fuel efficiency. With a rated speed of 2400RPM, the engine delivers the torque required to handle heavy loads while maintaining smooth operation during extended work cycles. Complementing the engine is the Jinlite ZL65 high-low speed transmission, which provides flexible speed control to adapt to different tasks—whether moving materials over short distances at high speed or operating with precision in tight areas. This combination of power and transmission ensures the DY26 can tackle demanding jobs without compromising on productivity.

Beyond its performance metrics, the DY26 prioritizes operator comfort and safety. The ^{compact dimensions} (553019202200MM) allow for easy maneuvering in narrow work zones, while the 4300MM minimum turning radius enhances agility when navigating around obstacles. The design also incorporates features like a reinforced bucket structure and durable hydraulic components, reducing maintenance needs and extending the equipment’s service life. For businesses seeking a reliable, mid-sized loader that can handle multiple applications, the DY26 emerges as a cost-effective and efficient choice.A standout attribute of the DY26 Compact Front End Loader is its exceptional maneuverability and performance, tailored to address the challenges of dynamic work sites. The 4300MM minimum turning radius and 2430MM wheelbase enable the loader to operate in spaces that larger equipment cannot access—such as narrow alleys on urban construction sites or between farm buildings. This agility is further enhanced by the 1490MM wheel track, which provides stable traction on uneven ground while minimizing soil compaction in agricultural applications, a critical consideration for crop-friendly material handling.

In terms of durability, the DY26 is built with heavy-duty components to withstand harsh operating conditions. The 20.5/70-16 tire size provides robust grip on gravel, mud, and concrete, while the reinforced chassis and bucket structure resist wear from abrasive materials like sand and rock. The water-cooled engine design prevents overheating during prolonged use, and the sealed hydraulic system reduces the risk of contamination, lowering the frequency of repairs. For operators and fleet managers, these features translate to reduced downtime and lower long-term operating costs.
