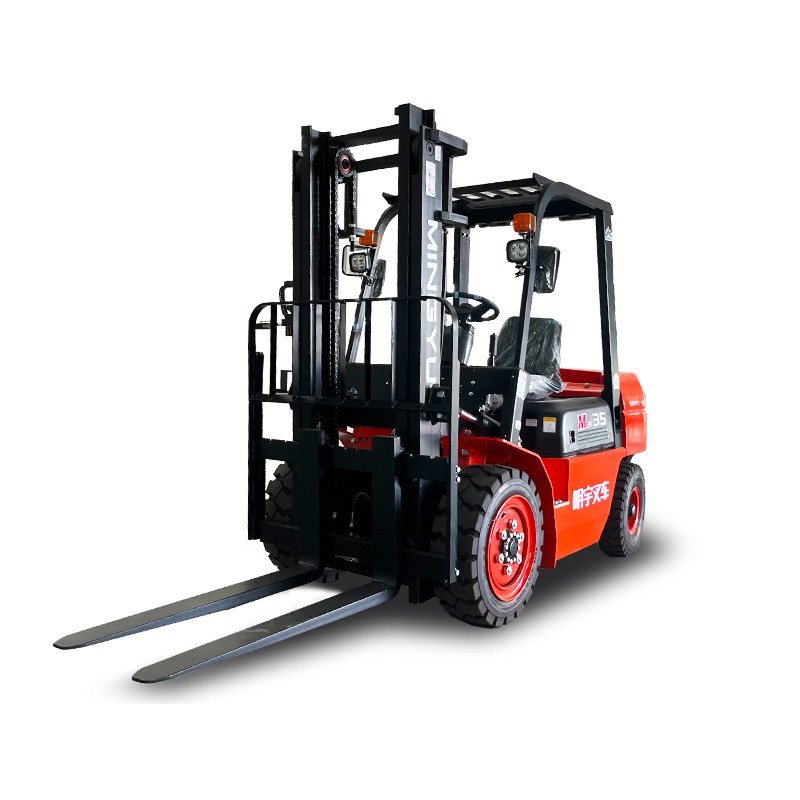

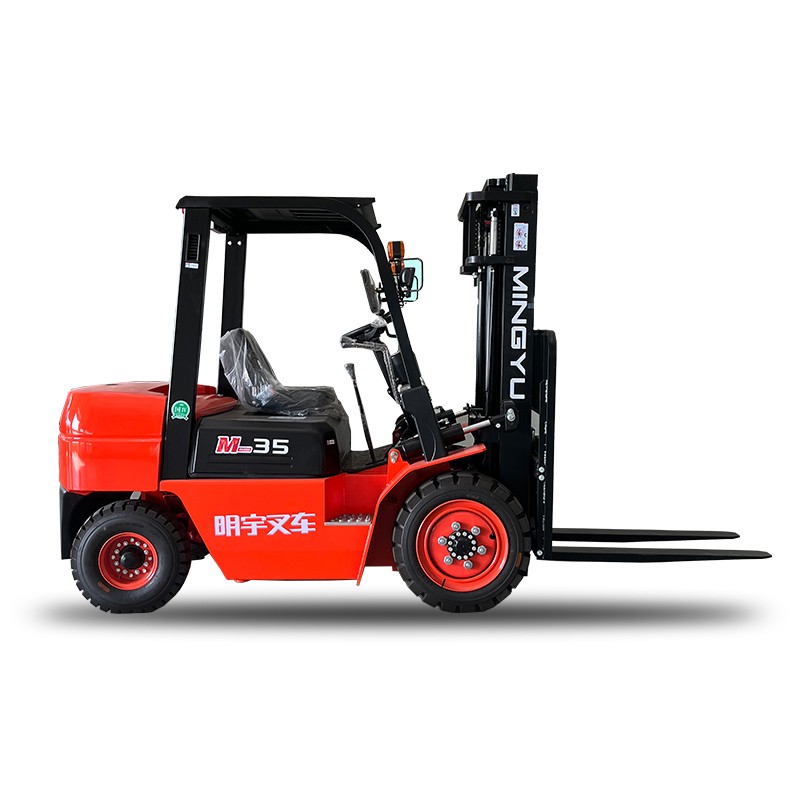

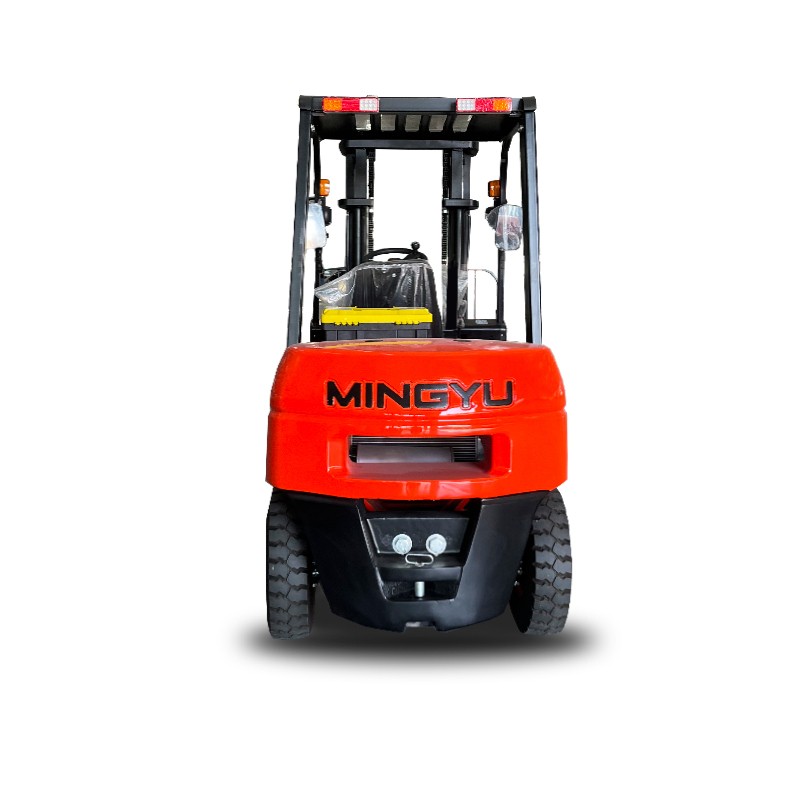

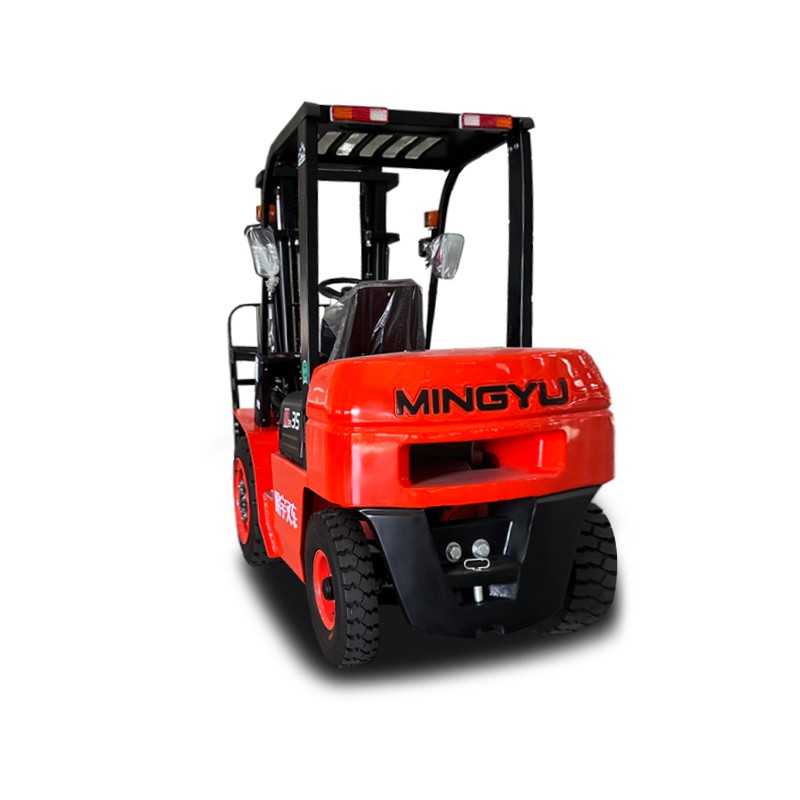

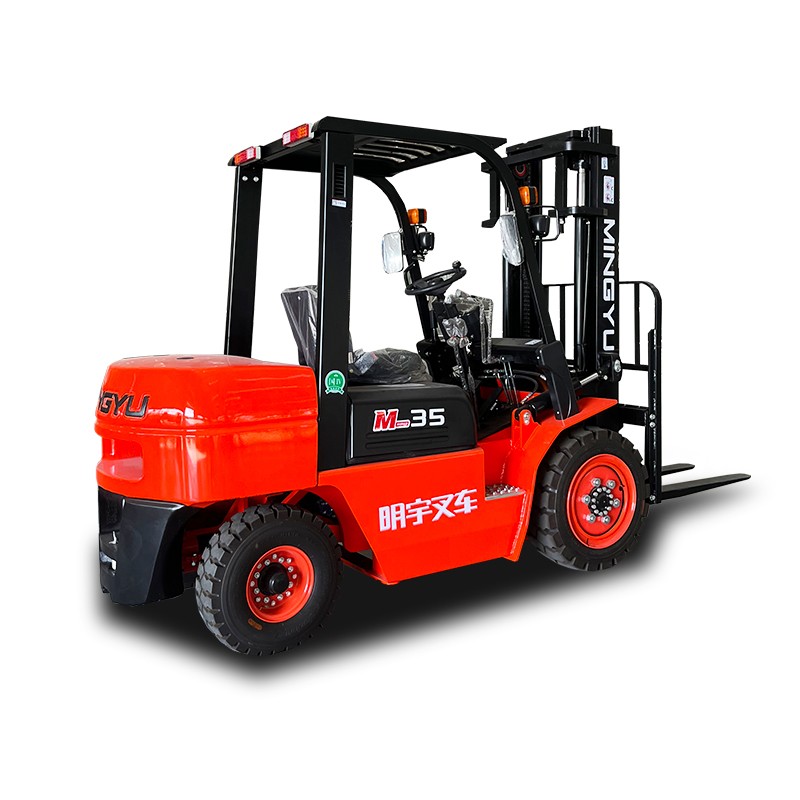

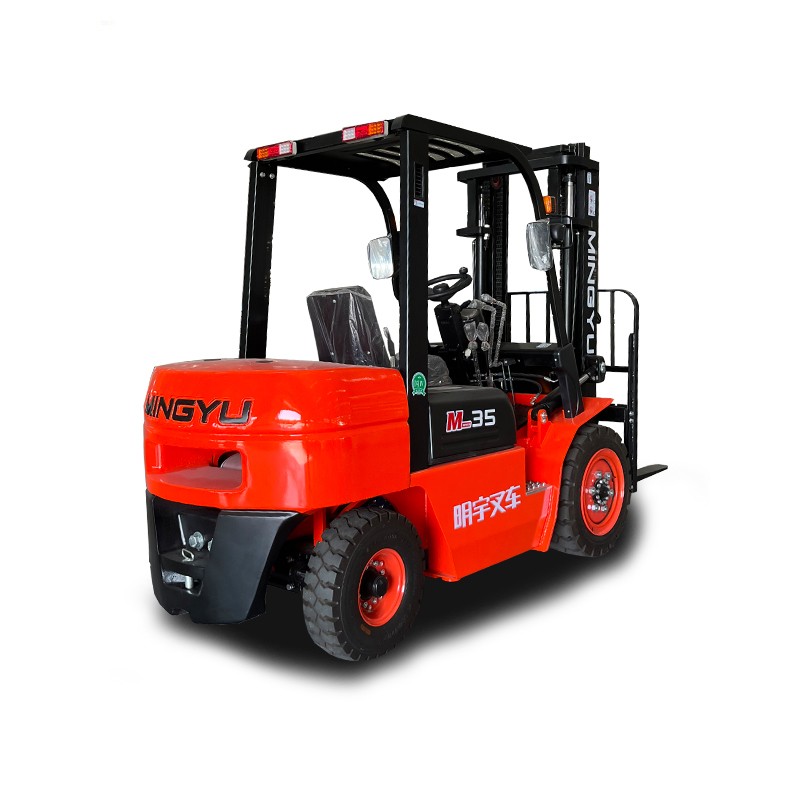

CPC35 forklift
Product Feature
CPC35 is a special equipment for material handling and stacking, with a maximum lifting capacity of 3.5T and a maximum lifting height of 3m, which can also be increased. The product is flexible, efficient and widely used
New CPC35 series is the key product which MYZG blockbuster launches. Based on the high technology, mass manufacturing capability and experienced sales and services of MYZG, new H series becomes a milestone of MYZG’s products which fully consider the needs of market and customers
Improved performance, superior quality
·Flexible and efficient operation
·Safe and reliable, easy to use
·Economic and environmental protection, cost saving
·People-oriented, comfortable driving
·Vibration 20% reduced
·Noise 3dB reduced
·Workspace 45% increased
·Operator’s view 20% improved
·Working efficiency 20% improved
·Loading capacity increased over 5%
·Stability 5% improved
·Reliability 40% improved
·Engine hood open angle increased to 80°
Parameter
| Model | CPC(D)35M | |
| Power Type | diesel | |
| rated load lifting capacity | 3500kg | |
| Load centre distance | 500mm | |
| driving style | Sit down | |
| length | with fork | 3890mm |
| without fork | 2715mm | |
| wideth | 1228mm | |
| height | Do not raise the mast height | 2140mm |
| Overhead guard height | 2100mm | |
| Max height at working | 4262mm | |
| Distance from seat surface to top guard frame | 970mm | |
| wheel base | 1700mm | |
| front overhang | 457mm | |
| rear overhang | 520mm | |
| front wheel track | 1000mm | |
| rear wheel track | 980mm | |
| minimum ground clearance | 165mm | |
| Standard lifting height | 3000mm | |
| free lifting height | 70mm | |
| Fork adjustment range | 260-1100mm | |
| minimum turning radius | 2520mm | |
| Minimum right-angle channel width(1100*1100 pallets) | 4277mm | |
| Gantry angle (front/rear) | 6/12° | |
| Maximum lifting speed without load | 480mm/s | |
| Maximum lifting speed with full load | 370mm/s | |
| Maximum operating speed without load | 20Km/h | |
| Maximum operating speed with full load | 20Km/h | |
| Max gradeability with full loading | 20% | |
| Weight unladen | 4465kg | |
| Number of wheels = driving wheels/steering wheels | 2/2 | |
| Tyre type (front/rear) | Pneumatic tyre/pneumatic tyre | |
| tyre size(front) | 28x9-15 | |
| tyre size(rear) | 6.50-10 | |
| Brake/driving brake | Foot Brake | |
| parking brake | Hand Brake | |
| Engine |
quanchai/xinchai/
Mitsbishi / Isuzu/Cummins |
|
| rated power | 39kw | |
| rated speed | 2650r/min | |
| fork length | 1220mm | |
According to demands, can be matched with different accessories
Detail
In addition to rubber damper between frames and steering axle, compound engine damper and full floating power train achieve flexible connection between frames and driving system, as a result, traveling vibrations and vibrations from the driving system are significantly reduced
In developing the new CPC35 Series, comfort and ease of operation is carefully considered, for example, to improve vibration levels, compound engine damper and full floating power train are adopted. Comfortable operating environments for operator also contribute to increased productivity
About us
MYZG machines are exported all over the world，about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get
MYZG have perfect after-sales service，and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production, in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
