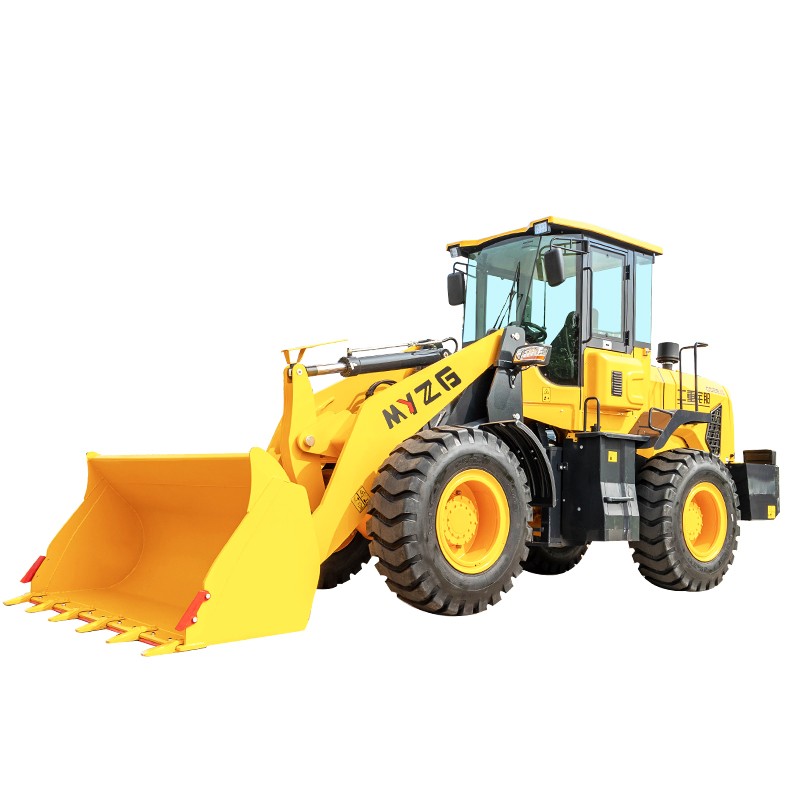

ZL-950 wheel laoder

ZL-950 wheel laoder
  • ZL-950 wheel laoder

Short Description:

ZL-950 wheel laoder...


  • Rated load capacity: 3000kg
  • Rated bucket capacity: 1.5m³
  • Engine model: weichai Deutz 92kw /Cummins

Product Details

Product Tags

Product Feature

The ZL-950 is MYZG's self-developed product, equipped with WEICHAI engine, high-quality transmission, four-wheel drive, full hydraulic steering, powerful, more efficient and more adaptable to the environment.


Key highlights

●Centralized pipe line, reasonable direction; Double seal, leakproof more reliable.
●The double side door opens the machine cover at a large Angle, the field of vision is wide, the large space operation is comfortable, the maintenance is convenient.


1.All-around visibility. High-strength integral framework is used for cab, which ensures high security. Good seal & shock absorption effect , quality seat and optional A/C provide the users with comfortable operating environment.

2.The optimal matching of energy-saving engine, efficient torque converter and hydraulic system contributes to excellent energy efficiency.

3.Planetary power shift gearbox is equipped, featuring compact structure and long service life.

4.Single-lever pilot controlled hydraulic system and load sensing hydraulic steering system are adopted for flexible operation and reliable performance.

5.Middle articulated frame and optimized working devices provide large breakout force, adapting to various severe working conditions like mine.

6.Structural components have been analyzed by finite element method, featuring large bearing capacity, high intensity and stability.




Parameter

rated load capacity 2800kg
rated bucket capacity 1.5m³
operating weight 8000kg
engine model Weichai Deutz/Cummins
rated power 92kw
rated speed 2200r/min
dimensions 7130*2350*3230mm
dump height 3600mm
dump distance 950mm
min.turning radius 3350mm
tyre size 17.5-25

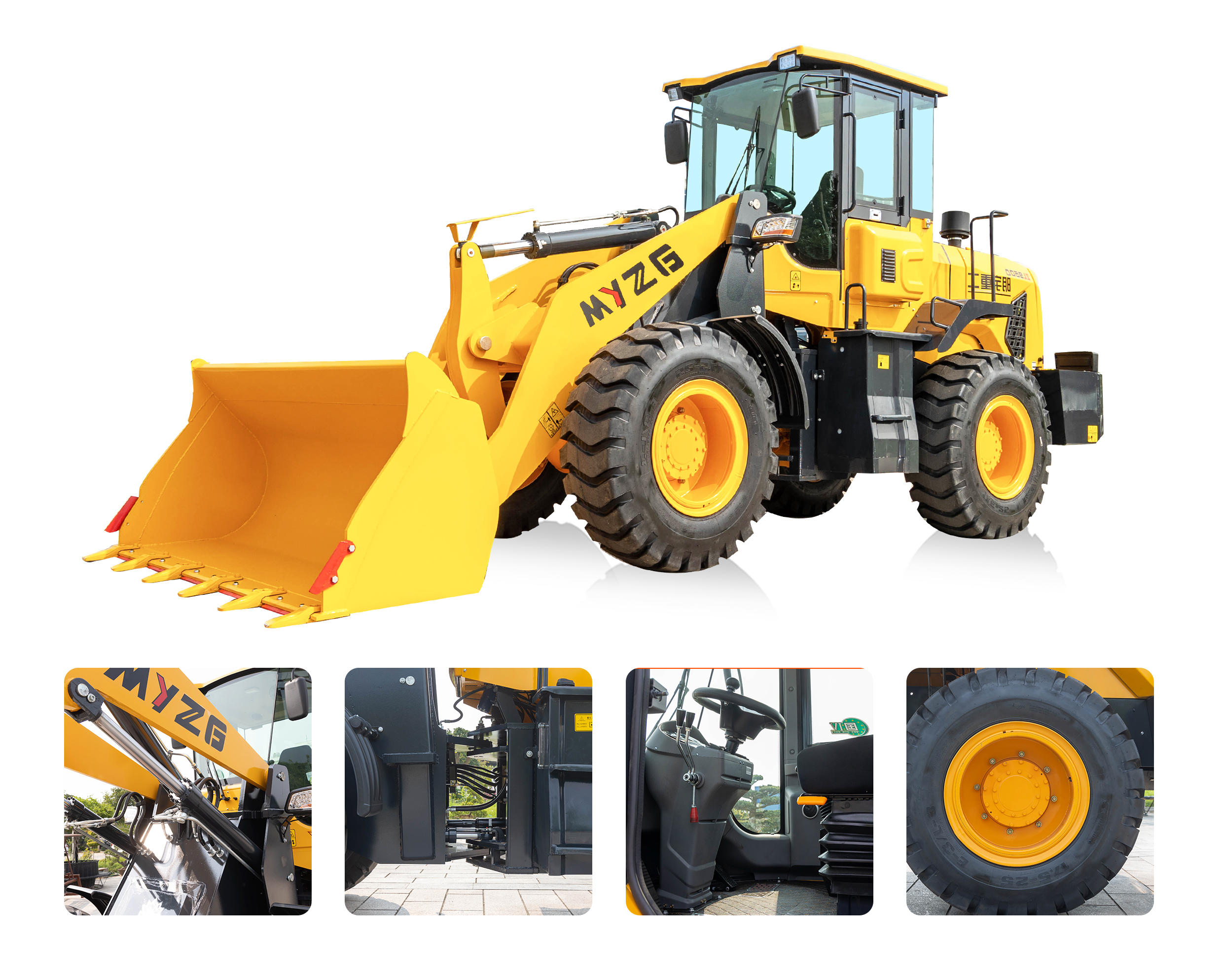

Detail


DIFFERENTIATED PRODUCTS

According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.




1.Reliability & Durability:

· Heavy duty front & rear frames, long wheel base and matured transmission system increase the overall reliability. Upgraded radiation system enables the loader to adapt to worse working conditions.

2.High Efficiency & Energy Conservation:

· Power match is optimized and upgraded, improving the speed, breakout force and traction force, and increasing the working efficiency.

3.Driving Comfort:

· Stepping type high-end instrument panel increases human-machine interaction. Joystic operation is easy and flexible. Spacious cab also has good sound & shock insulation.

4.Convenient Maintenance:

· Back-flipped engine hood, tidy pipelines, and humanized design for maintenance contribute to convenience of daily maintenance.
