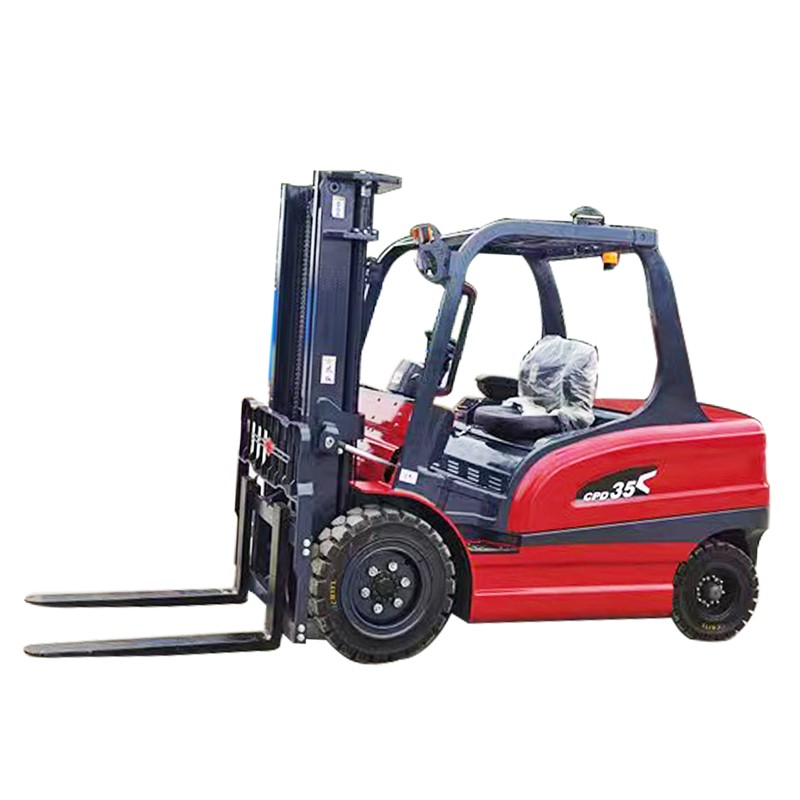

CPD35 electric Forklift

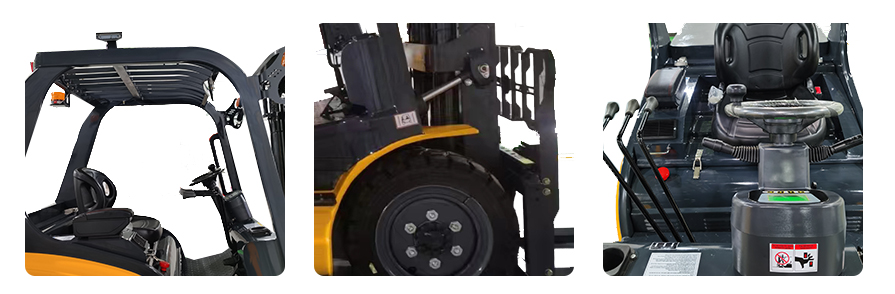

THE STEERING OIL TUBE AND WIRE HARNESS ARE ARRANGED INDEPENDENTLY
PRODUCT FEATURE
Perfect Combination of Aesthetics and Functional Design.
New generation with characteristics of smart, safe, high efficiency, energy saving and environment friendly.
Lithium battery is more environmentally friendly, maintenance-free, long life and high efficient;
The controller is installed on the balance weight, and the heat balance temperature is low;
Strengthened steering axle with high supporting point increase the bearing capacity; increased cylinder diameter reduces steering pressure and steering energy consumption;
The center of gravity is reduced through tail-free structure and thus truck stability is improved.
THE MAIN PARAMETER
Model
CPD35
load capacity
3500kg
wheel base
1860mm
Weight (including battery)
4100kg
Driving wheel size (diameter x width)
28x9-15mm
Steering wheel size (diameter x width)
650-10mm
The height of the mast after lowering
2180mm
Height of the top guard (carbin)
2180mm
Overall length
2750mm
Overall width
1220mm
Fork size
45X122X1070mm
Min ground clearance
150mm
turning radius
2480mm
Walking speed, full load/without load
10/12km/h
Lifting speed, full load/without load
0.24/0.3m/s
Declining speed, full load/without load
0.4/ 0.36m/s
Max degree of climbing，full load/without load
14/15%
Rated power of drive motor S2 60minute
11.5kW
Rated power of lifting motor S3 15%
12kW
Battery voltage
48V500Ah
Drive control type
exchange
