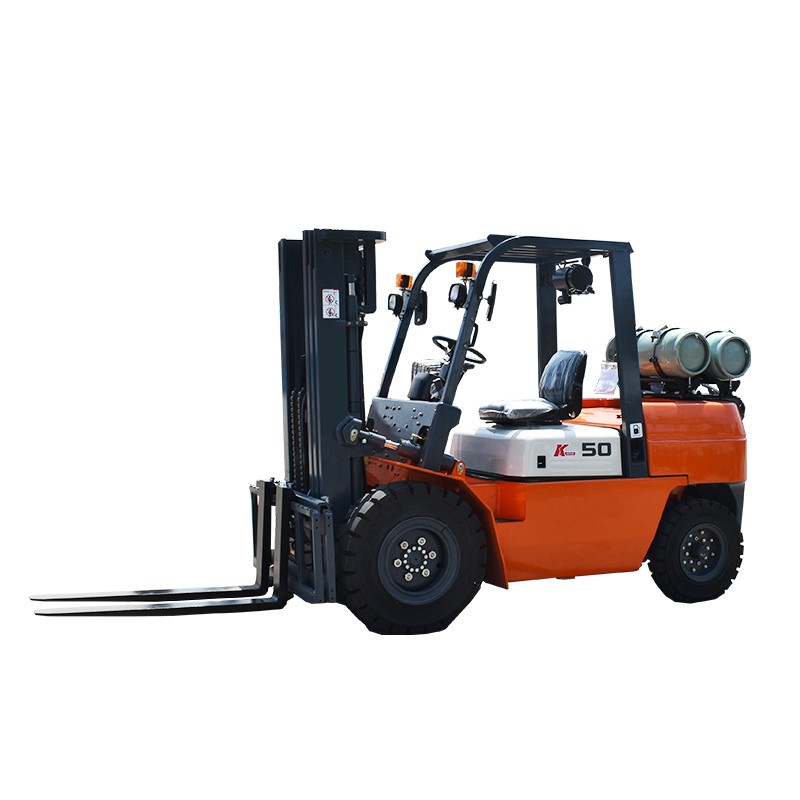

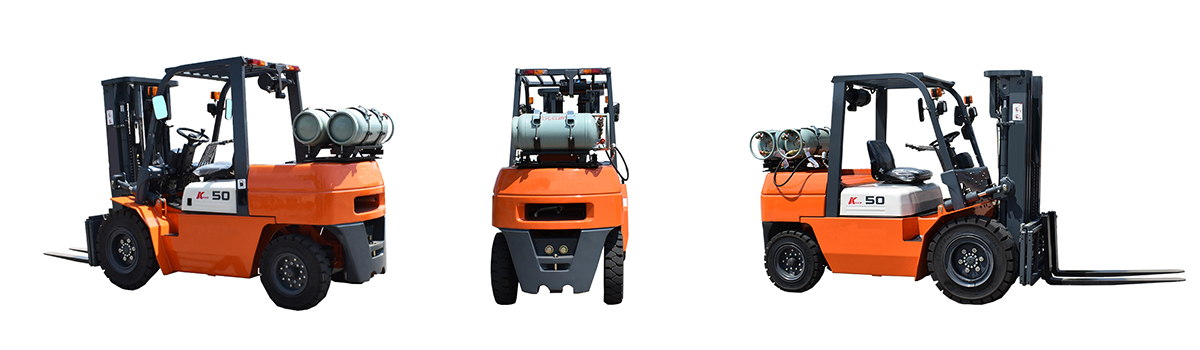

CPY50 gasoline/LPG forklift

CPY50 gasoline/LPG forklift
  • CPY50 gasoline/LPG forklift

Short Description:

CPY50 gasoline/LPG forklift...


  • Rated load capacity:5000kg:
  • Total weight : 5300kg:
  • Standard lifting height:3000mm:

Product Details

Product Tags

THE STEERING OIL TUBE AND WIRE HARNESS ARE ARRANGED INDEPENDENTLY


PRODUCT FEATURE

MYZG perform a new design for it, Technical features remarkably improved, superior quality,Can match Guangqing and Nissan engine


Energy efficiency


·With optimized hydraulic system, the truck is more energy-efficient and has lower fuel consumption.Environmental protection
·The engine satisfies the CARB 4 regulation
·The truck can effectively prevent the volatilization of the fuel with the pressure fuel cap.




Reliability

·The hot air isolating device, optimized thermal duct and the aluminum plate-fin type radiator improve cooling ability and ensure engine working reliability.
·The optimized design of key parts including frame, mast, overhead guard and steering axle improve the truck’s safety and reliability.


Maintainability

·Engine hood open angle increased to 80°, contributes to quick and convenient maintenance.
·Smaller Front floor board makes it more convenient to maintain the transmission box.


Working efficiency

·Small turning radius makes steering flexible and easy.
·The truck has fast lifting speed, good sloping ability and high efficiency.
·High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly w


THE MAIN PARAMETER

character Model CPCR50
Power type Gasoline /LPG
load capacity 5000kg
Load centre distance 500mm
lifting height 3000mm
Mast tilt angle 6/12
min turning radius 2680mm
min ground clearance 135mm
Overhead guard height 2210mm
front overhang distance 495mm
performance Max driving speed load/without load 22km/h
Max lifting speed load/without load 330mm/s
max drawbar pull load/without load 18.5KN
Max climbing capacity 20%
size length 2975mm
width 1380mm
Max lifting height of fork (with stopper shelf 4250mm
Landing height of the gantry 2185mm
chassis tyre front 300-15-18PR
rear 700-12-10PR
wheel base 1960mm
wheel track front/rear 1000/970mm
weight without load 5300kg
drive accumulator voktage/capacity 12/80V/Ah
engine model GUANGQING/NISSAN
