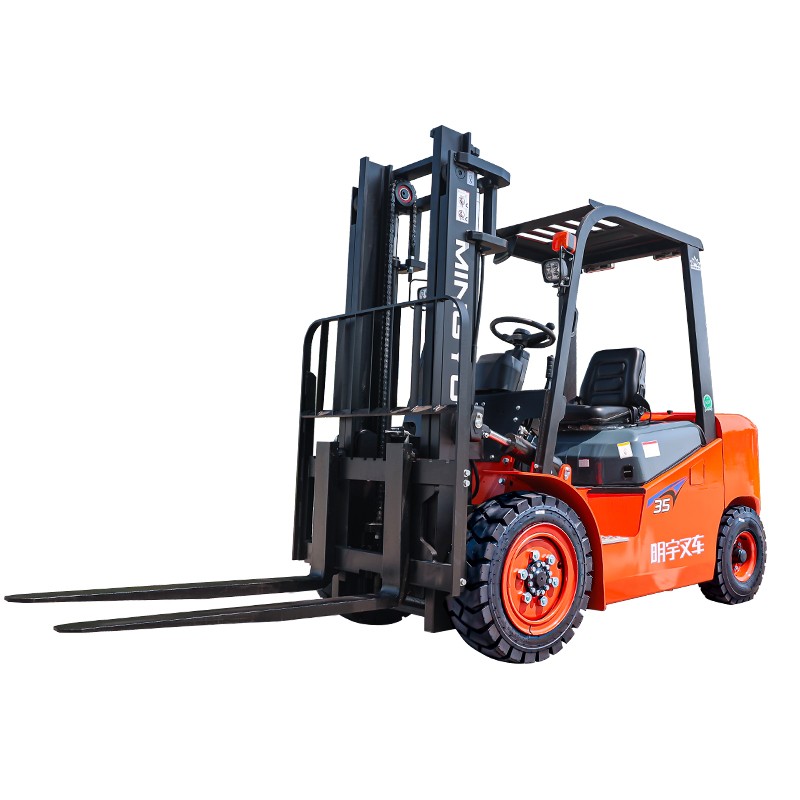

CPC(D)35K Diesel Forklift | ZGFORKLIFT / MYZG
ZGFORKLIFT / MYZG CPC(D)35K Diesel Forklift — Site Selection and Ownership Guide
The ZGFORKLIFT / MYZG CPC(D)35K is a diesel forklift listed by Shandong Zhuogong Machinery equipment Co.,Ltd. This page is built around the work a buyer needs to solve: receiving, moving and staging goods across an industrial site. It combines only the model facts confirmed in the source record with practical questions about pallets, travel paths, shift length, service access and destination requirements. The goal is to help a procurement team describe its duty clearly before requesting a configuration, not to imply that one standard truck fits every task. The exact source record is retained for traceability; this page is a new buyer-focused entry, not an alteration of that product record. diesel counterbalance forklift content should always be matched to the delivered configuration.
diesel forklift range · All products
Machine fit and work profile
Start with the heaviest routine load, not the occasional exceptional load. Record its packaged mass, dimensions, center of gravity, pallet condition and fork-entry direction. The rated figure shown below is tied to the source model and its stated load center; residual capacity can change with mast, lift height, fork length, attachment, tire choice and load offset. Ask for a configuration-specific nameplate and load chart before approval.
A diesel counterbalance truck can suit outdoor yards and ventilated mixed-use areas where a refuel-and-return workflow and pneumatic-tire support are operational priorities. It is not a blanket recommendation for enclosed rooms. Evaluate local exhaust and ventilation rules, noise limits, floor bearing capacity, fire controls and pedestrian traffic. Where a site works inside closed spaces for a substantial part of the shift, compare an electric forklift or another power type against the same duty cycle.
Verified source specifications
| Model | CPC(D)35K |
| Power type | Diesel |
| Rated capacity | 3500 kg |
| Load center | 500 mm |
| Operator position | Seated |
| Unladen weight | 4750 kg |
| Wheelbase | 1710 mm |
buying and application articles
Three application scenarios

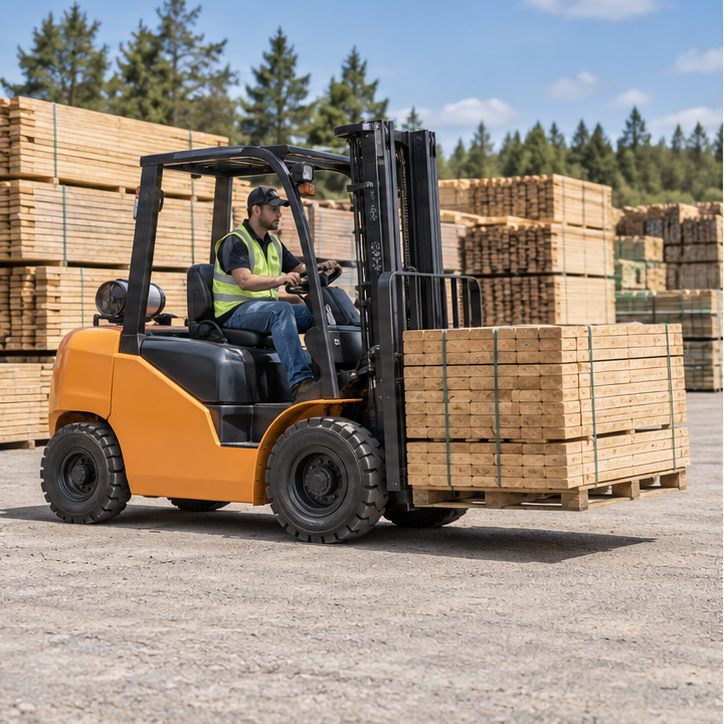

Construction materials and prepared yards
The 3.5-ton class can be evaluated for strapped timber packs, sheet products and packaged building materials. Check bundle length and fork support; long loads shift the center and require a capacity-chart review.

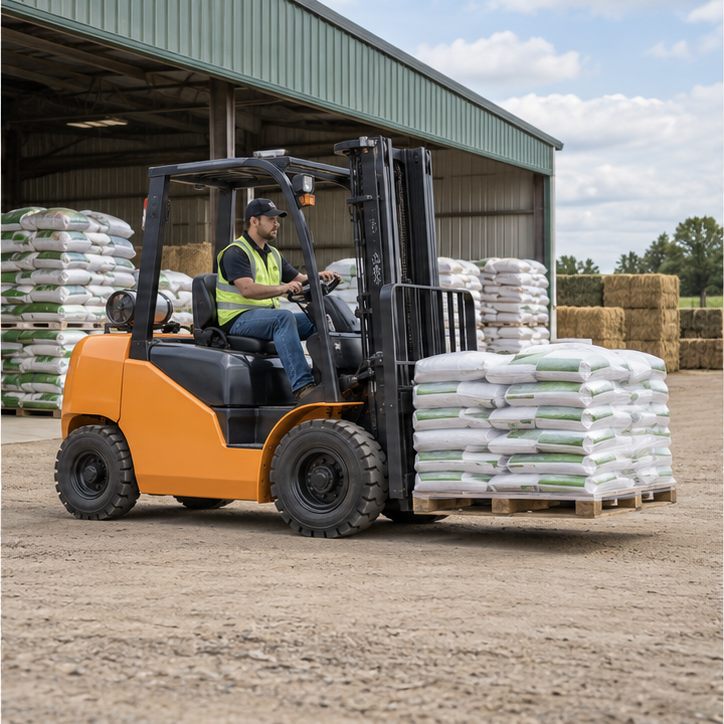

Industrial receiving and dispatch
Use a diesel counterbalance forklift for palletized fertilizer, feed and seasonal supplies on prepared routes. Where work enters a covered building, assess ventilation and emissions requirements and consider an electric truck for enclosed areas.

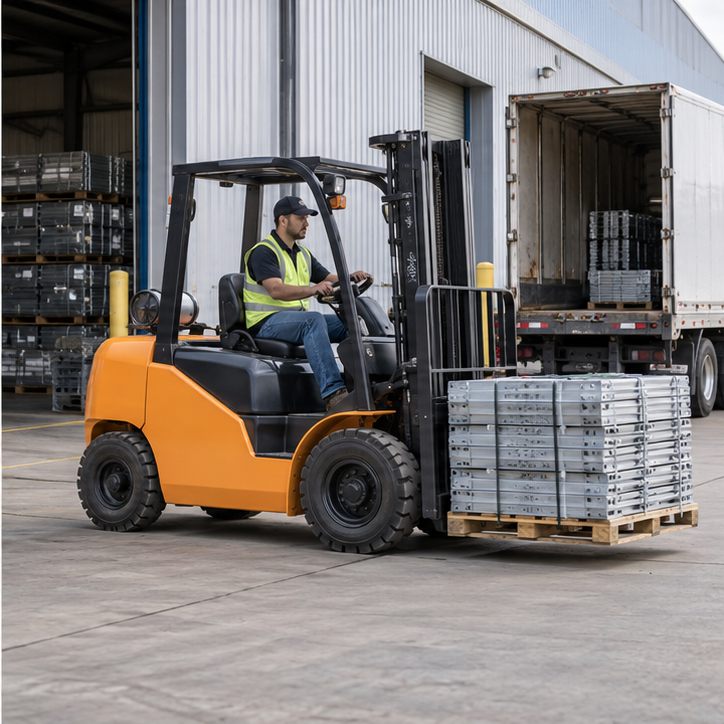

Farm, timber or specialist duty
A single truck can connect unloading, quality-check staging and outbound loading. Map each crossing, dock edge and turning point, then size the aisle for the machine plus load rather than relying on the forklift width alone.
Purchase and configuration checklist
Translate customer pain points into a route plan. Delays often come from undersized staging lanes, damaged pallets, unclear right-of-way, unsuitable ramps or waiting for a service part rather than from rated capacity alone. Mark loading and unloading areas, pedestrian crossings, visibility blind spots, charging or refueling locations and a place to isolate a damaged load. Use one-way loops where practical, keep loads low during travel and set speed rules for mixed traffic.
Safe routes and operator planning
Before a purchase, share the actual aisle width, door and container openings, turning points, dock-plate rating, ramp gradient, floor condition, outdoor surface, daily operating hours, weather exposure and planned attachment. Tell the supplier whether goods are uniform pallets, long packs, coils or irregular equipment. Those details help compare a standard mast with a higher-lift option and establish whether the selected machine can enter the route and place the load at the required height.
Preventive maintenance
Use the final machine data plate and operator manual as the authority for operation. Operators need training for load stability, visibility, reversing, ramps, trailer loading, attachment awareness and pedestrian separation. A spotter may be required where sight lines are blocked. Do not carry a raised load while travelling, do not permit people under forks, and never exceed the residual capacity shown for the delivered configuration.
Total cost of ownership
Preventive checks should be recorded by shift. Inspect fork heels and locking pins, mast channels and chains, hoses, cylinders, tyres, wheel fasteners, brakes, steering, warning devices, seat belt, lights, coolant, engine oil, fuel system and visible leakage. Follow the factory service schedule for filters, cooling, transmission, hydraulics and lubrication. A clean daily walk-around and prompt fault reporting reduce avoidable downtime and help preserve a useful maintenance history.
Parts, dealer and rental support
Compare total cost over the intended ownership period rather than purchase price alone. Include fuel use under the real duty cycle, tyres, scheduled service, wear parts, operator familiarization, transport, downtime, insurance and resale condition. A site with repeated short trips, long idling or poor route discipline may spend more than the same model working a well-planned loop. Measure cycles per hour and unproductive waiting before changing fleet size.
Compliance and export preparation
For dealers and rental fleets, a credible offer includes a site questionnaire, verified configuration, pre-delivery inspection, handover checklist, operator guidance, planned service intervals and a clear warranty contact. Prepare a practical parts list for filters, tyres and wear components only after confirming the serial range and installed engine. Record machine configuration and attachments so future service teams can identify compatible parts rather than relying on a broad model name alone.
Buyer questions
CE documentation, EPA applicability, engine-emission paperwork and destination-market rules depend on the exact engine, configuration and country. Confirm applicable documents in writing before ordering; this page does not invent certificate numbers or imply universal approval. Export preparation may include configuration review, inspection records, packing, manuals, parts identification and shipping documents. Named customer cases and performance figures are not asserted here without confirmation.
Request a quotation
Is the rated capacity available at every height? No. Mast, load center, attachment, fork length and load geometry affect residual capacity; rely on the final load chart. Can the truck work indoors? Only after a site assessment confirms that diesel use, ventilation, emissions, noise and local rules are acceptable. What should a quote include? Load details, lift height, route, floor, shifts, engine and emissions requirement, attachments, destination port, spare parts and after-sales expectations.
Send your load, route, shift pattern, required lift height, destination and service expectations to request a model-specific quotation. The team can review options and identify which items require confirmation on the final build sheet.
