Description
Product Feature

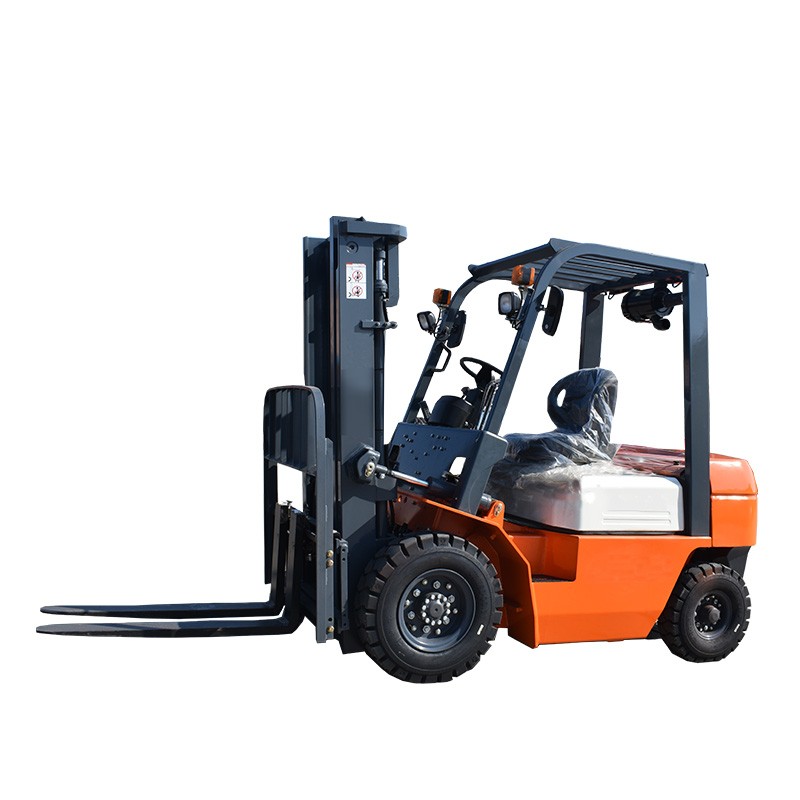

The CPC20 series is a series of forklifts of mingyu based on the advanced technology through comprehensive upgrading of the exterior design, green and energy efficiency, safety and reliability, comfort and convenience. The forklifts have greatly improved performance, capable of meeting your all-round needs.
· The semi-enclosed instrument console make the entire forklift look compact and stylish.
· Enlarged boarding step space allows more convenience for boarding.
· The wide-open hood, increasing maintenance space by 10%.
· The optimized heat dissipation system, improved counterweight heat dissipation channel and reduced wind resistance of the radiator enable the cooling efficiency to rise by 10%.
· Large-screen LED instrument newly developed, which can completely display information such as the running status of the vehicle, fault detection and maintenance reminder in front of the driver more intuitively and can improve the convenience of maintenance.
Parameter
character | model | CPC20 | |
Power type | diesel | ||
load capacity | 2000kg | ||
Load centre distance | 500mm | ||
lifting height | 3000mm | ||
free lifting height | 0 | ||
fork size | lenght×width×thickness | 1070×122×40mm | |
Mast tilt angle | front/rear | 6/12Deg | |
min turning radius | 2190mm | ||
min ground clearance | mast | 120mm | |
frame | 130mm | ||
Overhead guard height | 2160mm | ||
front overhang distance | 450mm | ||
performance | Max driving speed | load | 19km/h |
Max lifting speed | load | 500mm/s | |
max drawbar pull | load | 17KW | |
Max climbing capacity | 20% | ||
size | length | with fork | 3600mm |
without fork | 2530mm | ||
width | 1160mm | ||
Max lifting height of fork (with stopper shelf) | 4220mm | ||
Landing height of the gantry | 2060mm | ||
chassis | tyre | front | 7.00-12-12PR |
rear | 6.00-9-10PR | ||
wheek base | 1600mm | ||
wheel track | front/rear | 970/970mm | |
weight | without load | 3530 | |
drive | accumulator | voktage/capacity | 12/80 |
engine | model |
xinchai 4D27G31
Mitsbishi / Isuzu |
|
rated power | 36.8/2500 | ||
rated torque | 156/1700-1900 | ||
Bore X Stroke | 90×105mm | ||
number of cylinders | 4 | ||
displacement | 2.54L | ||
fuel tank capacity | 60L | ||
gear (front/rear) | 2/2Manual shift |
The LED lighting system is provided in the entire forklift, which can save energy and power and greatly improve the performance and service life of lights.
The semi-enclosed instrument console make the entire forklift look compact and stylish.
New design
Inherit the exterior design of mingyu products and integrate innovation in classic style, thus the vehicle has a smooth vivid profile and a sturdy design. The newly designed semi-enclosed instrument console make the entire forklift look compact and stylish.

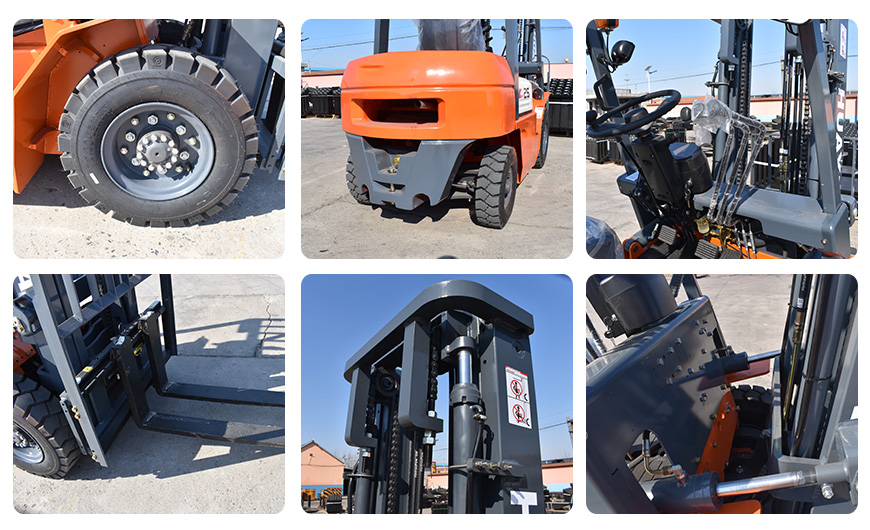

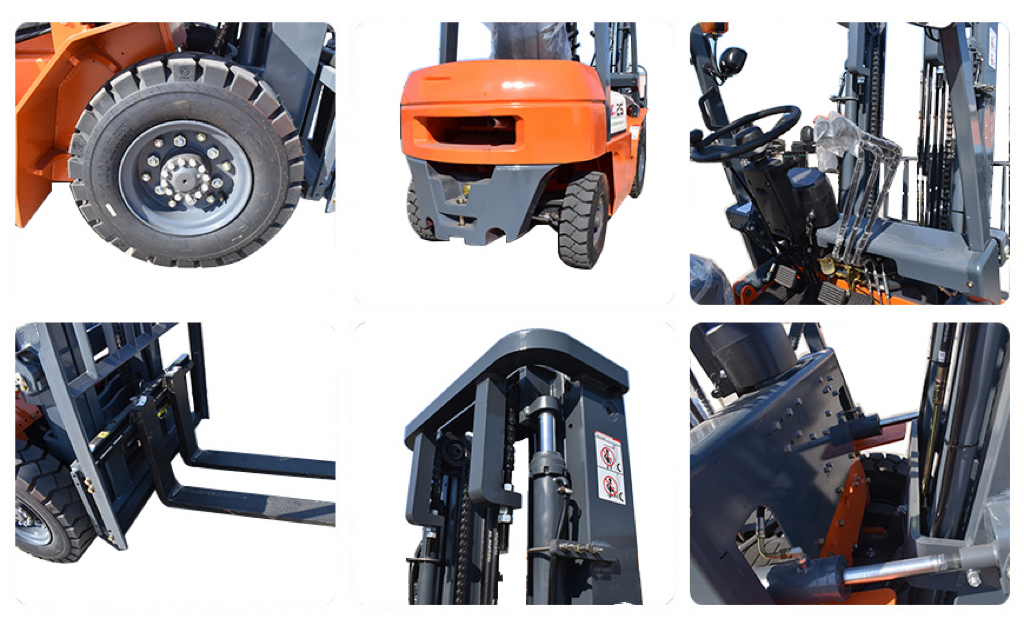

Detail
According to demands, can be matched with different accessories
About us
MYZG machines are exported all over the world,about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get
MYZG have perfect after-sales service,and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production, in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
