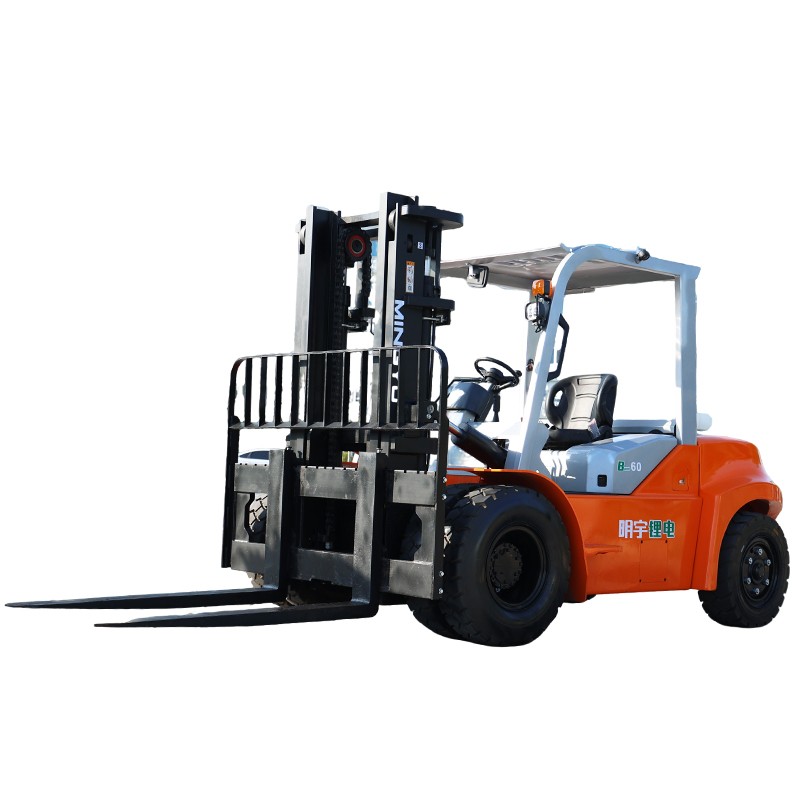

ZGFORKLIFT / MYZG CPD60 6 Ton Lithium Electric Forklift for Heavy-Duty Work

A high-capacity 6000 kg industrial machine engineered as a 6 ton lithium-ion electric forklift for strong starting torque, demanding outdoor yards, precise warehouse handling and intensive multi-shift logistics.

Overview: industrial 6 ton capacity with clean electric power

The ZGFORKLIFT / MYZG CPD60 is a high-performance lithium battery electric forklift developed by Shandong Zhuogong Machinery Equipment Co., Ltd. to combine diesel-class material handling capability with zero tailpipe emissions, low operating noise and reduced routine battery maintenance. It is intended for stone yards, machinery plants, timber operations, paper mills, logistics terminals and distribution warehouses.

Its high-voltage electric forklift architecture uses a 386.4 V/206 Ah lithium battery. The truck lifts a rated 6000 kg at a 600 mm load center with a 30 kW traction motor, 30 kW hydraulic pump motor, 180 mm ground clearance and 20% loaded gradeability. This combination supports demanding indoor and controlled outdoor work without exhaust fumes.

MYZG CPD60 factory technical specifications

The following table provides the complete mechanical, electrical, dimensional and operating data set for the CPD60 six-ton lithium electric counterbalance forklift. Final mast, fork, tyre, charger and attachment selections should be confirmed against the intended load and site conditions.

Engineering design and principal advantages

1. 386.4 V/206 Ah lithium system with 60 kW combined motor output

The high-voltage lithium-ion battery system operates at lower current for reduced electrical heating and efficient power delivery. The 30 kW traction motor and 30 kW hydraulic motor provide lifting speeds of 380 mm/s unloaded and 320 mm/s loaded, together with travel speeds of 20 km/h unloaded and 18 km/h at full rated load.

2. 180 mm ground clearance and a reinforced 9150 kg chassis

The 180 mm minimum clearance, 2250 mm wheelbase and pneumatic 8.25-20-14PR front and 250-15 rear tyres help the CPD60 move across industrial joints and controlled outdoor yards. A 9150 kg unladen mass produces a low, stable center of gravity for heavy pallet transport while the operator follows the approved load chart.

3. Heavy-duty dimensions for six-ton industrial loads

The 1986 mm chassis width, 3350 mm turning radius and 6120 mm right-angle aisle requirement support planning for steel bundles, precast products, timber cases, machinery components and stone blocks. The mast reaches a 4365 mm maximum working height with a standard 3000 mm lift.

4. Low-maintenance lithium power and 20% loaded gradeability

The lithium battery requires no watering or routine gas ventilation and supports convenient opportunity charging when paired with the approved charger. The 20% loaded gradeability helps maintain productive movement on loading ramps and outdoor approaches. Actual runtime depends on load mass, route length, lift frequency, floor condition, ambient temperature and charging practice.

Recommended application environments

A 6000 kg capacity, generous ground clearance and zero tailpipe emissions make the CPD60 suitable for indoor production areas and demanding industrial yards when ventilation, floor loading, clearances and traffic controls have been evaluated.

Stone, concrete and building materials

Move granite packs, precast components, masonry blocks and heavy pallets between storage racks, processing lines, loading bays and gravel yard surfaces using suitable forks or approved attachments.

Heavy machinery plants and foundries

Handle castings, metal moulds, engines, dies and industrial components inside workshops or between covered production areas. Precise electric drive control assists positioning at machine tools, assembly stations and transport vehicles.

Paper mills, timber depots and logistics terminals

Transport large paper rolls, timber packs, plywood cases and export cargo during repeated shifts. Solid tyres can be considered for puncture-prone recycling or glass sites, while pneumatic tyres can improve ride comfort on uneven ground.

Frequently asked questions

What turning radius and aisle width does the CPD60 require?

The minimum turning radius is 3350 mm. The stated 90-degree stacking aisle for a 1100×1100 mm pallet is 6120 mm; always add practical safety clearance for the load, attachment, rack protection and operator skill.

How does 180 mm ground clearance help outdoors?

It reduces the risk of underbody and motor-housing contact when crossing small obstacles, rails, joints or uneven surfaces. It does not replace a site survey, speed control or the use of suitable tyres on rough ground.

Are attachments available for the CPD60? heavy-duty electric forklift

Yes. MYZG can discuss side shifters, fork positioners, clamps and rotators. Capacity may change with mast height, load center or attachment, so the final data plate and load chart must be confirmed before operation.

Configure a ZGFORKLIFT / MYZG CPD60 for your operation

Send the maximum load, load dimensions, lift height, aisle width, door height, ramp gradient, working hours, indoor or outdoor conditions, local power supply and destination port. The factory team can prepare a suitable CPD60 configuration, attachment proposal, quotation, packing plan and international shipping option.
