908 diesel wheel loader

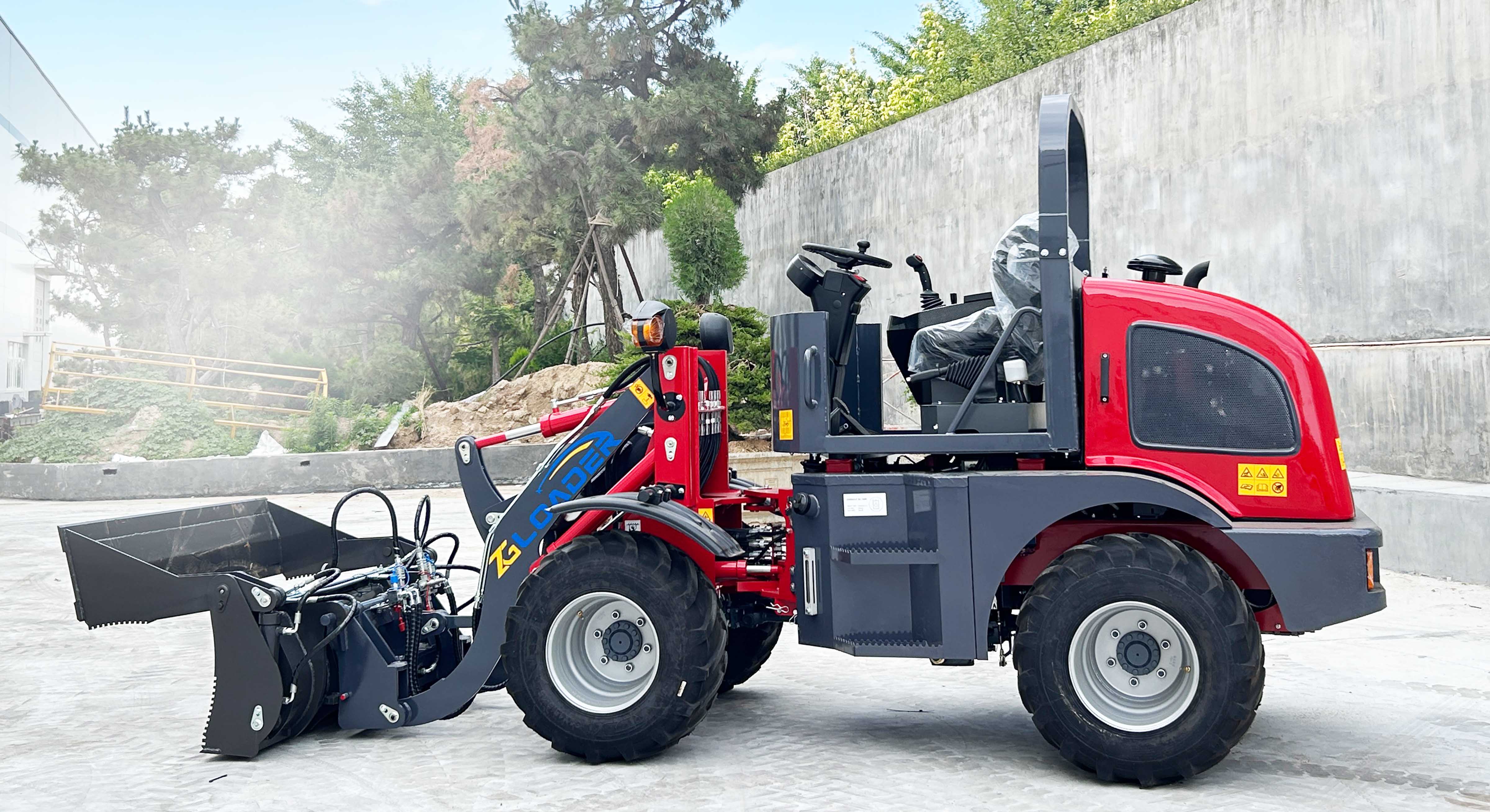

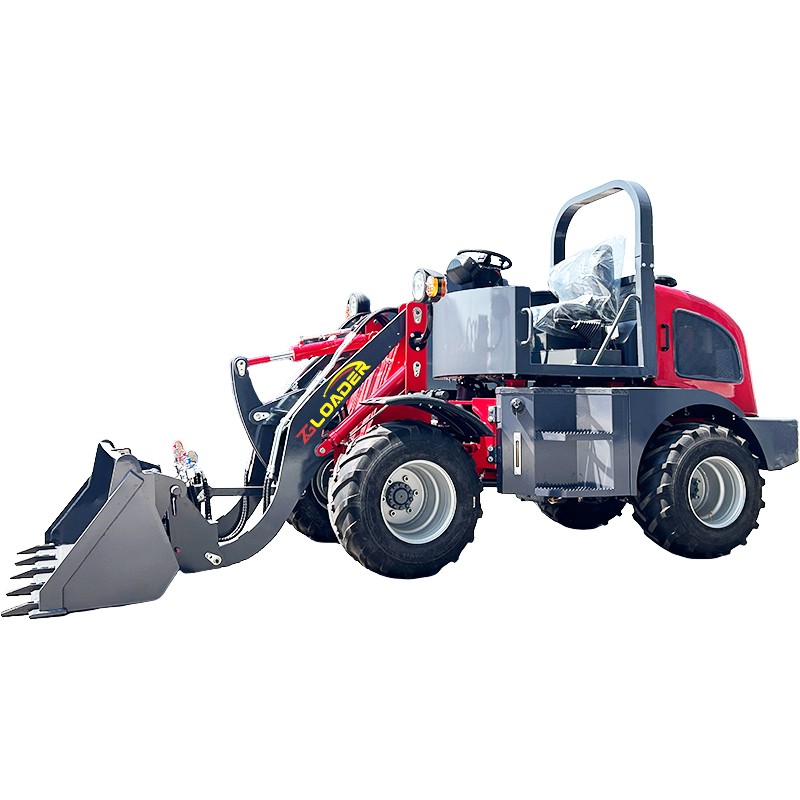

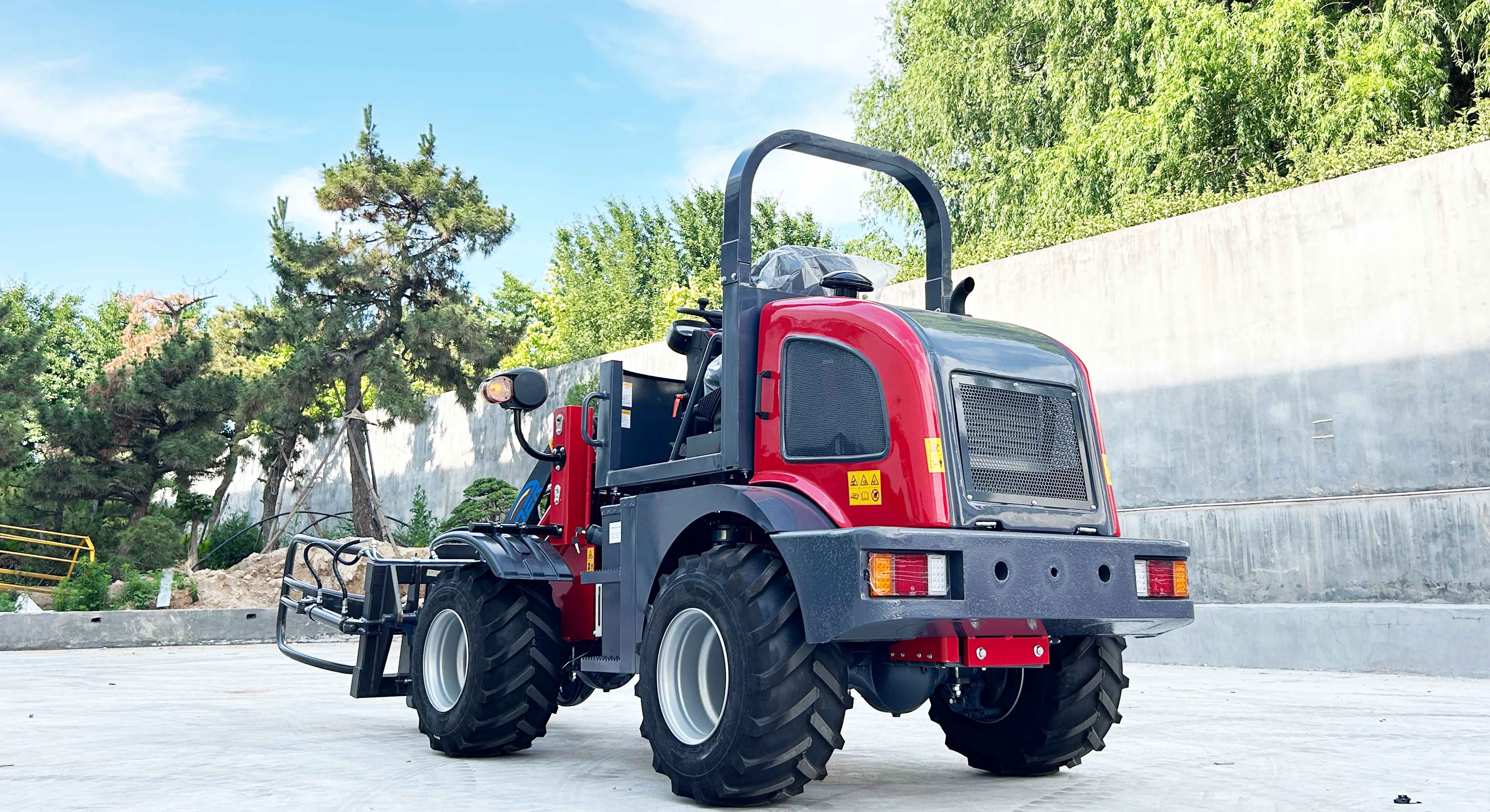

MYZG 908 Diesel Wheel Loader – Compact, Agile & Powerful Small Front End Loader
Powered by a Reliable CHANGCHAI 390 25kW Diesel Engine, Featuring an 800kg Rated Load Capacity, 0.4-0.6m³ Bucket, and Exceptional Maneuverability for Agriculture and Small-Scale Construction.
Executive Overview: The Ultimate Compact Multipurpose Workhorse
The MYZG 908 Diesel Wheel Loader is meticulously engineered to provide maximum utility, reliability, and cost-efficiency in restricted spaces where larger heavy machinery cannot operate. Manufactured by Shandong Zhuogong Machinery Co., Ltd. (MYZG), the 908 model bridges the gap between raw mechanical capability and compact agility, making it an indispensable asset for modern farms, landscaping projects, municipal sanitation, and small-scale construction sites.
With a solid 2,700 kg operating weight, an 800 kg rated load capacity, and a versatile 0.4–0.6 m³ bucket, this mini wheel loader handles loose materials like gravel, soil, feed, and snow with remarkable ease. Driven by a robust CHANGCHAI 390 25kW diesel engine, the MYZG 908 guarantees consistent power delivery, low fuel consumption, and straightforward maintenance, ensuring a high return on your equipment investment.
MYZG 908 Factory Technical Specifications
Review the complete structural and mechanical specification dataset for the MYZG 908 Diesel Wheel Loader:
| Technical Parameter | Factory Specification Detail |
|---|---|
| Rated Load Capacity | 800 kg |
| Rated Bucket Capacity | 0.4 – 0.6 m³ |
| Total Operating Weight | 2,700 kg |
| Engine Model | CHANGCHAI 390 (Industrial Diesel Engine) |
| Rated Power Output | 25 kW |
| Overall Machine Dimensions (L × W × H) | 4,300 × 1,650 × 2,580 mm |
| Maximum Dump Height | 2,180 mm |
| Maximum Articulation Turning Angle | 30° (Each Direction) |
| Minimum Turning Radius | 4,500 mm |
| Wheelbase Distance | 1,450 mm |
| Standard Tyre Size Configuration | 750-16 Narrow Tires |
| Optional Tyre Size Configuration | 31 × 15.5-15 Tubeless Wide Tires |
| Official Brand Website | https://www.my-forklift.com |
Engineering Breakdown & Key Advantages
1. Dependable CHANGCHAI 390 Diesel Powertrain
Equipped with a proven CHANGCHAI 390 25kW diesel engine, the MYZG 908 provides reliable torque and smooth power transmission. This engine is internationally celebrated for its mechanical simplicity, fuel economy, and ease of maintenance. Replacement filters and service parts are universally available, ensuring your loader stays operational with minimal service downtime.
2. Impressive Reach: 2180mm Dump Height
Despite its compact overall physical dimensions (4300 × 1650 × 2580 mm), the 908 loader features an optimized lift arm geometry that achieves a maximum dump height of 2,180 mm. This allows operators to easily discharge materials directly into high-sided agricultural trailers, sorting bins, or municipal dump trucks without performance compromise.
3. Agile Articulated Steering & Compact Wheelbase
The machine relies on an articulated frame layout offering a 30-degree turning angle and a tight 4,500 mm minimum turning radius. Supported by a 1,450 mm wheelbase, the 908 navigates narrow barn alleys, crowded construction sites, and winding landscaping paths effortlessly, minimizing ground disturbance during tight turns.
Ideal Work Scenarios & Industry Applications
The multi-functional design of the MYZG 908 allows it to adapt seamlessly to a wide spectrum of operational environments:
Small Farms & Livestock
Handling animal feed, clearing manure, moving hay bales, and general barnyard maintenance.
Landscaping & Gardening
Spreading topsoil, hauling mulch, grading terrain, and placing decorative stone or pavers.
Urban & Residential Construction
Clearing construction waste, backfilling foundation trenches, and transporting sand or cement bags.
Frequently Asked Questions (FAQ)
Q: What attachments can be paired with the MYZG 908 loader?

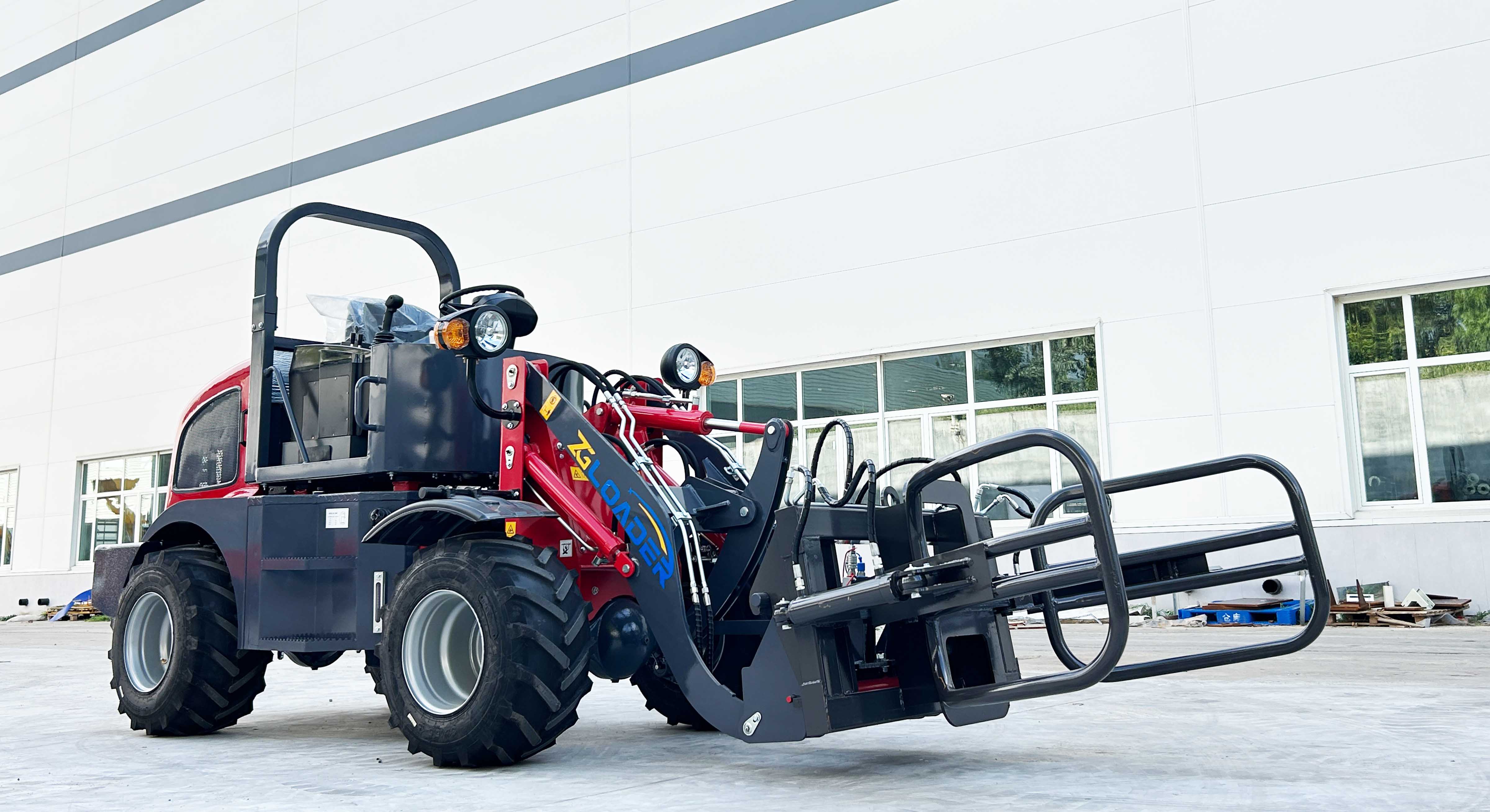

A: Beyond the standard 0.4-0.6m³ bucket, the 908 can support optional quick-hitch attachments including pallet forks, snow blades, grass forks, and hydraulic sweepers.
Q: Is an enclosed cabin available for cold or rainy weather conditions?
A: Yes, the 908 can be configured with an optional fully enclosed comfort cabin featuring glass windows, doors, and interior heating options for all-weather operation.
Ready to Boost Your Productivity with the MYZG 908 Loader?
Contact our sales engineering team today for factory-direct wholesale pricing, shipping quotes, and custom attachment configurations.
Official Corporate Email: MYZG@my-forklift.com | whatsapp: 8613176910558
