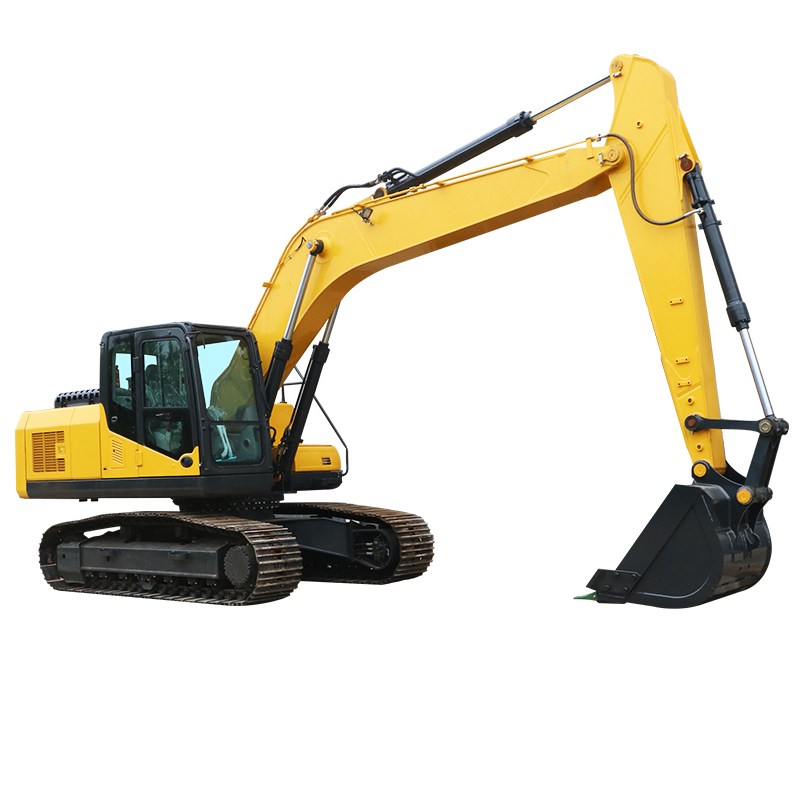

210 Excavator
Product Feature
MYZG 210, as one of the most sold appreciated mid-size excavators, is newly engineered to the globalmarket. Equipped with Cummins engine. MINGYU 210 reaching a 124kW outout power can becompetent for earthmoving and crushing construction. MINGYU 210 has strenathened other structural partssuch as boom, stick, chassis, etc., which greatly improves the service life and durability of the product.

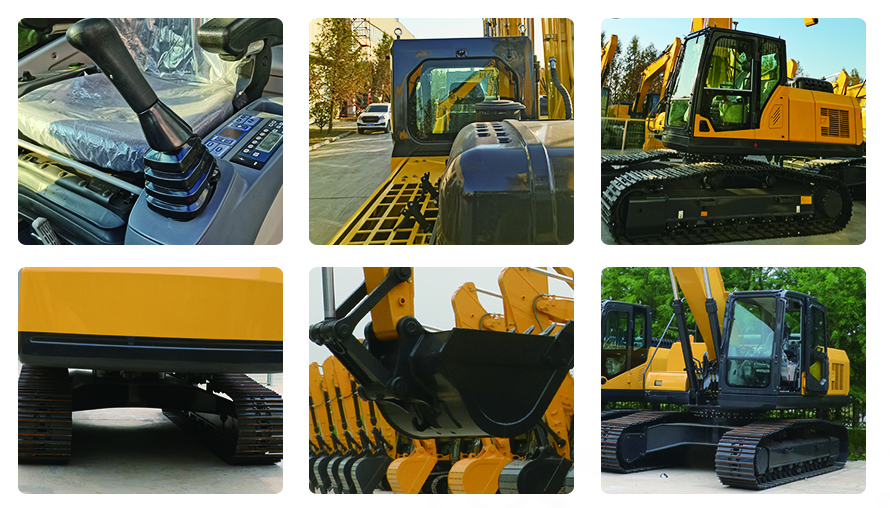

● It has the advantages of energy-saving, high sensitivity, high production efficiency.
● The walking system is driven by two speed self-switching walking motor, and the walking and rotary braking are wet braking, with stable performance and high reliability.
● The chassis of the whole machine is wider, and the upper frame of the whole machine is strengthened.
● The cab is spacious and has good sound insulation effect. It is equipped with three sunshade nets. Silicone oil rubber shock absorber is used to reduce vibration and impact.
● Equipped with EECU, VECU and IECU electronic control system. The whole machine has a variety of working modes to adapt to different working conditions, energy saving and high efficiency.

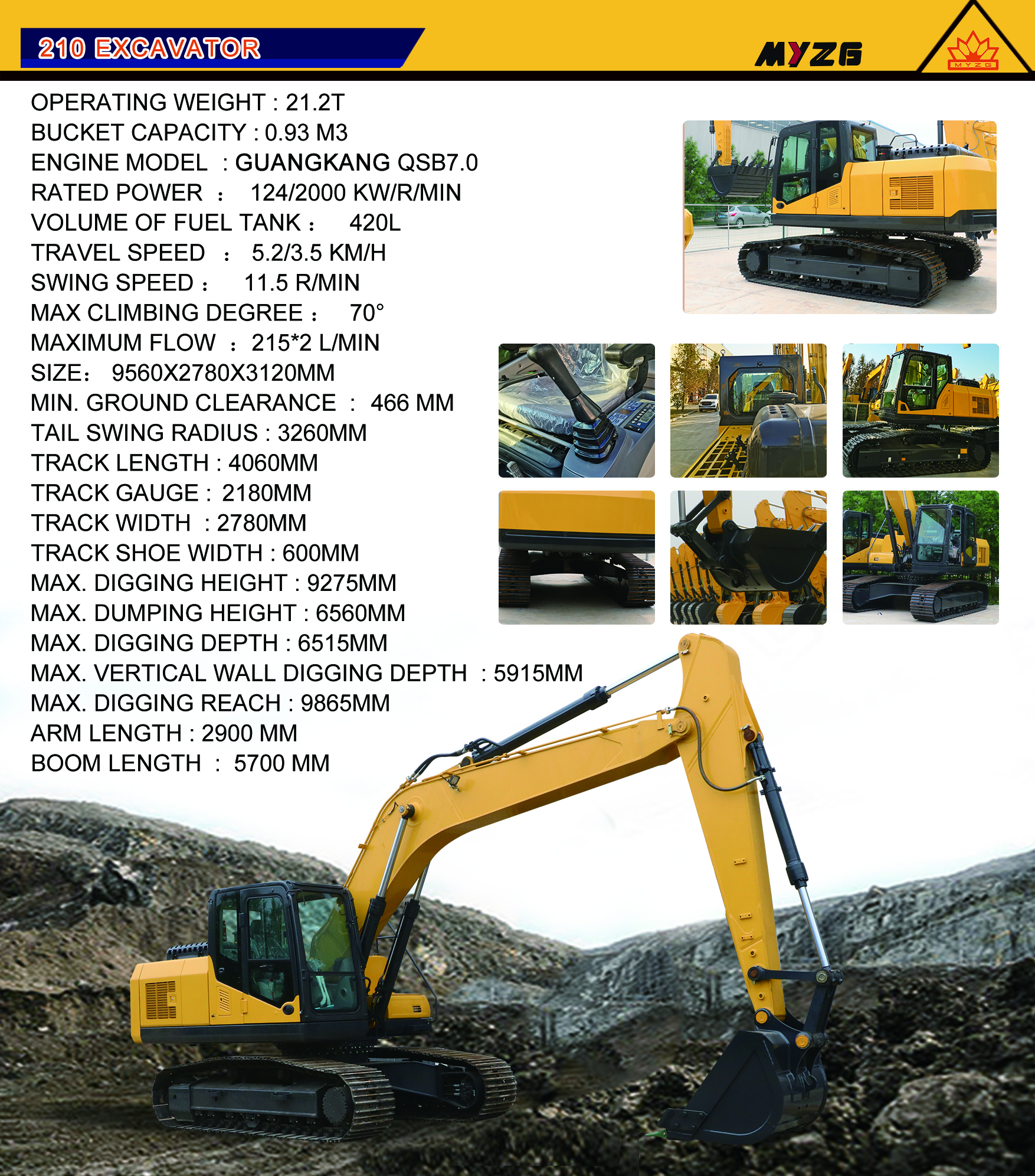

Parameter
| Operating weight | 21.2T |
| Bucket capacity | 0.93 m3 |
| Engine model | Cummins QSB7.0 |
| Rated power | 124/2000 kw/r/min |
| Volume of fuel tank | 420L |
| Travel speed | 5.2/3.5 km/h |
| Swing speed | 11.5 r/min |
| Max climbing degree | 70° |
| Maximum flow | 215*2 L/min |
| size | 9560x2780x3120mm |
| Min. ground clearance | 466 mm |
| Tail swing radius | 3260mm |
| Track length | 4060mm |
| Track gauge | 2180mm |
| Track width | 2780mm |
| Track shoe width | 600mm |
| Max. digging height | 9275mm |
| Max. dumping height | 6560mm |
| Max. digging depth | 6515mm |
| Max. vertical wall digging depth | 5915mm |
| Max. digging reach | 9865mm |
| Arm length | 2900 mm |
| Boom length | 5700 mm |
