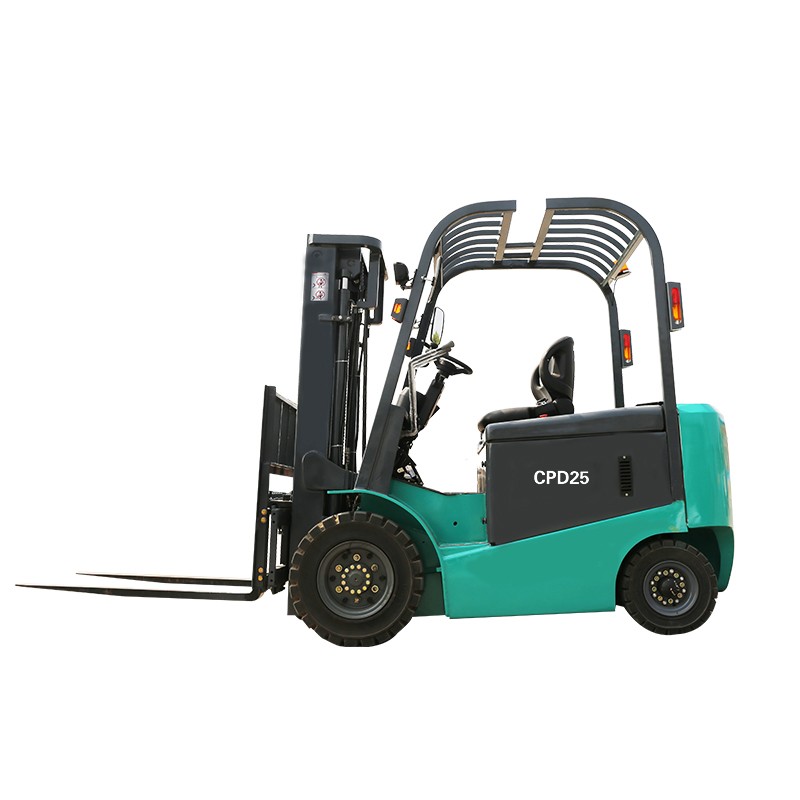

CPD25 electric Forklift

CPD25 Lead acid forklift

Short Description:

Lead-acid batteryforklift， Lithium Battery forklift，cheap mini forklift，2.5 tons electric Forklift，hot sale front forklift，Good quality forklift...

Rated load lifting capacity : 2500kg:
Battery voltage capacity : 48V/600Ah:
Total weight:4200 kg:

Send email to us

Product Details

Product Tags

MINGYU LEAD ACID FORKLIFT

The unique dock-to-stock capability of the MINGYU lead acid Forklift makes it top of its class and one of the most versatile forklifts in myzg’s product line. Because it is designed for 2,500 lb. loads, it is more flexible and can handle more capacity at greater heights with added durability. Its compact design allows it to seamlessly navigate narrow aisles with ease, giving you the ability to store more products in your facility. This Mingyu Forklift delivers improved ergonomics, reliability, and sturdiness while reducing service intervals.

PRODUCT FEATURE

Designed for Comfort

The Large Electric’s operator compartment is designed to make the forklift work as an extension of the operator’s body. With intuitive, well-placed controls. Easy-to-read displays. And clear sightlines all around. Equally important, the operator compartment is also designed for comfort, even over a long shift – with a premium seat, low entry and exit steps, and a heavy-duty non-slip floor mat to minimize noise, heat, and vibration.

Key Safety Features

Safety features on the Large Electric Forklift include mingyu’s System of Active Stability (SAS)™, which automatically detects potentially unsafe conditions and engages additional safety features for increased operator protection and reduced product and forklift damage. This forklift also comes with welded, roll-formed overhead guard pillars to provide maximum operator protection with superior entry/exit and load visibility. Additional features include:

Operator Presence Sensing System (OPSS)

Key Lowering Interlock

Double-Action Parking Brake

Electric Horn

Ease of Service

MINGYU’s Lead acid Forklift is built with superior components and meticulously engineered integrated systems that deliver intuitive, dependable performance daily. Mingyu Forklifts don't often require service, but when they do, it's fast and easy — by design. Legendary MINGYU quality means more productivity over the lifecycle of your forklift, along with lower repair costs. MYZG’s Lead acid Forklift comes with easy-to-access hydraulic motor and controller along with a no-tools required floorboard along with a planned maintenance indicator.

THE MAIN PARAMETER

Model	CPDJ25
Rated load lifting capacity	2500kg
Load centre distance	500mm
Power style	Accumulator
Drive style	Sit down
Wheel base	1500mm
Tyre type	Pneumatic tyre
Number of wheels(front/rear)	2/2
Front wheel track	973mm
Rear wheel track	950mm
Tyre(front)	7.00-12.12PR
Tyre(rear)	18x7-8
Front overhang	485mm
Gantry angel (fron/rear)	6/12
Height of the gantry at landing	2050mm
Max lifting height	3000mm
Max height at working	4030mm
Overhead guard height	2140mm
Fork size	122x40x1070mm
Frame length	2400mm
Frame width	1160mm
Minimum turning radius	2030mm
Mast ground clearance （with full load）	110mm
Middle of frame ground clearance (with full load )	115mm
Right-angle channel width （pallet 1200X1200）	3950mm
Operating speed(without load/with full load)	13/14 mm/s
Lifting speed(without load/with full load)	255/355 mm/s
Gradeability with full loading	15%
Total weight(with accumulator)	4200 kg
Battery voltage capacity /5HR	48V/600Ah
Battery box size (width xlength xheight）	495x975x800 mm
Pull pump motor power	9kw
Oil pump motor power	11kw
Pull pump control style	MOS tube/Alternating current
Oil pump motor control style	MOS tube/Alternating current
Driving brake /Parking brake	Hydraulic /Machinery
