Description
|

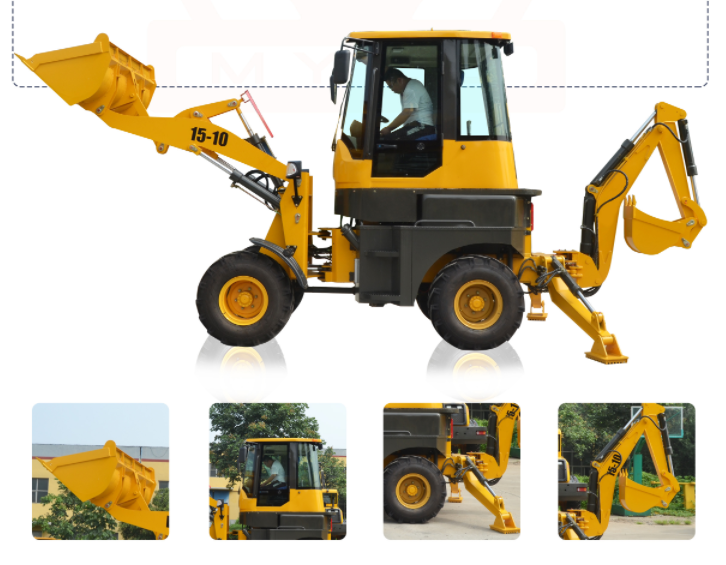

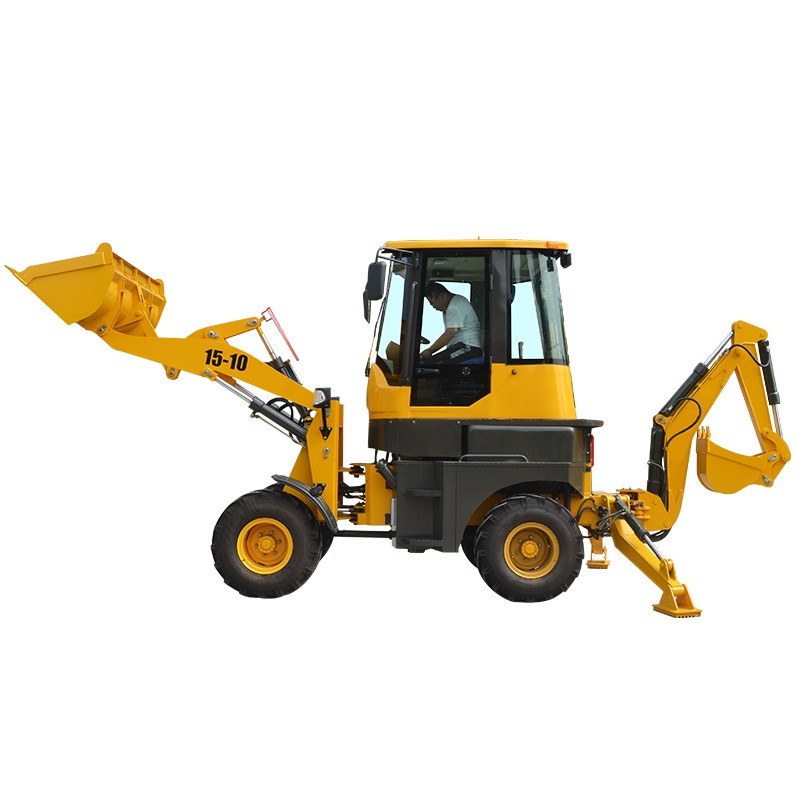

WZ15-10 |
Overall Dimension: |
6800x1900x2960mm |
|
|
Rated load: |
1500kgs |
|
|
Operate weight: |
4200kgs |
|
|
Bucket width: |
1700mm |
|
|
Bucket capacity: |
0.7m³ |
|
|
Dig bucket capacity |
0.1m³ |
|
|
Max. dumping height |
2800mm |
|
|
Max. digging depth |
2000mm |
|
|
Dumping distance |
1050mm |
|
Engine |
Model: |
YUNNEI engine |
|
|
Rated power |
42KW |
|
|
Pattern: |
In-line, water-cooling, 4 cylinder, direct inject |
|
|
Optional model: |
XINCHAI/YANMAR engine |
|
|
Storage Battery |
80 A free-maintenance |
|
Transmission System |
Gearbox model: |
Mechanical or hydraulic |
|
|
Axle: |
Isuzu drive axle(drum brake) |
|
|
Drive model: |
Four wheel drive |
|
Steering System |
Steering angle |
±35° |
|
|
Min. Turning Radius: |
4500mm |
|
|
Pattern: |
Articulated type full-hydraulic power steering |
|
|
Service brake |
Drum brake(Expanding shoe brakes) |
|
|
Parking brake: |
Hand operate,disc brake |
|
Tyre |
Model: |
20.5-16 |
