Scissor Lift Extension Deck Capacity: How to Read the ZG-ZX14 Rating Safely
Scissor Lift Extension Deck Capacity: How to Read the ZG-ZX14 Rating Safely — ZGFORKLIFT / MYZG. Shandong Zhuogong Machinery equipment Co.,Ltd
When buyers compare scissor lifts, a frequent question is whether an extension deck adds to the platform's rated capacity or has its own limit. The ZG-ZX14 product page publishes a 230 kg Safe Working Load for the platform and a separate 113 kg Safe Working Load for the extended platform. Those figures are important, but they should not be combined or interpreted without the machine's capacity decal and operator documentation. A published headline value is a starting point for a model review, not permission to exceed the limit shown on the delivered machine.

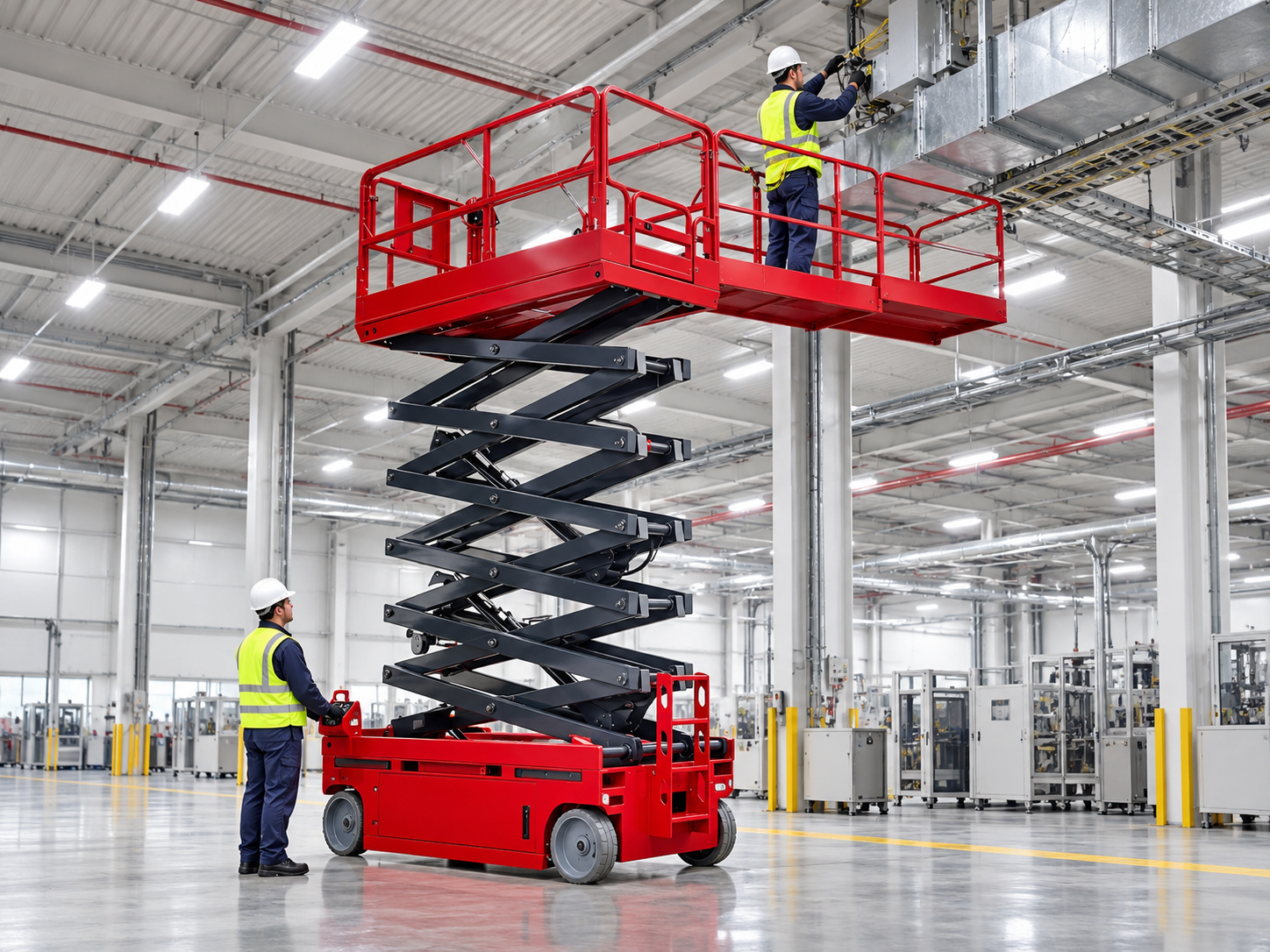

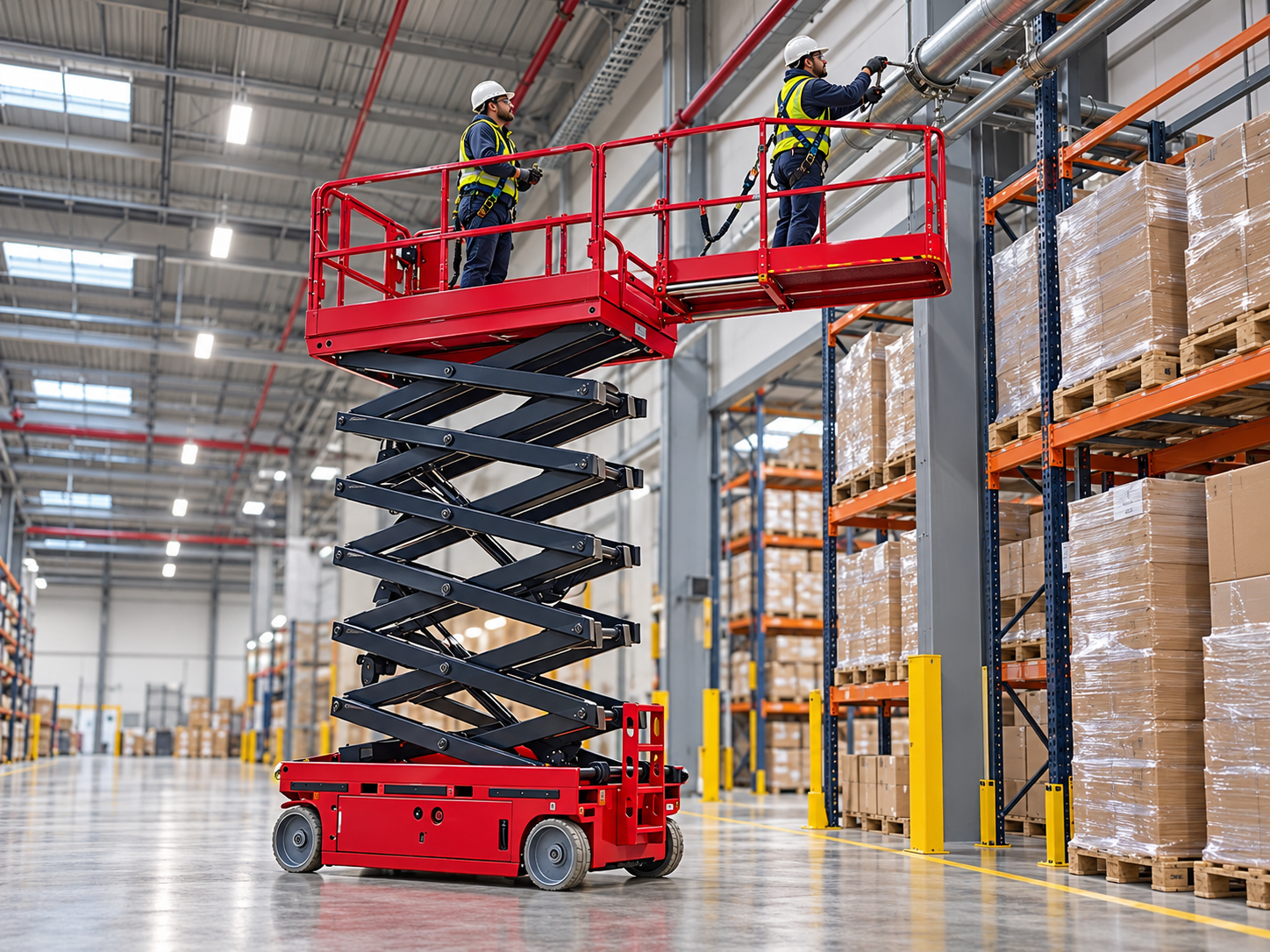

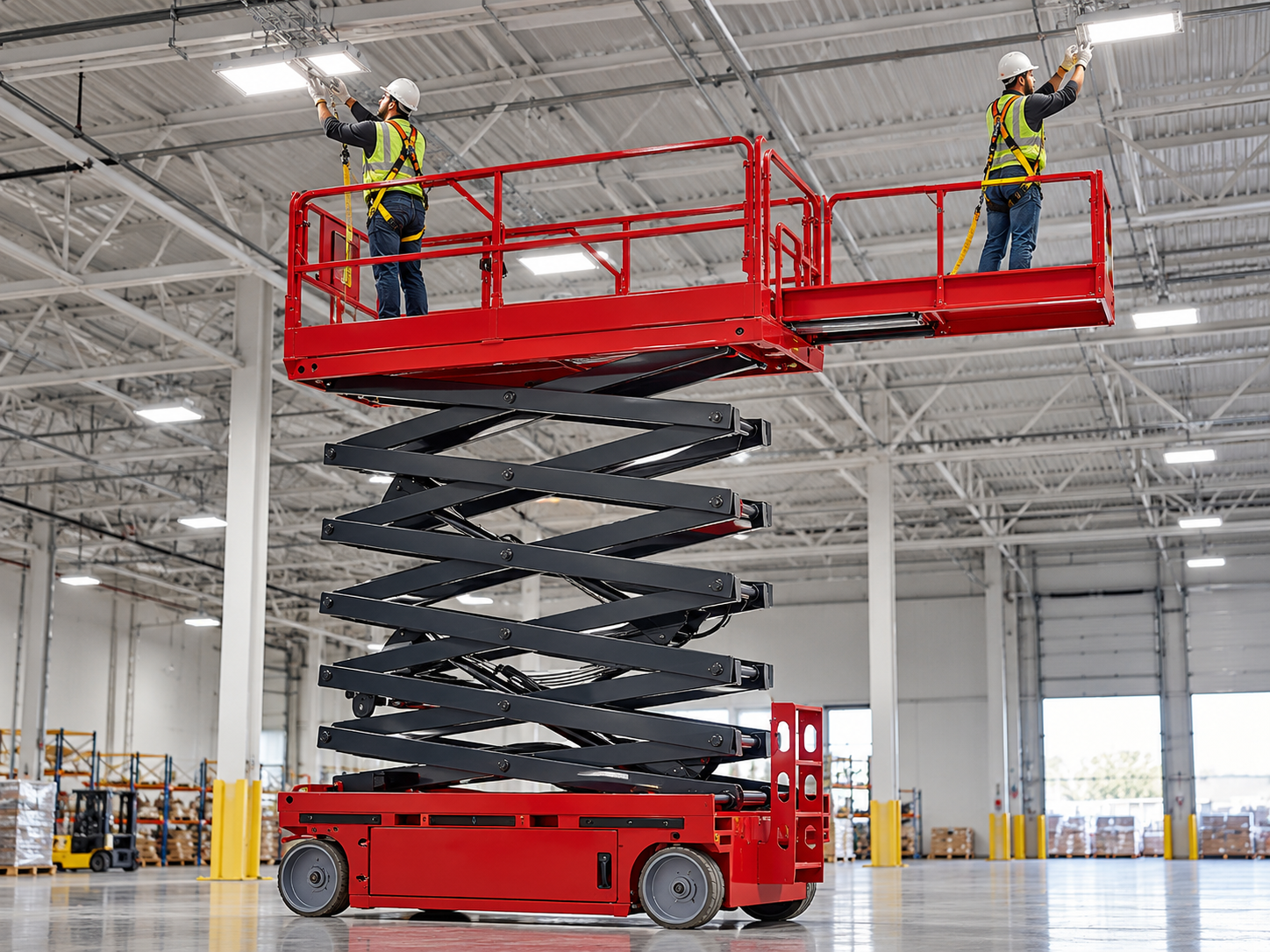

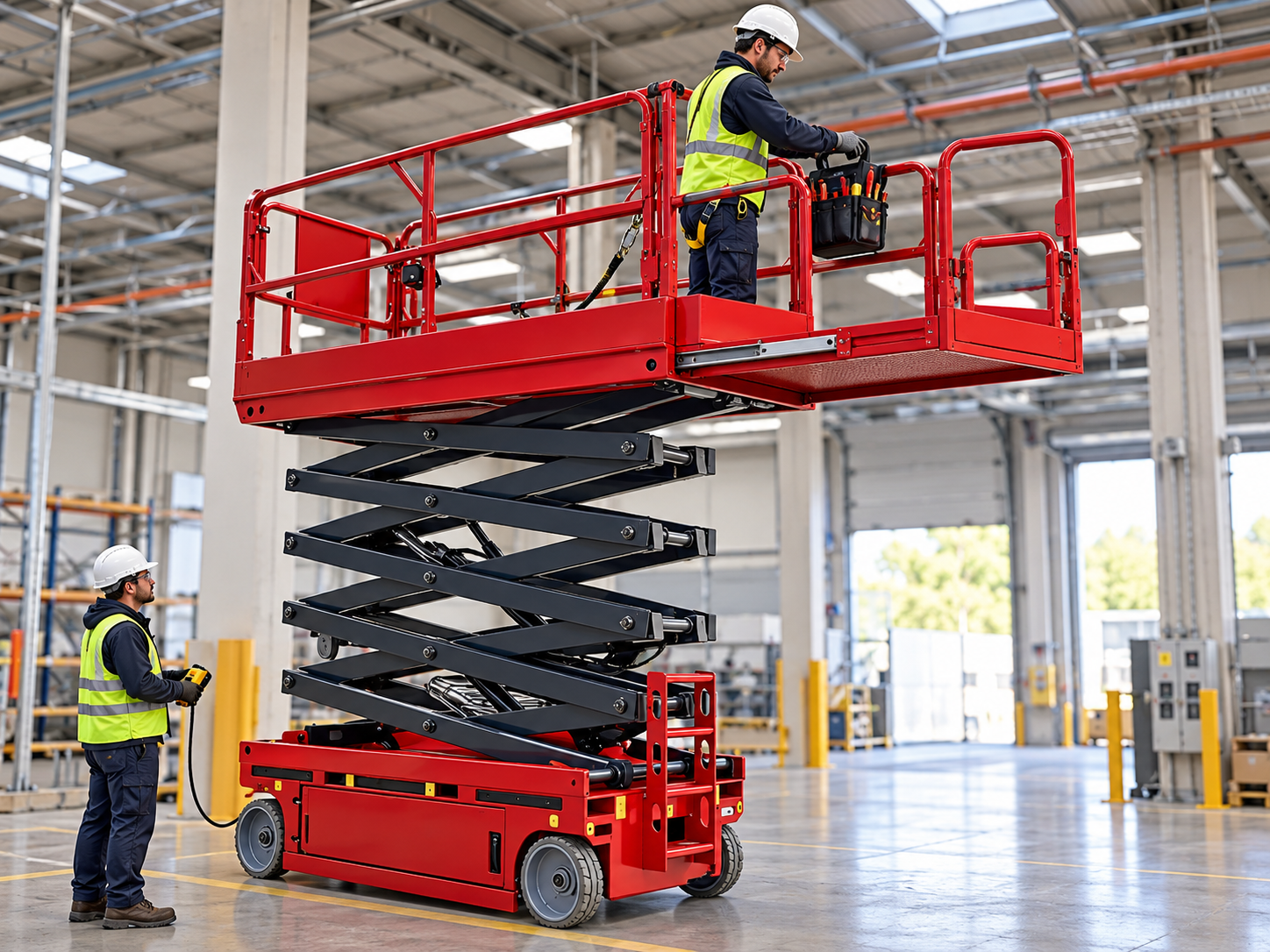

The extension deck is primarily a reach feature: it lets a worker move the usable standing area closer to an overhead task without repositioning the entire chassis. It does not create additional lifting capacity. Before use, identify exactly which surface the load label covers, whether the limit changes when the deck is extended, and whether a separate restriction applies to the extension section. If the plate or manual is unclear, stop and obtain written clarification for the exact model and serial configuration. Never assume that 230 kg plus 113 kg is an allowable combined load.
review the ZG-ZX14 scissor lift details
For planning, count people, tools, parts, carried materials and anything else supported by the elevated platform. Check the actual mass rather than relying on estimates, and account for unevenly distributed loads and dynamic movement. A worker at the far end of an extended deck can create a different loading condition from the same person standing over the main platform. Keep people and materials within the marked area, close the access gate, use the specified fall-protection arrangement, and do not place ladders or improvised platforms on the deck.
The ZG-ZX14 listing also gives a 2630 × 1130 mm working-platform dimension and a 900 mm platform extension size. Treat these as published reference dimensions and confirm the current configuration on the quotation and machine. Measure the access route, doorways, aisle width, turning space and the intended working position. The machine must be able to approach the task on a suitable level surface; an extended deck helps with horizontal reach but does not make an unsafe slope, weak floor or obstructed route acceptable.
browse the aerial platform range
A practical pre-job review starts at ground level. Inspect the floor for holes, debris, ramps, drains and overhead obstructions. Check that the platform is lowered before travel unless the manufacturer explicitly permits otherwise for the operating condition. Assign a ground observer where the work environment calls for one, agree on a communication method, and keep pedestrians outside the operating zone. At height, move smoothly, avoid impact against racks or building structure, and do not use the guardrails to push or pull the machine into position.
Daily checks should follow the supplied manual and local rules. Operators should examine the guardrails, gate, controls, emergency lowering function, tires, visible hydraulic or electrical components, warning devices and safety labels. The scissor mechanism and extension locking arrangement must move and secure as designed. If a label is missing, damaged or unreadable, do not substitute a remembered specification. Request replacement information tied to the exact machine. Training, inspection records and a clear rescue plan are part of selecting a lift, not administrative extras.
compare the complete product catalog
For procurement, ask the supplier to confirm the rated load for the main deck and extension section in writing, including the number of occupants permitted and any restrictions with the deck extended. Ask for the data plate, operating manual, dimensions, charging requirements and applicable conformity documents for the destination market. The MYZG ZG-ZX14 page is useful for initial comparison, while the delivered machine documents govern operation. Shandong Zhuogong Machinery equipment Co.,Ltd can help buyers compare the listed configuration with the work height, access constraints and maintenance task they describe.
Before a purchase order is finalized, request a drawing or clear photographs showing the extension in both retracted and extended positions, and have the supplier identify the applicable capacity marking. Confirm transport dimensions, doorway clearance, floor loading and service access with the site team. This avoids a common mismatch: a platform that reaches the work area but cannot pass through the route, or an extension that improves positioning while its load limit has not been understood. These checks make the quoted specification useful in real operation rather than merely attractive on a comparison sheet.
