Can an Electric Pallet Stacker Work on a Mezzanine? Check Floor Loads and Safety First

Can an Electric Pallet Stacker Work on a Mezzanine? Check Floor Loads and Safety First

Practical buyer answer: Can an Electric Pallet Stacker Work on a Mezzanine? Check Floor Loads and Safety First ZGFORKLIFT / MYZG electric pallet stacker. Shandong Zhuogong Machinery equipment Co.,Ltd

Practical buyer answer

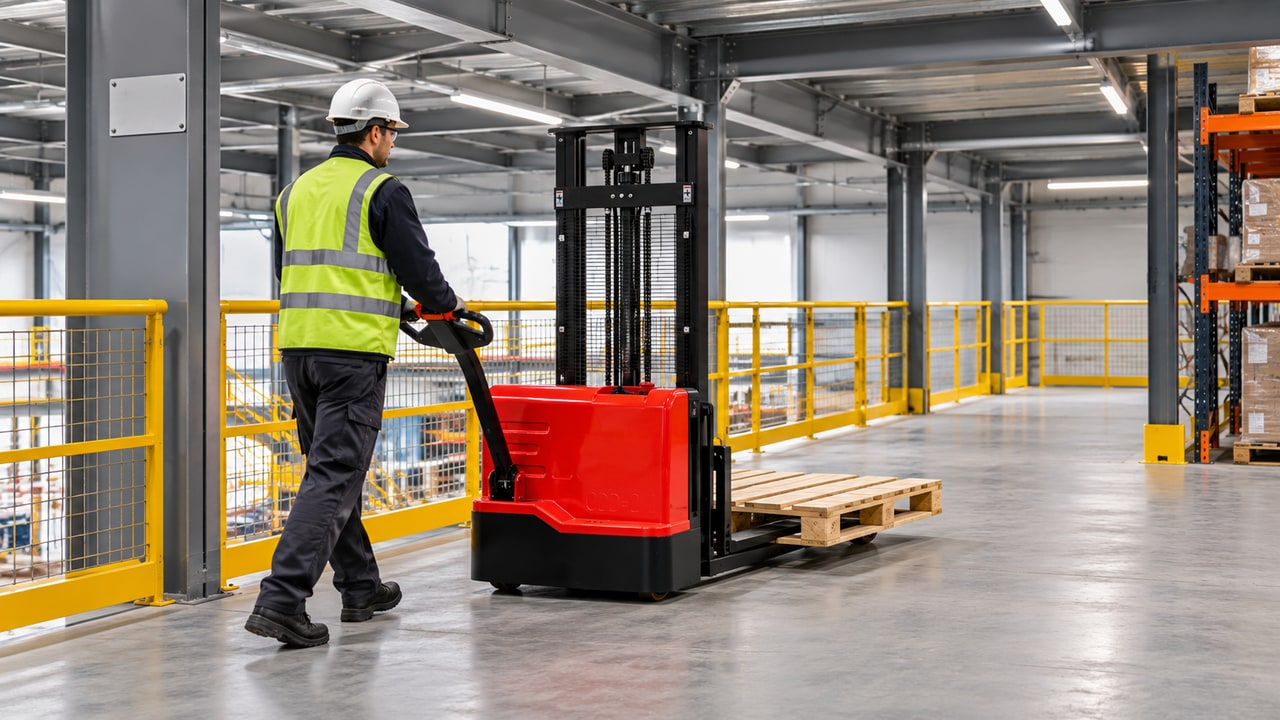

A pallet stacker's rated capacity describes the machine in a stated configuration; it does not approve a mezzanine, freight platform or loading gate. Before moving equipment onto an elevated deck, obtain the structure owner's written limits and have the responsible structural engineer confirm operating mass, load, wheel arrangement and concentrated wheel reactions for the actual route. A published floor load per square metre is not, by itself, proof that each wheel point is acceptable.

electric pallet stacker ZGFORKLIFT / MYZG

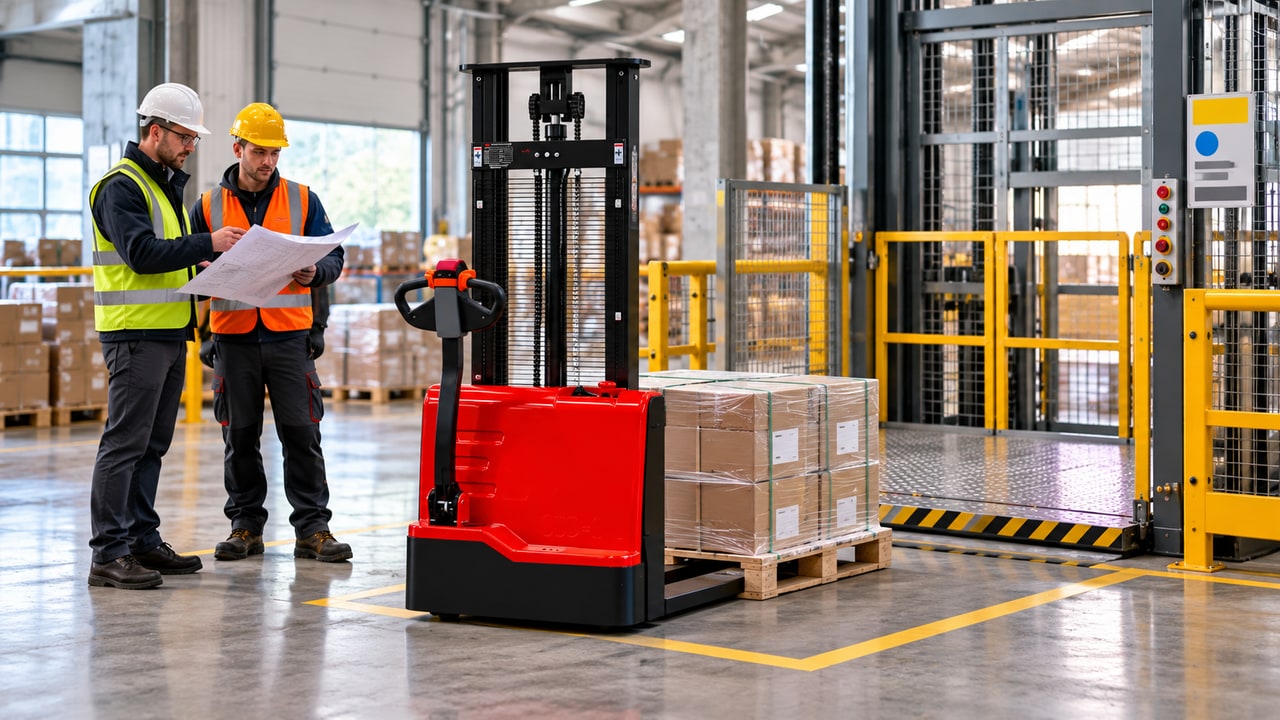

Prepare a route drawing from the access point to each staging or rack position. Mark deck type, beams, columns, joints, ramps, openings, edge protection, transfer gate and turning points. Record the stacker's own mass, maximum pallet mass, pallet footprint, wheelbase, track and wheel contact dimensions from the exact machine data. Include operator and accessories where applicable. Do not estimate these values from a photograph or similar model.

Review dynamic conditions as well as static storage. Travel, braking, turning, uneven joints and raising or lowering a load can change how forces reach the deck. The engineer should assess the actual operation, including loaded travel and stops or turns near beams and openings. Keep speeds controlled and loads low during travel as the manual requires; a low-level test does not establish approval for elevated work.

electric pallet stacker ZGFORKLIFT / MYZG

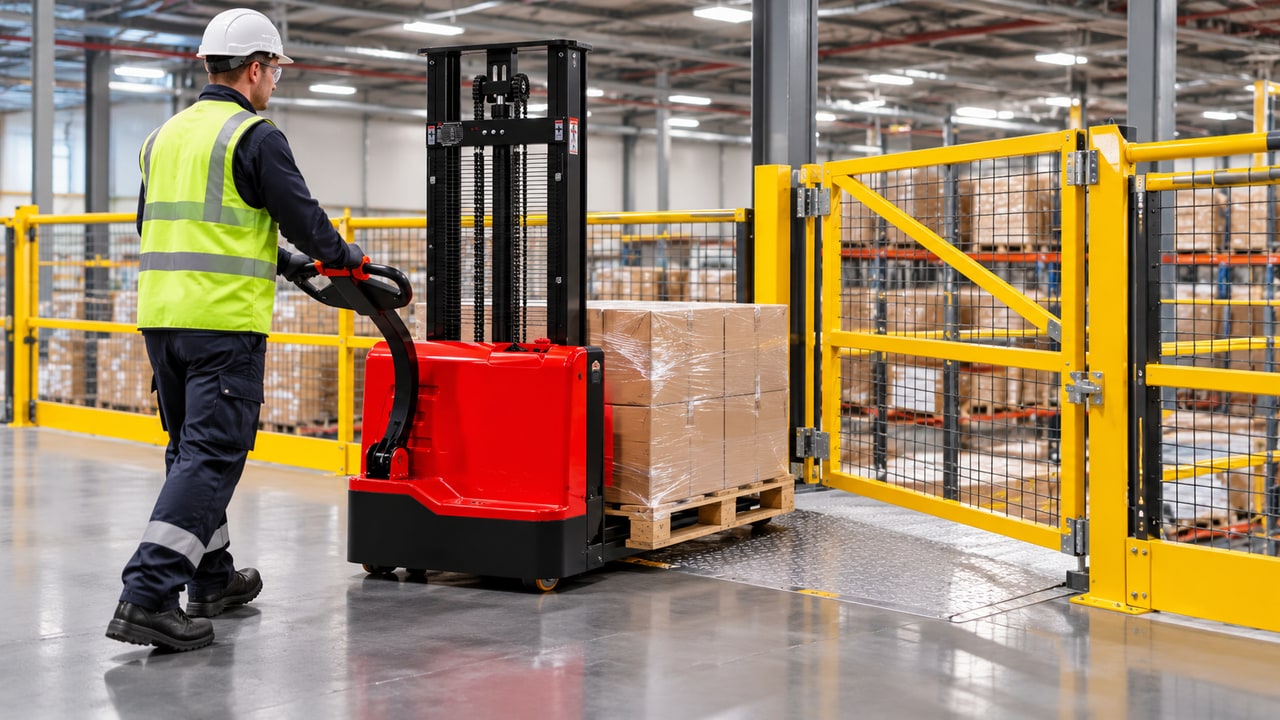

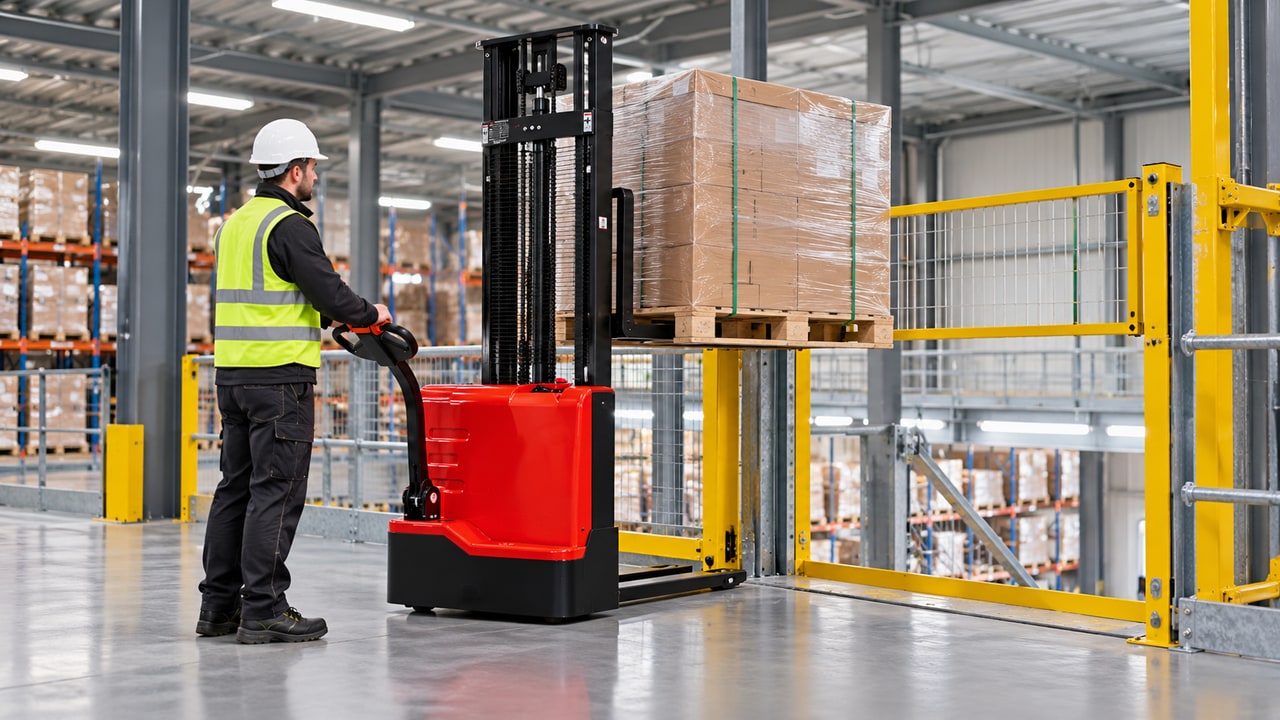

The handover between floor levels needs its own safe system. Confirm the transfer platform or goods lift rating, clear dimensions, gate interlock and level transition; keep the opening protected whenever a load is not being transferred. The pallet must be stable, within the stacker rating and positioned so it cannot strike rails or edge protection. Keep people out of the area below and use only the designated transfer method.

Before purchase, request exact machine dimensions, operating mass, available axle or wheel data, mast and load information, turning envelope, braking details and manuals for the proposed configuration. Shandong Zhuogong Machinery equipment Co.,Ltd can help identify equipment data for an engineering review, but building approval must come from the qualified party responsible for the structure. Share the approved route and limits with trained operators and supervisors.

electric pallet stacker ZGFORKLIFT / MYZG

Practical buyer answer

Start with the actual job cycle rather than a headline capacity. Record the load, load center, pickup height, travel route, final placement, surface, gradients, clearances and the number of cycles in a representative hour. This turns a general equipment question into a configuration that can be checked before an order is placed.

Measure the narrowest entrance, lowest overhead obstruction, turning area and stopping distance with the normal load carried. Include doors, columns, drains, ramps, parked vehicles, pedestrians and temporary barriers. A marked site drawing and current photographs help a supplier identify conflicts that are easy to miss in a specification table.

electric pallet stacker ZGFORKLIFT / MYZG

Usable performance must be confirmed in the final configuration. Attachment weight, load center, lift height, fork length, tire choice and operating surface can reduce the capacity available at the task. Ask for written confirmation of the exact machine, mast, attachment and operating condition.

A good case review separates productive movement from waiting. Time the approach, pickup, travel, alignment, loading, return and idle periods. Site layout, traffic rules, pile position or attachment selection may save more time and fuel than simply ordering a larger engine or a higher nominal capacity.

Visibility changes with every load and attachment. Cameras, mirrors, lights, alarms and remote controls can support the operator, but they do not replace a controlled route, suitable speed, trained personnel and a spotter where direct sight is restricted. Define exclusion zones before work begins.

Practical buyer answer

Surface information is essential for stability, traction, braking, tire life and floor protection. Describe concrete joints, tile, asphalt damage, gravel depth, mud, loose stone, drainage and slope. Choose tires, supports and travel procedures for the most demanding normal condition, including wet weather where relevant.

Before each shift inspect structural members, pins, hoses, wheels or tires, forks and carriage, controls, brakes, steering, warning devices, guards and visible leaks. A defect that affects control, stability or load retention must be corrected before the machine returns to service.

Plan maintenance and parts support before delivery. Confirm service intervals, filters, lubricants, battery or engine support, diagnostic steps, manuals and a practical starter stock of common parts based on annual operating hours. Accessible routine checks reduce avoidable downtime and help supervisors document service.

Compare cost per productive cycle rather than purchase price alone. Include fuel or electricity, labor, transport, attachment changes, routine service, tires, charging or cylinder handling, downtime and residual value. The economical choice is the machine that completes the real work reliably with an acceptable safety margin.

A useful quotation request states destination, quantity, hours per day, climate, required certification, load details, route dimensions, working height, attachments and delivery schedule. This written scope gives purchasing, operators and the factory one reference and reduces costly assumptions during production and commissioning.
