In the relentless pursuit of efficiency and space maximization, modern warehouses, distribution centers, and even retail backrooms rely heavily on sophisticated material handling strategies. At the heart of many of these strategies lies the stacker system, a broad term encompassing various equipment and methodologies designed to optimize vertical storage and streamline the movement of goods. Far more than just a simple piece of equipment, a "stacker system" often refers to the integrated approach of using stackers in conjunction with racking and inventory management to achieve high-density storage and efficient throughput.
This technical article will thoroughly define what constitutes a stacker system, explore its different components and configurations, delve into the various types of stackers that form its backbone (including examples like the specialized MYCQDA reach stacker and the high-performance MYCDD-E High configuration Standing Electric Stacker), and highlight the transformative benefits it brings to logistics operations.
What is a Stacker System? A Holistic View
A "stacker system" isn't a single machine; it's a coordinated approach to material handling that primarily focuses on vertical storage and space utilization within a defined area. It involves:
Stacker Equipment: The core machines designed to lift, transport, and stack goods, predominantly palletized loads. These machines are characterized by their ability to operate in narrower aisles than conventional forklifts and their specialized mechanisms for vertical movement.
Storage Infrastructure: The racking systems (e.g., selective, drive-in, push-back, very narrow aisle (VNA) racking) designed to accommodate high-density vertical storage, optimized for access by stacker equipment.
Operational Procedures: The methodologies and workflows for moving goods into, out of, and within the vertical storage system, including inventory management, order picking strategies, and safety protocols.
Automation (Optional but Increasingly Common): In advanced stacker systems, automated stacker cranes (AS/RS systems) and robotic stackers can take over the manual operation, further enhancing speed, accuracy, and labor efficiency.
In essence, a stacker system leverages the strengths of specific material handling equipment to transform cubic space into usable storage, particularly beneficial where horizontal expansion is limited or cost-prohibitive.
Types of Stacker Equipment: The Building Blocks of the System
The "stacker" in a stacker system refers to a diverse family of machines, each designed for specific applications and operational environments. They range from simple manual units to highly sophisticated automated systems.
A. Manual Stackers:
Description: These are the most basic and economical. They rely on manual pumping for hydraulic lift and human effort for propulsion.
Application: Ideal for light-duty, occasional lifting and short-distance transport in small warehouses or retail backrooms where investment in powered equipment isn't justified.
Role in a System: Primarily for very small, low-volume "stacker systems" or as supplementary equipment.
B. Semi-Electric Stackers:
Description: Feature electric lift (powered by a battery) but still require manual pushing/pulling for movement.
Application: Suitable for medium-duty tasks where repetitive lifting is common but long-distance travel is not. They reduce operator fatigue compared to manual stackers.
Role in a System: Entry-level powered vertical optimization for smaller operations.

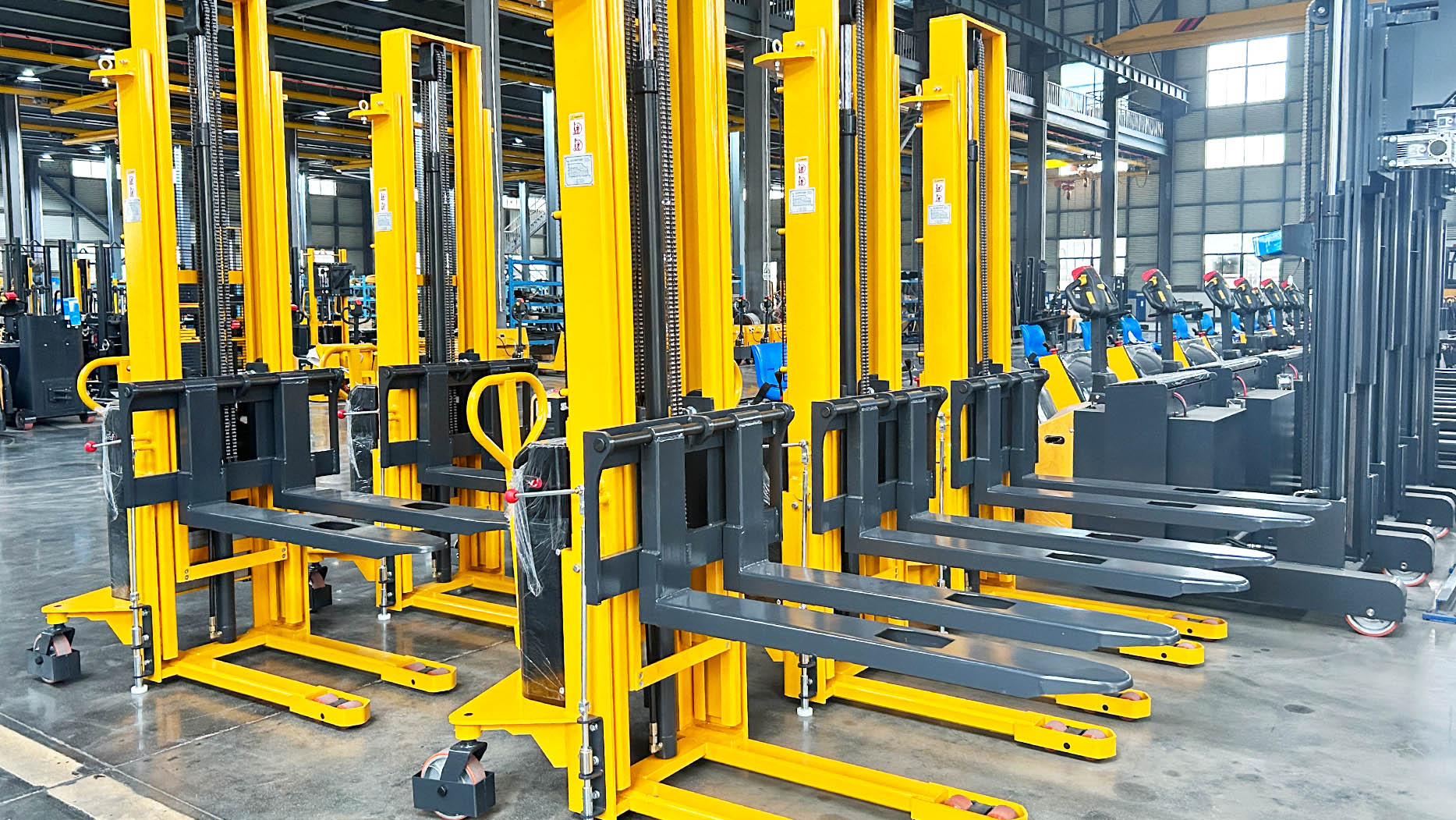

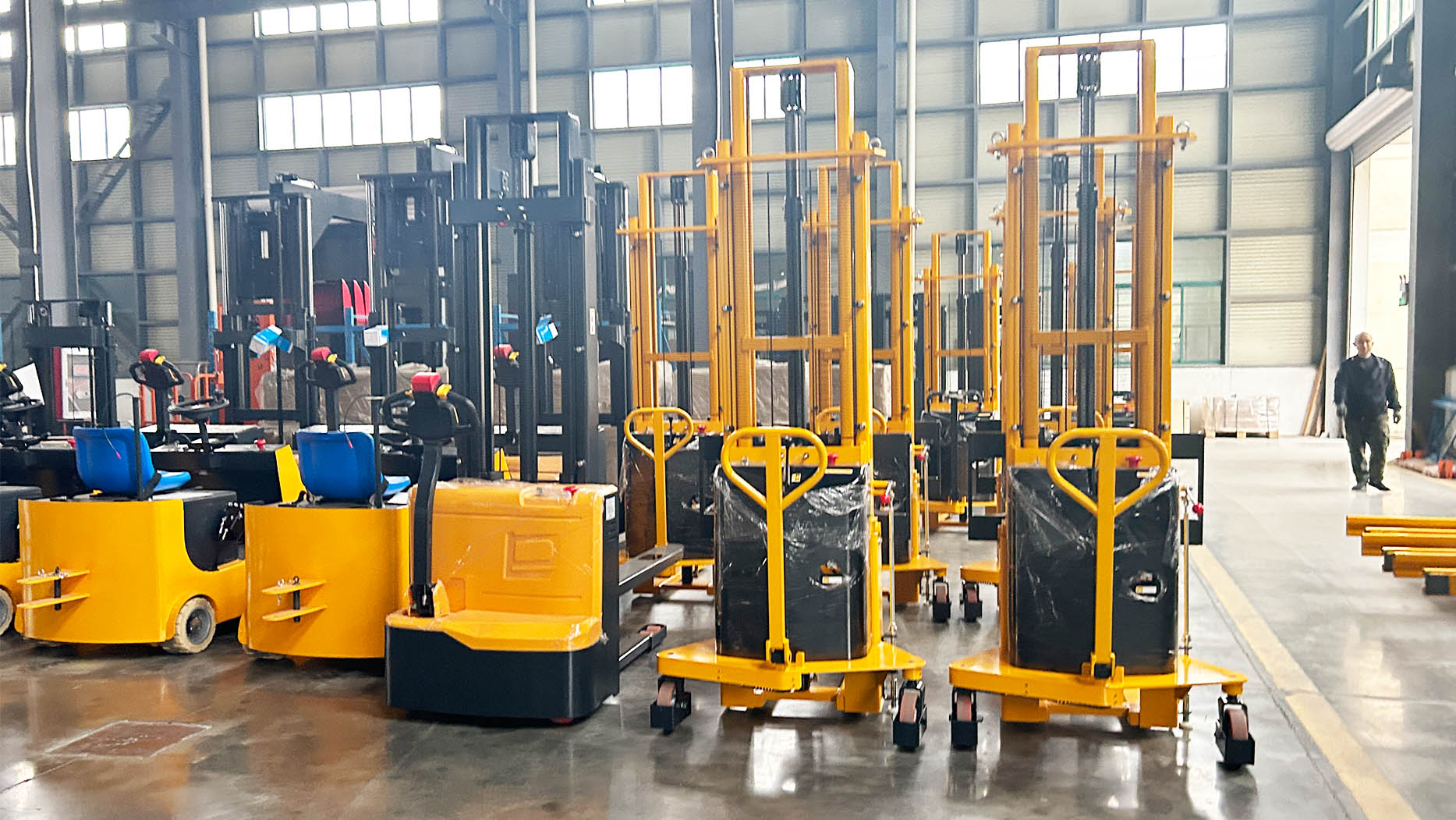

C. Fully Electric Stackers (Powered Pallet Stackers):
These are the most common type of stacker forming the core of many stacker systems. They are battery-powered for both lift and travel, significantly increasing efficiency and reducing operator strain. They come in several configurations:
Walkie Stackers (Pedestrian Stackers):
Description: The operator walks behind or beside the machine, guiding it via a tiller arm. They are compact and highly maneuverable.
Application: Excellent for tight aisles, small warehouses, loading/unloading trucks, and short-distance transport. Their simplicity and small footprint make them very popular.
Walkie Straddle Stackers:
Description: Similar to walkie stackers but with "straddle" legs that extend around the pallet, allowing the forks to go directly to the floor. This design provides greater stability and flexibility for handling various pallet sizes, especially closed-bottom pallets.
Application: Warehouses with diverse pallet sizes, block stacking, and in conjunction with selective racking where stability is key.
Counterbalance Stackers:
Description: Designed like a small counterbalance forklift but often without an operator compartment, relying on a counterweight for stability rather than straddle legs. This allows them to pick up any pallet type and place it directly into a rack.
Application: More versatile for various pallet types but require slightly wider aisles than straddle stackers.
Stand-on/Rider Stackers (e.g., MYCDD-E High configuration Standing Electric Stacker):
Description: Features a platform where the operator stands while controlling the machine. This allows for faster travel speeds over longer distances and reduces operator fatigue compared to walkie models.
Key Features of MYCDD-E High configuration Standing Electric Stacker: "High configuration" typically implies advanced features such as:
Higher Lift Heights: Often capable of lifting to 6 meters (20 feet) or more.
Improved Ergonomics: Enhanced operator platform, comfortable controls.
Advanced Safety Features: Automatic speed reduction on turns, stability control systems, regenerative braking.
More Powerful Motors/Batteries: For extended shift operation and faster lift/travel speeds.
Traction and Stability: Designed for stability during travel and high lifts.
Application: Ideal for medium-to-large warehouses with longer travel distances between stacking points, high-density racking, and operations requiring both vertical stacking and horizontal transport. They bridge the gap between walkie stackers and full-sized reach trucks.
Reach Stackers (Specialized & Large-Scale):
Description: Distinct from typical warehouse stackers, a MYCQDA reach stacker refers to a highly specialized, heavy-duty machine used primarily in intermodal terminals, ports, and large logistics hubs for handling shipping containers (intermodal containers). They have a telescopic boom and a spreader attachment that latches onto the top of containers.
Key Capabilities of MYCQDA Reach Stacker:
Immense Lifting Capacity: Can lift laden containers weighing tens of tons (e.g., 20-45 metric tons).
High Stacking Ability: Capable of stacking containers multiple high (e.g., 5-6 high) and often multiple deep (e.g., 3-4 deep, hence "reach").
Mobility: Being wheeled, they can move containers relatively quickly around the yard.
Telescopic Boom: The "reach" comes from the extendable boom, allowing containers to be placed or retrieved from rows not directly adjacent to the machine.
Role in a System: When speaking of "stacker systems" in a port or large intermodal context, the MYCQDA reach stacker is the central component, facilitating the high-density stacking and retrieval of containers, forming an integral part of the port's logistics infrastructure. It is a "stacker system" in itself on a much larger scale than a typical warehouse.
E. Automated Stacker Systems (AS/RS - Automated Storage and Retrieval Systems):
Description: The most advanced form of stacker system, involving fully automated machines (stacker cranes or robotic shuttles) that move along fixed rails within specialized racking structures. They are controlled by warehouse management systems (WMS) and warehouse control systems (WCS).
Application: High-throughput, high-density warehouses where labor costs are high, space is extremely limited, and 24/7 operation is desired. They excel in cold storage or hazardous environments where human presence is undesirable.
Role in a System: The ultimate evolution of a stacker system, offering unparalleled speed, accuracy, and storage density.
Benefits of a Well-Implemented Stacker System:
Regardless of the scale or type of stacker equipment employed, a well-designed stacker system offers substantial benefits:
Optimized Space Utilization (Vertical Density): This is the paramount advantage. By enabling higher stacking, stacker systems drastically increase the storage capacity within a given footprint, delaying or eliminating the need for expensive facility expansion.
Increased Storage Density: Narrower aisles mean more racks can be fitted into the same area, further boosting storage capacity.
Enhanced Operational Efficiency:
Faster Throughput: Stackers can quickly retrieve and put away goods, improving cycle times.
Reduced Travel Time: Particularly with compact stackers in narrow aisles, the distance goods travel can be minimized.
Streamlined Processes: Better organization and accessibility of goods improve picking and put-away accuracy.
Cost Reduction:
Lower Real Estate Costs: Maximize existing space.
Reduced Labor Costs: Electric stackers reduce manual effort, and automated systems drastically cut labor requirements.
Lower Equipment Costs (compared to forklifts): Many stackers are less expensive to purchase and maintain than full-sized forklifts, especially electric models with lower energy and maintenance needs.
Improved Safety:
Reduced Manual Handling: Less strain and injury risk for workers.
Enhanced Stability: Designs like straddle legs or advanced electronic stability systems improve safety during high lifts.
Controlled Environments: Automated systems remove humans from potentially hazardous material handling zones.
Quieter Operation: Electric stackers reduce noise pollution, improving communication and reducing fatigue.
Versatility and Adaptability: A wide range of stacker types means solutions exist for diverse environments, from small backrooms to vast container terminals.
Environmental Friendliness: Electric stackers produce zero emissions, contributing to better indoor air quality and a smaller carbon footprint, aligning with sustainability goals.
Implementing a Stacker System:
Designing and implementing an effective stacker system requires careful planning:
Needs Assessment: Analyze current and future storage requirements, throughput rates, and budget.
Facility Layout: Design racking systems and aisle widths to optimize for the chosen stacker equipment.
Equipment Selection: Choose the right stacker type(s) based on load characteristics, lift heights, travel distances, and terrain (e.g., MYCQDA reach stacker for containers, MYCDD-E High configuration Standing Electric Stacker for high-density indoor racking).
Integration with WMS/WCS: Especially for automated or high-volume manual systems, robust software is critical for inventory accuracy and efficient task management.
Operator Training: Ensure all operators are thoroughly trained and certified on the specific stacker equipment they will be using.
Conclusion: The Future is Vertical
The "stacker system" is more than just a collection of machines; it is a strategic logistical framework centered on the efficient utilization of vertical space. By integrating various types of stacker equipment, from the highly maneuverable MYCDD-E High configuration Standing Electric Stacker optimizing indoor warehouse operations to the powerful MYCQDA reach stacker orchestrating container movements in a port, businesses can achieve unparalleled storage density, operational efficiency, cost savings, and safety. As the pressures on storage space and supply chain speed continue to mount, the stacker system will remain an indispensable and evolving solution for optimizing logistics in the modern world.
Post time:May.22.2025
