ZL-938P wheel laoder

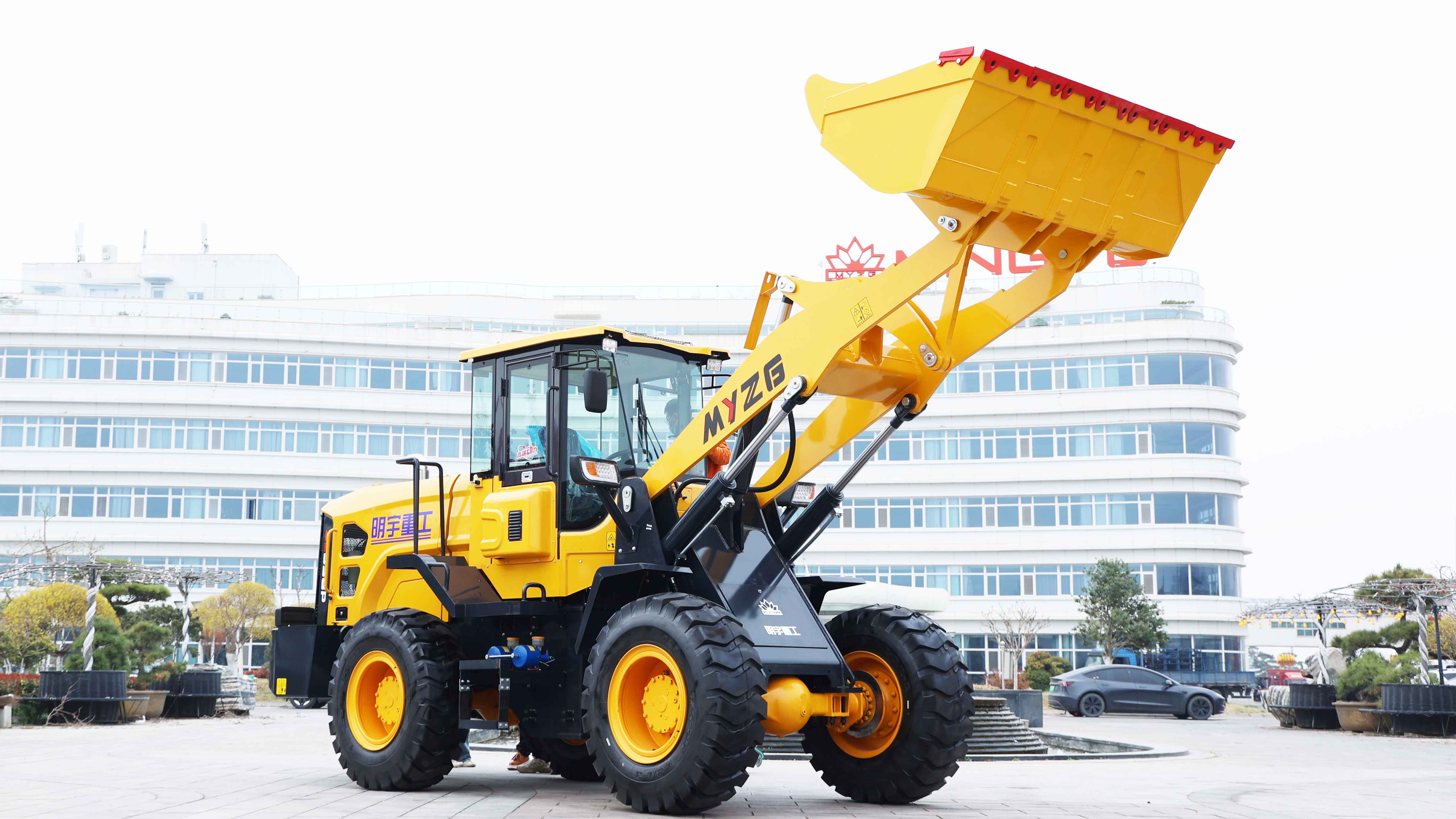

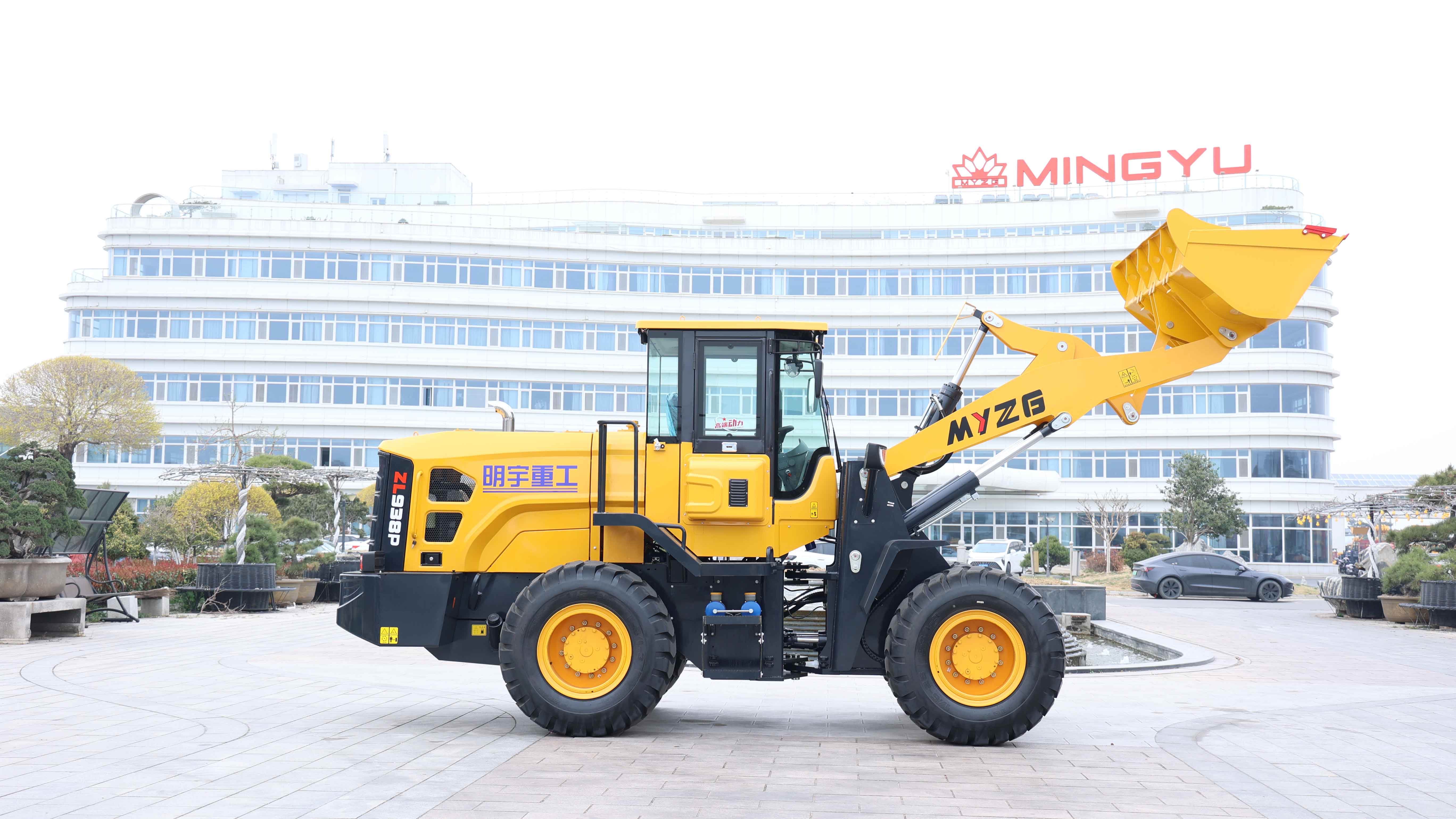

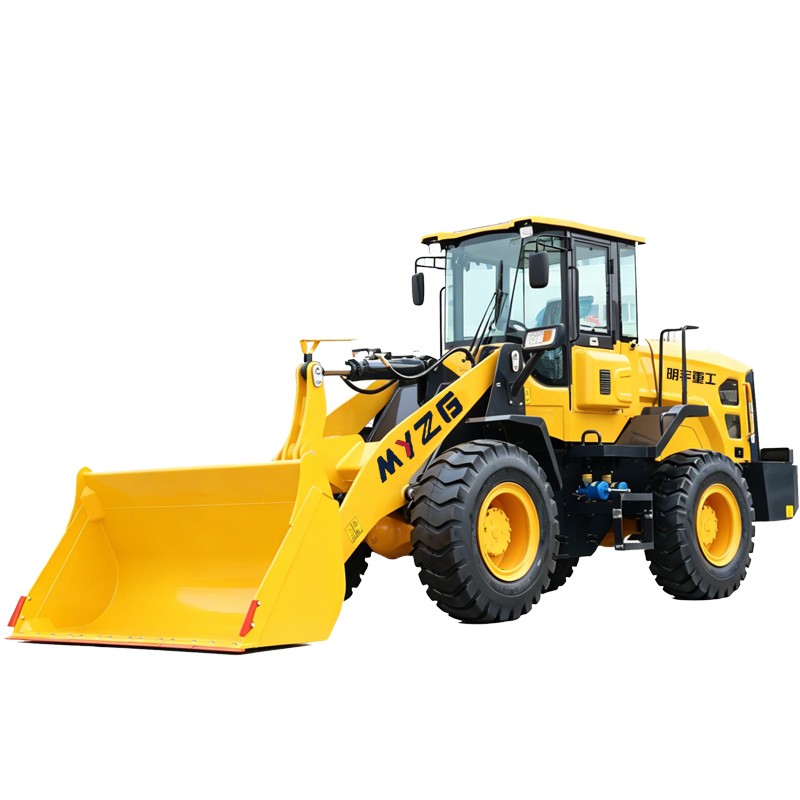

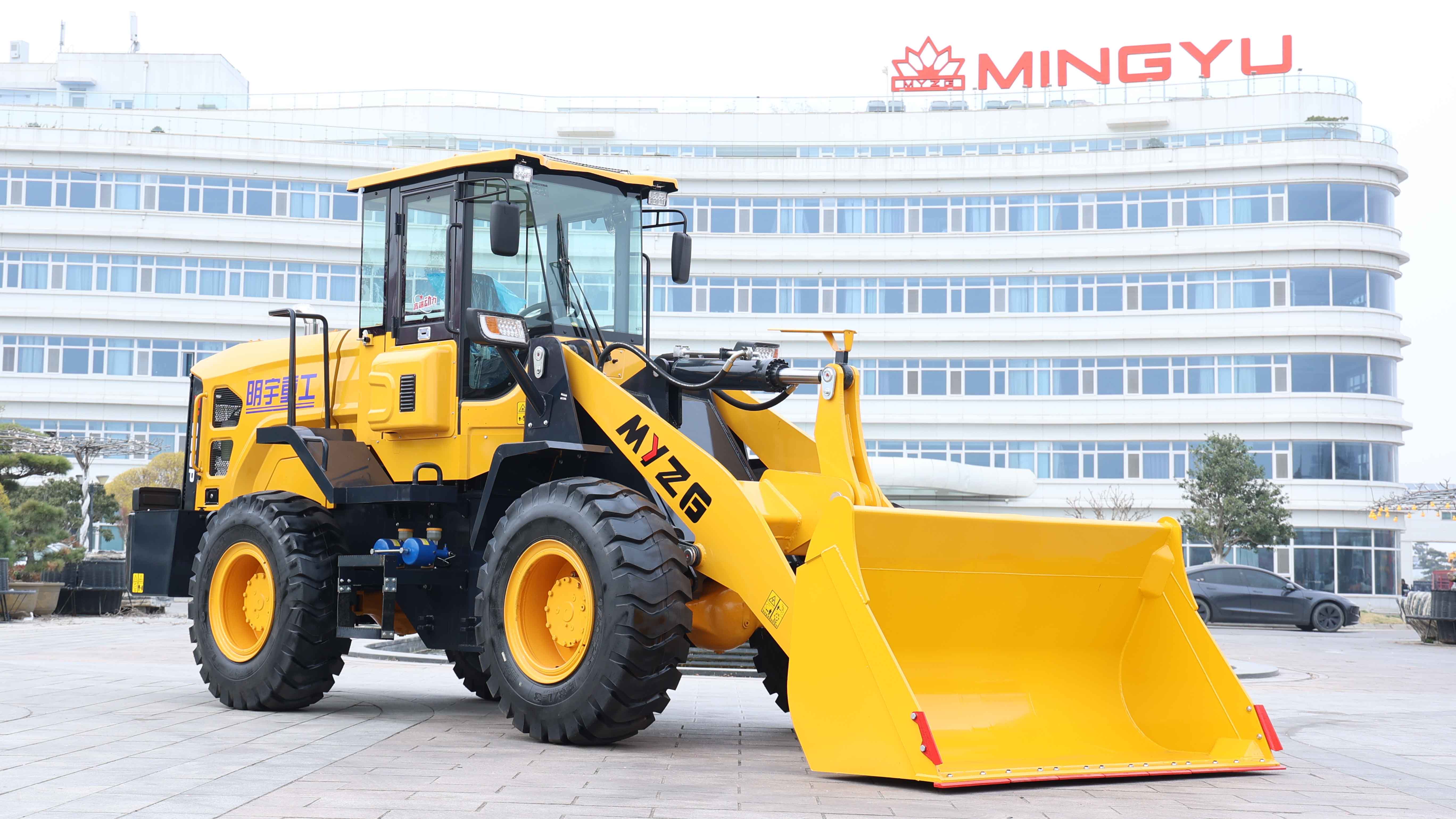

MYZG ZL-938P Wheel Loader – High-Performance Heavy-Duty Loader for Construction and Mining
The MYZG ZL-938P Wheel Loader is engineered to deliver unmatched efficiency, rugged durability, and outstanding versatility on modern construction, mining, agricultural, and heavy-duty industrial jobsites. Manufactured by Shandong Zhuogong Machinery Equipment Co., Ltd. (MYZG), this high-performance earthmoving machine provides an exceptional balance of raw digging power and smooth operational control. Featuring a massive 3200kg rated load capacity, a heavy-duty 2m³ bucket, and a reliable 92 kW WEICHAI engine setup, the ZL-938P is built to tackle the most demanding material handling, site preparation, and stockpiling tasks.
Key Features & Engineering Highlights
1. High-Efficiency WEICHAI Engine & Powertrain
At the heart of the ZL-938P wheel loader is a high-torque, fuel-efficient WEICHAI engine producing 92 kW of rated power at 2400 r/min. This industry-proven engine delivers superior breakout force and fast cycle times while keeping operational costs and fuel consumption low. Paired with an advanced JINLITE 320 SEPARATE transmission system, the loader ensures smooth gear shifting, seamless power distribution, and excellent tractive effort even when climbing steep grades or working in muddy, rough terrains.
2. Superior Reach and Higher Dump Height
Designed to maximize site productivity, the ZL-938P boasts an extended dump height of 3620mm and a dump distance of 1040mm. This superior high-lift configuration allows operators to easily reach and evenly load high-sided tandem dump trucks, mixers, and large hoppers. Whether you are operating in heavy-duty aggregate quarries or stacking agricultural bulk materials, the optimized loader arm geometry provides maximum stability and extended reach at the peak of the lift cycle.
3. Massive Capacity and Heavy-Duty Structural Design
With an impressive operating weight of 10,300kg and a robust rated load capacity of 3200kg, the ZL-938P is built to withstand extreme structural stress. The front and rear articulated frames are constructed from high-tensile, heavy-gauge steel plates precisely welded to absorb twisting forces. The standard 2m³ heavy-duty bucket comes with reinforced wear-resistant teeth and cutting edges, significantly extending service life when handling aggressive materials like compacted soil, gravel, blasted rock, and coal.
4. Exceptional Agility and Rough Terrain Performance
Despite its massive structural build, the ZL-938P offers excellent spatial maneuverability with a minimum turning radius of 3430mm. This nimble footprint allows it to operate efficiently in confined industrial yards and restricted construction areas. Equipped with large-traction **17.5-25 heavy-duty tires**, this 4x4 loader provides outstanding ground clearance, high stability, and a smooth ride over highly uneven terrain.
5. Premium Operator Comfort and Safety Cab
The ZL-938P features a spacious, fully enclosed panoramic cabin designed to ensure long-term driver comfort and optimal site safety. The ergonomically layout positions all pilot control joysticks, hydraulic levers, and standard instrument gauges within natural reach. High-power heating and air conditioning (HVAC) systems are available to maintain an ideal workspace during extreme weather conditions, while the sound-insulated cabin dampens vibrations and job site noise.
ZL-938P Technical Specifications
Explore the full mechanical and structural specifications of the MYZG ZL-938P articulated wheel loader:
| Technical Feature | Specification Detail |
|---|---|
| Rated Load Capacity | 3200 kg |
| Rated Bucket Capacity | 2 m³ |
| Operating Weight | 10,300 kg |
| Engine Brand / Model | WEICHAI |
| Rated Power | 92 kW |
| Rated Speed | 2400 r/min |
| Maximum Dump Height | 3620 mm |
| Maximum Dump Distance | 1040 mm |
| Minimum Turning Radius | 3430 mm |
| Overall Dimensions (L×W×H) | 7630 × 2550 × 3250 mm |
| Tyre Size Specification | 17.5-25 |
| Transmission System | JINLITE 320 SEPARATE |
DIFFERENTIATED PRODUCTS
According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.
About us
MYZG machines are exported all over the world，about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get,and the engine can be changed to many brand such as Quanchai,Yunnei, Huadong, Deutz,Huafeng,Huangdong,Cummins, Changchai, Xinchai,Yanmar, etc.
MYZG have perfect after-sales service，and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production, in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
Why Choose MYZG Machinery?
As a premier heavy machinery manufacturer, Shandong Zhuogong Machinery Co., Ltd. (MYZG) has been at the forefront of the engineering sector since its founding. Our advanced production workshops utilize intelligent, automated fabrication, and strict digital quality controls integrated through comprehensive ERP tracking networks. Every ZL-938P loader undergoes rigorous structural and multi-stage hydraulic stress tests before shipment to ensure international compliance. Backed by global parts availability, competitive factory-direct pricing, and a responsive one-year warranty service, MYZG is your trusted partner for high-yield industrial equipment worldwide.
