Start with the work, not the brochure
A stacker purchase should begin with the repeated task that is consuming operator time: moving a pallet from receiving to reserve storage, feeding a packing line, clearing a staging zone, or replenishing short pick faces. MYCDD-G economical stand-on electric stacker is a product-family option, not a substitute for a site study. Map the start and destination of each pallet, how often that trip occurs, whether lifting is occasional or continuous, and how many people currently touch the load. This simple route map exposes whether the priority is powered travel, reduced manual pumping, compact turning, a standing platform, a counterbalanced arrangement, or a manual machine with low acquisition and maintenance complexity.
Application fit and operating environment
For a warehouse, workshop, parts room, small distribution hub or production buffer, the best stacker is the one that fits the pallet and aisle without creating a new traffic conflict. Measure the narrowest clear aisle, turning pocket, rack beam height, overhead obstruction and doorway. Record floor joints, slope, thresholds, dock transitions, dust, washdown and temperature. A smooth indoor route may suit a compact electric walkie unit, while repeated longer trips can favor an operator platform; a short-wheelbase counterbalanced layout addresses different pallet and clearance constraints. Manual travel and hydraulic lift can be appropriate for low-frequency short moves when electrical charging is not needed.
Build a defensible selection brief
Send the sales team the most common and maximum load, pallet length and width, load center, fork-entry direction, required lift height, lowered mast height, duty cycle, shift length and available charging window. Include aisle and door measurements, floor photographs, the delivery country and the preferred language for manuals. Do not select only by a headline capacity: load center, lift height, mast configuration, attachments and operating surface affect the safe working envelope. Ask for a written configuration, capacity information for the specified lift condition, battery and charger particulars where fitted, operating instructions, warranty scope, packing dimensions and a clear list of included accessories.
| Maximum load capacity | 1500/2000kg |
| Overall length/width of frame | 2130/850mm |
| Fork size（length *width*thickness） | 1150*165*55mm |
| Fork lowered height | 90mm |

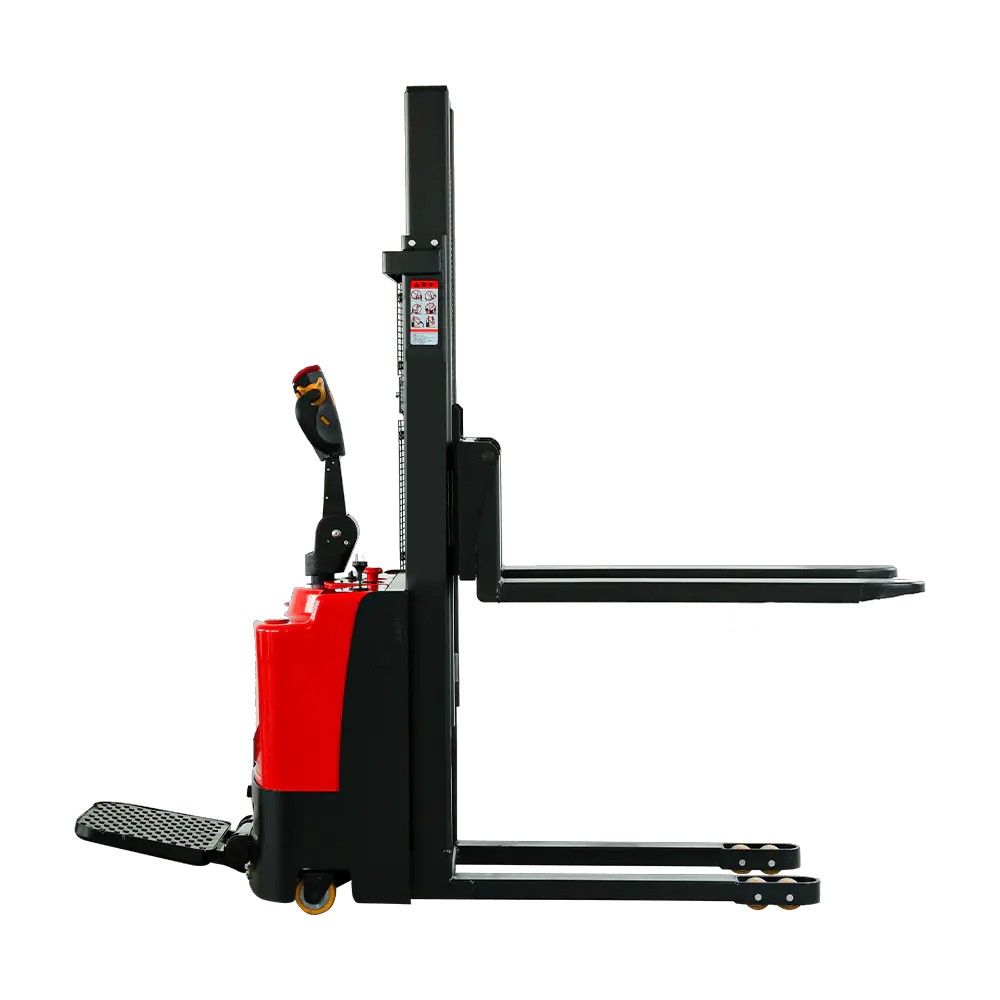

Source-verified configuration snapshot: MYCDD-G Stand-on Electric Stacker (ECONOMICAL). Maximum load capacity 1500/2000kg. Final machine configuration must be confirmed in the order documents.
Make the workflow safer and more predictable
Define one-way movement where possible, separate pedestrian paths from pallet routes, mark crossing points and keep the load low while travelling. Train operators to approach squarely, insert forks fully, keep feet and hands clear, avoid turning with an elevated load, and stop when visibility is blocked. Check pallet condition before lifting: broken boards, loose wrapping and unevenly distributed goods can make an otherwise suitable machine unsafe. Use the model’s operating manual and site risk assessment as the authority for grade limits, stopping distance, load height and use restrictions. A stacker is not a substitute for a forklift where the load, terrain or lift duty exceeds its documented use.
Plan maintenance around the shift pattern
Before each shift, inspect forks, mast channels, chains, wheels, tiller return, brakes, emergency stop and visible hydraulic hoses or leaks. For powered units, follow the supplied battery and charger instructions, keep connectors clean and dry, and use the specified charging routine; do not assume battery chemistry or voltage from a family name. For manual CTY equipment, inspect the pump, release control, chain, seals, forks, casters and frame, and keep hydraulic components clean. Record defects, remove unsafe equipment from service, and schedule periodic inspection at the frequency required by the manual and local rules.
Understand total cost beyond the purchase price
Compare expected weekly pallet moves, travel distance, lift cycles, labor touchpoints, energy use, planned service, wear parts, operator training and downtime exposure. A powered stacker can reduce repeated effort on frequent routes, while a manual model may remain economical for intermittent work close to storage. Include freight, unloading, commissioning, consumables, battery replacement assumptions when documented, and local technician availability in the ownership plan. Ask which wear parts are stocked, how to identify them from the serial plate, what troubleshooting information is supplied, and how service questions are escalated across time zones.
Parts, dealer and after-sales readiness
A dealer or rental operator should evaluate more than the machine: clarify lead times, packing method, spare-parts diagrams, routine service items, training materials, warranty claim evidence and a named communication channel. Keep a short list of critical components based on the fleet duty, but do not order parts by model shorthand alone; confirm serial number and component revision. Shandong Zhuogong Machinery equipment Co.,Ltd can discuss quotation, configuration and export preparation through the contact route below. A practical handover includes safe-use instructions, inspection checklist, charging or hydraulic guidance, and a clear record of what was actually delivered.
Compliance and export checks without assumptions
CE-related declarations, electrical documentation, labeling and import requirements depend on the exact configuration and destination. EPA rules generally relate to applicable engines and emissions scope; a battery stacker or manually powered product should not be described as EPA-certified by default. Before purchase, ask for the documents relevant to the specific machine, country and intended use, and verify them with the importer or local adviser. This page does not claim certificate numbers, named customer references or quantified savings. Application images are newly generated illustrations based on the product appearance, not a report of an identified customer installation.
What to include in a quote request
Send model code, pallet drawing or photographs, normal and maximum load, load center, target lift height, aisle and doorway widths, surface condition, shifts per day, charging opportunity, destination port and document list. For CTY, state clearly that the requirement is manual travel and hydraulic lifting; for powered types, state the desired travel pattern and charging environment. The team can then compare the verified source configuration with your task, flag unanswered options and return a written quotation. Use the links below to review the product range, stacker category, application resources and sales contact.
Stand-On Route-Planning Guide: Quotation checklist
Shandong Zhuogong Machinery equipment Co.,Ltd supplies ZGFORKLIFT / MYZG equipment. For a useful quotation, send the model code, pallet photo or drawing, routine and peak load, load center, required lift, route measurements, floor photographs, shifts, charging opportunity for powered versions, delivery destination and import-document requirements. Ask the supplier to confirm the exact mast, capacity information, operating controls, battery or hydraulic configuration, warranty scope, packing list and parts support in writing. Dealers should also include expected annual volume, local technician capability, initial stock preference and training-language needs.
CE-related declarations and EPA applicability depend on the exact configuration and destination; no unsupported certificate number, customer name, performance figure or specification is claimed here. The three work-scene images are generated illustrations based on the corresponding source product appearance, not photographs of a named client or evidence of an installation. Confirm compliance and operating details from the documents supplied with the final order.
