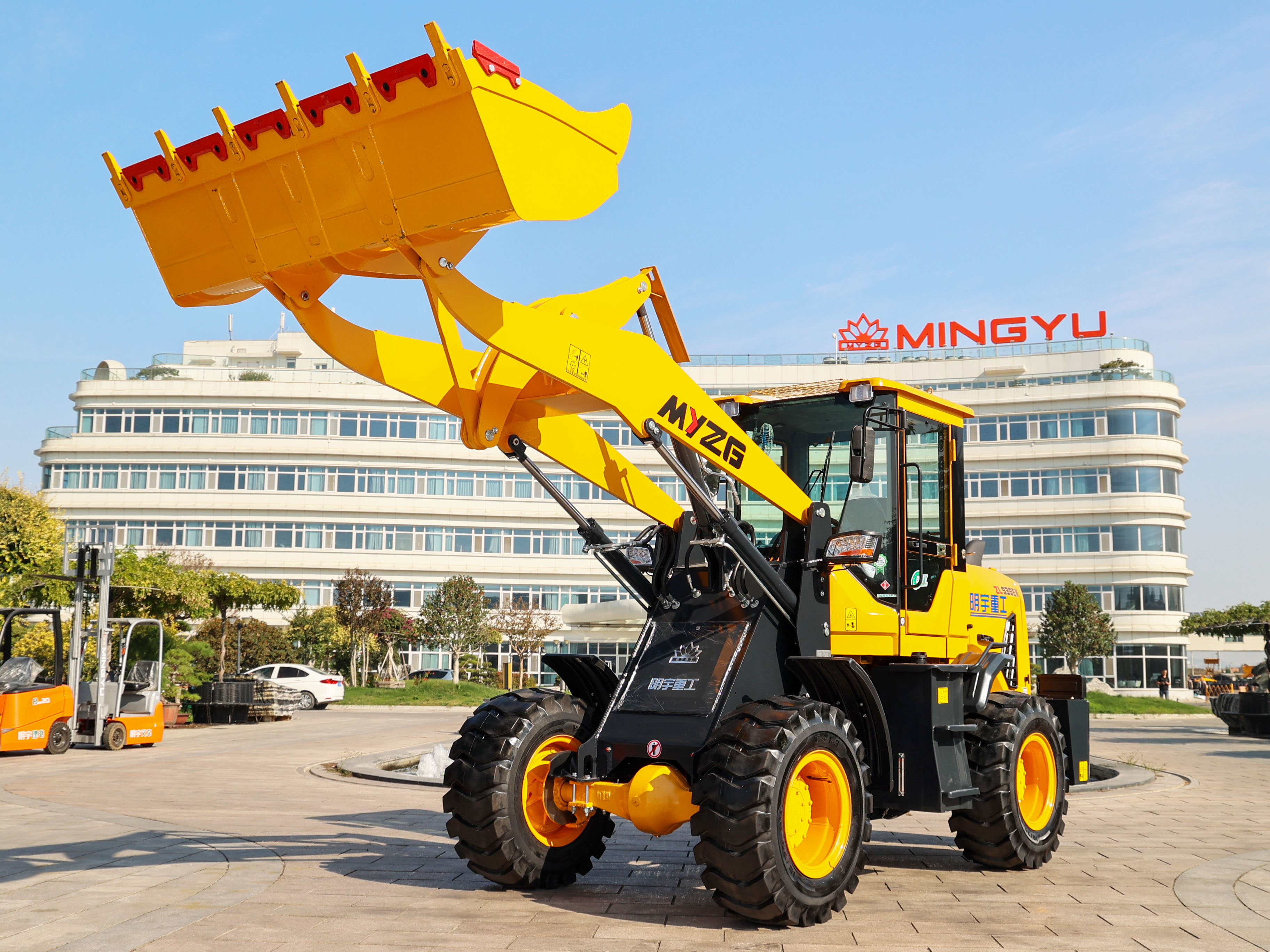

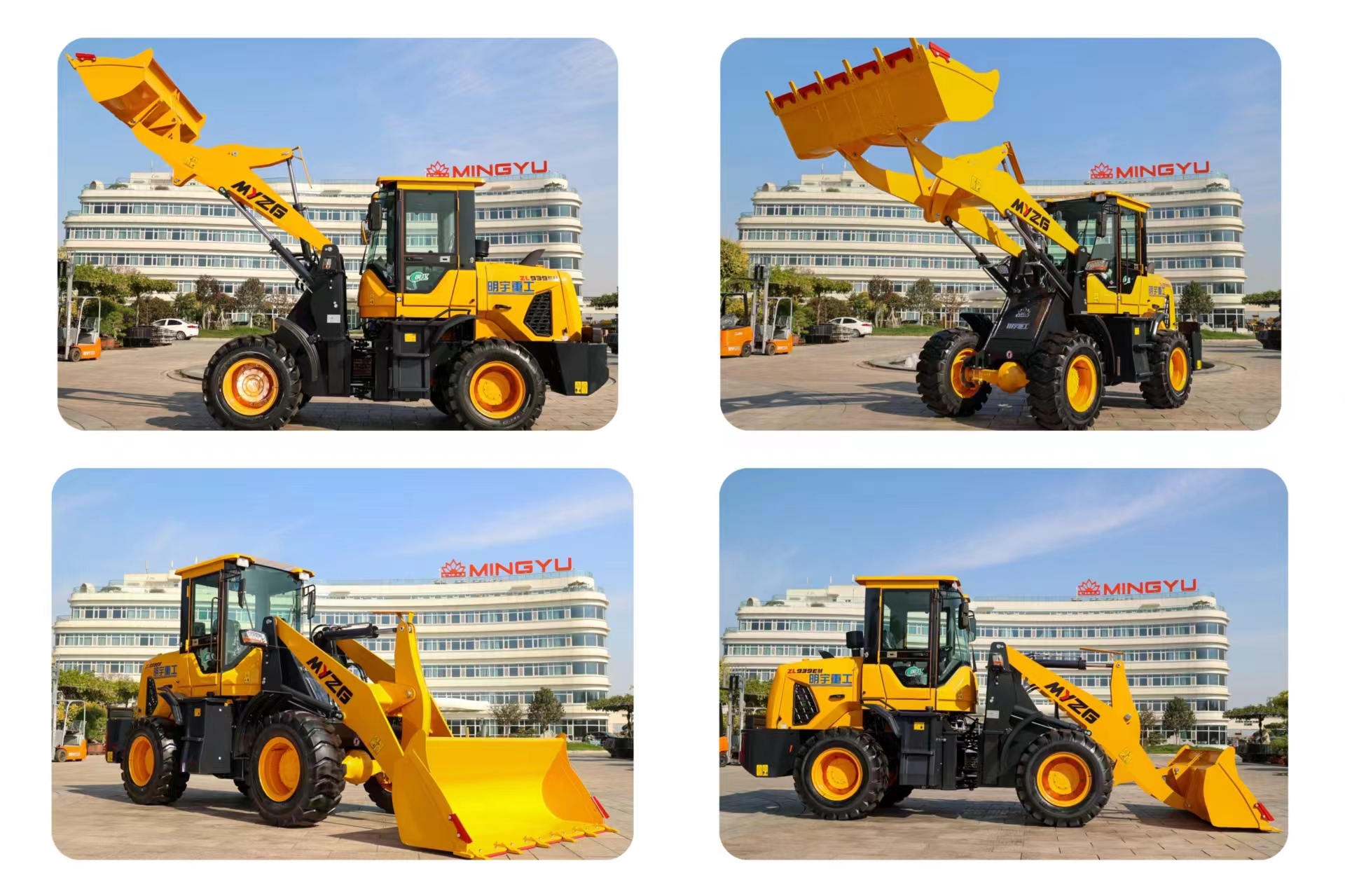

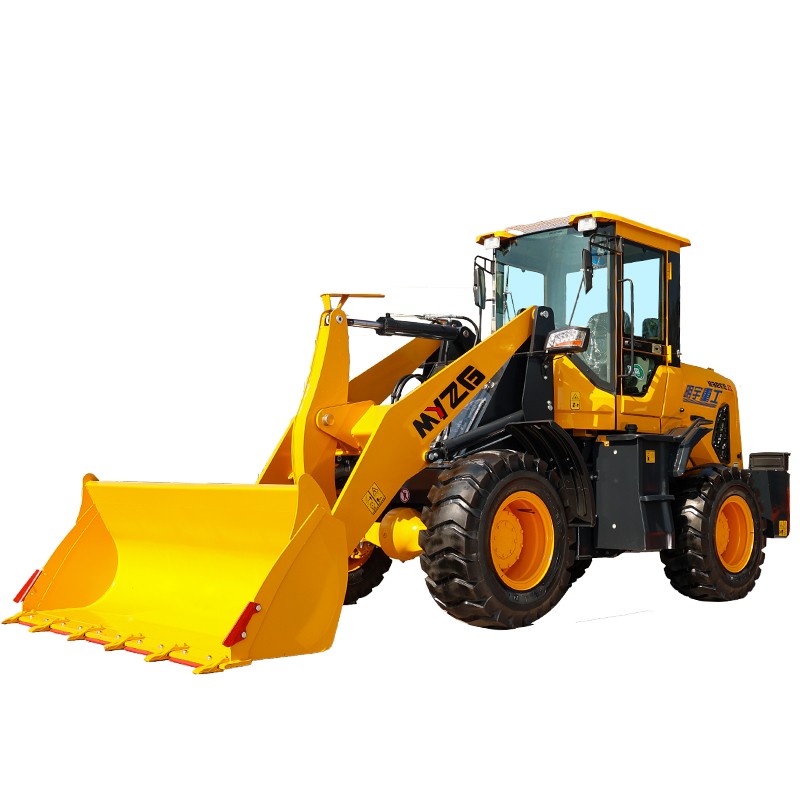

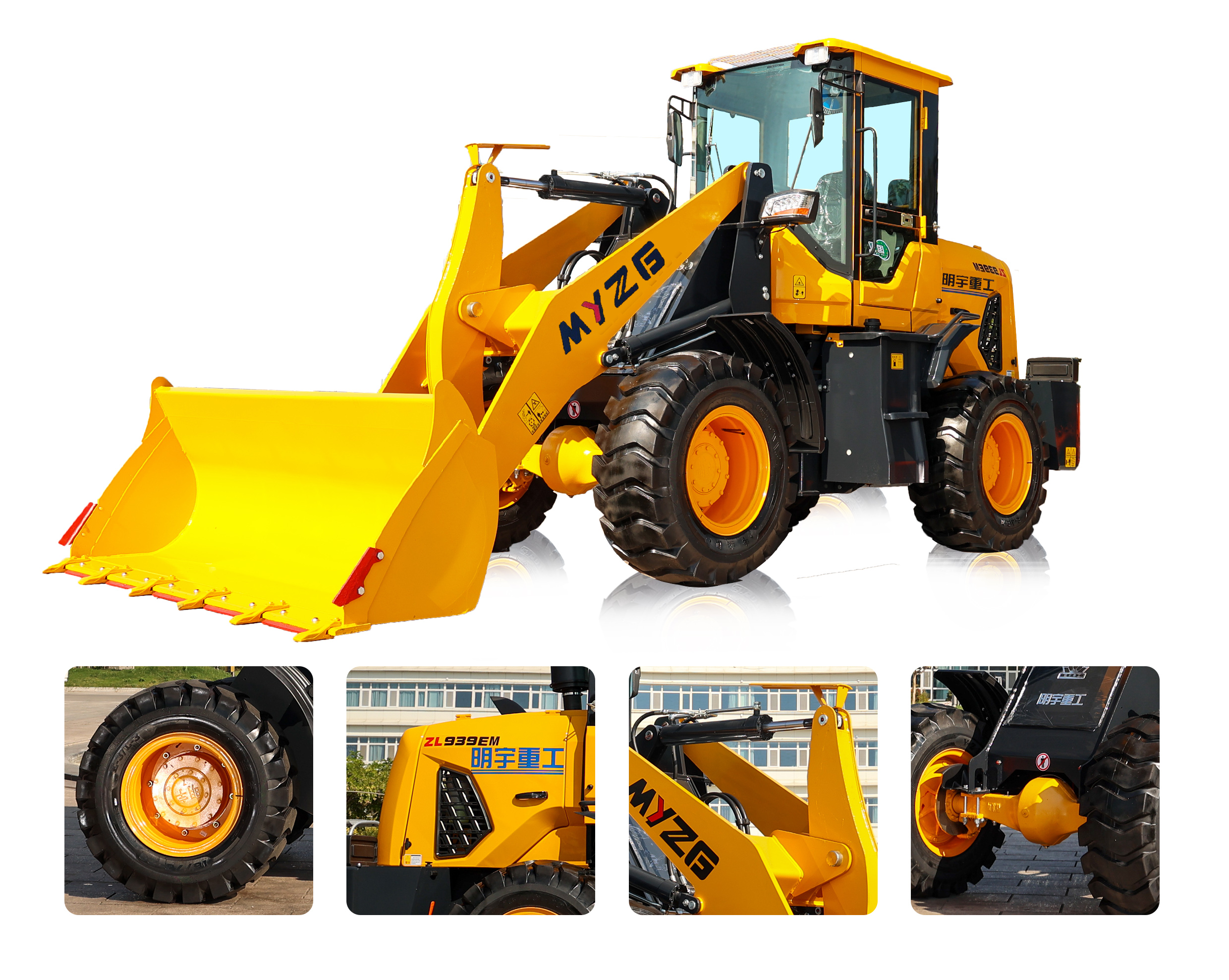

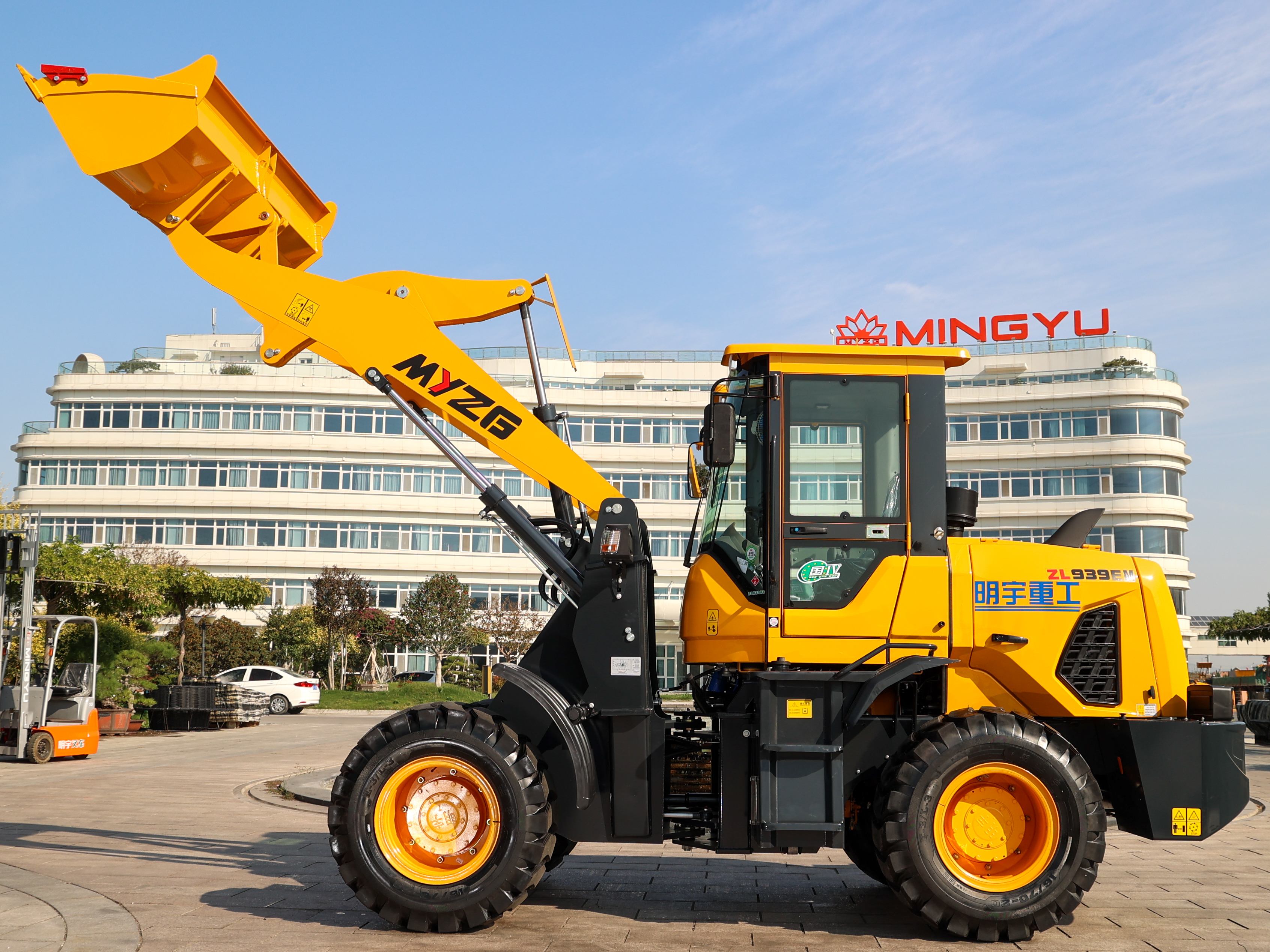

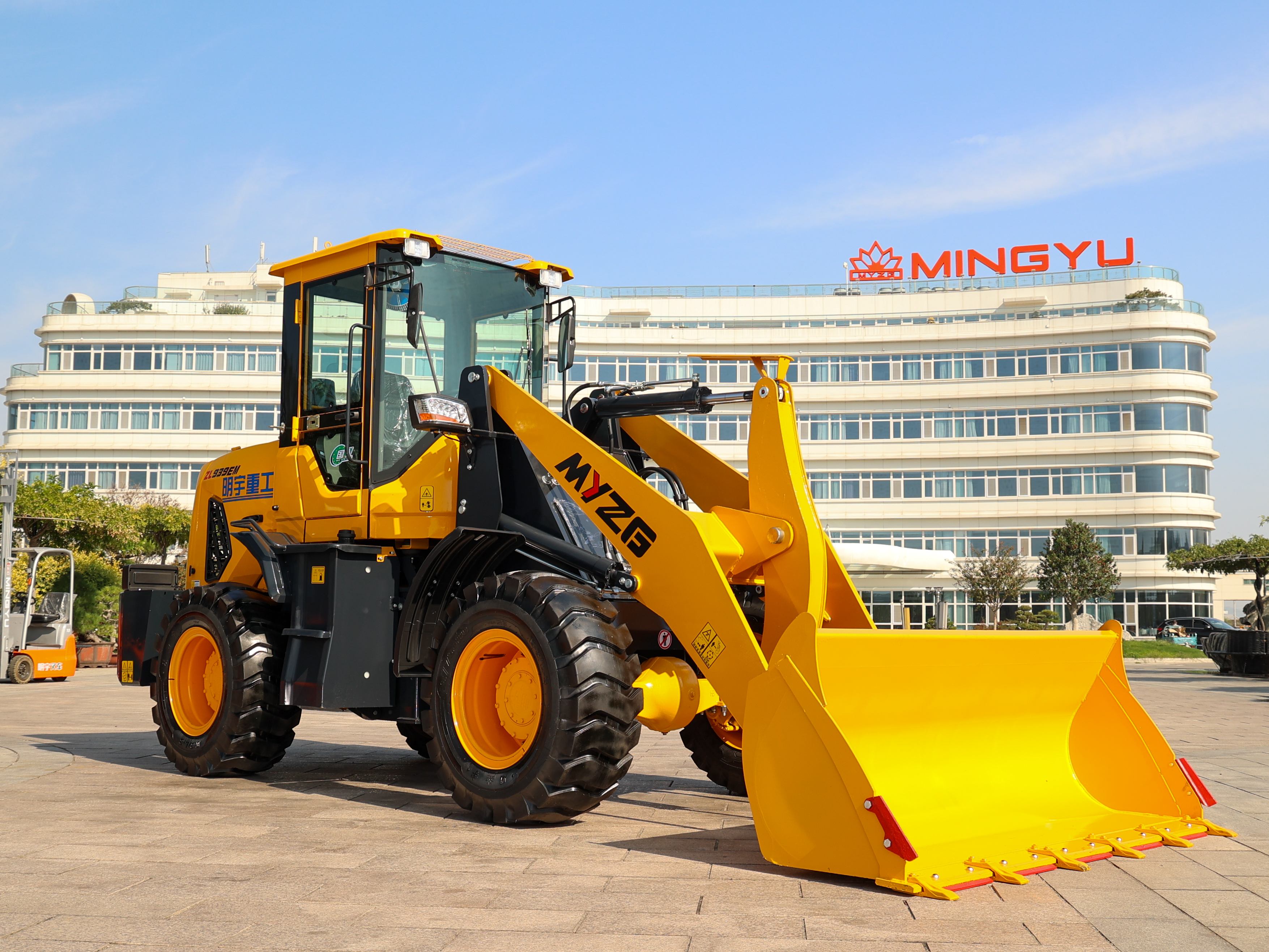

ZL-938E Wheel Loader

ZL-938E  Wheel Loader
  • ZL-938E  Wheel Loader

Short Description:

938E-1800kg-Wheel-Loader...


  • Operating Weight: 5270kg
  • Bucket Capacity: 1.2m³
  • Load Capacity: 1800kg

Product Details

Product Tags


Product Feature


MYZG,938E,unloading height 3.55 meters, low fuel consumption, strong power, low noise, large torque, super shoveling force, the new generation of 938E luxury cab, large space, panoramic skylight, wide vision, high-grade aviation suspension seat, comfortable driving, relieve fatigue, the new generation of 938E wing cover, more convenient maintenance.




Parameter



Rated load capacity 1800kg
Rated bucket capacity 1.2m3
Operating weight 5270kg
Engine model

Quanchai,Sida,Huadong,Yunnei, Xichai,Yuchai, Cummins

(EURO III / EURO V)

Rated power 76kw
Rated speed 2400 r/min
Dimensions 6100*2060*2840mm
Dump height 3560mm
Dump distance 995mm
Min.turning radius 2970mm
Tyre size 16/70-20



Detail


RELIABILITY

· Quanchai,Sida,Huadong,Yunnei, Xichai,Yuchai, Cummins engine .The specific power-matching technology with P, S, E (heavy-load, medium-load, light-load) power control mode, which can be reasonably selected according to the operating conditions.      Not only ensure the machine dynamic performance, but also reduce the energy consumption and improve the productivity
· It is equipped with ZL20 casting reinforced drive axle and large modulus spiral bevel gear and planetary gear.      The main drive and hub reduction use dual seals which have good sealing effect, strong bearing capacity and high reliability.
· The heavy-duty front and rear frames use high-strength steel plates which applies with CAE finite element analysis technology.      The structure is reasonable with strong bearing capacity and high reliability.


HIGH EFFICIENCY

· Optimum design of work device.      Reasonable matching of hydraulic system.      Short total time.      High work efficiency
· The dual high-low speed reinforced transmission has great traction and strong power output High travel speed is suitable for long-distance transfer operations
· The bucket is designed according to large-size wheel loader's concept, which has small insertion resistance and high full-load rate



COMFORT

· New appearance cab has large-size loader style.      The dimension is increased and the operation space is large.      Dual curved front glass gives you wide vision.      No threshold design, equipped with luxurious mechanical suspension seat and comfortable ride

· Three-stage vibration reduction in engine, transmission, and cab.      Low vibration, low noise, and more comfortable Digital stepping instrument panel and CAN data bus communication technology.      High definition, complete functions, good human-machine interaction

· Newly-designed engine hood with beautiful appearance, frame structure, stable and reliable.      Large opening door structure with wide maintenance space
Optional air conditioner and heater, providing drivers with a comfortable operating environment




DIFFERENTIATED PRODUCTS

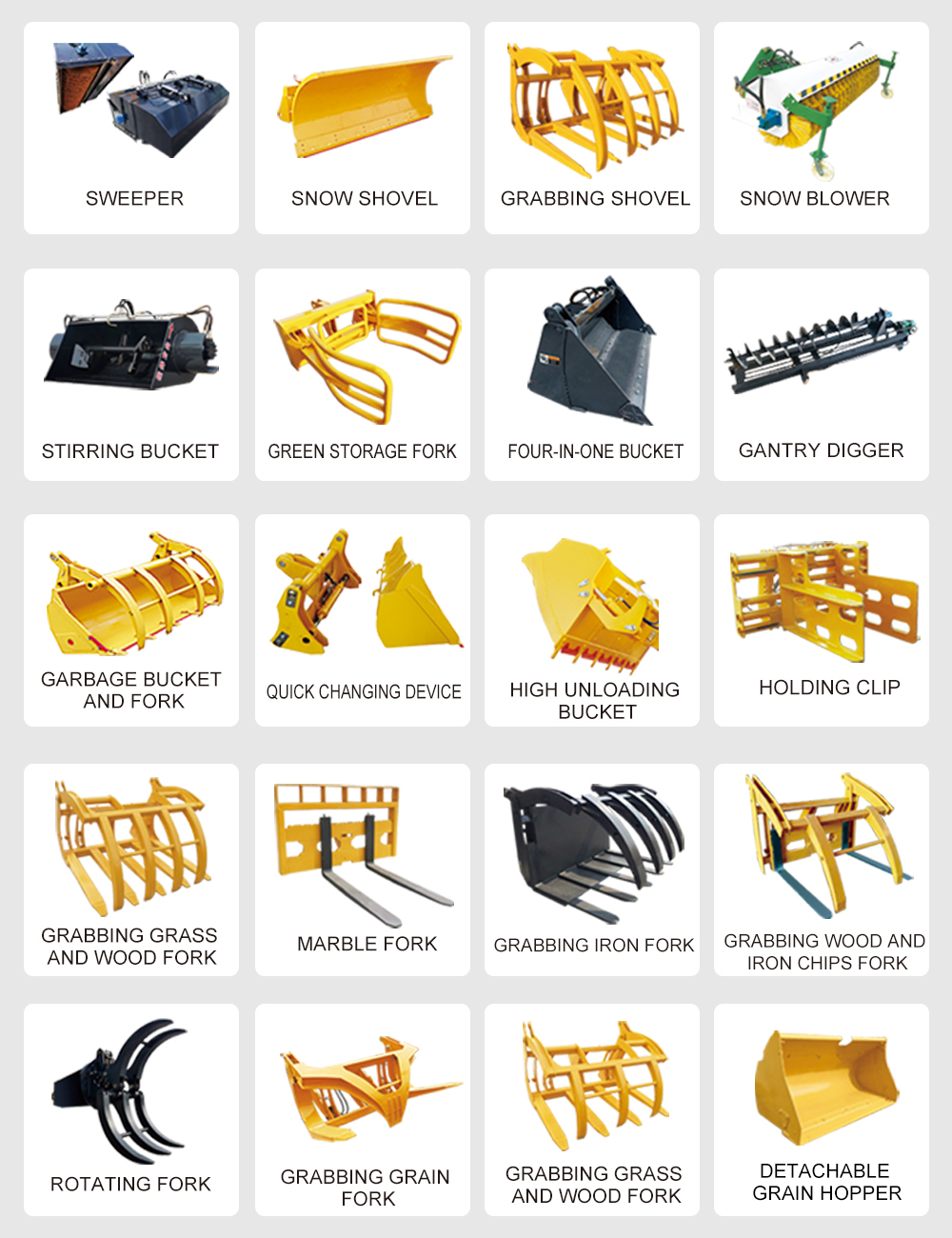

According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.



About us

MYZG machines are exported all over the world,about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get,and the engine can be changed to many brand such as Yunnei, Huadong, Huafeng, Cummins, Changchai, Xinchai, etc.
MYZG have perfect after-sales service,and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.


MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production,  in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
