Description
Product Feature

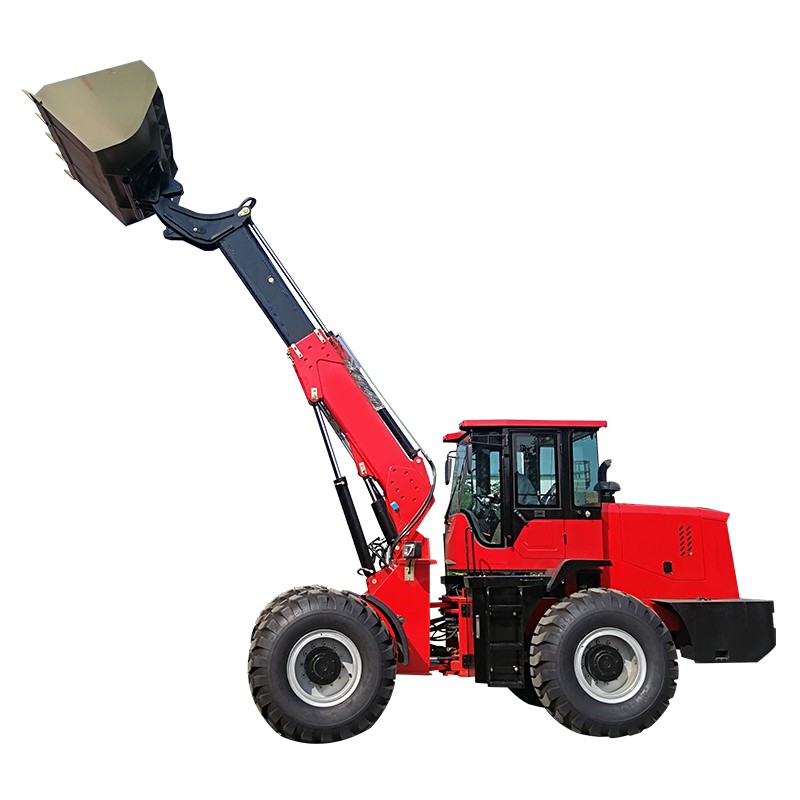

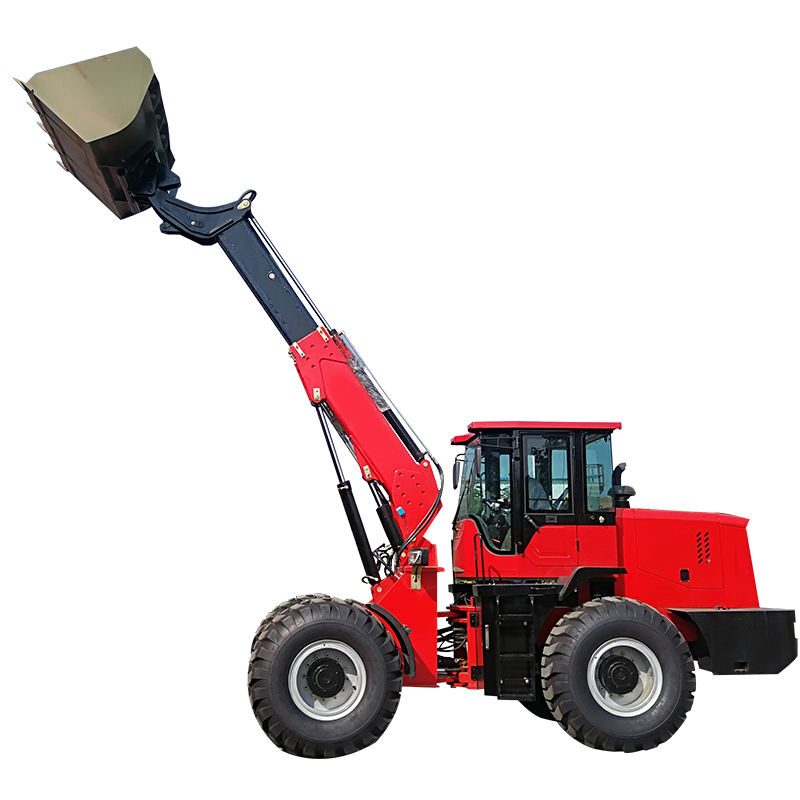

Tl4000 telescopic boom loader is mainly developed for the loader is affected by its inherent structure, there is a general limitation in the scalability of boom or bucket rod, resulting in its loading distance is affected accordingly, and it is difficult to meet the requirements of the construction site. It has a large bearing capacity in small amplitude, and has a longer working distance and a higher working height in the case of allowable load. It can be used on engineering vehicles or other transport vehicles.
Quadruple hydraulic pilot,
Deluxe interior cab,
Large reverse image, LCD screen
Quick change device
Boom damping function
Bucket Angle control function.
Parameter
| rated load capacity | 4000kg |
| rated bucket capacity | 2 m3 |
| operating weight | 10000kg |
| engine model | WEICHAI WP6G175E22 (STAGE Ⅱ) |
| rated pOwer | 129kw |
| dimensions | 7800*2300*3230mm |
| Bucket hinge pin Height | 6000mm |
| wheel base | 2845mm |
| wheeltrack | 1825mm |
| tyre size | 20.5-25 |
| System pressure | 19Mpa |
Low front steps with well positioned grab handles allow for safe and easy ingress and egress.
The low boom pivot and large glass areas provide for 360 degree visibility.
A cast rear counterweight helps prevent impact damage; recessed rear lights are mounted above the counterweight for added protection.
In-cab electric two stage quick hitch isolation protects against accidental release of attachments.
All daily check points on the MYZG TL4000 are easily accessible and daily checks are performed at ground level.
The diesel tank and diesel exhaust fluid (DEF) tank are also easily accessed and filled from ground level. The wide-opening rear hood provides clear access (without tools) to greasing points, service points and the battery.
A cyclonic air cleaner reduces debris build up in the air filter. Any debris that does accumulate is removed by an air intake scavenge system to extend service intervals.
Self-lubricating boom wear pads and dry boom lubrication provides virtually maintenance-free operation.
Detail
About us
MYZG machines are exported all over the world，about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get,and the engine can be changed to many brand such as Yunnei, Huadong, Huafeng, Cummins, Changchai, Xinchai, etc.
MYZG have perfect after-sales service，and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production, in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
