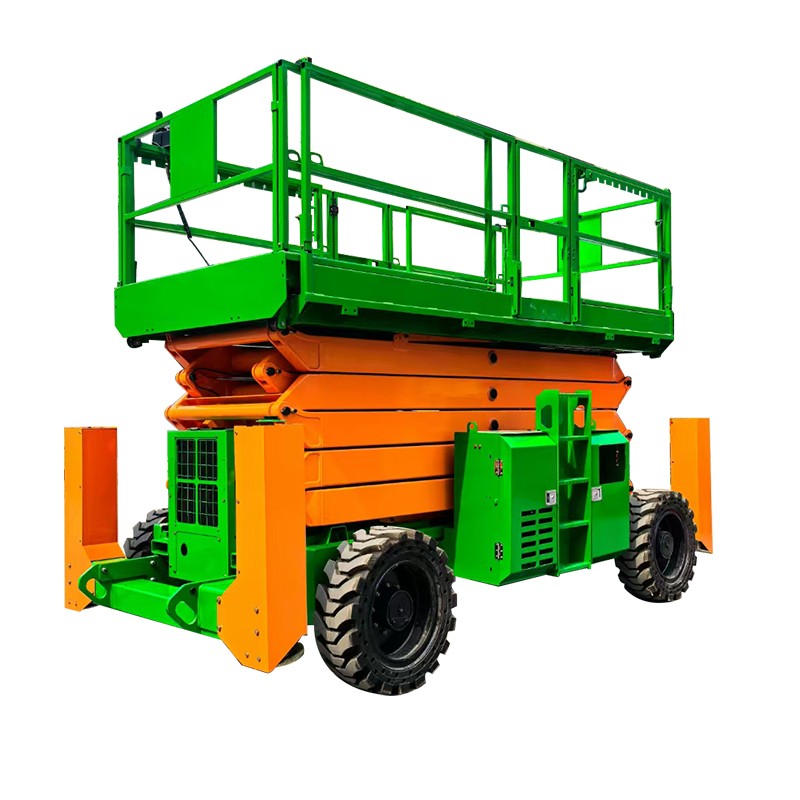

MYZG/SDZG ZG-YY Series Diesel Off-Road Scissor Lift Platform (12m–16m)
MYZG ZG-YY 12m-16m Diesel Rough Terrain Scissor Lift: Extreme Power for Extreme Heights
With a massive 12 to 16-meter working height and the raw torque of a high-performance diesel engine, this 4WD powerhouse ensures your team stays productive even in the deepest mud and steepest gradients.
Diesel-Driven Performance and 4x4 Dominance
The ZG-YY Series is purpose-built to outperform electric models in long-shift, high-intensity outdoor applications.
High-Torque Diesel Engine: Equipped with a world-class diesel engine (options including Cummins or Perkins configurations), providing the necessary horsepower for continuous lifting and high-speed site transit.
True 4WD Capability: Unlike "all-terrain" models that struggle on soft soil, the ZG-YY features a permanent four-wheel-drive system and oscillating axles to maintain tire contact on the most irregular surfaces.
30% Gradeability: Conquer steep ramps and natural hillsides with ease. The diesel power unit ensures consistent torque, allowing the machine to climb a 30% slope even when fully loaded.
All-Terrain Tires: Heavy-duty, deep-tread pneumatic tires come standard, providing the flotation and traction required to move 7+ tons of machinery through construction debris.
Technical Specifications: ZG-YY Diesel Series
| Max Working Height | 12.0m | 15.1m | 18.2m |
| Max Platform Height | 10.0m | 13.1m | 16.2m |
| Overall Width | 2.3m | 2.3m | 2.3m |
| Working Platform Size (L*W) | 3.98×1.83m | 3.98×1.83m | 3.98×1.83m |
| Rated Load Capacity | 1150kg | 680kg | 680kg |
| Extended Platform Rated Load Capacity | 230kg | 230kg | 230kg |
| Max Working Personnel | 7 | 7 | 4 |
| Machine Travel Speed (Stowed) | 6.1km/h | 6.1km/h | 6.1km/h |
| Machine Travel Speed (Lifted) | 1.1km/h | 1.1km/h | 1.1km/h |
| Lifting/Lowering Time | 50/35s | 55/45s | 60/50s |
| Max Gradability | 50% | 50% | 40% |
| Minimum Turning Radius (Outer Wheel) | 5.33m | 5.33m | 5.33m |
| Drive Mode | 4WD, 2WS | 4WD, 2WS | 4WD, 2WS |
| Power Source | Kubota D2.9L, Stage 5, 36KW | Kubota D2.9L, Stage 5, 36KW | Kubota D2.9L, Stage 5, 36KW |
| Total Machine Weight | 6950kg | 7230kg | 8020kg |
Superior Stability and Safety Systems
Working at 16 meters in windy, outdoor conditions requires uncompromising structural integrity.
1. Automatic Hydraulic Outriggers
The ZG-YY features four heavy-duty hydraulic leveling jacks. With a single touch, the machine levels itself on uneven ground, ensuring a perfectly vertical lift and preventing chassis tilt.

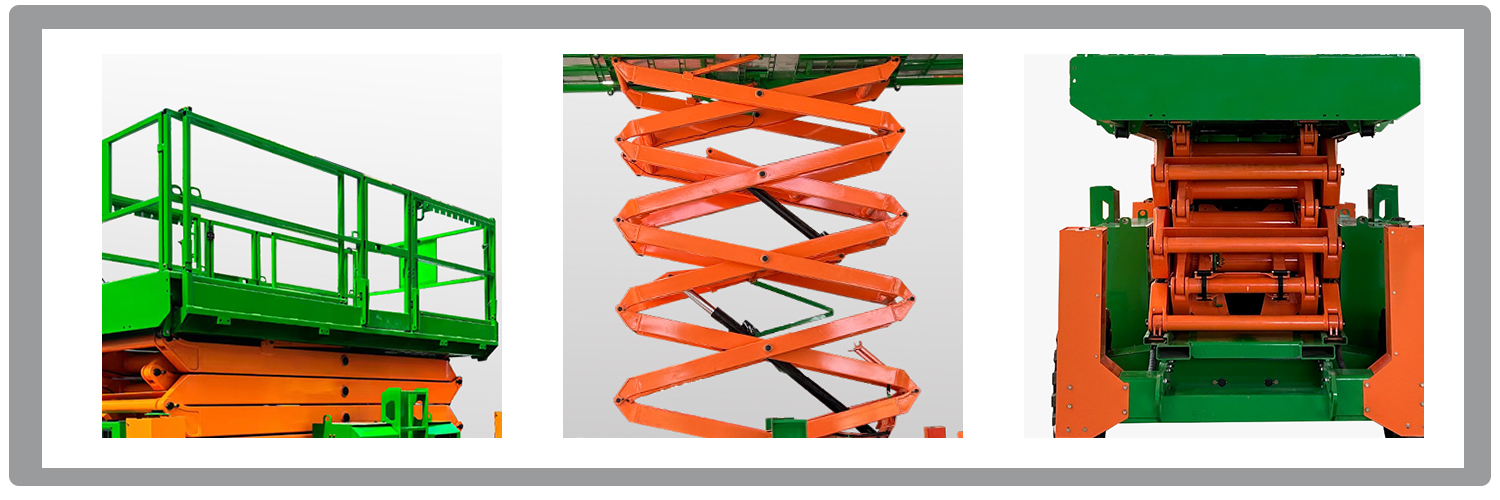

2. Reinforced Manganese Steel Scissor Stack
The scissor arms are constructed from high-tensile manganese steel rectangular tubes (up to 200 x 100 x 6.4 mm). This design provides a rigid, stable platform that minimizes "sway" at full extension, giving operators total confidence while working.
3. Integrated Safety Features
Emergency Descent: A manual hydraulic valve allows for safe platform lowering in the event of an engine stall.
Proportional Controls: Allows for smooth, gradual movement of the platform and drive system, preventing jerky starts and stops.
Overload Sensors: Built-in sensors prevent operation if the platform weight exceeds the safety threshold.
Designed for the Operator
Extra-Large Platform with Extension: The ZG-YY series offers a massive working deck, often including a 1.2m–1.5m slide-out extension, allowing workers to reach over obstacles or accommodate large materials like glass panels and steel beams.
Easy Maintenance Access: The engine is mounted on a swing-out tray, providing 360-degree access for oil changes, filter replacements, and daily checks, significantly reducing downtime.
Dual Control Stations: Full functionality is available from both the ground-level base and the platform-mounted control box.
Applications: Built for the World’s Toughest Sites
Steel Structure Construction: Lifting heavy beams and welding equipment to high-altitude joints.
Exterior Facade & Glazing: Installing massive glass panels on the outside of high-rise commercial buildings.
Mining & Energy: Maintaining heavy machinery and infrastructure in remote, unpaved extraction sites.
Industrial Shipyards: Reliable aerial access for vessel painting and structural repairs.
