ZGLOADER / MYZG ZGCDDM16-80S 3-Way Electric Stacker Forklift
ZGLOADER / MYZG ZGCDDM16-80S 3-Way Electric Stacker Forklift
Application-led VNA storage solution
The ZGCDDM16-80S is built for high-density warehouses that need to place pallets to either side without turning a conventional counterbalanced forklift inside the aisle. Its verified source record identifies a 1600 kg rated load, 8000 mm lift reference and 6500 kg service weight with battery. The three-way carriage is the defining feature, so layout, rack interface and residual capacity must be assessed as one system. view All Products stacker solutions.
Verified source specifications
review the verified ZGCDDM16-80S source product.
MYZG ZGCDDM16-80S 3-Way Electric Stacker: Maximize Your Warehouse Density
Engineered by Shandong Zhuogong Machinery equipment Co.,Ltd — ZGLOADER / MYZG, the ZGCDDM16-80S enables you to shrink your aisle widths to as little as 1600mm, potentially in3creasing your storage capacity by up to 50% compared to traditional reach trucks.
⚡ Precision Electric Power & AC Drive Technology
High-Torque AC Motors: Equipped with a 6.5kW AC drive motor and a powerful 15kW AC lift motor, providing instantaneous response and low maintenance compared to traditional DC systems.
Long-Lasting Energy: Powered by a massive 48V/400Ah lead-acid battery, designed to sustain high-intensity work cycles through full shifts.
Efficient Charging: Comes with a matched 48V/50Ah charger, ensuring your fleet is ready for the next day's operations.
Advanced AC Control: Features precision drive control for micro-movements, essential when navigating tightly packed racks.
Technical Specifications: ZGCDDM16-80S Series
| Model | ZGCDDM16-80S | ||||
| Power Type | Electric | ||||
| Operation Type | Standing Type | ||||
| Load Capacity | Q(kg) | 1600 | |||
| Load Center | C(mm) | 600 | |||
| Total Weight（With Battery) | kg | 6500 | |||
| Wheel Type | PU | ||||
| Driving wheel specifications | ∅×w(mm) | Ф382*142 | |||
| Front wheel specifications | ∅×w(mm) | Ф145*100 | |||
| Balance wheel specifications | ∅×w(mm) | Ф180*76 | |||
| Wheel base (front wheel) | b10(mm) | 1305 | |||
| Wheelbase | y(mm) | 1700 | |||
| Door frame closed height | h1(mm) | 3960 | |||
| Free height gain | h2(mm) | 2985 | |||
| Lift height | h3(mm) | 8000 | |||
| Maximum height of mast during operation | h4(mm) | 9200 | |||
| Overhead guard height | h14(mm) | 2265/2310 | |||
| Length (the fork rotates on the left and right sides) | l2(mm) | 3065 | |||
| Body width | b1(mm) | 1550 | |||
| Anti-collision guard rail width | (mm) | 1600 | |||
| Fork size | s/e/l(mm) | 50/125/1200 | |||
| Fork adjustment size | b5(mm) | 260-650（Customizable） | |||
| Minimum ground clearance (center of wheelbase) | m2(mm) | 50 | |||
| Stacking aisle width | Ast(mm) | 1600（1200*1200tray） | |||
| Channel rail height | （mm） | 120 | |||
| Minimum turning radius | Wa(mm) | 1980 | |||
| Main channel width | mm | 3470+400（1200*1200tray） | |||
| Maximum travel speed, empty/full | km/h | 8/7 | |||
| Ascent speed, no load/full load | m/s | 0.30/0.26 | |||
| Descending speed, no load/full load | m/s | 0.36/0.39 | |||
| Service Brake | Electromagnetic | ||||
| Drive motor power | kw | 6.5AC | |||
| Increase motor power | kw | 15AC | |||
| Battery Type | Lead-acid | ||||
| Battery voltage/nominal capacity | V/Ah | 48/400 | |||
| Charger | V/Ah | 48V/50Ah | |||
| Type of drive control | AC | ||||
VNA Safety & Structural Integrity
Operating at an 8-meter lift height in a 1.6-meter aisle requires world-class stability. The ZGCDDM16-80S is engineered for absolute confidence.

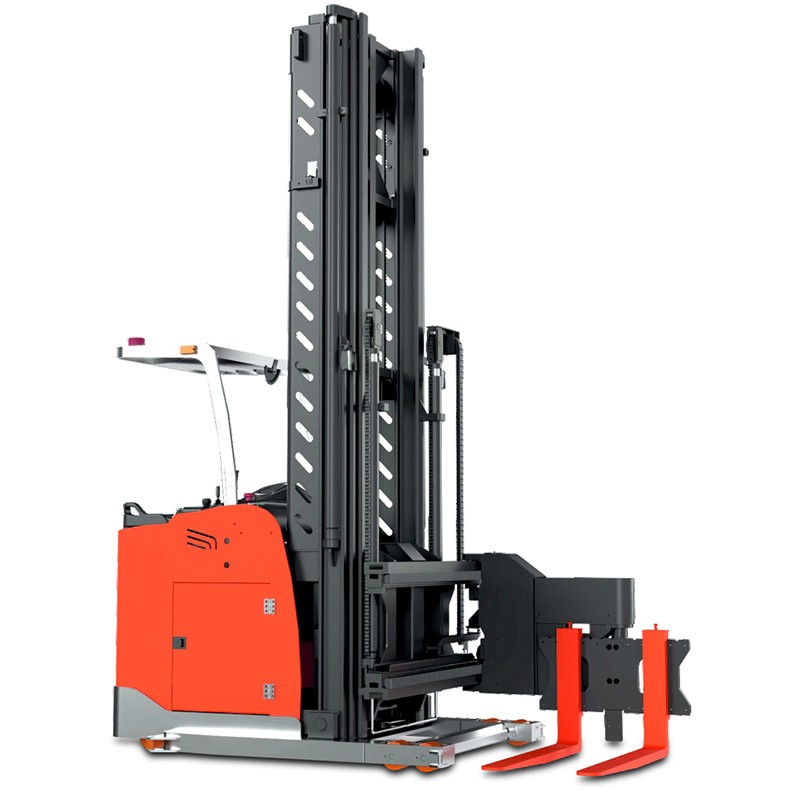

1. 3-Way Rotating Fork System
The core innovation is the fork carriage that rotates 180 degrees. This eliminates the need for the operator to make right-angle turns in the aisle, significantly reducing the risk of rack collisions and speeding up pallet placement cycles.
2. High-Stability Chassis
With a total weight of 6500kg, the machine provides a solid counterweight foundation for high-altitude lifting. The PU (Polyurethane) wheels ensure non-marking, high-grip transit on smooth warehouse floors.
3. Operator Protection & Visibility
Standing Type Operation: Provides the operator with quick ingress/egress and superior visibility for high-speed picking.
Electromagnetic Braking: Ensures instantaneous stopping power, even when the mast is fully extended.
Overhead Guard: A reinforced 2265mm height guard protects the operator from falling debris in high-tier storage environments.
Productivity Features for Modern Hubs
8000mm Reach: Access the highest tiers of your racking system with ease, maximizing the vertical cube of your building.
Customizable Forks: Standard 1200mm forks can be adjusted between 260-650mm to accommodate various pallet sizes and specialized loads.
Minimal Ground Clearance: A low 50mm clearance keeps the center of gravity low for maximum stability during high-lift maneuvers.
Ideal Industry Applications
The MYZG 3-Way Stacker is the preferred choice for:
E-commerce Fulfillment Centers: Maximizing SKU density in urban warehouses.
Cold Storage: Reducing the footprint of refrigerated areas to lower energy costs.
Pharmaceuticals: High-precision handling in sterile, zero-emission environments.

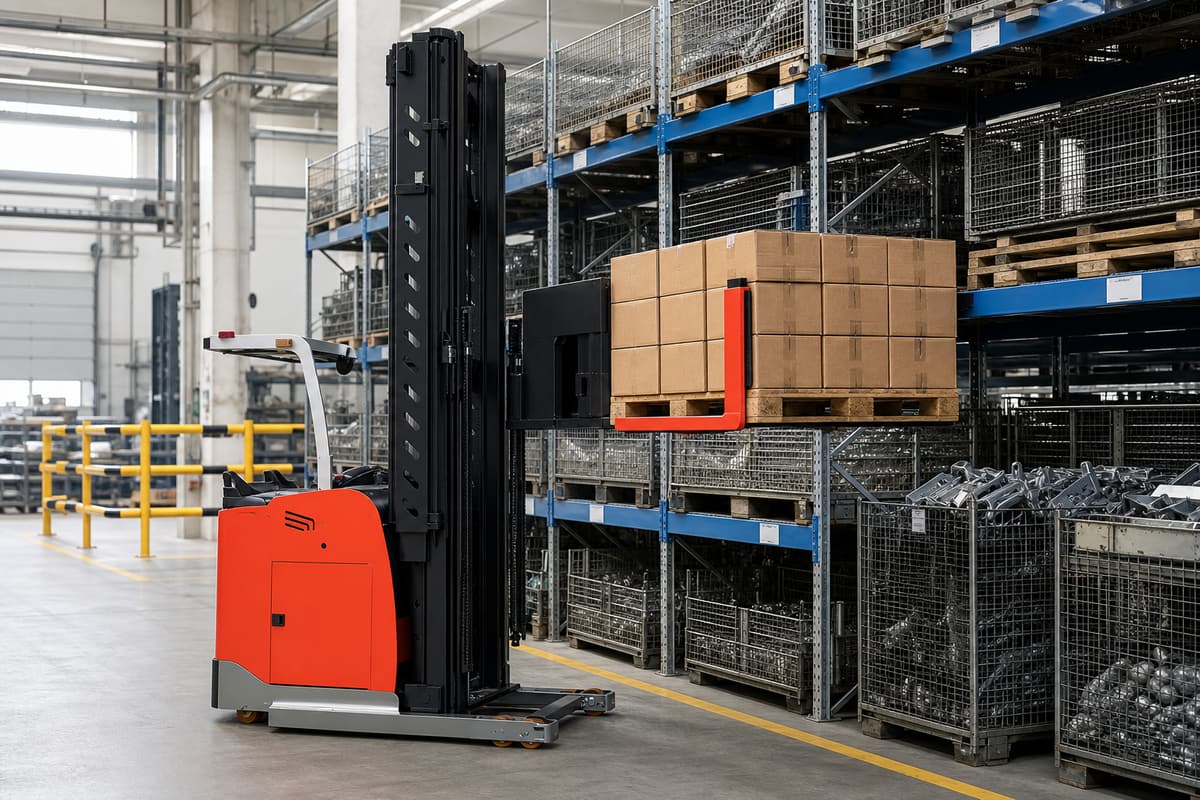

Manufacturing Parts Storage: Efficient management of heavy components in narrow lineside storage.
Buying, ownership and service guidance

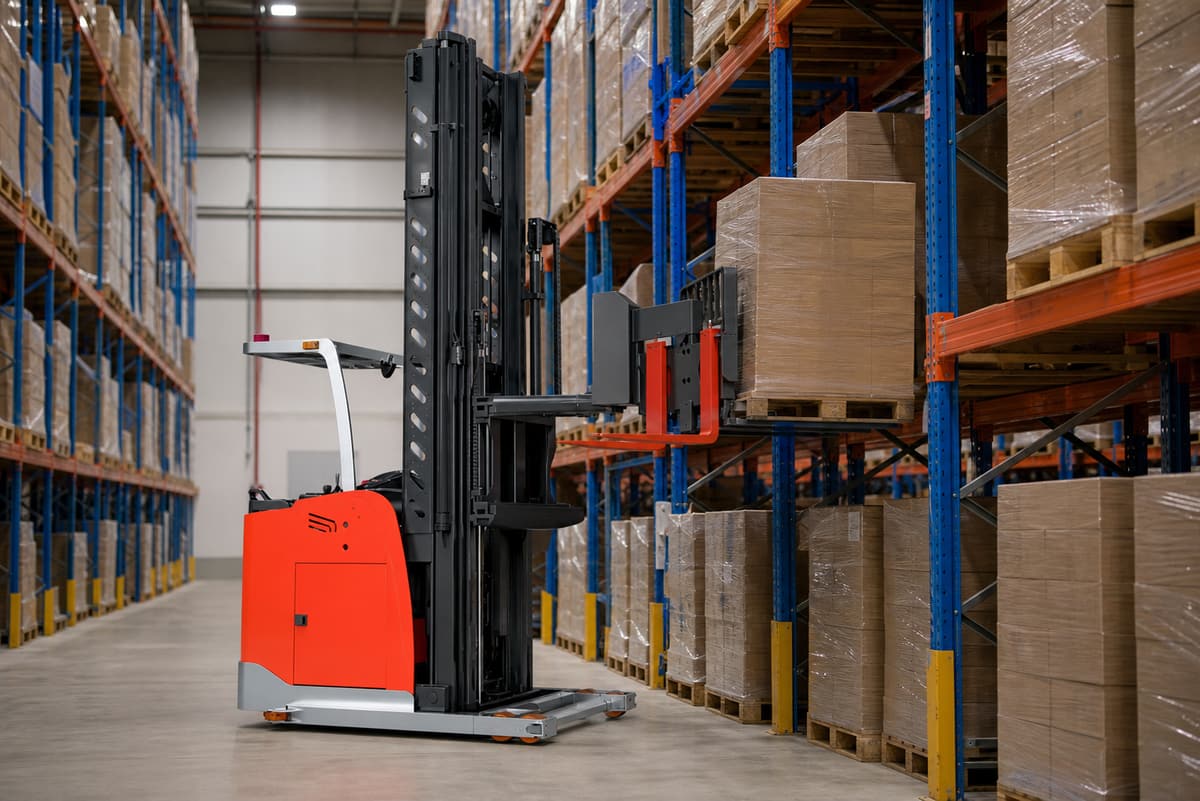

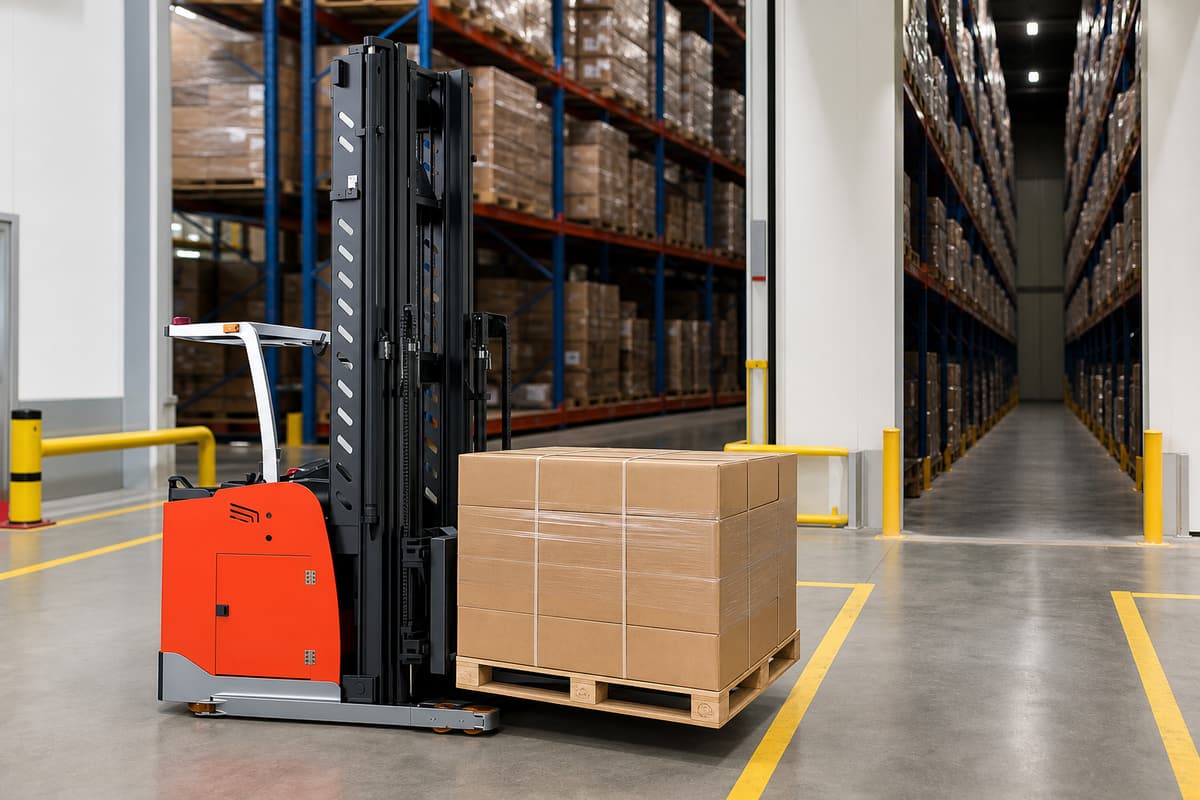

Typical work includes rack replenishment, pallet retrieval, reserve storage and production material supermarkets in properly designed very-narrow-aisle facilities. Record the heaviest pallet, load center, fork-entry direction, target beam, aisle clear width, guide system, transfer aisle, floor flatness, doorway and overhead obstructions. A nominal rating is not a promise at every lift height; request the load chart for the proposed mast and confirm pallet rotation clearance before order.
A comparable quotation should state mast configuration, residual capacity at the required height, three-way carriage geometry, fork dimensions, battery and charger, wheel material, guidance arrangement, documents, packing, spares and warranty scope. Maintenance planning covers daily checks, mast chains, rollers, carriage pivots, forks, wheels, hydraulics, controls, battery care and safe charging. Dealers and rental operators create repeat business through site qualification, documented handover, operator preparation and confirmed wear-parts support. read application and buying content.
Request a job-matched quotation
Send pallet dimensions, maximum mass, target height, aisle and transfer-aisle measurements, rack layout, floor condition, shifts, destination and documentation needs for a job-matched quotation. contact the MYZG export team.
Shandong Zhuogong Machinery equipment Co.,Ltd — ZGLOADER / MYZG
WhatsApp / Skype / WeChat: +86 13176910558 | Email: MYZG@my-forklift.com
