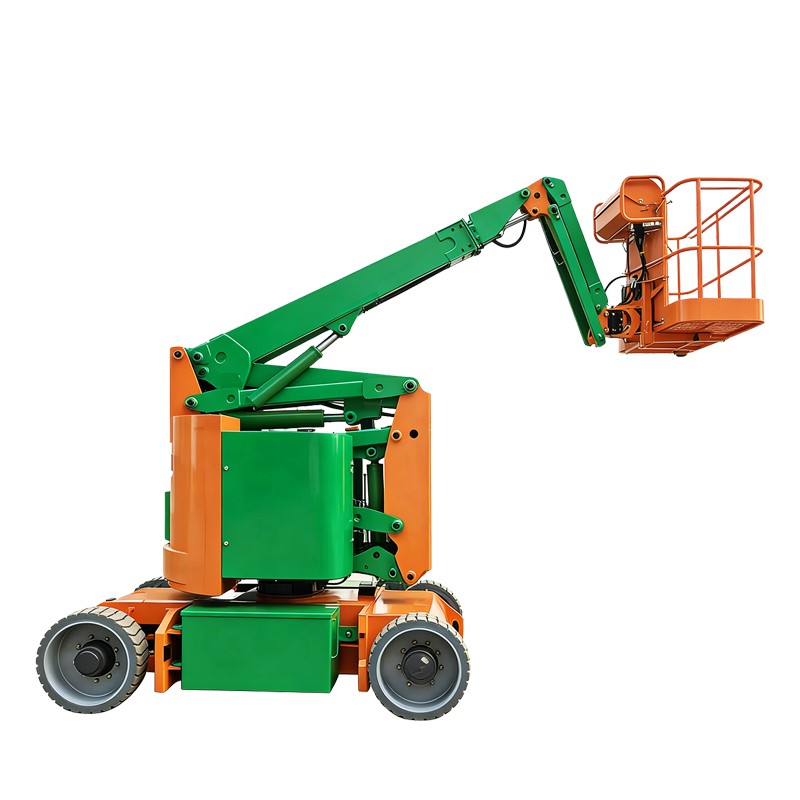

ZGFORKLIFT / MYZG ZG-QB12 Electric Articulating Boom Lift
ZGFORKLIFT / MYZG ZG-QB12 Electric Articulating Boom Lift
The ZGFORKLIFT / MYZG ZG-QB12 electric articulating boom lift is designed for buyers who must reach above, around and beyond fixed obstacles rather than only travel vertically. The published reference table lists a 12.51 m maximum working height, 10.51 m platform height, 7.51 m operating radius, 4.64 m up-and-over height and 227 kg platform capacity. Shandong Zhuogong Machinery equipment Co.,Ltd supplies the model for industrial maintenance, aircraft service, commercial buildings, construction fit-out and rental fleets that require precise electric access. aerial platform range.
Customer need and up-and-over solution
Scissor and vertical-mast lifts work well when the task is directly above the chassis, but production lines, ducts, shelving, aircraft wings and architectural features often block that path. The ZG-QB12 combines articulated boom sections, 180° platform rotation and a non-continuous 365° turntable to position operators beyond obstacles while the base stays in a controlled zone. Electric power reduces noise and produces no engine exhaust at the machine. Site planning must still cover floor capacity, swept envelope, crush hazards, charging, traffic and rescue.
Verified ZG-QB12 reference specifications
complete MYZG product catalog.
| Model | ZG-QB12 |
| Maximum working height | 12.51 m |
| Maximum platform height | 10.51 m |
| Maximum operating radius | 7.51 m |
| Maximum up-and-over height | 4.64 m |
| Platform floor size, source record | 1.4 × 7.8 m; confirm final drawing |
| Overall length / height / width, stowed | 5.78 / 2.05 / 1.46 m |
| Wheelbase / ground clearance | 1.87 / 0.15 m |
| Reference machine weight | 6050 kg |
| Platform capacity | 227 kg |
| Platform / turntable rotation | 180° / 365° non-continuous |
| Raise / lower time | 85–100 / 70–85 s |
| Drive speed, stowed / elevated | 4–5 / 0.8–1.2 km/h |
| Gradeability | 35% |
| Tilt-sensor activation angle | 3° |
| Outside turning radius / drive and steer | 2.98 m / 2×2 |
| Battery / charger | 8×6V 330Ah / 30A |
| Tyres / listed tank capacity | 55×18 / 18 L; confirm function |
Application scenarios
Industrial plants and conveyor lines
Reach service points over machinery, pipework and conveyors while keeping the chassis outside guarded process areas. Map the complete boom and tail-swing envelope and coordinate lockout, access and production shutdowns.
Aircraft hangars and transport maintenance
Approach lighting, fuselage or vehicle components from a planned offset position. Confirm floor loading, clearances, tyre requirements, platform load and protection against contact with valuable surfaces.
Shopping centers, atriums and public facilities
Maintain lighting, glazing interfaces, signs and ceiling equipment with low noise. Plan public exclusion zones, floor protection, clean charging and emergency lowering before work.
Construction fit-out and rental fleets
Support electrical, HVAC, fire-protection and finishing contractors whose work lies over partitions or fixed equipment. Match outreach, up-and-over height, platform load, transport mass and working-slope limits to every hire.
Selection guide: work envelope and site limits
Selection begins with a scaled side view of the obstacle and target. Plot 12.51 m working height, 10.51 m platform height, 7.51 m radius and 4.64 m spanning height, then confirm the required platform position lies inside the approved envelope. Add people, tools and materials within 227 kg. Verify stowed dimensions, 6050 kg reference weight, 2.98 m outside turning radius, floor or ground bearing capacity, door and gate clearance, charging supply, slope and wind limits. The 35% gradeability is a travel figure, not an elevation permission.
Compare mast, scissor and boom platforms
A scissor lift provides a large vertical deck but little horizontal reach. A telescopic mast is compact for narrow aisles and limited jib movement. The articulated ZG-QB12 offers meaningful up-and-over positioning and platform rotation. A straight telescopic boom may deliver longer direct outreach, while a diesel rough-terrain boom may suit unprepared outdoor ground. Buyers should compare the work envelope, surface, emissions, platform capacity, transport and operator training instead of height alone.
Buyer's guide and quotation checklist
undefined application and buying articles.
Safe setup and daily inspection
Before use inspect entry gate, guardrails, platform controls, ground controls, emergency stops and descent, boom pins, cylinders and hoses, turntable, platform levelling, rotation stops, tyres, brakes, alarms, tilt and overload systems, battery and charger. Test functions in a controlled area. Identify overhead and side crush zones and appoint a ground-rescue plan. Never exceed 227 kg, climb rails, add improvised height, use as a crane, or operate beyond approved wind, slope, ground and envelope limits.
Battery, boom, turntable and hydraulic maintenance
Use hour, charge and fault logs. Maintain the specified battery with its matched charger and confirm the final battery architecture in the order documents. Inspect hydraulic oil and filters, hoses, cylinder rods, boom pivots, bushings, wear pads, turntable gear, platform levelling, rotation components, drive motors, brakes, tyres, sensors and wiring. Keep compartments clean and dry. Rental fleets should photograph the boom, platform and controls at dispatch and return and stock critical seals, switches, sensors, contactors and hoses by serial number.
Distributor and rental-fleet opportunity
For distributors, the strongest prospects include factories, aviation service, warehouses, shopping centers, airports, utilities and specialist contractors. Qualify leads with a work-envelope sketch, obstacle dimensions, floor or terrain, travel route, platform load, daily cycles and charging window. Demonstrations should reproduce the customer's actual up-and-over task and cover proportional control, crush-zone awareness, emergency lowering and inspection. Dealer value comes from application engineering, operator handover, rapid parts support and planned service.
Compliance, export service and buyer confidence
Shandong Zhuogong Machinery equipment Co.,Ltd supports configuration confirmation, production communication, export packing, shipping documents, spare parts and after-sales under ZGFORKLIFT / MYZG. CE documentation and applicable aerial-platform requirements depend on the final ZG-QB12 configuration and destination and must be confirmed in writing. EPA engine certification is generally not applicable to a fully electric drive; every requested document must match the final serialised machine. contact the MYZG export team.
Frequently asked questions
Why choose an articulating boom instead of a scissor lift?
Choose it when the work point is above or beyond an obstacle and meaningful horizontal reach is required. A scissor lift is usually better for a large straight-up deck.
What do 7.51 m radius and 4.64 m spanning height mean?
They describe different parts of the reference work envelope. Confirm the exact target using the final manufacturer drawing rather than adding the values together.
Can it work on a 35% slope?
The 35% figure is gradeability for travel under permitted conditions. Elevation is limited by the working-slope specification and active safety systems.
What is needed for a quotation?
Send target height and offset, obstacle size, platform load, site surface, gates and turns, daily cycles, charging supply, destination port and compliance documents.
Request a site-matched quotation
Send site photographs, a side-view sketch with heights and offsets, floor information and transport route. MYZG can prepare a confirmed ZG-QB12 work-envelope proposal, configuration, shipping plan, spare-parts package and dealer or fleet support program.
