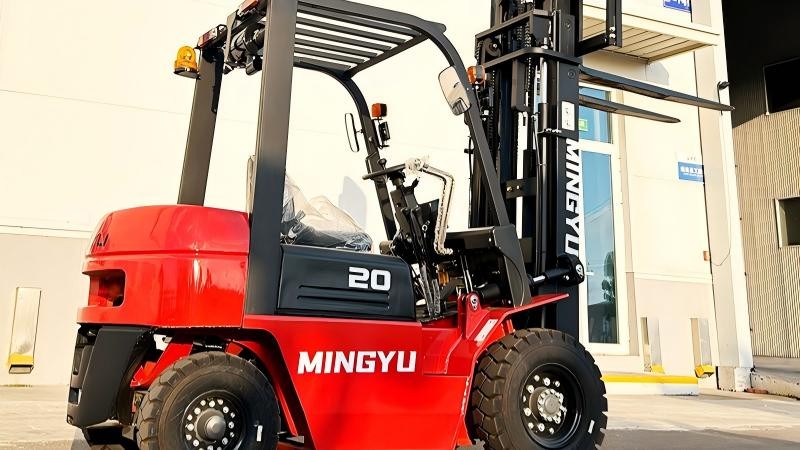

ZGFORKLIFT / MYZG CPC20 2 Ton Diesel Forklift
ZGFORKLIFT / MYZG CPC20 2 Ton Diesel Forklift for Industrial Material Handling
A robust 2000 kg counterbalance forklift with Xinchai 490 diesel power, 19 km/h travel speed, 20% gradeability and a stable 3530 kg chassis for demanding outdoor shifts.
Overview: dependable diesel torque for productive material handling
The ZGFORKLIFT / MYZG CPC20 is a 2 ton industrial diesel forklift manufactured by Shandong Zhuogong Machinery Equipment Co., Ltd. for logistics yards, building-material plants, timber depots, factories, farms and distribution centers. Its straightforward diesel powertrain is designed for continuous work where fast refueling, strong low-speed torque and outdoor durability are operational priorities.
The Xinchai 490 engine supplies the torque required to lift a rated 2000 kg at a 500 mm load center. A 3530 kg unladen mass, 1600 mm wheelbase, 130 mm frame clearance and pneumatic 7.00-12-12PR front and 6.00-9-10PR rear tyres give the CPC20 a stable base for controlled operation on paved yards and prepared industrial surfaces.
MYZG CPC20 factory technical specifications
The table presents the mechanical, dimensional and performance data for this 2000 kg diesel counterbalance forklift. Final mast, fork, tyre, cab, engine-emission and attachment selections should be confirmed for the destination market and actual load.
| Model | CPC20 (2.0T-D series) |
| Power type | Internal-combustion diesel engine |
| Engine model | Xinchai 490 engine |
| Rated capacity | 2000 kg |
| Load center | 500 mm |
| Operator position | Seated operator |
| Overall length with/without forks | 3600 / 2530 mm |
| Overall width | 1160 mm |
| Lowered mast/overhead guard height | 2060 / 2160 mm |
| Maximum fork height with load backrest | 4220 mm |
| Standard lift | 3000 mm |
| Minimum turning radius | 2190 mm |
| Mast tilt forward/backward | 6° / 12° |
| Lifting speed unloaded/loaded | 500 / 500 mm/s |
| Travel speed unloaded/loaded | 19 / 19 km/h |
| Maximum gradeability | 20% |
| Unladen net weight | 3530 kg |
| Drive/steering wheels | 2 / 2 |
| Front/rear tyre type | Pneumatic / pneumatic |
| Front/rear tyre size | 7.00-12-12PR / 6.00-9-10PR |
| Service/parking brake | Foot / hand |
| Wheelbase/frame ground clearance | 1600 / 130 mm |
| Front/rear overhang | 450 mm / not specified |
| Front/rear wheel track | 970 / 970 mm |
Engineering design and principal advantages
1. Xinchai 490 diesel engine and responsive hydraulic performance
The four-cylinder 2.54 L Xinchai 490 engine is rated at 40 kW with 156 N·m torque at 1700–1900 rpm. The hydraulic system provides a documented lifting speed of 500 mm/s, while the travel system reaches 19 km/h. These values support quick pallet cycles, truck loading and material transfer during long outdoor shifts.
2. Compact 2190 mm turning radius with stable 3530 kg weight
A 1160 mm overall width, 2530 mm length without forks and 2190 mm turning radius help the CPC20 maneuver in loading bays and production lanes. The 3530 kg chassis, 970 mm front and rear tracks and 1600 mm wheelbase provide a stable counterbalance foundation when the approved load chart is followed.
3. Industrial pneumatic tyres and practical ground clearance
The 7.00-12-12PR front and 6.00-9-10PR rear tyres provide traction and cushioning for this outdoor diesel forklift. Frame clearance is 130 mm and mast clearance is 120 mm, helping the machine cross normal yard joints and small surface irregularities while the operator maintains a safe controlled speed.
4. 3000 mm standard lift and operator-focused mast design
The standard lift is 3000 mm, with a 6° forward and 12° backward mast tilt. The overhead guard height is 2160 mm, and the fork reaches 4220 mm with the load backrest in the documented configuration. A wide-view mast, accessible controls and service points support safe, efficient daily operation.
Recommended application environments
The CPC20 combines compact dimensions, diesel endurance and 2000 kg capacity for medium-duty outdoor and mixed industrial handling when ventilation, floor strength, traffic control and load stability have been assessed.
Construction materials and stone yards
Move brick pallets, bagged cement, formwork, tools, tiles and prepared stone products between storage areas, production lines and transport vehicles.
Timber, agriculture and manufacturing
Handle lumber packs, farm supplies, machinery parts, steel components and palletized raw materials on prepared surfaces using suitable forks or approved attachments.
Warehouses, logistics yards and truck loading
Transfer export cargo, containers, pallets and packaged products where a diesel truck can be refueled quickly and operated in properly ventilated or outdoor work zones.
Frequently asked questions
Which engine is used in the CPC20?
The referenced configuration uses a Xinchai 490 four-cylinder diesel engine rated at 40 kW. Other compliant engine options may be discussed according to destination-market requirements.
What is the turning radius of this 2 ton diesel forklift?
The documented minimum turning radius is 2190 mm. Buyers should add clearance for the actual pallet, attachment, fork length, rack protection and operator skill.
Can the CPC20 be supplied with hydraulic attachments?
Yes. MYZG can discuss side shifters, fork positioners, clamps, rotators, duplex or triplex masts and cab options. Residual capacity must be recalculated for the selected mast, load center and attachment.
Configure a ZGFORKLIFT / MYZG CPC20 for your site
Send the load weight and dimensions, lift height, aisle width, operating surface, ramp gradient, working hours, engine-emission requirement, destination port and attachment needs. The factory team can prepare a configuration, quotation, packing plan and shipping proposal.
