Product Feature

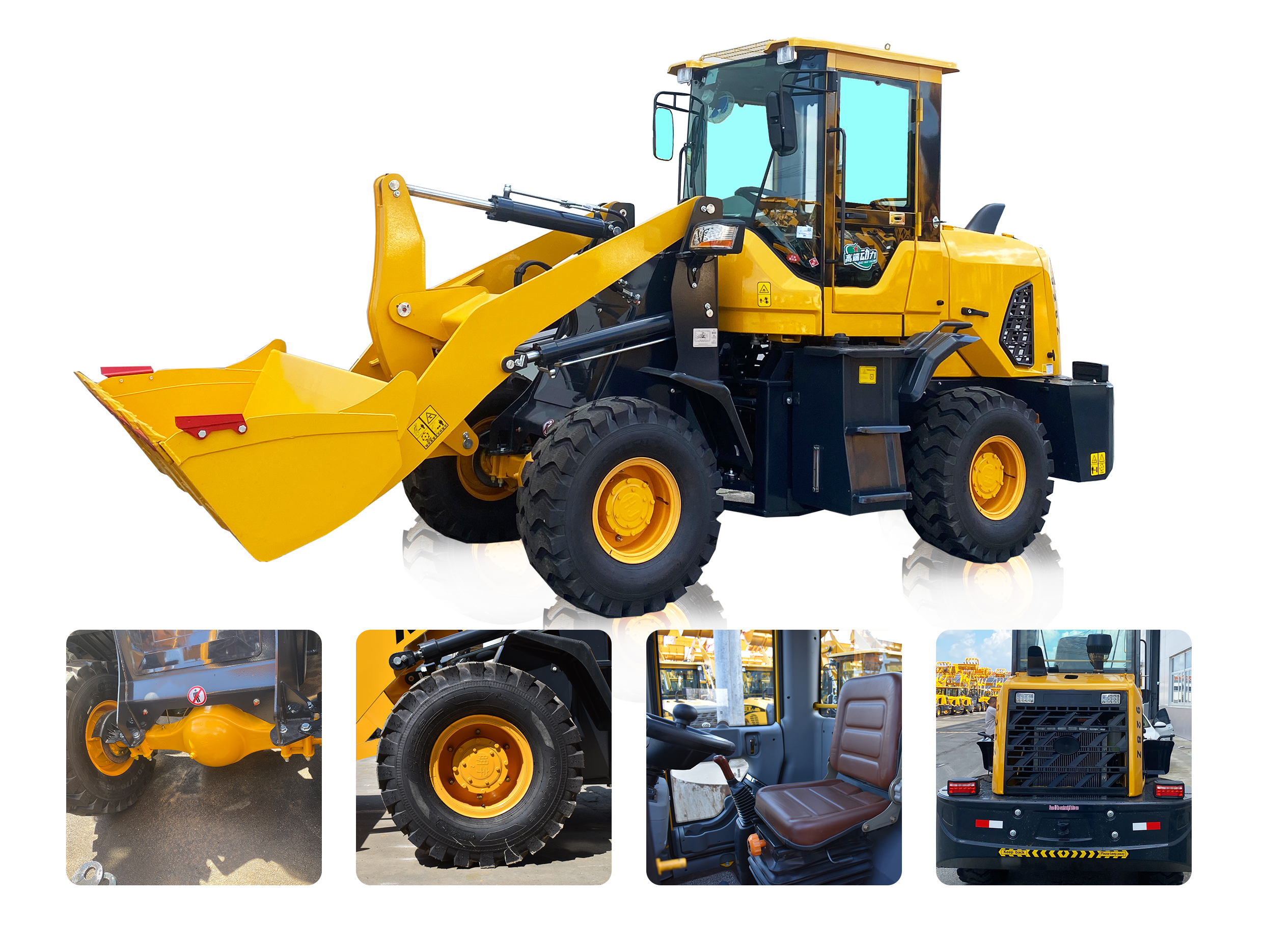

Mingyu 928B, with patented gold steel teeth, One is equal to twenty , with patented gold steel shaft, five years of wear, PE fuel tank, Clean anti-corrosion rust.

·Traction force ≥ 36KN, rising force 25KN, outstanding capability.

·Turning radius 2950mm, strong adaptability

· Extra long wheelbase, more heavy duty

Parameter

rated load capacity	1600kg
rated bucket capacity	0.85m³
operating weight	4150kg
engine model	QUANCHAI 4B2-52M22
rated pOwer	38kw
rated speed	2400 r/min
dimensions	5540*1940*2720mm
dump height	3200mm
dump distance	980mm
min.turning radius	2750mm
wheel base	2240mm
wheeltrack	1492mm
tyre size	20.5/70-16

RELIABILITY

· It is equipped with ZL928B casting reinforced drive axle and large modulus spiral bevel gear and planetary gear.  The main drive and hub reduction use dual seals which have good sealing effect, strong bearing capacity and high reliability.

HIGH EFFICIENCY

· The dual high-low speed reinforced transmission has great traction and strong power output High travel speed is suitable for long-distance transfer operations

COMFORT

· Three-stage vibration reduction in engine, transmission, and cab.  Low vibration, low noise, and more comfortable Digital stepping instrument panel and CAN data bus communication technology.  High definition, complete functions, good human-machine interaction

Detail

DIFFERENTIATED PRODUCTS

According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.

About us

MYZG machines are exported all over the world，about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get,and the engine can be changed to many brand such as Quanchai,Yunnei, Huadong, Deutz,Huafeng,Huangdong,Cummins, Changchai, Xinchai,Yanmar, etc.
MYZG have perfect after-sales service，and provide one year warranty .Our price is more competitive and the good service well received by customers.

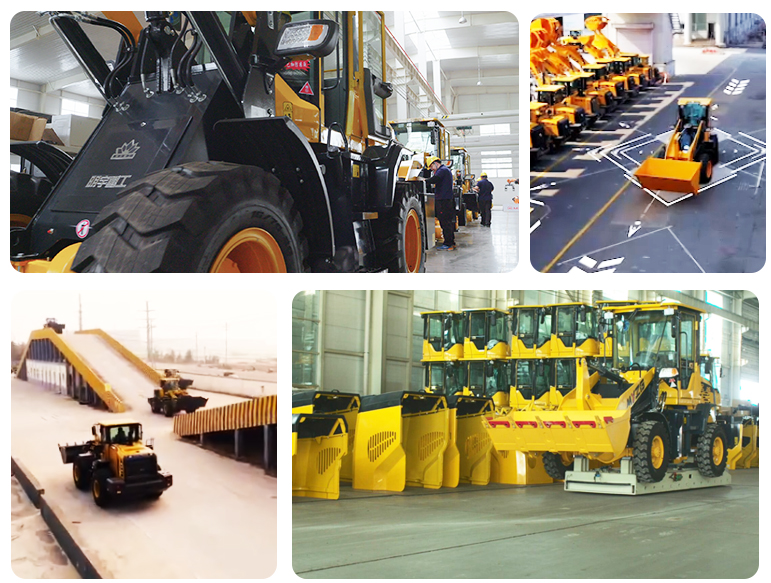

Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.

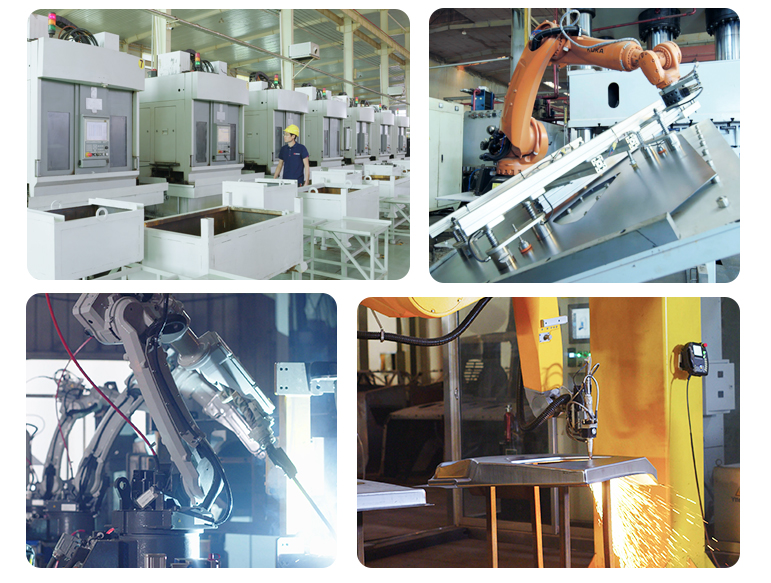

MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production,  in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
