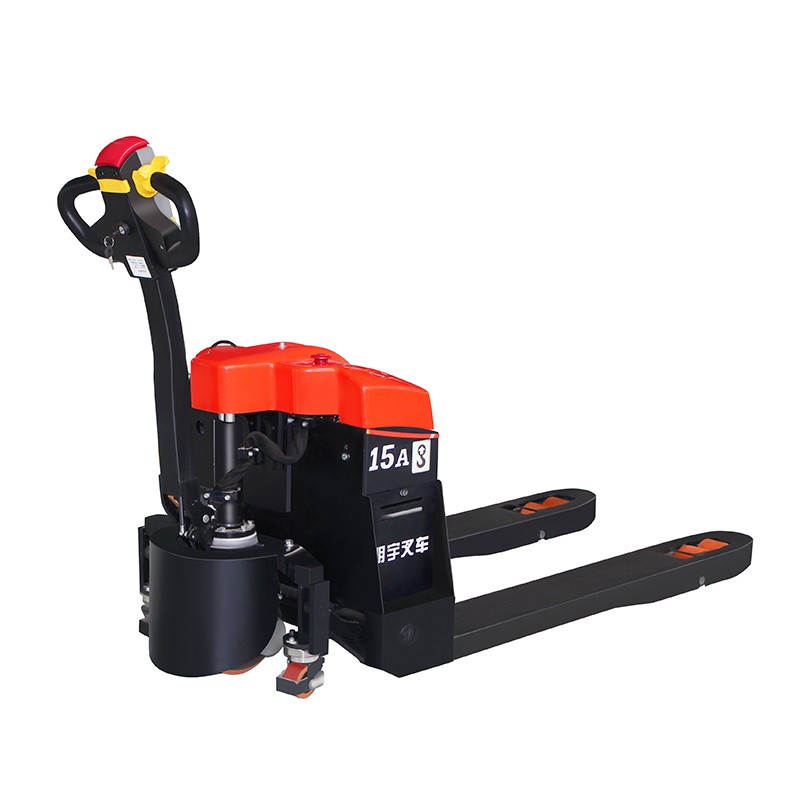

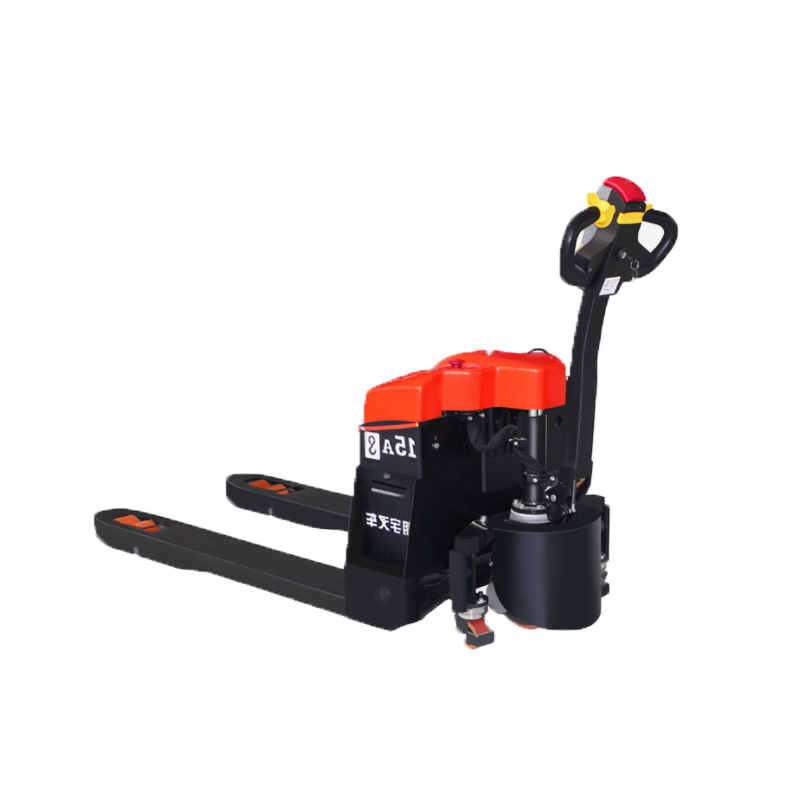

Electric Pallet Truck
THE WIRE HARNESS ARE ARRANGED INDEPENDENTLY
PRODUCT FEATURE
The A series pallet truck mini range Ⅱ has been engineered to be both powerful and flexible to meet the requirements of many demanding applications. Whether it’s supermarket work, delivery service, stock replenishment or heavy manufacturing, the A series pallet truck mini range Ⅱ has the strength and durability to minimise your total cost of ownership.
Rema tiller head
Auxillary wheels are equipped to have better stability
Modern outline design
THE MAIN PARAMETER
| Standing steer type | |||
| Model | CBD15 | max. lifting height | 200MM |
| Power source | Electric | fork lowing height | 80MM |
| Load capacity | 1500KG | fork length | 1160MM |
| Outline dimension | 2300x690x1180mm | single fork width | 165MM |
| Steering type | Mechanical | fork outside width | 680MM |
| Battery type | Lead-acid maintenance-free battery | min. ground clearance | 30MM |
| Operation type | Mechanical | turning radius | 1520MM |
| Weight unladen | 303KG | driving speed | 4/4.5km/h |
| Load capacity | 1500KG | lifting speed | 50/60km/h |
| Load centre distance | 600MM | declining speed | 42/38km/h |
| wheel base | 1415MM | max. grade ability | 6/15% |
| drive wheel size | 210*70MM | drive motor power | 0.75 |
| bearing wheel size | 80*60MM | lifting motor power | 0.8 |
| balance wheel size | 115*55MM | battery voltage | 2*12*80v/Ah |
STANDARD FEATURES
Reliability
5-pivot design provide longer working life. Imported waterproof connectors, all wires and cables are protected, greatly improve the reliability of the electric system.
Appearance
A series pallet truck mini range Ⅱ applied professional industrial design, stream lines, and compact, and fully ergonomic consideration, in line with the latest design trends. Applied steel stamping and injection molding processes, which is robust, durable, and also environmental compliance.
Comfort
Simple and beautiful tiller made by REMA designed to make the operator feel comfortable, all the operation can be completed by one hand. Optimized designing structure to offer a good visibility and easy entrance of the pallet.
Maintenance
Built-in charger and maintenance free gel battery, you don’t need to worry about them. Integrated battery indicator, hour meter and self-diagnostic instrument.
Safety
Three braking system of regenerative braking, reverse current braking, parking brake, insures the safe operation. Anti-slope on gradient can keep the safety.
