ZGFORKLIFT / MYZG CPCY50 5 Ton Rear-Steering Rough Terrain Forklift

A site-focused 5000 kg material-handling solution for construction yards, timber operations, mines, farms and infrastructure projects where traction, rear-steering maneuverability and fast diesel refueling matter.

A rough-terrain solution built around the job, not only the specification sheet

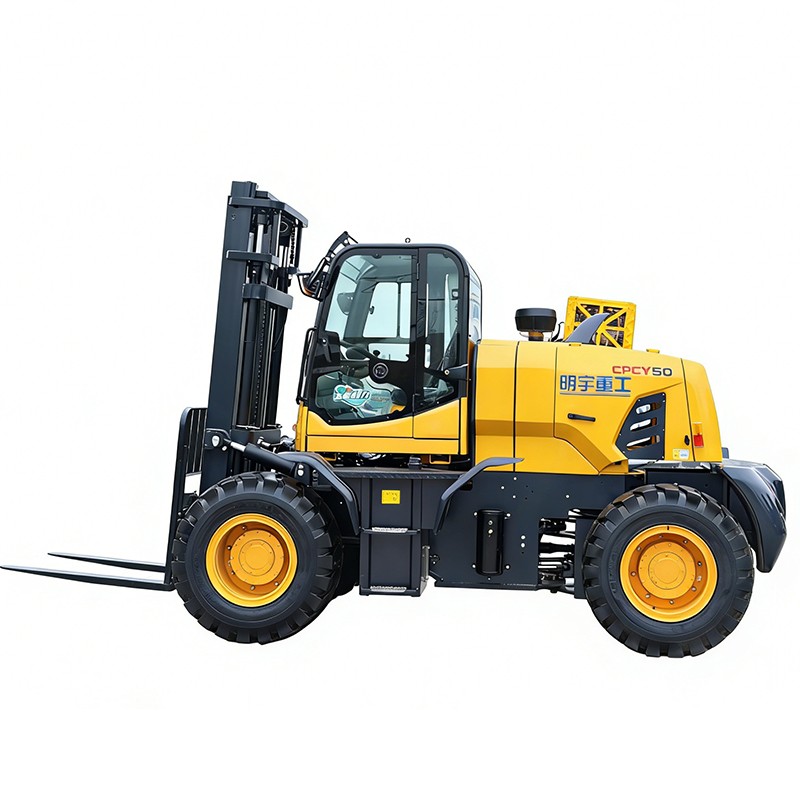

The ZGFORKLIFT / MYZG CPCY50 is a rear-steering rough terrain forklift from Shandong Zhuogong Machinery Equipment Co., Ltd. It is designed for buyers who must move heavy pallets, steel, timber, precast concrete, pipe and equipment across gravel, mud and uneven prepared ground. Rear-wheel steering helps a five-ton machine position loads in congested yards without sacrificing the stable 7130 kg platform.

The documented configuration combines a 5000 kg rated capacity at a 610 mm load center, Quanchai 4C9-105M22 engine rated at 81 kW, 4000 mm standard lift, 1220 mm forks, 16/70-20 tyres, 2590 mm wheelbase and 3480 mm minimum turning radius. Final residual capacity, mast, emission package and attachments must be matched to the actual load and destination rules.

CPCY50 factory data for equipment selection

Use these figures to shortlist the machine and compare it with other MYZG material-handling products. A final quotation should confirm fork length, mast type, tyre pattern, cab, hydraulics and transport dimensions.

How the CPCY50 solves common site problems

1. Rear steering for positioning in crowded outdoor yards

Rear-wheel steering reduces the space needed to align forks with pallets, trucks or timber packs. The documented 3480 mm turning radius helps operators work around stored materials and temporary site routes, while route planning and trained spotters remain essential.

2. High-torque diesel power for repeated five-ton cycles

The Quanchai 4C9-105M22 engine is rated at 81 kW and supports sustained travel and hydraulic demand. Maximum travel speed is documented at 28 km/h; actual speed must be reduced for loose ground, slopes, visibility, load height and site traffic.

3. 16/70-20 tyres for traction and flotation

Large pneumatic tyres spread load and improve grip compared with a standard warehouse truck, making this diesel rough-terrain forklift suitable for prepared gravel, compacted soil and industrial yards. It is not a substitute for a site assessment: bearing strength, drainage, ruts and slope angles must be checked before operation.

4. Four-metre lift for trucks, steel, timber and site storage

A 4000 mm standard lift expands loading and stacking options. Buyers should provide the heaviest load, load-center distance, maximum lift height and attachment weight so MYZG can calculate residual capacity instead of selecting a mast by height alone.

Application scenarios and recommended configuration logic

Choose the CPCY50 when a conventional warehouse forklift lacks traction or clearance, but the job still requires precise fork handling rather than a loader bucket.

Construction and infrastructure

Move brick, cement, structural steel, pipes, formwork and precast components between storage points and trucks. Select fork length, tyre tread and cab protection around the heaviest, longest and least stable load.

Timber, agriculture and mining support

Handle lumber packs, farm inputs, machinery components and mine consumables on outdoor routes. Clamps, fork positioners or longer forks can improve productivity, but attachment weight changes residual capacity.

Ports, factories and dealer rental fleets

Use one configurable platform for yard logistics, truck loading and project rental. Dealers should stock service filters, seals, hoses and high-wear tyre items according to local duty cycles.

Practical buying guide: configure the machine around the load

rear-steering rough terrain forklift — Compare the CPCY50 with the rear-steering category and the full product range. Do not select only by nominal tonnage: attachment weight, raised height, load center, ground bearing pressure, tyre choice and transport limits can change the correct specification. MYZG material-handling products

How should the CPCY50 be maintained?

Create daily checks for tyres, forks, mast chains, hydraulic leaks, brakes, steering play, coolant and engine oil. Clean radiators in dusty work, follow filter intervals and record faults early. Service frequency must follow the manual and actual operating severity.

Dealer and local-market opportunity

For distributors and rental companies, rear-steering rough-terrain forklifts create a focused offer for construction, timber, agriculture and mining customers. Build a local package with demonstrations, operator training, common spare parts, preventive service and fast technical feedback, supported by application-led content from the MYZG news center. Dealer and local-market opportunity

Compliance, export service and buyer confidence

Shandong Zhuogong Machinery Equipment Co., Ltd. supplies ZGFORKLIFT / MYZG equipment for international projects. CE, EPA, engine-emission and other documents depend on the final configuration and destination market and must be confirmed before ordering. The export team can support configuration review, loading plans, documentation, spare-parts recommendations and after-sales communication.

Buyer questions before requesting a quotation

What information is needed to select a rear-steering rough terrain forklift?

Send load weight and dimensions, load center, lift height, aisle or turning space, surface photos, slope, daily hours, climate, attachment needs and destination country. These details determine safe configuration and freight planning.

Why choose this 5 ton rear-steering forklift instead of a standard diesel forklift?

Choose it when uneven ground and outdoor maneuverability are recurring constraints. Choose a standard counterbalance forklift for smoother paved yards where compact dimensions, lower purchase cost and conventional tyres are sufficient.

How should the CPCY50 be maintained?

Create daily checks for tyres, forks, mast chains, hydraulic leaks, brakes, steering play, coolant and engine oil. Clean radiators in dusty work, follow filter intervals and record faults early. Service frequency must follow the manual and actual operating severity.

Request a configuration-based quotation

Send site photos, load information, lift height, tyre preference, cab needs, destination port and required compliance documents. MYZG will prepare a matched configuration rather than a generic price.
