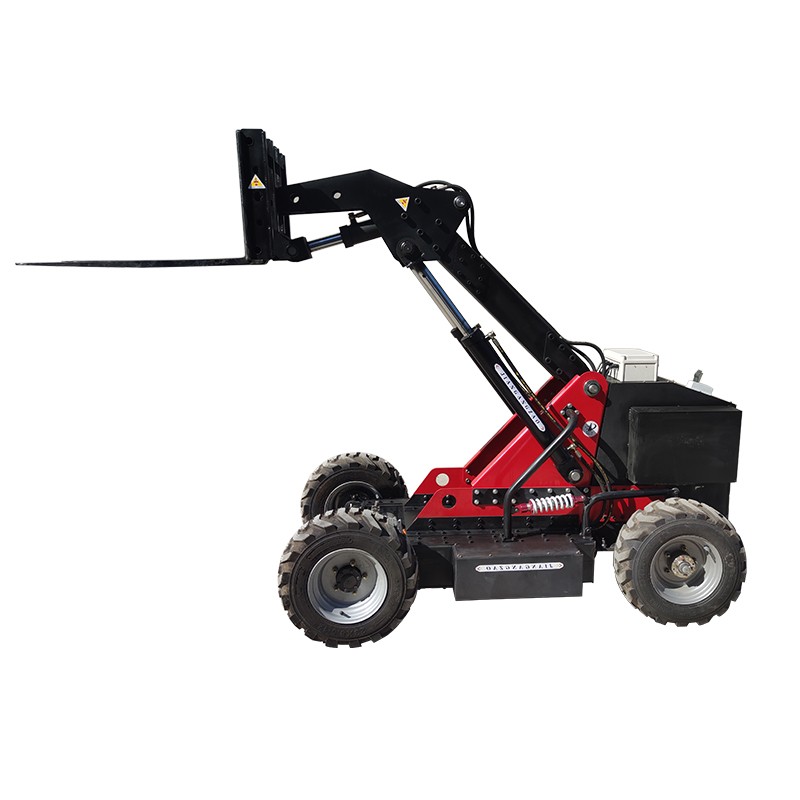

1500kg remote control forklift
Product Feature
Tank forklift 1500 is a new forklift, easy to operate and labor saving, more convenient for after-sales maintenance, modular structure, easy maintenance, high quality hydraulic rod, stable weighing, with anti-decay, built-in check valve, lack of power can automatically hold the built-in limit switch, lifting safety factor greatly improved, large capacity lead-acid battery can be replaced into lithium battery, products exported to Europe, the United States and South Korea.
·Increase and thicken tires to meet the needs of outdoor multi-scene use
·Modular parts forging fork, changing parts = changing equipment, a multi-purpose machine
·No carbin, no driving experience required
At the same time to obtain a smaller turning radius, to meet using in narrow space.
Parameter
| Rated capacity | 1500kg |
| Wheel base | 1550mm |
| Weight | 1850kg |
| Wheel material rubber | inflatable |
| Front tyre size | Ф600*200 |
| Rear tyre size | Ф600*200 |
| Front wheel tread | 830mm |
| Rear wheel tread | 700mm |
| Max. lifting height | 1950mm |
| Overall size(length width height) | 3200*1200*1400mm |
| Fork size | 90*9*54*3mm |
| Fork outside width | 200-600mm |
| Wheelbase center ground clearance | 1：60mm |
| Turning radius | 1700mm |
| Lifting speed (full load/without load) | 135/140mm/s |
| Descending speed (full load/without load) | 155/150mm/s |
| Climbing ability (full load/without load) | 9/15% |
| Service brake | electromagnetic brake |
| Lifting motor Power | 1.5kw |
| Driving Motor Power | 2.2kw |
| Battery voltage/rated capacity | 48/32 V/AH |
| Driver's ear noise level | <70dB |
| Ride high | 175-200㎜ |
