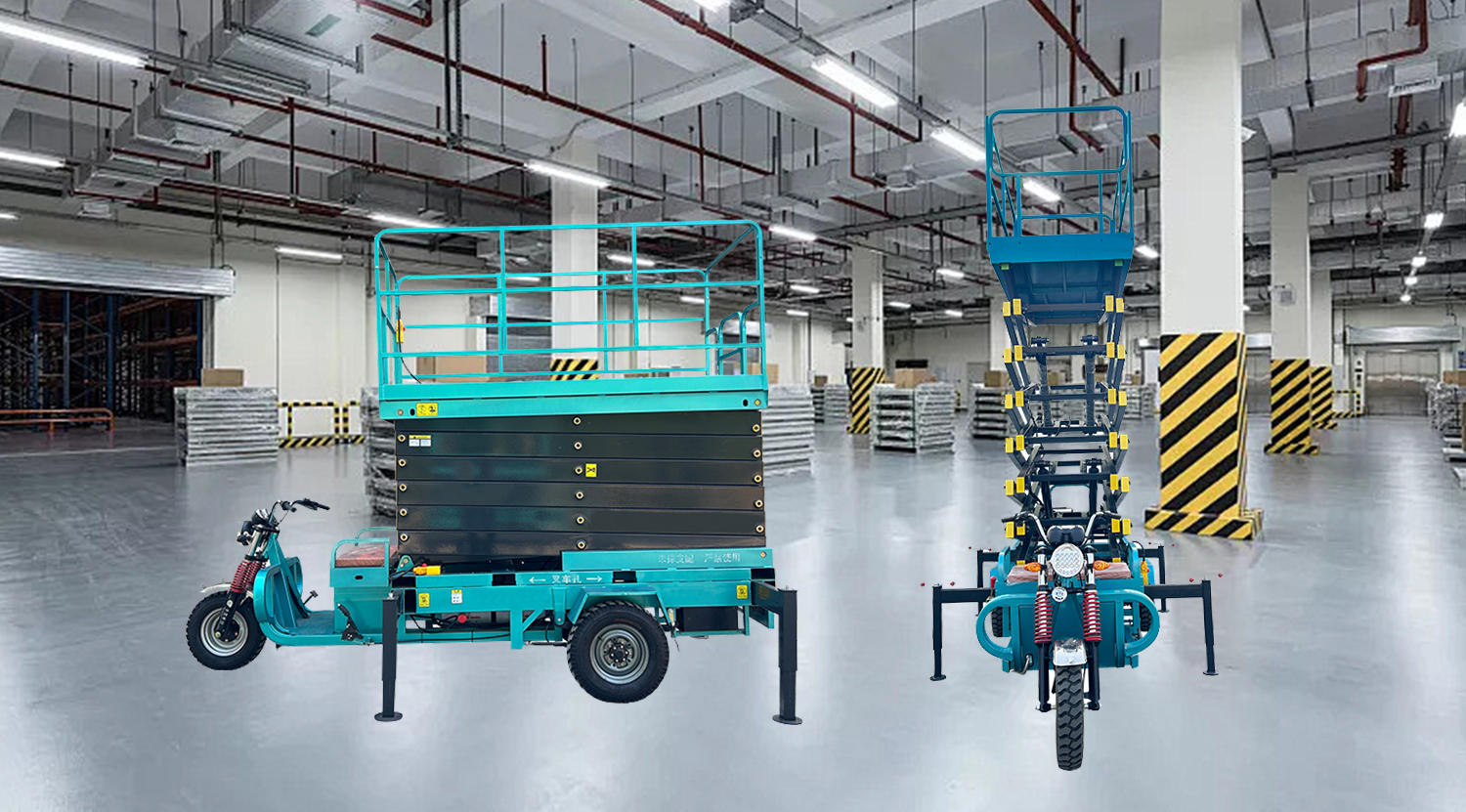

ZG-DDC4-12M Vehicle-mounted three-wheel scissor lift platform
MYZG ZG-DDC4-12M Vehicle-Mounted Three-Wheel Scissor Lift: The Ultimate Mobile Aerial Workstation
Manufactured by Shandong Mingyu Heavy Industry (SDZG), this hybrid of a transport vehicle and a scissor lift is the definitive tool for street light maintenance, urban landscaping, and emergency utility repairs.
Integrated Power & Rapid Transit Mobility
The ZG-DDC4-12M is engineered for teams that manage multiple work locations across a city or large industrial campus.
Dual-Purpose Electric Drive: Powered by a high-capacity battery system, the vehicle serves as both the transit transport and the power source for the hydraulic lift.
High-Speed Deployment: Eliminate the need for trailers or specialized transport. The three-wheel chassis provides stable, swift movement on paved roads and flat surfaces, ensuring your team is always first on the scene.
Whisper-Quiet Operation: The full-electric drivetrain is ideal for nighttime municipal repairs in residential zones, where diesel engine noise is prohibited.
Superior Battery Life: Equipped with high-Ah storage batteries (compatible with 48V systems), providing enough energy for a full day of travel and multiple high-altitude lifting cycles.
Technical Specifications: ZG-DDC4-12M Series
Performance Category
Specification Detail
Unit
Max Platform Height
12
Meters
Max Working Height
14
Meters
Rated Load Capacity
300 - 500
kg
Vehicle Type
Heavy-Duty Three-Wheel Electric Chassis
-
Lifting Motor
48V / 4.5kW
V/kW
Transit Speed
15 - 25 (Depending on battery/motor)
km/h
Platform Size
(Configurable, consult factory)
-
Safety & Engineering for Urban Work
Working in urban environments and public roadways requires redundant safety systems. The ZG-DDC4-12M is equipped with advanced protective features.
Heavy-Duty Outriggers: The platform is equipped with hydraulic outriggers that deploy to create a level and secure base before lifting, isolating platform motion from the vehicle chassis.
Tilt Alarm System: Integrated sensors constantly monitor the machine's angle. If the chassis exceeds 3 degrees of tilt, an alarm sounds and the lift function is cut off.
Overload Protection: The hydraulic system valve is calibrated to prevent the platform from lifting more than the rated capacity, protecting the integrity of the mast and vehicle.
Emergency Stop & Manual Descent: Emergency stop controls are provided both on the platform and at the base. A manual descent valve allows the platform to be lowered safely in case of power failure.
Productivity Features for Municipal Fleets
The ZG-DDC4-12M is designed to maximize efficiency for public maintenance fleets.
Single-Operator Rapid Deployment: The driver can maneuver the vehicle to the exact spot, deploy the outriggers, and raise the platform without leaving the platform-mounted control station.
Maneuverability in Narrow Streets: The three-wheel design offers an exceptionally small turning radius, allowing you to navigate tight residential streets, parks, and parking lots with ease.
Efficient Power Integration: Uses the same battery bank for both propulsion and hydraulics, which reduces overall weight and simplifies maintenance compared to dual combustion engine systems.
Platform Storage: The large platform surface (often up to 2.6 m long) provides space for two workers, as well as for light poles, cables, or landscaping tools.
Ideal Applications
The ZG-DDC4-12M is the preferred solution for urban maintenance departments and utility contractors:
Street Light Maintenance: Fast bulb replacement and luminaire repair on municipal light poles.
Landscaping and Tree Pruning: Access to high branches for pruning and tree care in parks and avenues.
Signage and Decoration: Installation and maintenance of traffic signs, flags, and seasonal decorations on city streets.
Infrastructure Inspection: Inspection of bridges, tunnels, and public building facades requiring rapid response and high mobility.
