What are the major parts of a forklift?

Importance: Enhances load stability and operator safety by providing a barrier between the load and the operator.

II. The Lifting Mechanism (Mast Assembly)
This entire assembly is responsible for raising, lowering, and tilting the load.

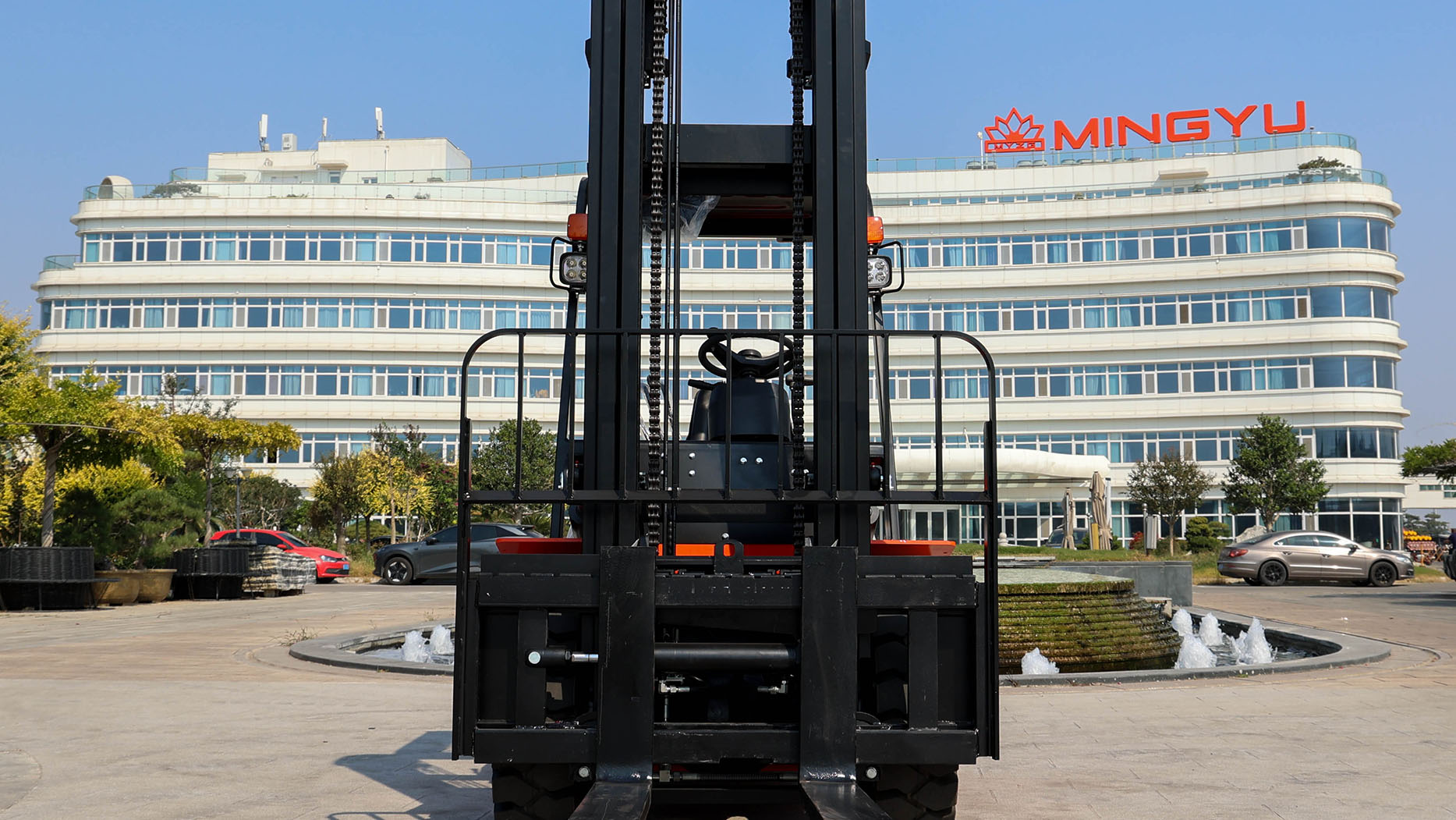

Mast:

Function: The vertical assembly at the front of the forklift, typically made of interlocking steel rails. It guides the carriage and forks up and down.
Types of Masts:
Simplex (Single Stage): One stationary channel and one moving channel. Limited lift height and no free lift.
Duplex (Two Stage): Two channels, often with a central free-lift cylinder. Offers "full free lift," meaning the forks can raise a certain distance before the mast itself extends, useful in low-clearance areas like containers.
Triplex (Three Stage): Three telescoping channels, providing higher lift capabilities and typically full free lift. Most common for high stacking.
Quad (Four Stage): Four channels, offering the highest lift capabilities for very tall racking systems.
Importance: Determines the maximum lift height and the type of environments the forklift can operate in (e.g., low doorways, high racking).
Carriage:

Function: A platform that moves up and down the mast. The forks and other attachments are mounted directly to the carriage.
Importance: Connects the load-bearing components to the mast and facilitates vertical movement. Some carriages also include a side-shift feature for precise horizontal positioning.
Forks (Tines/Prongs):

Function: The two horizontal steel blades that slide under pallets or other loads. They are adjustable in width to accommodate different load sizes.
Importance: The direct contact point with the load, designed for strength and durability to support significant weight.
Lift Cylinders (Hydraulic Lift Cylinders):

Function: Hydraulic cylinders (typically one central or two side-mounted) that extend and retract to raise and lower the mast and carriage assembly.
Importance: Convert hydraulic pressure into the vertical lifting force.
Tilt Cylinders (Hydraulic Tilt Cylinders):

Function: Smaller hydraulic cylinders that control the forward and backward tilt of the mast.
Importance: Allows the operator to tilt the load slightly forward for easier pickup/placement or backward for better load stability during travel.
Lift Chains:

Function: Heavy-duty chains that connect the mast, carriage, and lift cylinders, allowing the carriage and forks to move up and down as the hydraulic cylinders extend or retract.
Importance: Part of the mechanical advantage system that enables lifting. Regular inspection is vital for safety.
III. Power System & Drive Train
Power Source (Engine/Battery):

Function: Provides the energy to power the forklift's movement and hydraulic functions.
Types:
Internal Combustion (IC) Engine: Runs on gasoline, diesel, LPG (liquid propane gas), or CNG (compressed natural gas). Common for outdoor or well-ventilated indoor use. Includes a fuel tank (for liquid fuels) or a propane tank (for LPG).
Electric Motor & Battery: Powered by large, heavy lead-acid or increasingly, lithium-ion batteries. Ideal for indoor use due to zero emissions and quieter operation.
Importance: The heart of the forklift, determining its power output, environmental impact, and refueling/recharging requirements.
Transmission / Drive Axle:

Function: Transmits power from the engine/motor to the drive wheels, allowing the forklift to move forward and backward and control speed.
Importance: Essential for mobility and control.
Hydraulic Pump:

Function: Driven by the engine/motor, it pressurizes the hydraulic fluid, which is then directed to the lift and tilt cylinders (and any auxiliary functions).
Importance: Generates the hydraulic power necessary for lifting and tilting operations.
Hydraulic Fluid Reservoir:

Function: Stores the hydraulic fluid used by the hydraulic system.
Importance: Ensures a continuous supply of clean hydraulic fluid for efficient operation.
IV. Operator Controls & Safety
Operator Compartment / Cab:

Function: The area where the operator sits (or stands, for some models). It contains the seat, steering wheel, pedals, controls, and instrument panel.
Importance: Designed for operator comfort, safety, and efficient control of the machine.
Steering System:

Function: Unlike cars, most forklifts use rear-wheel steering for enhanced maneuverability and a tighter turning radius, especially in confined spaces. The steering wheel controls the rear wheels.
Importance: Crucial for precise navigation in tight warehouse aisles.
Controls (Levers, Pedals, Switches):

Function: A variety of levers (for lift, lower, tilt, side-shift), foot pedals (accelerator, brake), and switches (lights, horn, ignition) that allow the operator to control all forklift functions.
Importance: The interface between the operator and the machine's functions.
Instrument Panel / Display:

Function: Provides critical information to the operator, such as fuel level/battery charge, hour meter, warning lights (oil pressure, temperature), and diagnostic codes.
Importance: Keeps the operator informed about the forklift's status and potential issues.
Braking System:

Function: Includes service brakes (foot pedal) for slowing and stopping, and a parking brake (hand lever or foot pedal) for securing the forklift when stationary.
Importance: Essential for safe operation, especially when carrying loads or on inclines.
Safety Features (Beyond Overhead Guard & Load Backrest):

Seatbelt: Essential for restraining the operator in case of a tip-over.
Horn: For alerting pedestrians and other equipment operators.
Lights (Headlights, Taillights, Strobe Lights): For visibility, especially in low-light conditions or busy areas.
Backup Alarm: Emits an audible warning when the forklift is moving in reverse.
Operator Presence Sensing System (OPSS): A safety interlock that prevents the forklift from operating if the operator is not seated or in the proper operating position.
Stability Systems (e.g., Toyota's SAS): Advanced electronic systems that monitor forklift parameters (speed, steering angle, load weight, mast height) and automatically take corrective action to enhance stability and prevent tip-overs.
Blue Safety Lights / Red Zone Lights: Projects a visible blue spot or red line on the floor to alert pedestrians of the forklift's presence and safe operating distance.
V. Wheels & Tires
Wheels & Tires:
Function: Support the weight of the forklift and its load, provide traction, and absorb shocks.
Types:
Cushion Tires: Solid rubber tires pressed onto a steel band. Best for smooth, indoor surfaces (warehouses, factories) due to good maneuverability and lower rolling resistance.
Pneumatic Tires: Air-filled tires (like car tires) with deep treads. Ideal for outdoor, rough, or uneven surfaces (construction sites, lumberyards) due to better shock absorption and traction. Can be air-filled or solid pneumatic (solid rubber versions that resemble air tires but cannot go flat).
Polyurethane Tires: Hard-wearing, low-rolling resistance tires, often used on electric forklifts in narrow aisles or very smooth indoor environments.
Importance: The correct tire type is crucial for optimal performance, stability, and longevity, adapted to the specific operating environment.
Why Understanding Forklift Parts Matters
Safe Operation: Knowledge of each part's function enables operators to perform daily pre-shift inspections, identify potential issues, and operate the machine safely within its limits.
Effective Maintenance: Understanding components helps in diagnosing problems, performing basic maintenance, and communicating effectively with service technicians.
Informed Purchasing/Rental: Knowing the different types of masts, tires, or power sources allows you to choose a forklift best suited for your specific application and environment.
Compliance: Many safety regulations (e.g., OSHA) require daily inspections and proper maintenance of forklift components.
Conclusion: The Integrated Powerhouse
A forklift is far more than just a lifting device; it's a precisely engineered machine where every part plays a vital role in its overall functionality, safety, and efficiency. From the fundamental stability provided by the chassis and counterweight to the precision of the hydraulic lifting system and the intelligence of its safety features, each component is designed to work synergistically.

By gaining a thorough understanding of the major parts of a forklift, you equip yourself with the knowledge necessary to operate these powerful machines more safely, maintain them effectively, and ensure they continue to be invaluable assets in your material handling operations.
