Stacker forklifts, also known as pedestrian stackers, walkie stackers, or straddle stackers, are essential material handling equipment designed for lifting and transporting palletized loads, particularly in warehousing and storage applications with limited space. Unlike traditional sit-down counterbalance forklifts, stackers are characterized by their compact design and the operator typically walking alongside or riding on a small platform. Understanding their dimensions is crucial for optimizing warehouse layout, ensuring safe operation within aisles, and selecting the right model for specific tasks.
However, just as with any type of forklift, there isn't a single set of "standard" dimensions for a stacker forklift. Their size and specifications vary significantly based on several factors, including their load capacity, maximum lift height, power source (manual, semi-electric, or fully electric), and specific design (walkie, walkie-rider, straddle, reach). This technical article will delve into the key dimensions of stacker forklifts, explore how these dimensions vary across different types and models, and highlight the importance of considering these measurements for effective material handling.
Key Dimensions to Consider for Stacker Forklifts:
When evaluating the dimensions of a stacker forklift, several critical measurements come into play:
Overall Length: This is the total length of the forklift from the front of the forks (or load backrest if it extends further) to the rear of the power unit. It significantly impacts the turning radius and the space required for maneuvering in aisles.
Overall Width: This is the widest point of the forklift, typically measured across the outrigger legs (in straddle stackers) or the power unit. It determines the minimum aisle width the stacker can operate in and its ability to pass through doorways or other narrow openings.

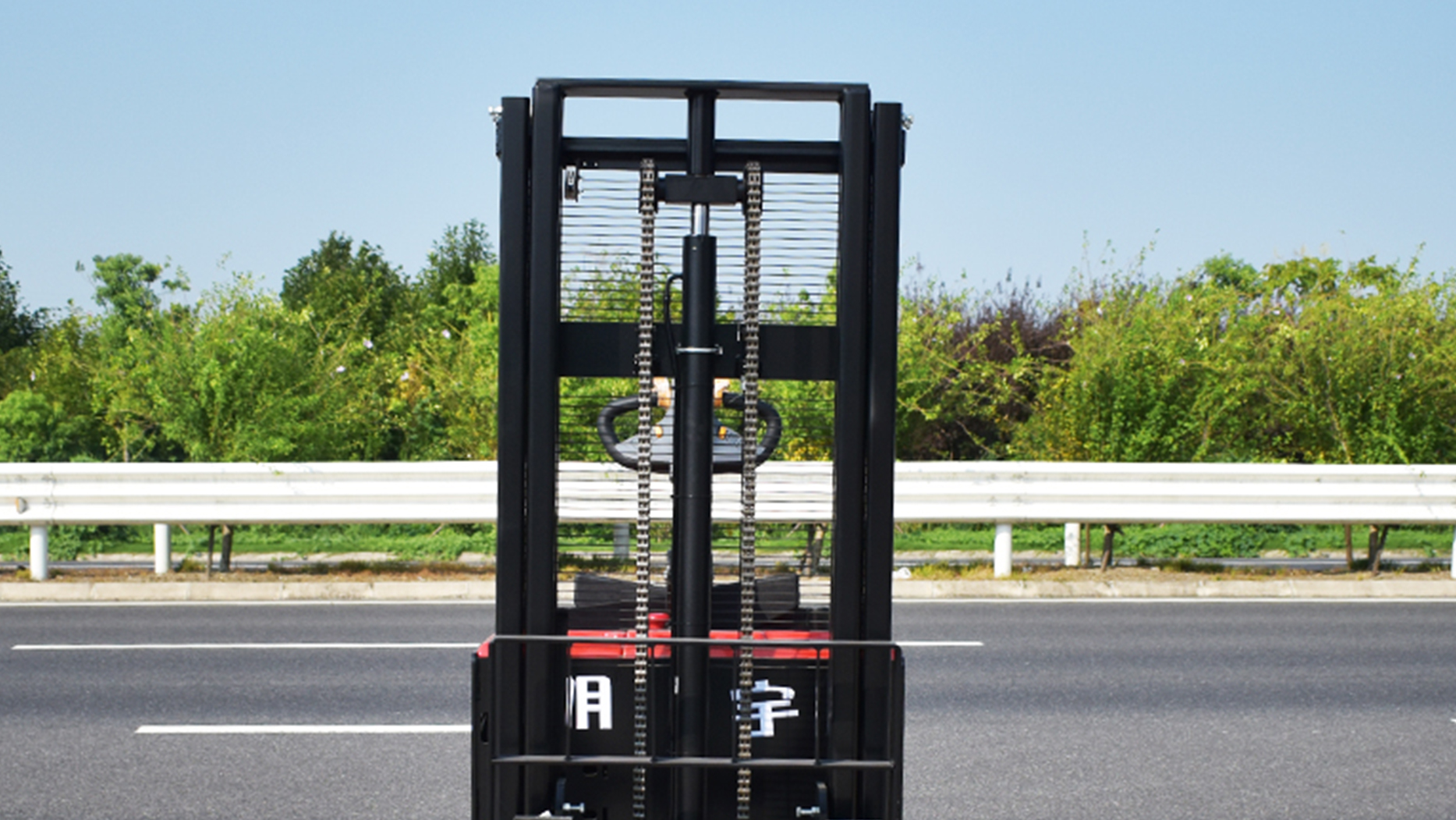

Mast Lowered Height: This is the vertical height of the mast when it is fully lowered. It's crucial for ensuring the forklift can pass under overhead obstructions, such as doorways, conveyors, and low ceilings.
Maximum Lift Height: This is the maximum vertical height to which the forks can be raised. It dictates the highest level of racking the stacker can access and is a primary factor in determining the appropriate model for your storage needs.
Fork Length: The length of the forks themselves determines the size of the pallets the stacker can handle effectively and safely. Standard pallet fork lengths are typically around 42-48 inches (1070-1220 mm), but longer or shorter forks may be available for specific applications.
Fork Width (Adjustable): For straddle stackers, the distance between the inner surfaces of the support legs (straddles) is a critical dimension. This determines the size of the base of the pallets the stacker can accommodate. Many straddle stackers offer adjustable fork widths to handle various pallet sizes.
Head Length (Length to Fork Face): This measurement indicates the length from the front of the power unit to the front face of the forks when lowered. It's another important factor in determining the overall turning radius and maneuverability.
Turning Radius: This is the minimum radius required to turn the forklift 180 degrees. A smaller turning radius allows for operation in narrower aisles, maximizing storage density. This dimension is influenced by the overall length, wheelbase, and steering geometry of the stacker.
Wheelbase: The distance between the center of the front (drive) wheel and the center of the rear wheels (or casters). A longer wheelbase generally contributes to greater stability but can also increase the turning radius.
Ground Clearance: The distance between the lowest point of the forklift's chassis and the ground. Higher ground clearance can be beneficial for navigating slightly uneven surfaces, although stackers are primarily designed for indoor, smooth floors.
Weight: The overall weight of the stacker, including the battery (for electric models), influences the floor loading capacity requirements of your facility and the capacity of any elevators or ramps it may need to traverse.
Dimensional Variations Across Different Types of Stacker Forklifts:
The dimensions of a stacker forklift vary significantly depending on its specific type and intended application:
1. Manual Pallet Stackers (Hand Stackers):
Overall Length: Typically shorter, ranging from around 60-80 inches (1500-2000 mm), prioritizing compactness for tight spaces.
Overall Width: Generally narrow, often around 30-45 inches (760-1140 mm) to fit through standard doorways and operate in narrow aisles.
Mast Lowered Height: Can vary significantly based on lift height, but often starts around 70-90 inches (1780-2290 mm).
Maximum Lift Height: Typically lower compared to electric models, ranging from around 60 inches (1520 mm) to over 120 inches (3050 mm).
Load Capacity: Generally lower, often ranging from 1000 lbs (450 kg) to 2200 lbs (1000 kg).
Turning Radius: Usually very tight due to the manual steering and compact design.

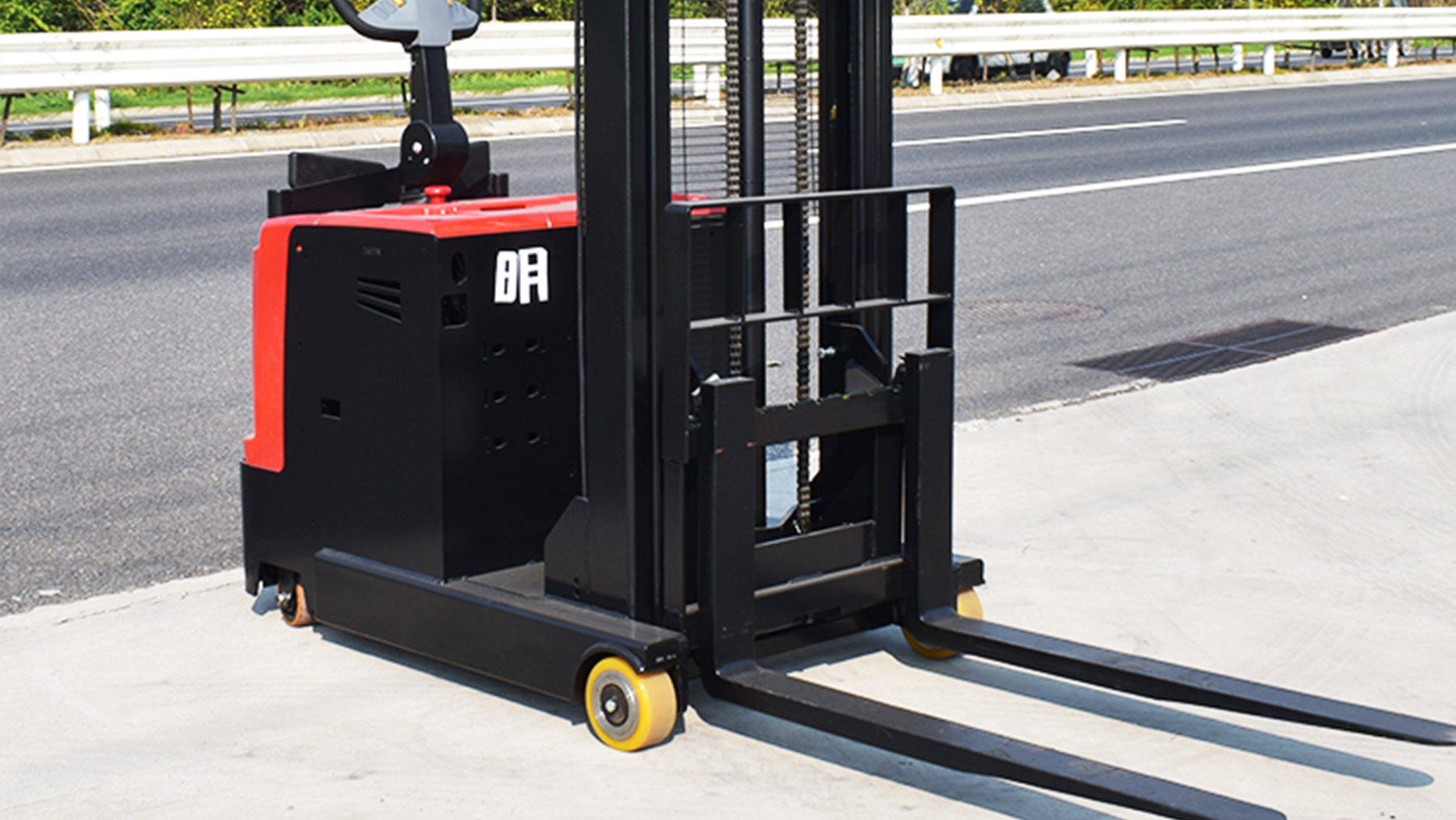

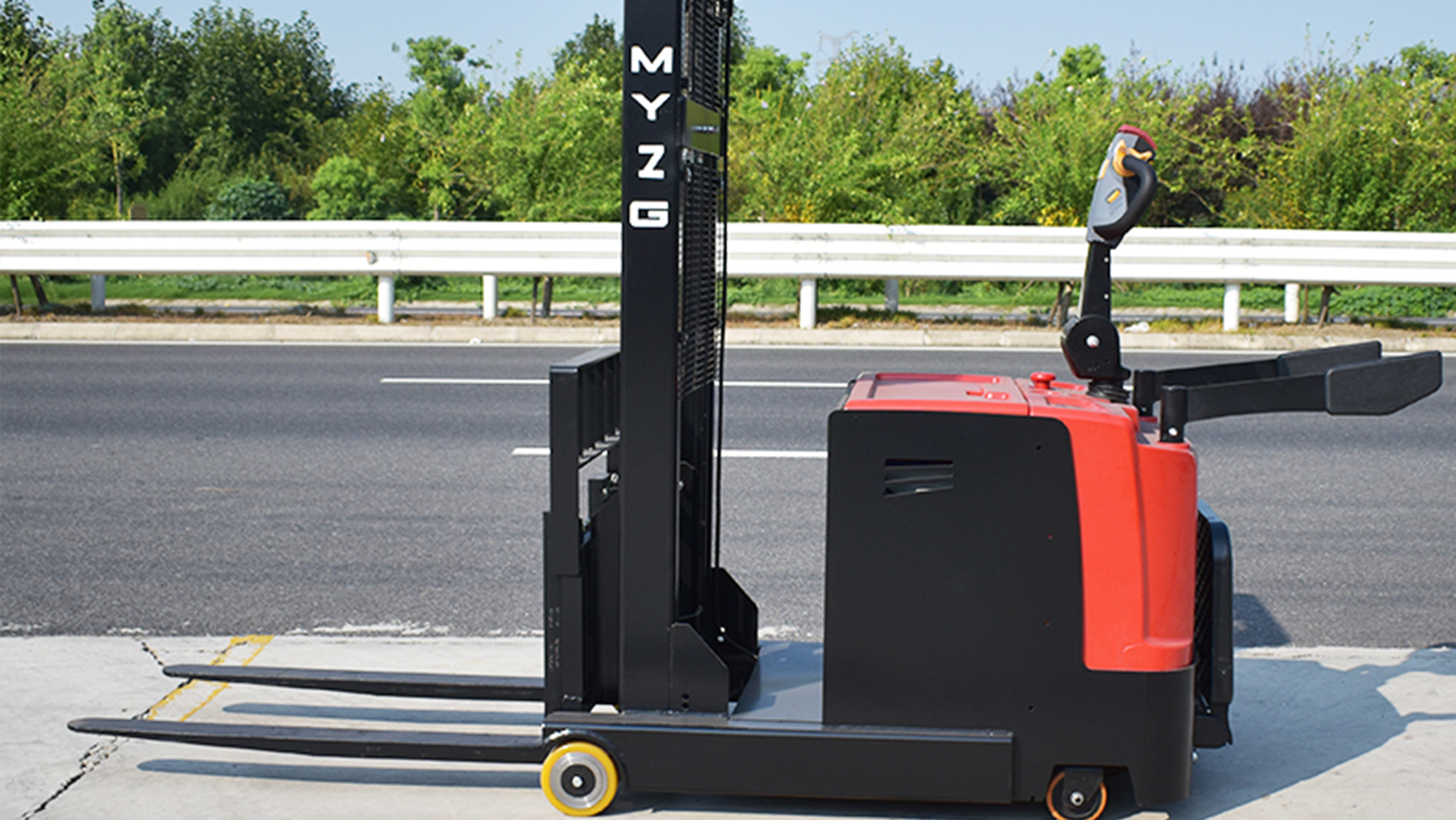

2. Electric Walkie Stackers:
Overall Length: Slightly longer than manual stackers, typically ranging from 70-95 inches (1780-2410 mm) to accommodate the battery and motor.
Overall Width: Similar to manual stackers, around 30-50 inches (760-1270 mm), depending on the presence of straddle legs.
Mast Lowered Height: Varies with lift height, often starting around 80-100 inches (2030-2540 mm).
Maximum Lift Height: Can range from around 100 inches (2540 mm) to over 190 inches (4830 mm), offering greater vertical reach than manual models.
Load Capacity: Higher than manual stackers, typically ranging from 2000 lbs (900 kg) to 4000 lbs (1800 kg).
Turning Radius: Still relatively tight but slightly larger than manual models due to the powered drive.
3. Electric Walkie Straddle Stackers:
Overall Length: Similar to standard electric walkie stackers.
Overall Width: Wider due to the presence of straddle legs that extend outwards to support the load, often ranging from 40-60 inches (1020-1520 mm) or more, depending on the pallet size they are designed to handle. The inside straddle width is a critical dimension here.
Mast Lowered Height: Similar to other electric walkie stackers.
Maximum Lift Height: Comparable to standard electric walkie stackers.
Load Capacity: Similar to standard electric walkie stackers.
Turning Radius: Can be slightly larger than standard walkie stackers due to the wider stance.
4. Electric Walkie Reach Stackers:
Overall Length: Typically longer than standard walkie stackers to accommodate the reach mechanism (pantograph or telescopic).
Overall Width: Similar to straddle stackers due to the stabilizing legs.
Mast Lowered Height: Can be higher due to the more complex mast and reach mechanism.
Maximum Lift Height: Often comparable to or slightly higher than standard walkie stackers.
Load Capacity: May be slightly reduced at full reach compared to their base capacity.
Turning Radius: Can be larger than standard walkie stackers due to the longer wheelbase and reach mechanism.
Illustrative Examples of Stacker Forklift Dimensions (General Ranges):
It's important to note that these are general ranges and specific models from different manufacturers will have their own unique dimensions. Always consult the manufacturer's specification sheets for precise measurements.
The Importance of Considering Stacker Forklift Dimensions:
Understanding the dimensions of a stacker forklift is crucial for several reasons:
Warehouse Layout Optimization: Knowing the overall length, width, and turning radius of the stacker is essential for designing efficient aisle widths and storage layouts, maximizing space utilization.
Safe Operation: Operating a stacker that is too large for the available aisle space can lead to collisions with racking, other equipment, or personnel. Understanding the turning radius is critical for safe maneuvering.
Compatibility with Environment: Ensuring the mast lowered height allows the stacker to pass under overhead obstructions is vital for seamless operation. The overall weight must also be compatible with floor loading limits and any ramps or elevators.
Matching the Right Stacker to the Task: The maximum lift height must be sufficient to reach the highest storage levels. The fork length and adjustable width (for straddle stackers) must be compatible with the pallets being handled.
Transportation and Storage: The overall dimensions and weight of the stacker will impact its transportability between facilities and the space required for its storage when not in use.
Conclusion: Dimensions Drive Decisions in Stacker Forklifts
The dimensions of a stacker forklift are not arbitrary numbers; they are critical parameters that dictate its suitability for specific applications and operating environments. From the compact maneuverability of a manual stacker to the higher reach of an electric walkie stacker and the pallet compatibility of a straddle model, each dimensional aspect plays a crucial role in its functionality and efficiency. When selecting a stacker forklift, a thorough understanding of these dimensions, coupled with a clear assessment of your warehouse layout, lifting requirements, and operational constraints, is paramount for making an informed decision that optimizes productivity and ensures safe material handling. Always consult the manufacturer's detailed specifications to ensure the chosen stacker forklift is the perfect fit for your unique needs.
