MYZG 1440 Telehandler
PRODUCT FEATURE

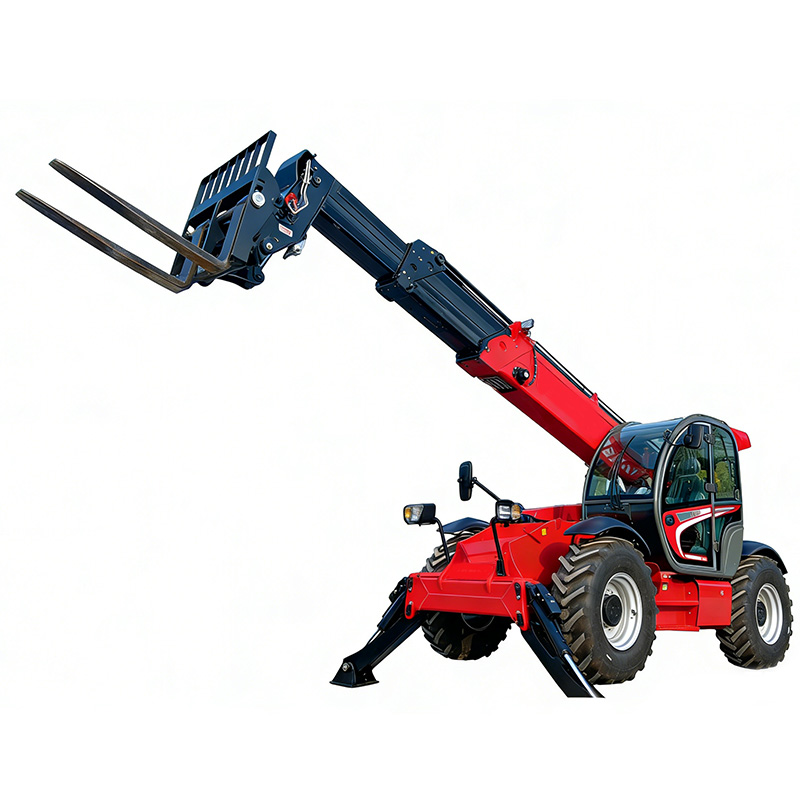

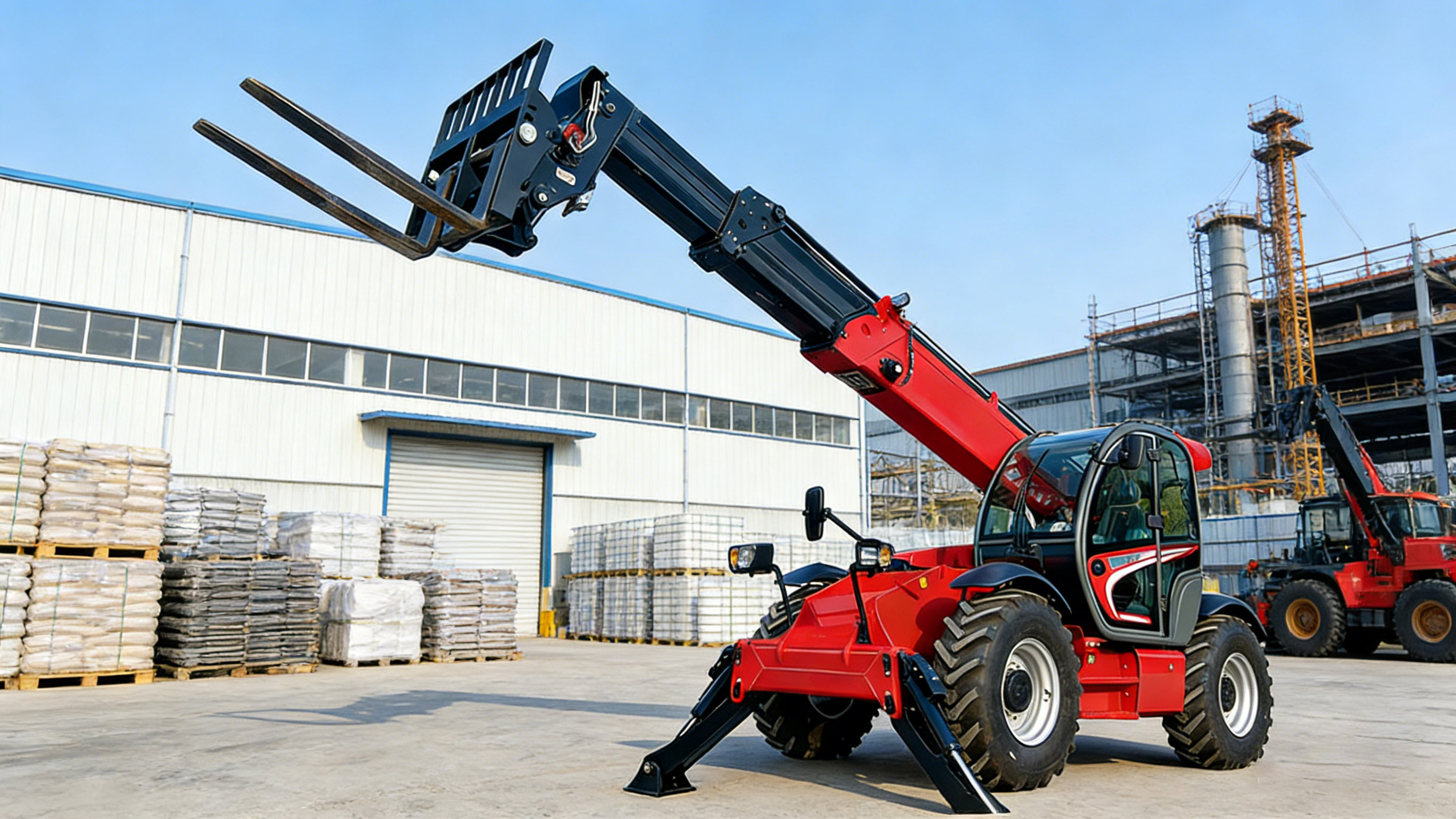

MYZG 4T 1440 Telescopic Forklift: The Powerhouse for High-Reach Material Handling
In the competitive world of construction, agriculture, and industrial logistics, efficiency isn't just a goal—it’s a necessity. The MYZG 4T 1440 Telehandler is engineered to be your most versatile asset on the job site. Combining the heavy-duty lifting capacity of a forklift with the impressive reach of a crane, this telescopic forklift is designed to conquer challenges that standard machinery simply cannot touch.
With a massive 4000kg (8818 lb) maximum capacity and a towering 13.5m (44.29 ft) lifting height, the 4T 1440 model stands at the pinnacle of the MYZG engineering lineup. Whether you are stacking materials on a four-story scaffolding or reaching deep into a storage container, this machine provides the stability and precision you demand.
PARAMETERS
| Max Capacity | 4000kg/8818 Ib |
| Max Lifting Height | 13.5m/44.29ft |
| Max Outreach | 9.5m/31.17 ft |
| Breakout Force with Bucket | 7500 daN/16861 Ibf |
| Lift Capacity at Maximum height | 3000 kg/6614 Ib |
| Lift Capacity at Maximum reach | 1650 kg/3638 Ib |
| OverallLength to Carriage | 6.3 m/20.67 ft |
| Overall Width | 2.42 m/7.94 ft |
| Overall Height | 2.7m/8.86ft |
| Wheelbase | 3.07 m/10.07 ft |
| Front Track | 1.96 m/6.43 ft |
| Ground Clearance | 0.43 m/16.93 inch |
| Tilt Angle | ±9° |
| External Turning Radius | 4.2 m/13.78 ft |
| Tires Type | 440/80R24 |
| Overall Cabin Width | 0.98 m/3.22 ft |
| Lifting | 11s -17.5S |
| Lowering | 16s-23.5s |
| Extension | 15s-22.5s |
| Retraction | 11s -18s |
| Crowd | 5.2-24.3s |
| Dump | 5s-24.8s |
| Engine Brand | Cummins Perkins Yuchai |
| Engine Model | QSB3.9-C110 904J-E36TA YCF36100-5500 |
| Capacity of Cyinders | 3.9L/( 238 cid) 3.62L(221 cid) 3.62L(221cid) |
| Cooling Method | Water Cooling Water Cooling Water Cooling |
| Max Power | 81kw/2400 (109 hp2200)74.4kw/2400r (100 p/2400)74kw/2200r(99 hp2200) |
| Max Torque | 480 Nm(354 Ib ·ft)430 Nm(3171bft) 420 Nm(3101bft) |
| Traction Force | 70.5KN 70.5 KN 70.5 KN |
| Travel Speed | 0-30km/h/0-19 mph |
| Gradeabity | 30° |
| Drive Mode | 4WD |
| Number of Gears forward/reverse) | 2-2 |
| Parking Brake | Automatic parking |
| Service Brake | Wet Brake |
| Hydraulic Pump Type | Load Sensing Variable System |
| Hydraulic Low Pressure | 275 bar/3989 psi |
| Fuel Tank | 140L/37.0 US gal |
| Hydraulic Oil | 180L/47.6US gal |
| Forks Length/Width/Section | 1200x150x50 mm |
| Tit-Up Angle | 16° |
| Tit-Down Angle | 117° |
| Machine Weight (with forks) | 10800kg/238091b |
Unmatched Performance & Engine Versatility
Cummins QSB3.9-C110: A turbocharged powerhouse delivering 81kW (109 hp) and a staggering 480 Nm of torque for the most demanding high-altitude or heavy-load tasks.
Perkins 904J-E36TA: Renowned for its reliability and efficiency, providing 74.4kW (100 hp) with 430 Nm of torque.
Yuchai YCF36100-S500: A cost-effective, high-performance alternative offering 74kW (99 hp) and 420 Nm of torque.
All engine configurations utilize advanced water-cooling systems and feature a massive 140L fuel tank to ensure your crew stays productive through the longest shifts without constant refueling stops.
Precision Reach & Handling Capabilities
The core strength of the 4T 1440 lies in its sophisticated telescopic boom. Unlike traditional mast-style forklifts, this telehandler allows for horizontal outreach of up to 9.5 meters (31.17 ft). This capability is a game-changer for loading and unloading trucks from a single side or placing pallets over obstacles.
Key Lift Specifications:
Max Lifting Height: 13.5m (44.29 ft).
Lift Capacity at Max Height: 3000kg (6614 lb).
Lift Capacity at Max Reach: 1650kg (3638 lb).
Breakout Force with Bucket: A powerful 7500 daN (16861 lbf) for handling bulk materials or aggregate.
The integrated Load Sensing Variable System ensures that hydraulic power is delivered exactly where and when it’s needed. This results in smoother boom extensions—retraction takes just 11–18 seconds—and more precise load placement, reducing the risk of site accidents.
Built for the Toughest Terrains
The "rough" in Rough Terrain Telehandler is where the MYZG 4T 1440 truly shines. Designed with a 4WD drive mode and heavy-duty 440/80R24 tires, this machine navigates mud, gravel, and steep inclines with ease.
30° Gradeability: Tackle steep ramps and uneven construction sites with confidence.
4.2m External Turning Radius: Despite its size, the 4T 1440 remains remarkably agile in tight warehouse yards or crowded urban job sites.
High Ground Clearance: With 0.43m (16.93 in) of clearance, you can drive over debris and ruts without damaging the undercarriage.
Chassis Leveling: The boom tilt angle of ±9° allows operators to level the load even when the machine is on a side slope, ensuring maximum safety during high-reach maneuvers.
Applications
Construction: Lifting steel beams, bricks, and mortar to upper floors.
Agriculture: Moving large square bales, loading grain, and cleaning livestock facilities.
Logistics & Warehousing: High-tier stacking and loading unconventional cargo that standard forklifts cannot reach.
Energy & Infrastructure: Handling materials on solar farms or wind turbine installation sites.
Safety, Comfort, and Versatility
At MYZG, we believe a comfortable operator is a safe operator. The 4T 1440 features an extra-wide cabin (0.98m) that offers panoramic visibility, allowing the driver to see all four tires and the boom tip at all times.
The machine is equipped with an Automatic Parking Brake and high-performance Wet Brakes, providing reliable stopping power even in wet or icy conditions. Furthermore, the quick-attach system allows the 4T 1440 to transition from 1200mm forks to buckets or work platforms in minutes, making it the most versatile tool in your fleet.
