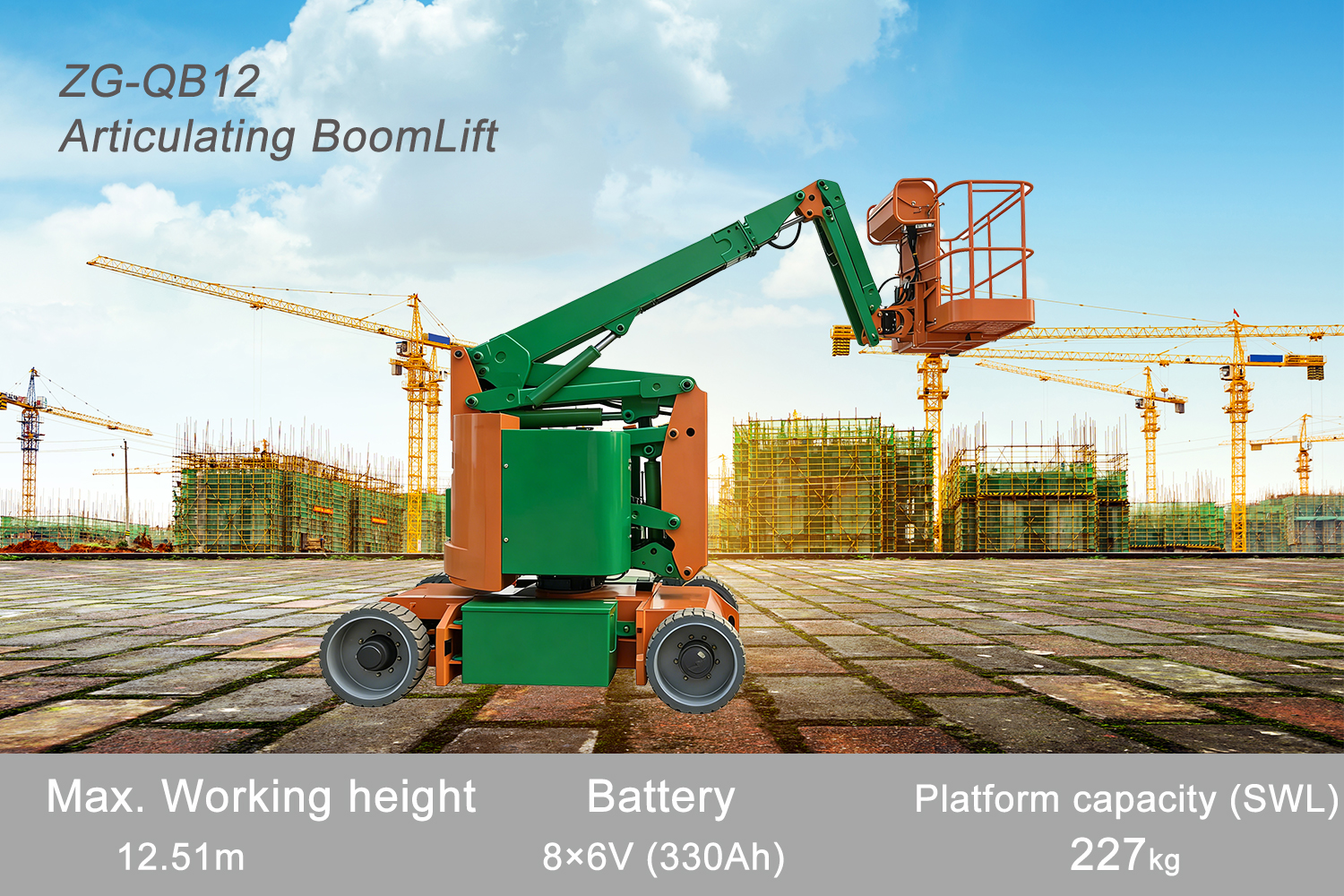

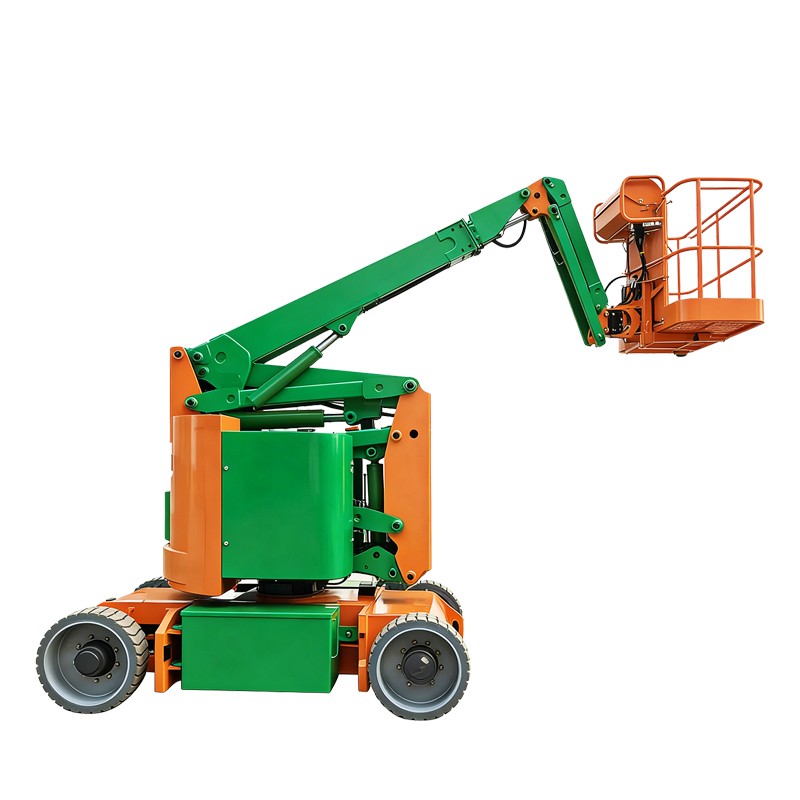

MYZG ZG-QB12 Articulating Boom Lift

MYZG ZG-QB12 Electric Articulating Boom Lift: Precision Reach for Complex Spaces

When standard scissor lifts can't reach over obstacles, the MYZG ZG-QB12 Articulating Boom Lift provides the ultimate "up-and-over" solution. Engineered for versatility and precision, this 12-meter electric boom lift allows operators to navigate around structural beams, machinery, and fixed shelving with surgical accuracy.

Designed by Shandong Mingyu Heavy Industry (SDZG), the ZG-QB12 is the premier choice for indoor facility maintenance, aircraft hangars, and complex construction fit-outs where traditional vertical lifts fall short.

Zero-Emission Electric Performance

The ZG-QB12 is built on a pure electric platform, ensuring quiet and clean operation in the most sensitive environments.

Eco-Friendly Drive: Powered by a high-capacity 48V battery system, it produces zero exhaust fumes, making it ideal for food processing plants, hospitals, and enclosed warehouses.

High-Torque Electric Motors: Equipped with a 48V/4kW traveling motor, the ZG-QB12 offers responsive drive control and a travel speed of 1.8 km/h.

Efficient Lifting System: The 4.5kW lifting motor provides smooth, jitter-free boom articulation, reaching its maximum height in just 80 seconds.

Intelligent Charging: Features an integrated 48V/30A charger, allowing for easy replenishment of the 8x12V/240Ah storage batteries from any standard industrial power source.

Technical Specifications: ZG-QB12 Model

Max. Working height	12.51m
Max. Platform height	10.51m
Max. Operating radius	7.51m
Max. Spanning height	4.64m
Platform floor size (inside)	1.4×7.8m
A) Overall length (stowed)	5.78m
B) Overall height (stowed)	2.05m
C) Overall width (stowed)	1.46m
D) Wheelbase	1.87m
Ground clearance (center)	0.15m
Total weight	6050kg
Platform capacity (SWL)	227kg
Platform Rotation	180°
Turntable Rotation	365° (non-continuous)
Platform raise time	85-100s
Platform lower time	70-85s
Drive speed (stowed)	4-5km/h
Drive speed (elevated)	0.8-1.2km/h
Gradeability	35%
Max. Working angle (Tilt sensor activation)	3°
Turning radius (outside)	2.98m
Drive and steer	2×2
Battery	8×6V (330Ah)
Battery charger	30A
Tire specification	55×18
Fuel tank capacity	18L

Stability and Safety on Every Project
At a 12-meter extension, safety is our primary engineering focus. The ZG-QB12 incorporates advanced stability protocols to protect your operators.

1. Superior Structural Build
With a total machine weight of 3680 kg, the ZG-QB12 provides a solid, ballasted base that significantly reduces platform oscillation at maximum reach. The articulating arms are crafted from high-strength manganese steel to ensure rigidity during "up-and-over" maneuvers.

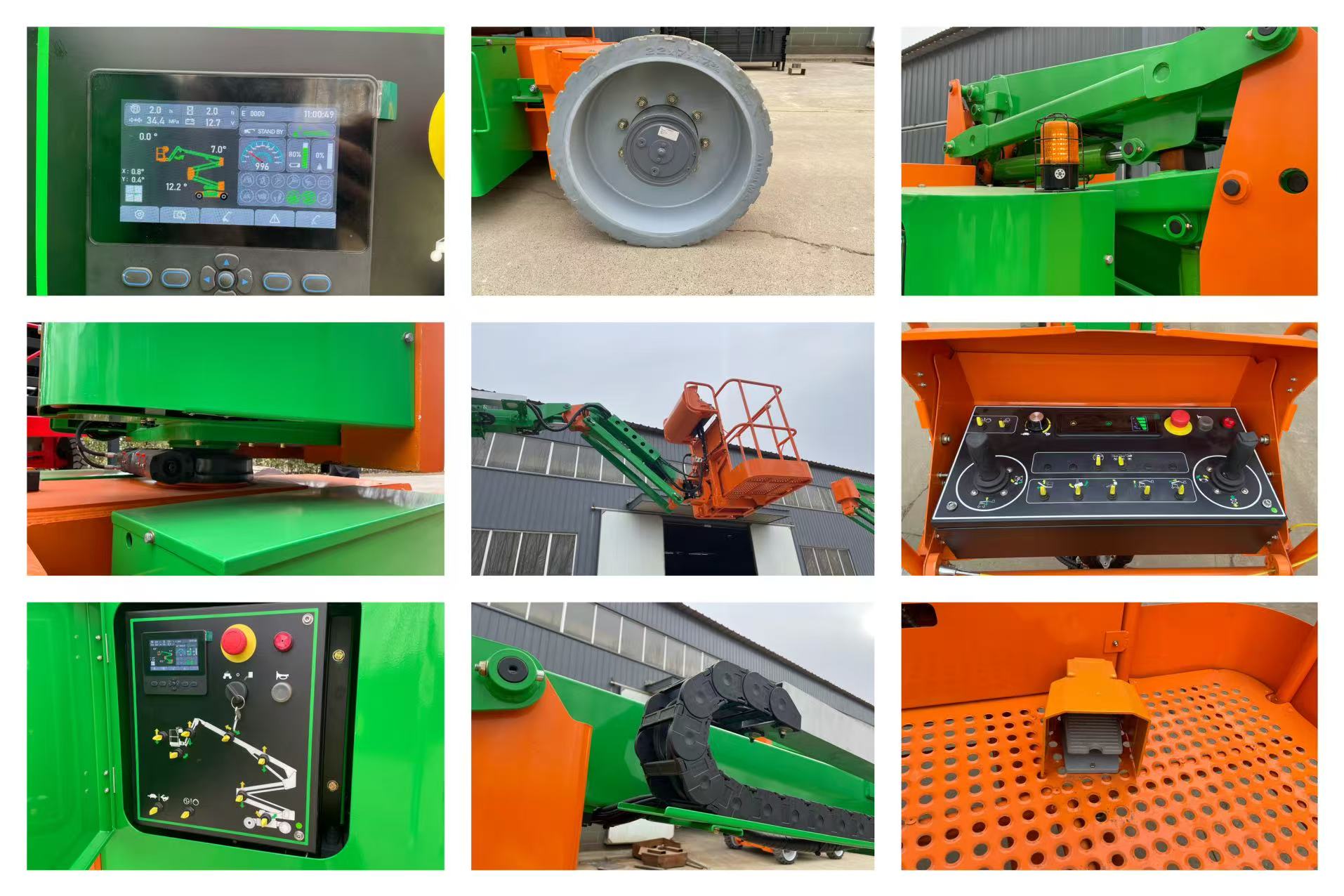

2. Advanced Safety Sensors
Tilt & Leveling Alarms: On-board sensors monitor the machine's angle, with a maximum allowable working angle of 1.5-3 degrees to prevent operation on unsafe inclines.

Emergency Descent System: A manual hydraulic release is located at the base, allowing for a controlled and safe descent of the platform in the event of total power loss.

Pothole Protection: Mechanical safeguards engage during transit to maintain stability even if the wheels encounter floor depressions.

Productivity Features for Professionals
Compact Footprint: With an overall width of only 1570mm, the ZG-QB12 maneuvers through narrow aisles and standard double-doorways with ease.

Extendable Reach: The platform features a 900mm extension, providing additional horizontal clearance when working over fixed obstructions.

Non-Marking Tires: Equipped with durable solid tires that leave no scuffs or marks on delicate indoor flooring or finished surfaces.

Proportional Controls: High-sensitivity joysticks allow for gradual, smooth movement of both the drive and boom functions, essential for working near fragile glass or overhead wiring.

Ideal Industry Applications
The ZG-QB12 Articulating Boom Lift is the versatile choice for:

Industrial Maintenance: Reaching over conveyor belts and production lines for overhead repairs.

HVAC & Electrical: Installing ductwork and wiring in complex architectural ceilings.

Aircraft Servicing: Reaching over wings and fuselage components without making contact.

Shopping Malls & Atriums: Maintenance of high-altitude lighting and decor in busy commercial spaces.
