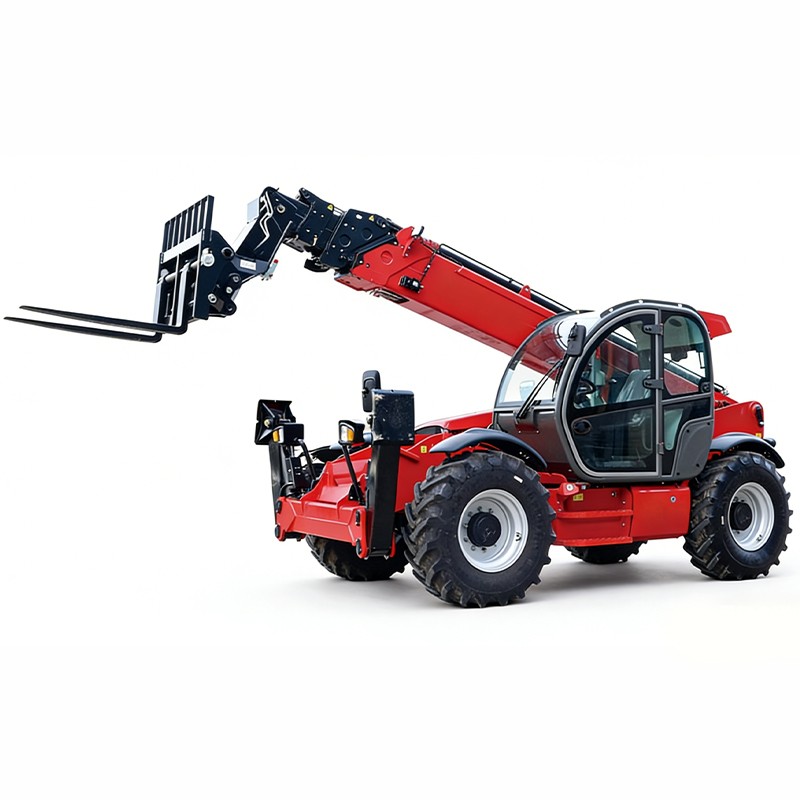

MYZG 1840 Telehandler
PRODUCT FEATURE

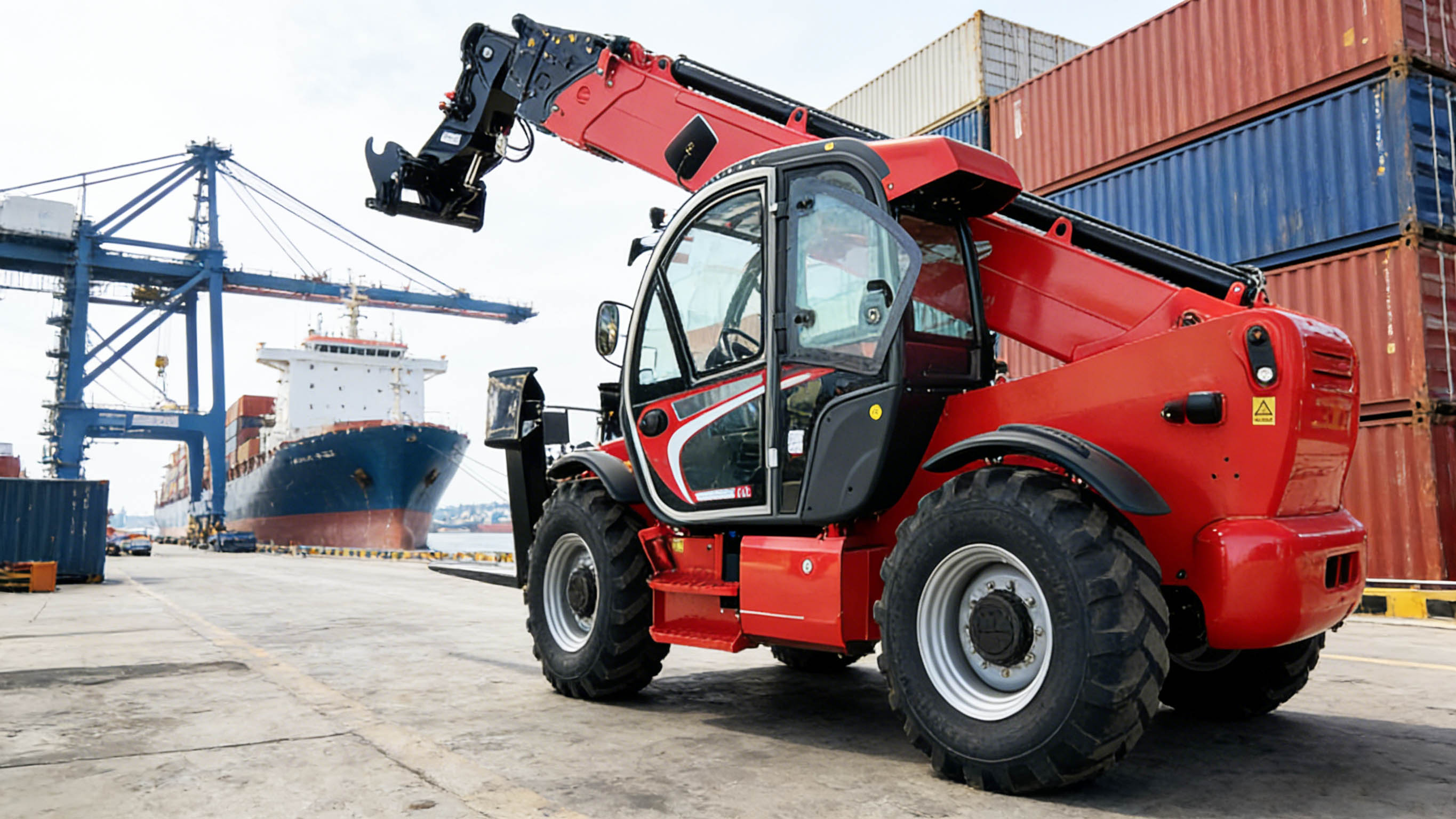

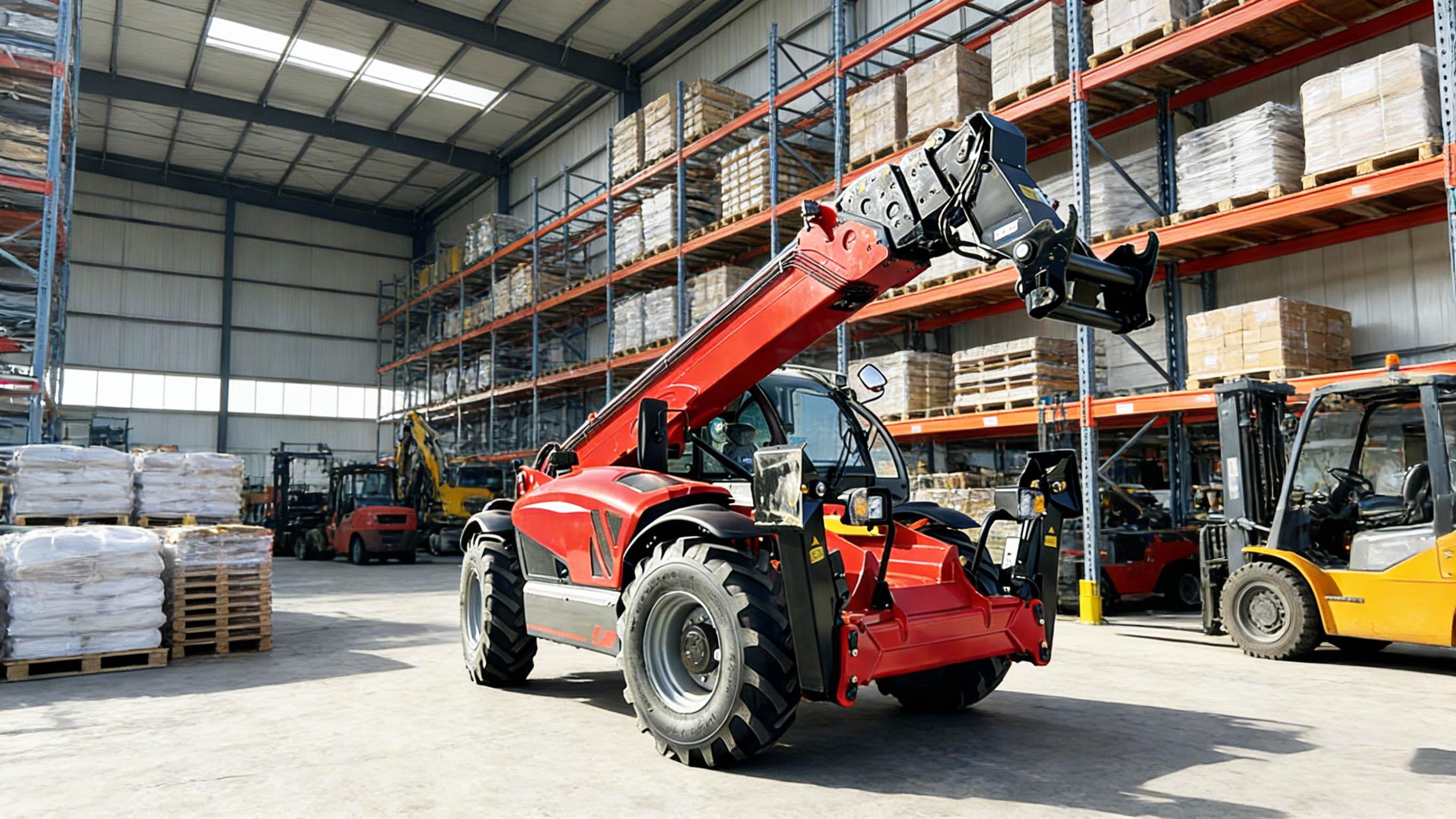

MYZG 4T 1840 Telehandler: The Premier 17.6m High-Reach Telescopic Forklift for Industrial Excellence
When your project demands extreme height, massive lifting power, and all-terrain reliability, the MYZG 4T 1840 Telehandler stands alone as the ultimate solution. Engineered by Shandong Mingyu Heavy Industry, this heavy-duty telescopic forklift is built to bridge the gap between traditional forklifts and mobile cranes, offering a specialized reach that revolutionizes multi-story construction and high-tier logistics.
The 4T 1840 model is the pinnacle of the MYZG telescopic range, boasting a maximum lifting height of 17.6 meters (57.74 ft). This unmatched elevation capability allows operators to place 4000kg (8818 lb) loads onto five-story structures with surgical precision.
PARAMETERS
|
Max Capacity |
4000kg / 8818 lb |
||
|
Max Lifting Height |
17.5 m / 57.4 ft |
||
|
Max Overreach |
1.50 m / 4.92 ft |
||
|
Breakout Force with Bucket |
7500 kg / 16534 lb |
||
|
Lift Capacity at Maximum Height |
2500 kg / 5512 lb |
||
|
Overall Length to Carriage |
6.3 m / 20.67 ft |
||
|
Overall Width |
2.7 m / 8.86 ft |
||
|
Overall Height |
2.7 m / 8.86 ft |
||
|
Wheelbase |
3.07 m / 10.07 ft |
||
|
Front Track |
2.09 m / 6.85 ft |
||
|
Ground Clearance |
0.43 m / 16.93 inch |
||
|
Tilt Angle |
±9° |
||
|
External Turning Radius |
4.9 m / 16.08 ft |
||
|
Tyres Type |
40/80R24 |
||
|
Overall Cab Width |
0.98 m / 3.22 ft |
||
|
Lifting Speed |
7.5s - 17.5s |
||
|
Lowering Speed |
13.5s - 25s |
||
|
Extension Speed |
12.5s - 25.5s |
||
|
Retraction Speed |
13.5s - 25s |
||
|
Swing Speed |
5.5s - 14.5s |
||
|
Dump Speed |
8.5s - 17.2s |
||
|
Engine Brand |
Cummins |
Perkins |
Yuchai |
|
Engine Model |
QSB6.9-C190 |
1104C-44TA |
YC6J220-50 |
|
Cooling Method |
Water Cooling |
Water Cooling |
Water Cooling |
|
Rated Power |
140kW(190hp)@2200rpm |
100kW(134hp)@2200rpm |
162kW(220hp)@2200rpm |
|
Max Torque |
800 Nm @1200-1700rpm |
744Nm @1400rpm |
800 Nm @1200-1700rpm |
|
Max Traction Force |
70.5 KN |
70.5 KN |
70.5 KN |
|
Travel Speed |
0-30km/h / 0-19 mph |
||
|
Gradeability |
30° |
||
|
Drive Mode |
4WD |
||
|
Number of Gears (Forward/Reverse) |
2 / 2 |
||
|
Parking Brake |
Automatic parking |
||
|
Service Brake |
Wet brake |
||
|
Fuel Tank |
140 L / 37.0 US gal |
||
|
Hydraulic Oil Tank |
180 L / 47.6 US gal |
||
|
Forks Length/Width/Section |
1200×150×55 mm / 47.24"×5.91"×2.17" |
||
|
Tilt-Up Angle |
16° |
||
|
Tilt-Down Angle |
17° |
||
|
Machine Weight (with forks) |
12600kg / 27778 lb |
||
Power Without Compromise: Engine and Drive Performance
Cummins QSB3.9-C110: This turbocharged engine delivers a robust 81kW (109 hp) at 2400rpm, producing an impressive 480 Nm of torque.
Perkins 904J-E36TA: A globally trusted engine providing 74.4kW (100 hp) and 430 Nm of torque, optimized for fuel efficiency and longevity.
Yuchai YCF36100-S500: Delivering 74kW (99 hp), this engine is a high-performance alternative for heavy-duty cycling.
Coupled with a 4WD drive mode and massive 440/80R24 tires, the 4T 1840 maintains a 30% gradeability, allowing it to navigate muddy, uneven, and steep job sites that would stop other machines in their tracks.
Industry-Leading Outreach and Stability
The core strength of the 4T 1840 lies in its sophisticated telescopic boom. Unlike traditional mast-style forklifts, this telehandler allows for horizontal outreach of up to 9.5 meters (31.17 ft). This capability is a game-changer for loading and unloading trucks from a single side or placing pallets over obstacles.The 4T 1840 isn't just about height; it’s about horizontal reach. With a maximum outreach of 13.1 meters (42.98 ft), this machine can unload cargo from the far side of a truck or reach across obstacles on a crowded site.
Precision Load Management:
Max Capacity: 4000kg / 8818 lb.
Capacity at Max Height: A stable 2500kg (5512 lb).
Capacity at Max Reach: 750kg (1653 lb) for long-distance placement.
Breakout Force: An industry-competitive 7500 daN (16861 lbf) when equipped with a bucket.
Safety is further enhanced by the ±9° tilt angle on the chassis, allowing for load leveling on side slopes, ensuring the boom remains vertical even when the ground is not.
Chassis Leveling: The boom tilt angle of ±9° allows operators to level the load even when the machine is on a side slope, ensuring maximum safety during high-reach maneuvers.
Applications
Construction: Lifting steel beams, bricks, and mortar to upper floors.
Agriculture: Moving large square bales, loading grain, and cleaning livestock facilities.
Logistics & Warehousing: High-tier stacking and loading unconventional cargo that standard forklifts cannot reach.
Energy & Infrastructure: Handling materials on solar farms or wind turbine installation sites.
Designed for the Operator: Safety and Comfort
The MYZG 4T 1840 features a high-visibility, ergonomic cabin with a width of 0.98m (3.22 ft), providing the operator with a panoramic view of the work zone.
Advanced Safety Systems:
Automatic Parking Brake: Ensures the machine remains stationary the moment the operator stops.
Wet Service Brakes: Provides superior, fade-resistant braking power in wet or dusty conditions.
Load Sensing Hydraulics: The variable hydraulic system manages pressure to ensure smooth boom movement, with retraction taking as little as 8–18 seconds.
Quick-Attach Versatility: Standard 1200x150x50mm forks can be swapped for buckets, platforms, or jib attachments, maximizing machine utilization.
