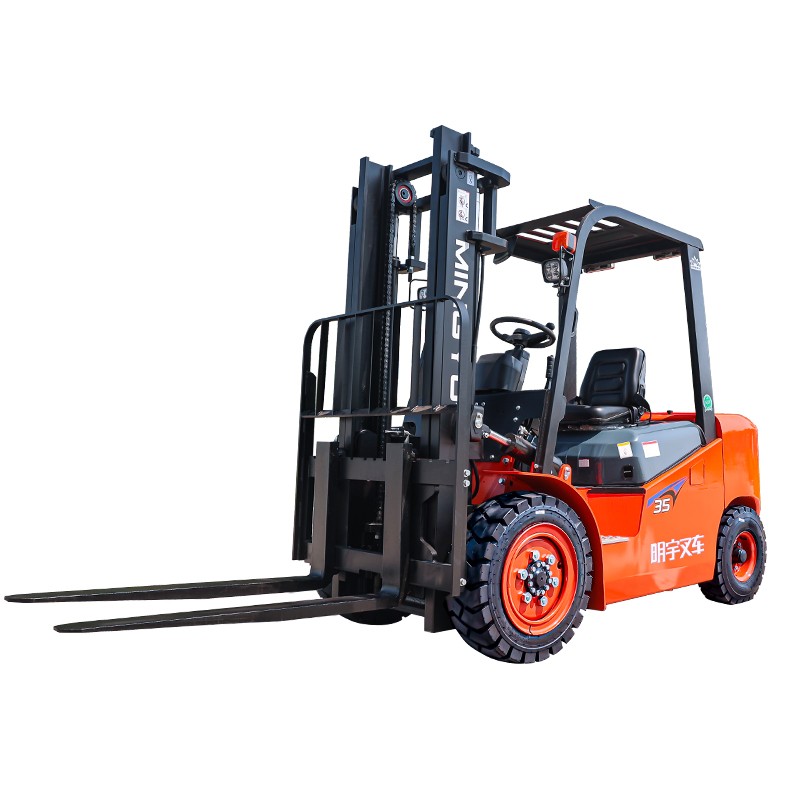

CPC35-k forklift
Product Feature
Appearance
Based on around 10 years Nissan technology applied on MYZG trucks, and MINGYU own M series, the new K series is fully own researched truck. The improved new outline, satety, comfortability, and reliability, all these provide better performance to the trucks.
Comfortable
The same ergonomic technology as Toyota，linde，hyster series has been adopted. The smaller steering wheel, extra space for foot and operator space, wider forward visibility, all these improve operator's comfort and release operator's fatigue.
Safety
Thanks to the long wheelbase design, the longitudinal stability of whole truck is improved, the residual load capacity at same height is improved greatly. At the same time, it prolongs the working life time of steering tyre by reducing the rear axle load.
Outline
Applied the advanced outline designing method, the truck is designed with stream, sporty outline, and thanks to the new design, all the exposed parts are metal made. which is firm and reliable.
Reliability
The aluminum ribbon-tubular radiator with large capacity and the optimized cooling system fu rther enhance the heat dissipation capability of the whole truck to ensure the reliability of the engine.
Improved performance, superior quality
·Flexible and efficient operation
·Safe and reliable, easy to use
·Economic and environmental protection, cost saving
·People-oriented, comfortable driving
·Vibration 20% reduced
·Noise 3dB reduced
·Workspace 45% increased
·Operator’s view 20% improved
·Working efficiency 20% improved
·Loading capacity increased over 5%
·Stability 5% improved
·Reliability 40% improved
·Engine hood open angle increased to 80°
Parameter
| Model | CPC(D)35K | |
| Power Type | diesel | |
| rated load lifting capacity | 3500kg | |
| Load centre distance | 500mm | |
| driving style | Sit down | |
| length | with fork | 3861mm |
| without fork | 2786mm | |
| wideth | 1225mm | |
| height | Do not raise the mast height | 2140mm |
| Overhead guard height | 2110mm | |
| Max height at working | 4262mm | |
| Distance from seat surface to top guard frame | 970mm | |
| wheel base | 1810mm | |
| front overhang | 441mm | |
| rear overhang | 607mm | |
| front wheel track | 1000mm | |
| rear wheel track | 980mm | |
| minimum ground clearance | 165mm | |
| Standard lifting height | 3000mm | |
| free lifting height | 70mm | |
| Fork adjustment range | 260-1100mm | |
| minimum turning radius | 2580mm | |
| Minimum right-angle channel width(1100*1100 pallets) | 4337mm | |
| Gantry angle (front/rear) | 6/12° | |
| Maximum lifting speed without load | 480mm/s | |
| Maximum lifting speed with full load | 370mm/s | |
| Maximum operating speed without load | 20Km/h | |
| Maximum operating speed with full load | 20Km/h | |
| Max gradeability with full loading | 20% | |
| Weight unladen | 4440kg | |
| Number of wheels = driving wheels/steering wheels | 2/2 | |
| Tyre type (front/rear) | Pneumatic tyre/pneumatic tyre | |
| tyre size(front) | 28x9-15 | |
| tyre size(rear) | 6.50-10 | |
| Brake/driving brake | Foot Brake | |
| parking brake | Hand Brake | |
| Engine | quanchai/xinchai | |
| rated power | 39/40kw | |
| Oil pump motor power | 2650r/min | |
| fork length | 1220mm | |
According to demands, can be matched with different accessories

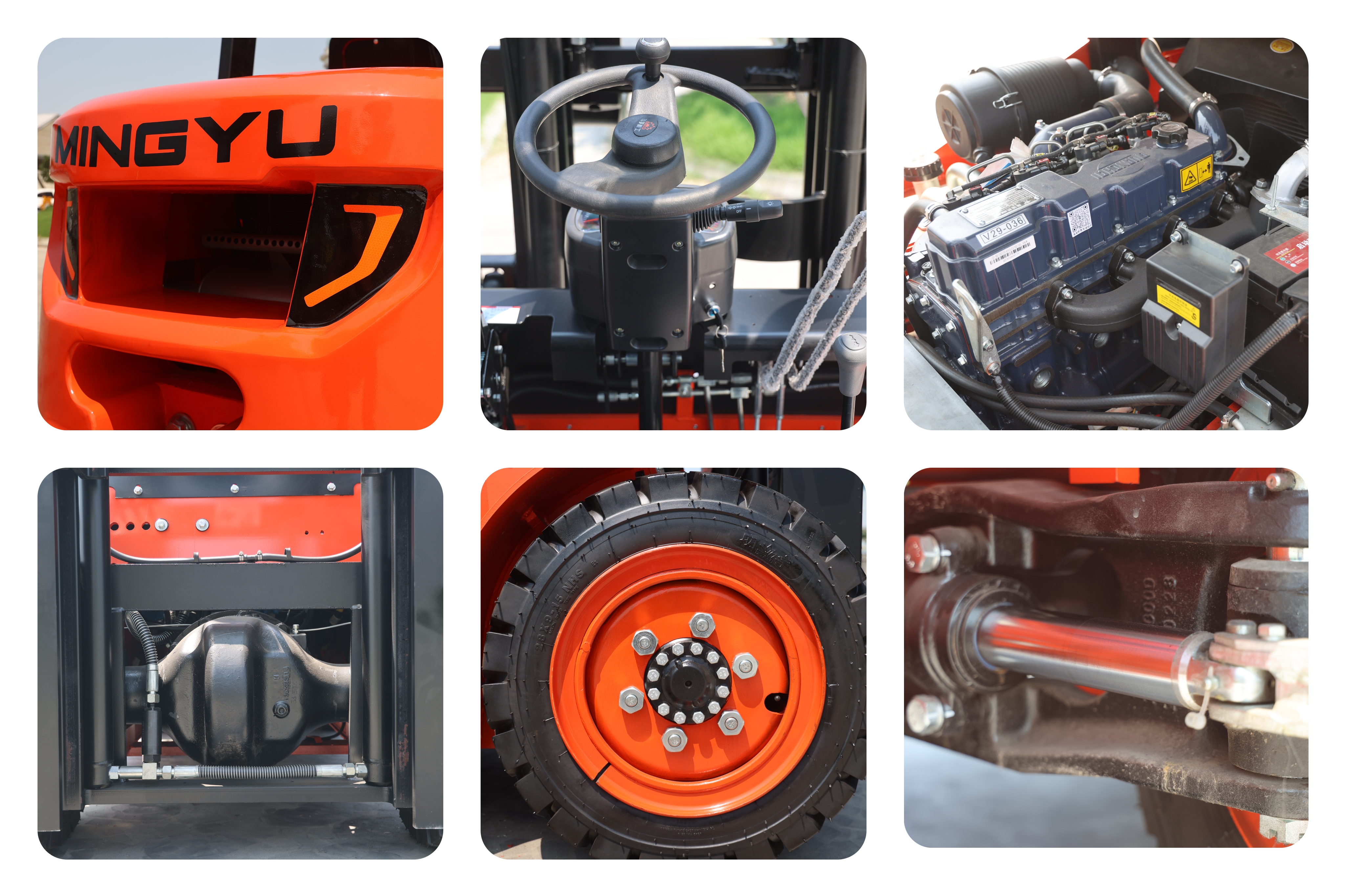

Detail
In addition to rubber damper between frames and steering axle, compound engine damper and full floating power train achieve flexible connection between frames and driving system, as a result, traveling vibrations and vibrations from the driving system are significantly reduced
In developing the new CPC35 Series, comfort and ease of operation is carefully considered, for example, to improve vibration levels, compound engine damper and full floating power train are adopted. Comfortable operating environments for operator also contribute to increased productivity
About us

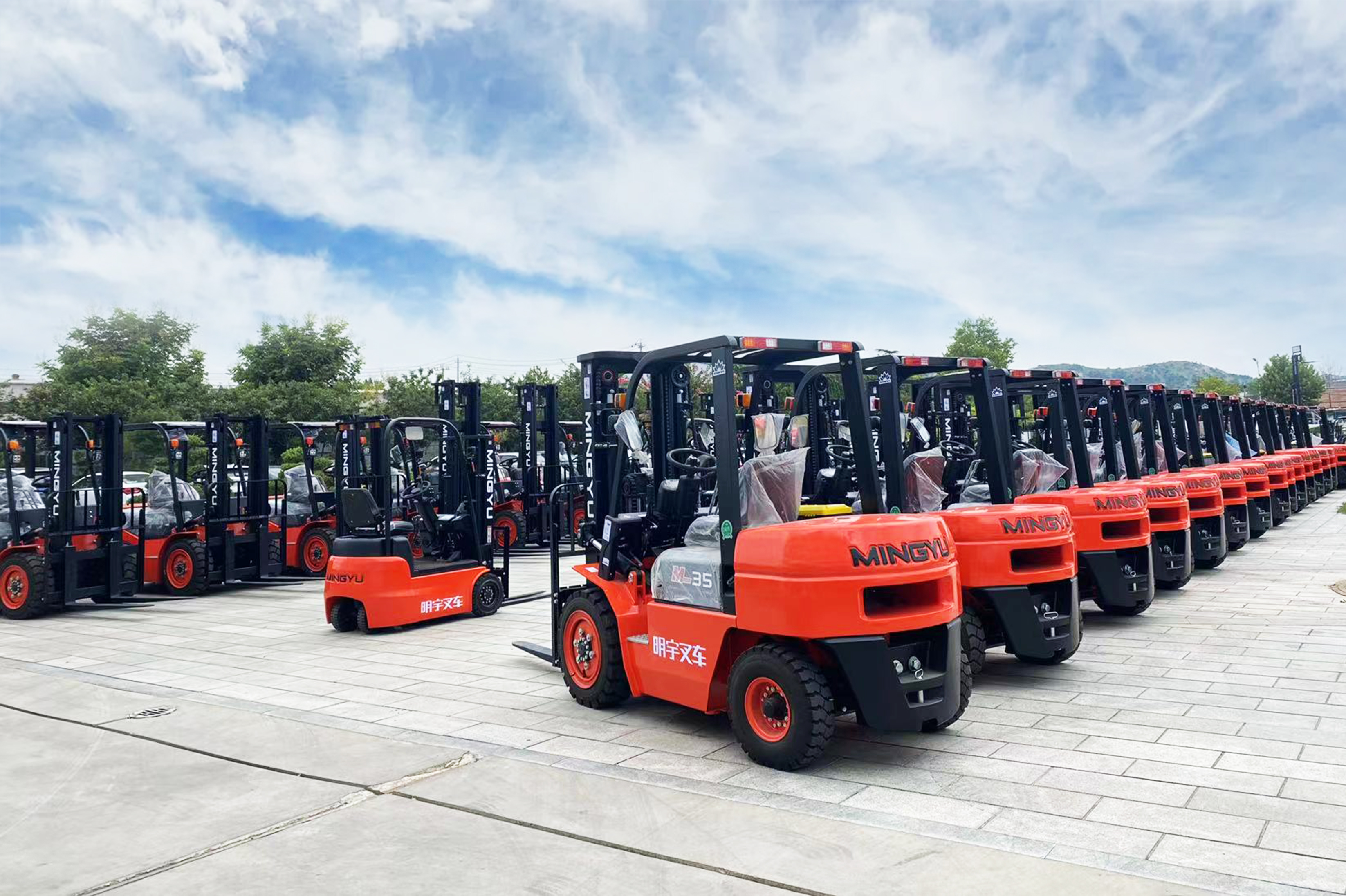

MYZG machines are exported all over the world，about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get
MYZG have perfect after-sales service，and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production, in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
