MYCDD-G Stand-on Electric Stacker (ECONOMICAL)

MYCDD-G Stand-on Electric Stacker (ECONOMICAL)
  • MYCDD-G Stand-on Electric Stacker (ECONOMICAL)
  • MYCDD-G Stand-on Electric Stacker (ECONOMICAL)
  • MYCDD-G Stand-on Electric Stacker (ECONOMICAL)

Short Description:

This is an economical stand-on electric pallet stacker, with a short vehicle body and a small turning radius. It is equipped with a foldable stand-on pedal, providing smooth operation and an excellent driving experience. It is highly experienced with high efficiency....


  • Maximum load capacity: 1500/2000kg
  • Overall length/width of frame: 2130/850mm
  • Fork size(length *width*thickness): 1150*165*55mm
  • Fork lowered height: 90mm

Product Details

Product Tags

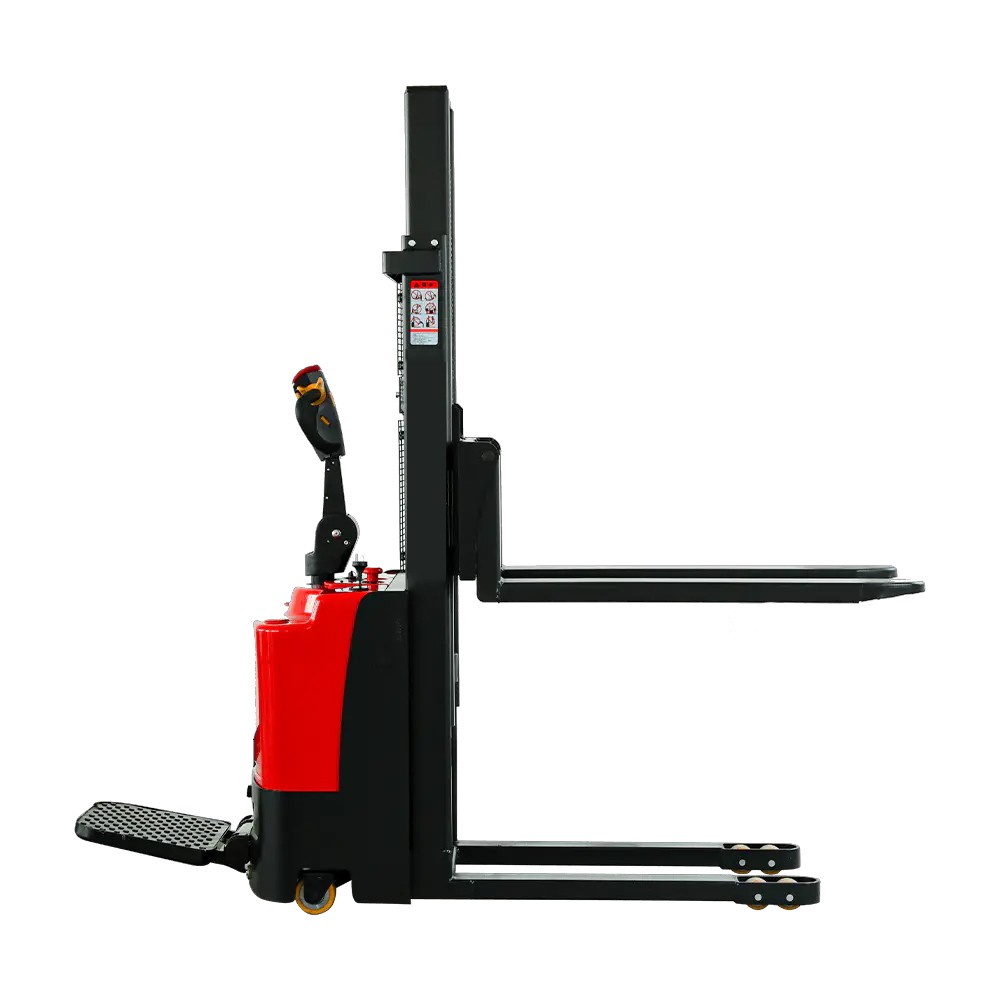

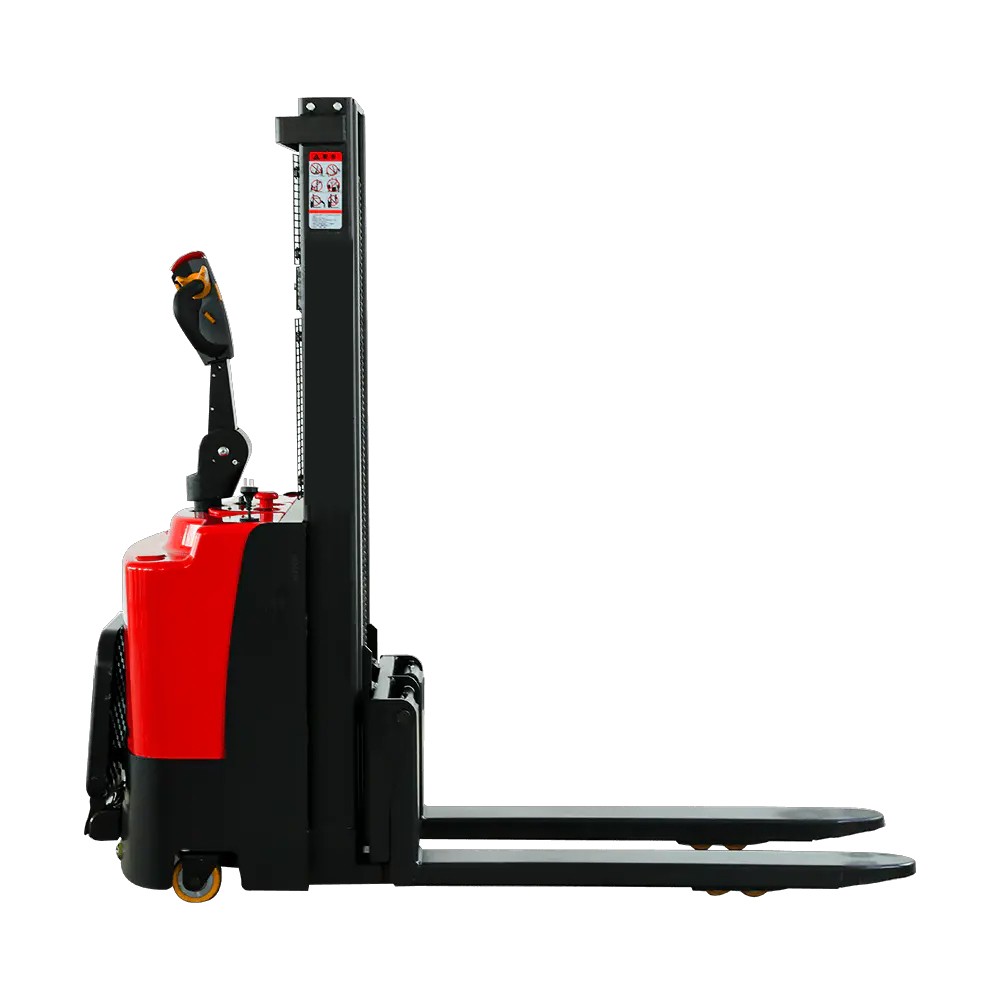

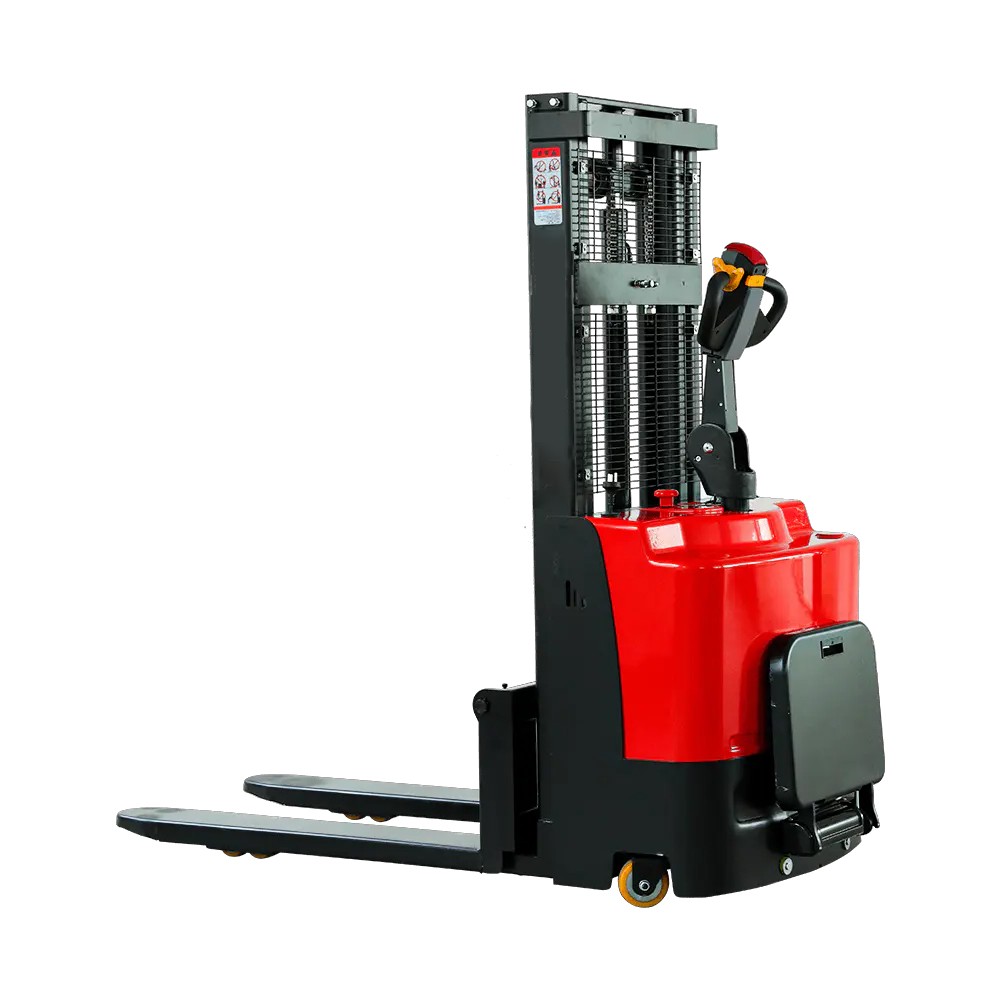

CDD-G STAND-ON ELECTRIC PALLET STACKER (ECONOMICAL)

This is an economical stand-on electric pallet stacker, with a short vehicle body and a small turning radius. It is equipped with a foldable stand-on pedal, providing smooth operation and an excellent driving experience. It is highly experienced with high efficiency.

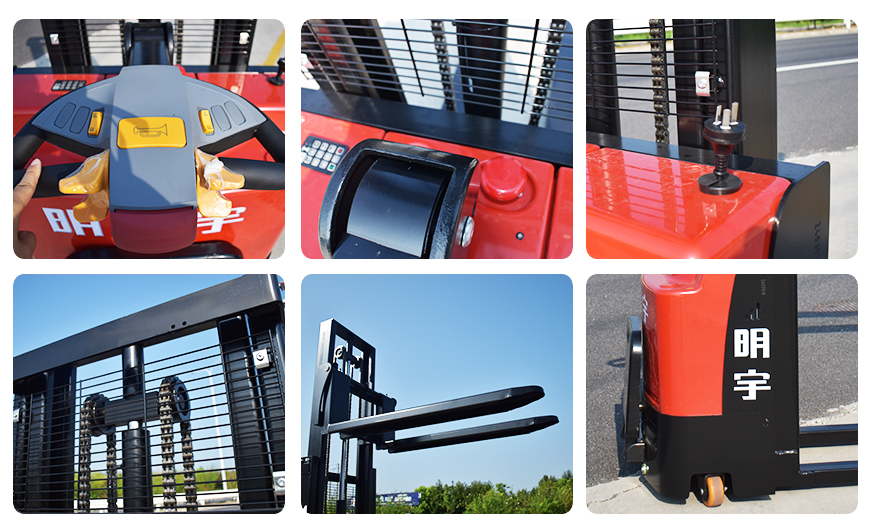

Product features :


• Pump Brand: BUCHER
• 24V/92Ah GEL Maintenance-free Battery
• DC 750W Horizontal Drive Motor
• Optional: Controller Brand CURTIS
• Optional: Straddle Legs
• Fork Length Customized


Company Introduction



Model CDD10/15G
Maximum load capacity 1000/1500kg
load center 600mm
Travel speed without load/with load 4.5/3.5km/h
Lifting speed without load/with load 110/80mm/s
Lowered speed without load/with load 100/100mm/s
Ascend slope ability without load/with load 7/4%
Overall length/width of frame 1910/850
Wheelbase 1270mm
Fork sizelength *width*thickness 1150*165*55mm
Fork outside width 550/685mm
Min frounf height 30mm
Fork lowered height 90mm
Minimum turning radius 1920mm
Minimum intersecting aisie 2795mm
Front wheel 80*70mm
Drive wheel 210*70mm
Caster wheel 115*55mm
Drive motor Rated output/DC motor 0.75kw
Hoist motor Rated output/DC motor 2.2kw
Battery Voltag/Capacity 24/92V/Ah
Battery Weight 31*2kg
Mast Max.Lifting height Mast overall height Mast overall height Service weight
Single mast 1600 mm 2080 mm 2080 mm 515 kg
2-stage mast 2000 mm 1580 mm 2550 mm 555kg
2500 mm 1830 mm 3050 mm 580 kg
3000 mm 2080/1980 mm 3550/3450 mm 600 kg


1) Low voltage protection system to extend battery life;
2) Using adjustable balance wheel, the car walks smoothly;
3) The whole vehicle is small, flexible, and has good maneuverability, and can work efficiently in places with narrow spaces;
4) It has good shock absorption effect, and the balance wheel assembly can be disassembled as a whole, which is convenient for maintenance and warranty.




About us

MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production,  in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.

MYZG machines are exported all over the world,about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get
MYZG have perfect after-sales service,and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
