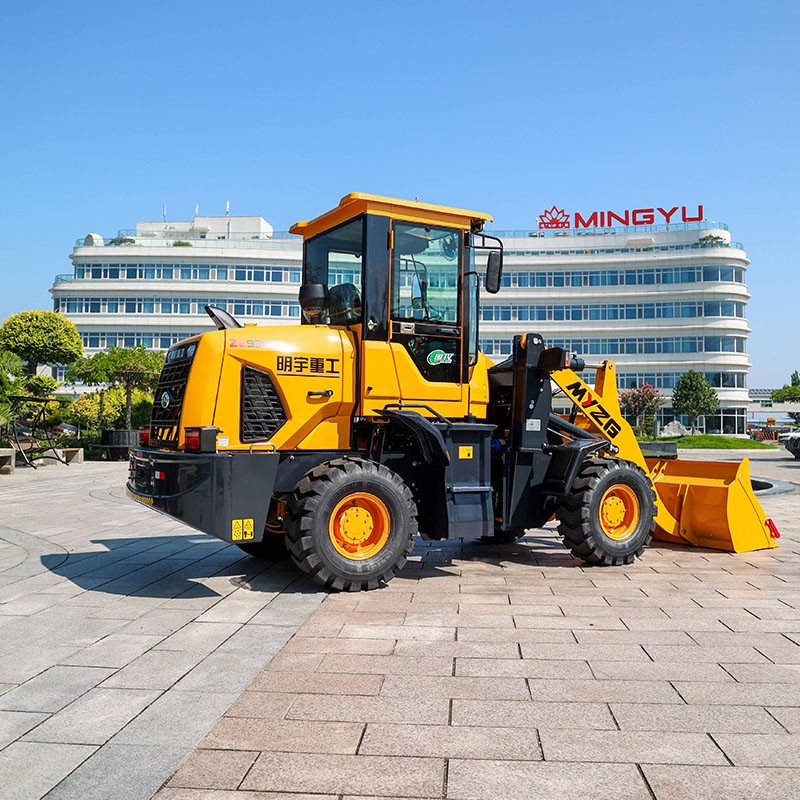

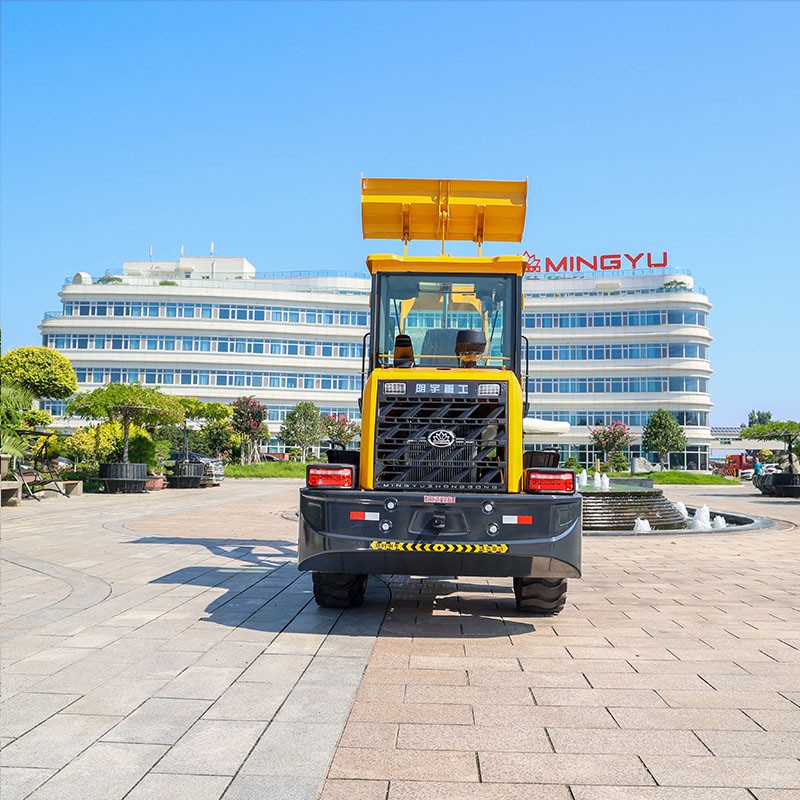

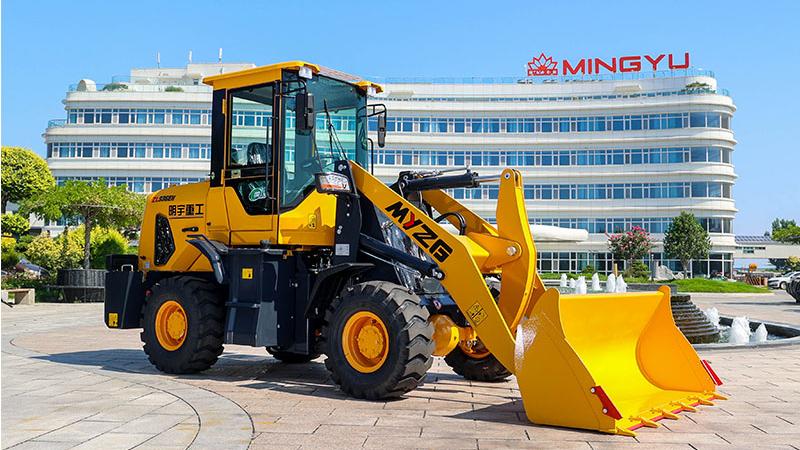

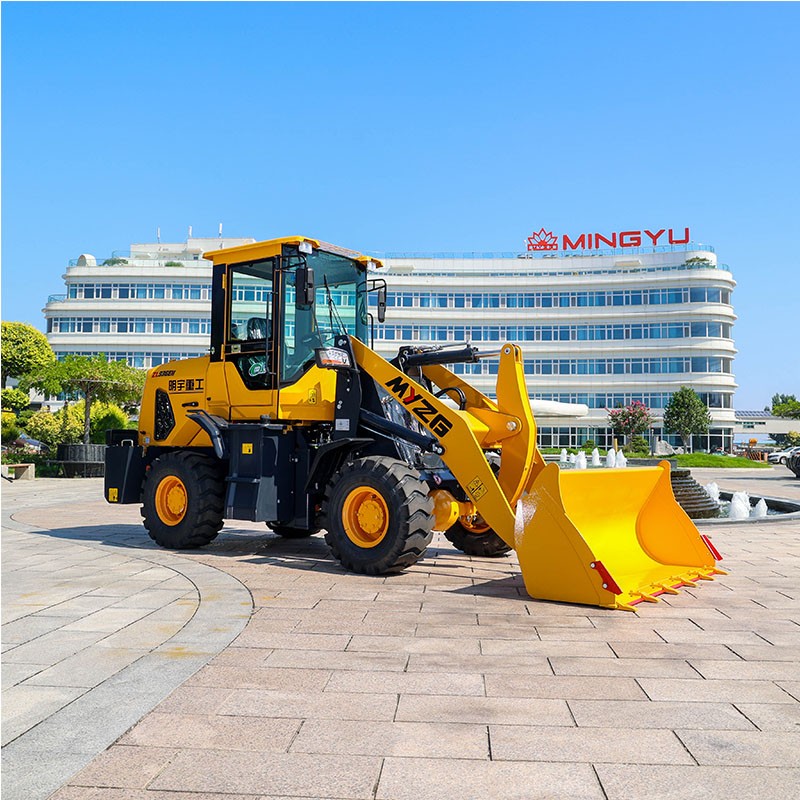

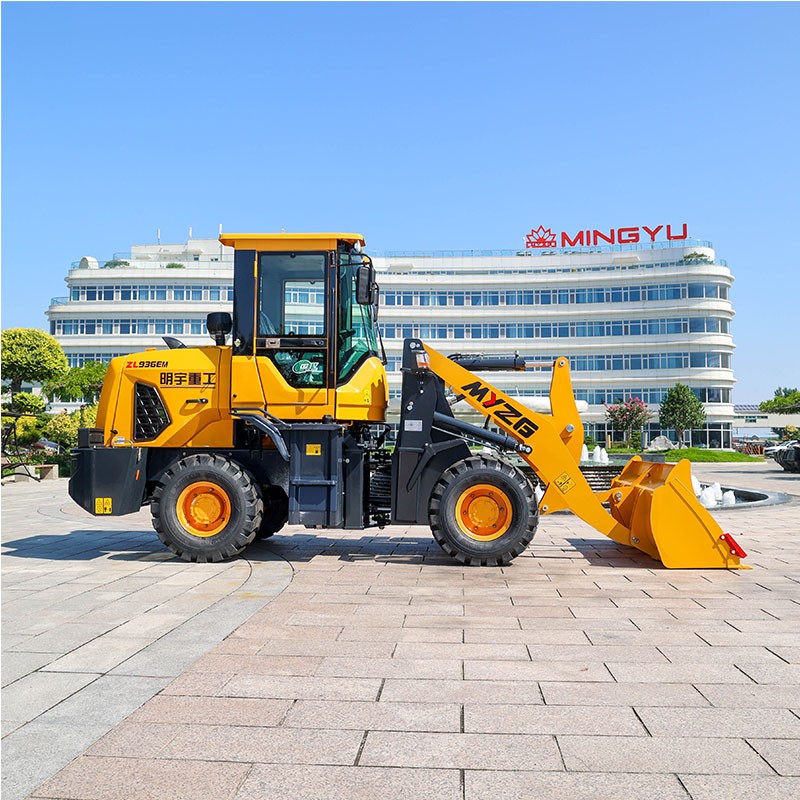

ZL-A928B 1600kg Compact Wheel Loader
The ZL-A928B Compact Wheel Loader emerges as a formidable and highly efficient solution in the realm of material handling and construction equipment, engineered to deliver exceptional performance where power, stability, and agility are paramount. With a robust rated load capacity of 1600 kg and an operating weight of 4150 kg, this machine is built to tackle the most demanding tasks with unwavering reliability, from moving heavy aggregates to loading trucks with consistent precision. At its core lies the proven Quanchai 4B2-52M22 diesel engine, generating a rated power of 38 kW at 2400 r/min, providing the substantial torque and dependable power output necessary for continuous, heavy-duty operation without faltering under pressure. The loader's dimensions, measuring 5540mm in length, 1940mm in width, and 2720mm in height, present a optimally balanced footprint, offering a blend of formidable presence and accessible maneuverability that is crucial for navigating diverse job sites, from sprawling construction projects to confined industrial yards. Equipped with large and rugged 20.5/70-16 tires, the ZL-A928B ensures superior traction, enhanced ground clearance, and remarkable durability across challenging and uneven terrains, guaranteeing that productivity remains high regardless of the working conditions, making it an indispensable asset for sectors ranging from construction and agriculture to logistics and waste management.
Performance is where the ZL-A928B truly distinguishes itself, featuring a remarkably generous rated bucket capacity of 0.85 cubic meters, enabling it to move significant volumes of material in a single pass, thereby drastically reducing cycle times and boosting overall operational efficiency. This capability is perfectly complemented by an impressive dump height of 3200mm, one of its standout features, which allows the loader to effortlessly discharge materials into the beds of high-sided trucks and large containers, a critical function that streamlines logistics on any site and eliminates the need for intermediate steps or additional equipment. Furthermore, an exceptional dump distance of 980mm at this height ensures that materials are placed precisely where intended, minimizing spillage and enhancing both safety and cleanliness around the loading area. Despite its substantial capabilities, the ZL-A928B boasts extraordinary agility, characterized by an incredibly tight minimum turning radius of just 2750mm. This exceptional maneuverability is achieved through an optimized chassis design with a wheelbase of 2240mm and a wheeltrack of 1492mm, allowing the machine to pivot and navigate through the most constricted spaces, around obstacles, and in crowded storage yards with an ease that belies its size, effectively turning potential operational bottlenecks into zones of seamless productivity.
RATED LOAD CAPACITY
1600KG
RATED BUCKET CAPACITY
0.85m³
OPERATING WEIGHT
4150KG
ENGINE MODEL
QUANCHAI 4B2-52M22
RATED POWER
38KW
RATED SPEED
2400 R/MIN
DIMENSIONS
5540*1940*2720MM
DUMP HEIGHT
3200MM
DUMP DISTANCE
980MM
MIN.TURNING RADIUS
2750MM
WHEEL BASE
2240MM
WHEELTRACK
1492MM
TYRE SIZE
20.5/70-16

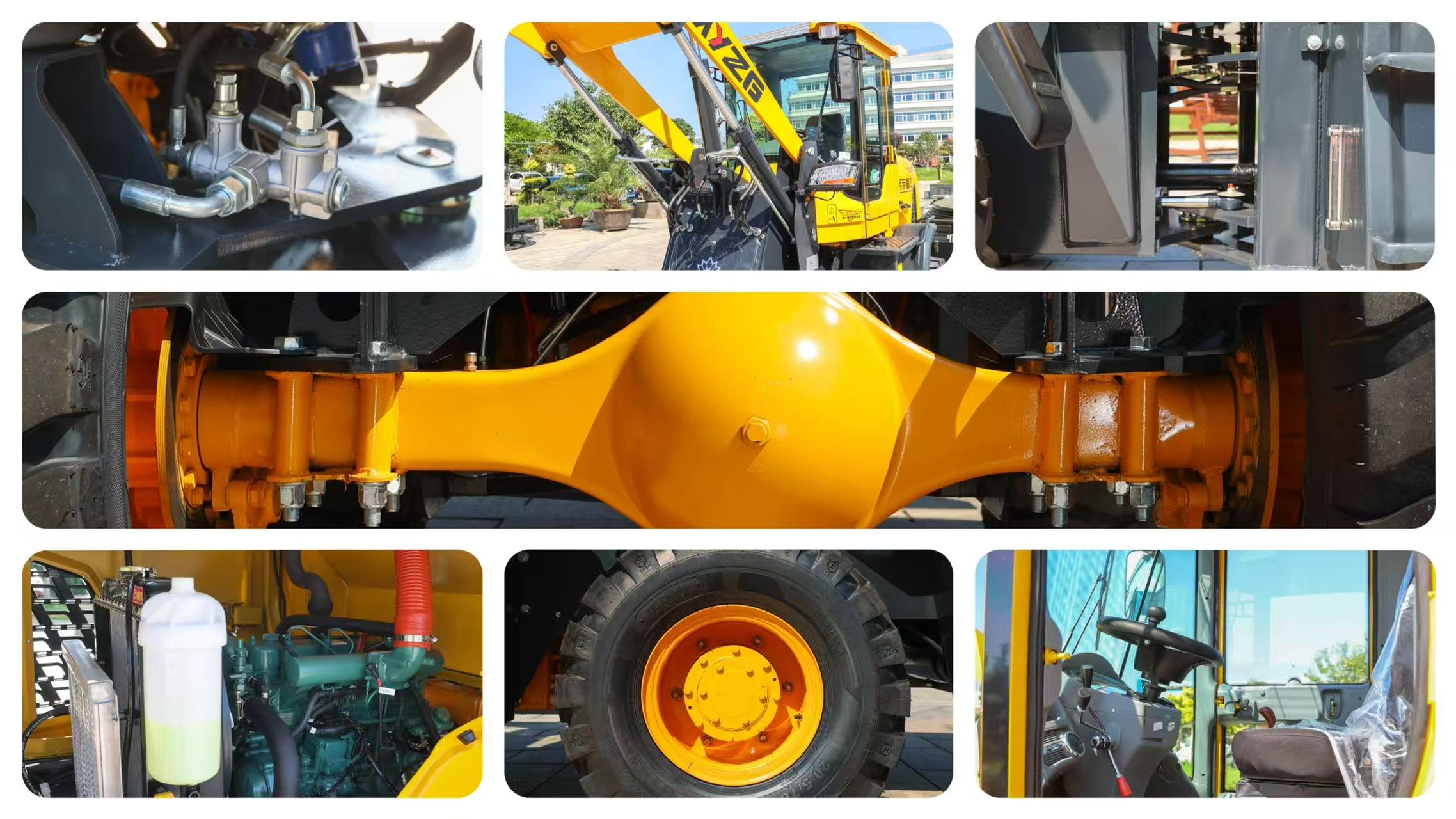

Operator experience and machine durability are central to the design philosophy of the ZL-A928B. The cabin is engineered to be a command center of comfort and efficiency, featuring ergonomically arranged controls, enhanced visibility, and a work environment designed to minimize operator fatigue during extended shifts, thereby ensuring consistent performance throughout the workday. The intuitive responsiveness of the hydraulic systems allows for smooth and precise control over all lifting and tilting functions, enabling fine-grained manipulation of loads for both efficiency and safety. Beyond operator comfort, the machine is constructed with a focus on rugged resilience and long-term reliability, utilizing high-strength materials and robust components in its frame and linkages to withstand the immense stresses of daily heavy lifting. This commitment to durability is matched by a design that facilitates straightforward maintenance, with easily accessible service points for routine checks on fluids, filters, and greasing, ensuring maximum uptime, reducing total cost of ownership, and providing peace of mind to owners and fleet managers who depend on the machine for their critical operations.
In conclusion, the ZL-A928B Compact Wheel Loader stands as a paragon of modern engineering, masterfully blending raw power with intelligent design to create a machine that is both highly capable and remarkably versatile. Its superior specifications—including the 1600kg load capacity, large 0.85m³ bucket, high 3200mm dump reach, and exceptional agility—position it as the ideal solution for a vast array of medium-duty applications. Whether it is employed in loading bulk materials, handling palletized goods, clearing demolition debris, or performing agricultural tasks, the ZL-A928B delivers performance that consistently exceeds expectations. It represents a smart, strategic investment for businesses seeking to enhance their operational capacity, improve site efficiency, and achieve a faster return on investment by utilizing a single, multi-functional machine that is built to last and designed to perform day in and day out under the most challenging conditions.
